INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GS300-N |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden case /standard container |
| Delivery Time: | 150 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/Year |
| Application: | Plastic And Rubber | Automatic Grade: | Automatic/semi-auto |
|---|---|---|---|
| Condition: | New | Driven Type: | Electric |
| Type: | Wrapping Machine | After-sales Service Provided: | Online Service |
| Voltage: | 380V/50HZ | Packaging Material: | Stretch Film |
| Product Name: | Pipe Coil Packing Machine | Ring Speed: | 20-90r/min |
| Highlight: | 2.0kw Pipe Packing Machine,2m/min Pipe Packing Machine,GS300 Pipe Wrapping Machine |
||

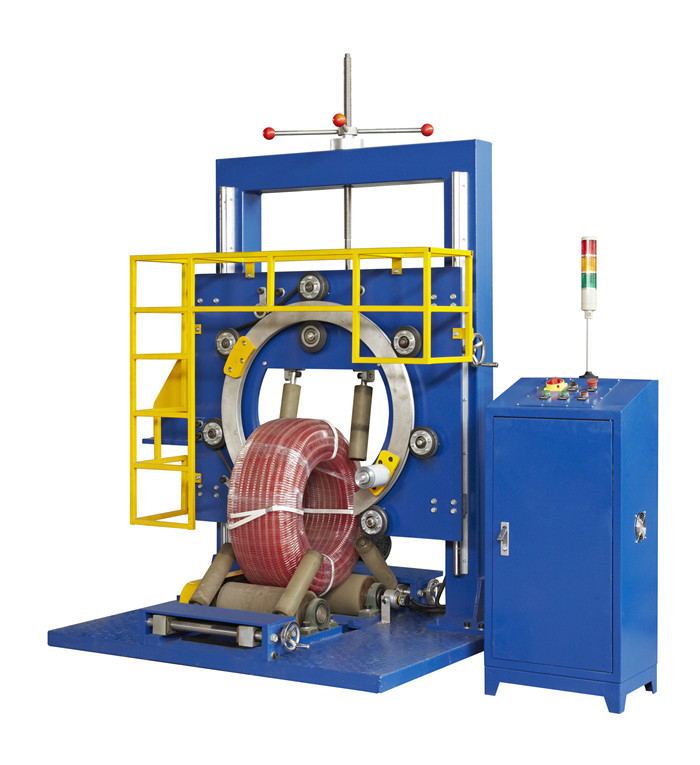

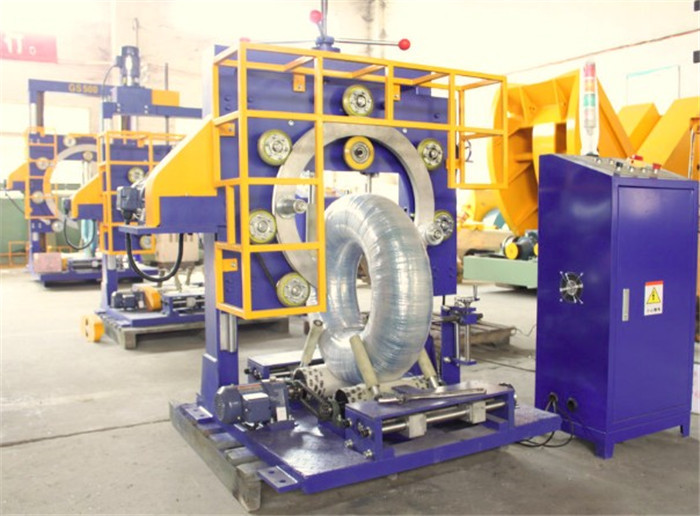

MACHINE APPLICATION:
The pipe coil wrapping machine is specialized for coiled objects such as corrugated pipe coils, steel wires, plastic tubes/pipes/hose coils, the wrapped package is well-protected & sealed & looks tidier. The machine not only can help you save the labor force,save space in your warehouse,improve your working efficiency, but also can well decorate your package objects.
BASIC FEATURES:
TECHNICAI DATA:
| ITEMS | GS300 | GS500 |
| Object weight | ≤500mm | ≤1000mm |
| Object height | ≤300mm | ≤500mm |
| Object OD | 500-1000mm | 600-1200mm |
| Object ID | ≥300mm | ≥400mm |
| Roller speed | 2-4m/min | 2-4m/min |
| Ring speed | 30-50r/min | 30-50r/min |
| Suitable material | Stretch film, Knit tape,paper tape etc. | Stretch film, Knit tape,paper tape etc. |
| Material width | 100-150mm | 100-150mm |
| Material OD | 150mm | 150mm |
| Material ID | 55mm | 55mm |
| Power output | About 1.5kw | About 2.0kw |
| Power voltage | 380V,50HZ | 380V,50HZ |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
OUR QUALIFICATIONS:
*ISO9001:2000 and CE certified.
*Professional manufacturer with more than 20 years' experience in the field.
*Reliable and high-quality products provided.
*Custom-built machines provided according to special requirement.
*Update and powerful technical support provided.
*Long-term, reliable and friendly partnership.
