INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Wrapping Overlap: | 30%-80% Adjustable | Application: | Aluminium Coil,steel Coil, Wire Coil |
|---|---|---|---|
| Automation: | Fully Automatic | Packing Type: | Stretch Wrapping |
| Wrapping Material: | LLDPE Stretch Film | Material Size: | Width 150mm, OD 160mm, ID76mm |
| Coil OD: | 800mm～2100mm | Coil ID: | 405mm～520mm |
| Coil Width: | 800mm～2300mm | Power Voltage: | 380V/50HZ |
| Highlight: | 2100mm Aluminum Coil Packing Line,GD2000 Aluminum Coil Packing Line,800mm Steel Coil Wrapping Machine |
||

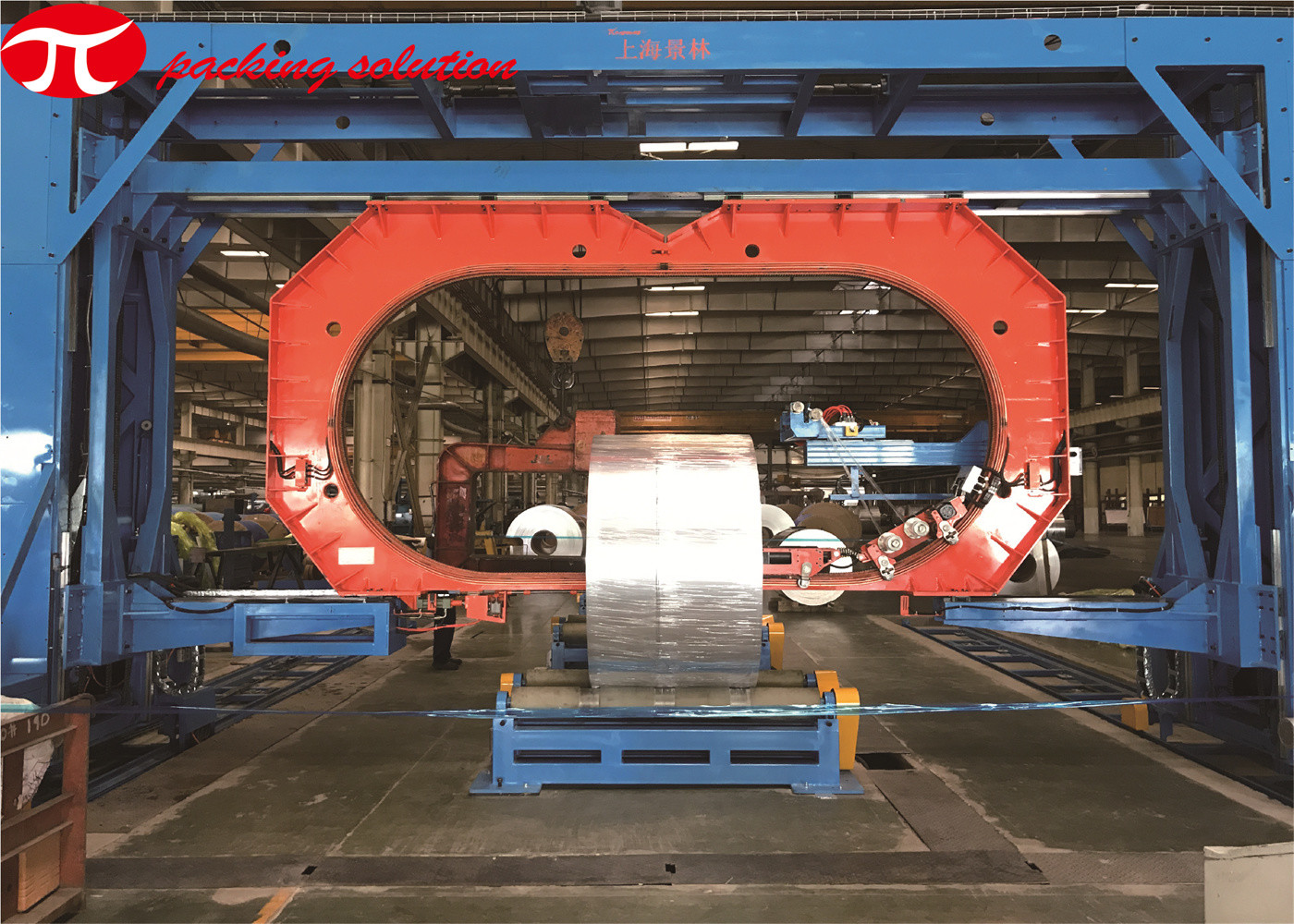

Fully automatic Easy Operation master Aluminum Coil Packing Line Coil OD 800mm-2100mm
Application:
This machine is specially designed for packing extra wide metal coils. It’s a highly automatic& integrated, safe and practical packing machine. Multiple stations working reciprocating, to achieve long time continuous operation.
Mainly applicable for through-the-eye packing of big steel coils, aluminium coils, wire coils,etc.
Basic composition:

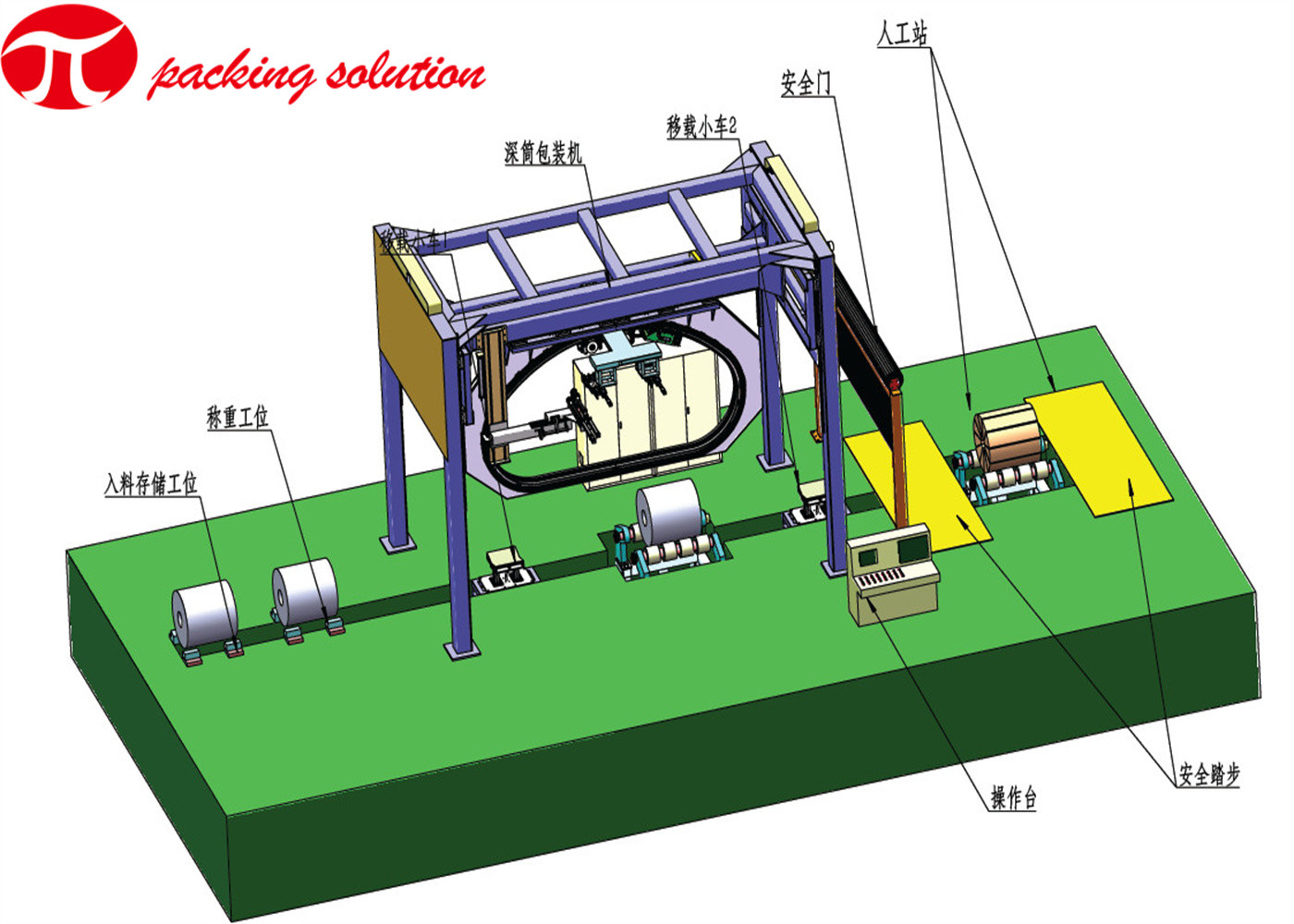

The machine is mainly composed of the packing unit, roller stations, control cabinet, guardrails&etc.
Main datas:
| Applicable objects | Steel coil, wire coil, aluminium coil |
| Coil OD | 800mm～2100mm |
| Coil ID |
405mm～520mm |
| Coil Width | 800mm～2300mm |
| Coil Weight | ≤12T |
| Packing station quantity | 1-3sets |
| Wrapping material | LLDPE stretch film |
| Wrapping overlap | 30%~80% adjustable |
| Wrapping material size | film roll width 150mm, roll OD 160mm,roll ID76mm |
Note: The datas are only for reference, the machine can be custom designed according to specific object size.
Services we provide:
pre-sale service:
1. We provide various forms of pre-sales services, carry out investment budgeting, manufacturing, planning, so that customers can make reasonable plans at a lower cost.
2. We will check the customer's goods first, and then recommend a suitable packaging machine.
3. We will recommend and provide the machine based on the customer's usage and purchase budget.
In-sale service:
1. We will provide photos of each manufacturing step on time for customers to check.
2. We will prepare packaging and shipment in advance according to customer's needs.
3. Test the machine and make a video for customers to check.
After-sale service:
1. We guarantee the quality of the machine for 1 year.
2. We provide free training and answer customers' technical questions in time.
