INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GW200 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Wire Coil, Cable Coil,bearing | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Coil ID: | 400-600mm |
| Coil OD: | 600-1200mm | Voltage: | 220V/380V/50HZ |
| Packaging Material: | Stretch Film,paper,plastic | Power: | About 1.5kw |
| Ring Speed: | Appr. 20-80r/min | Packaging Type: | Film And Paper Stretch Wrapping |
| Highlight: | 2.2KW Horizontal Coil Wrapping Machine,220V Horizontal Coil Wrapping Machine |
||

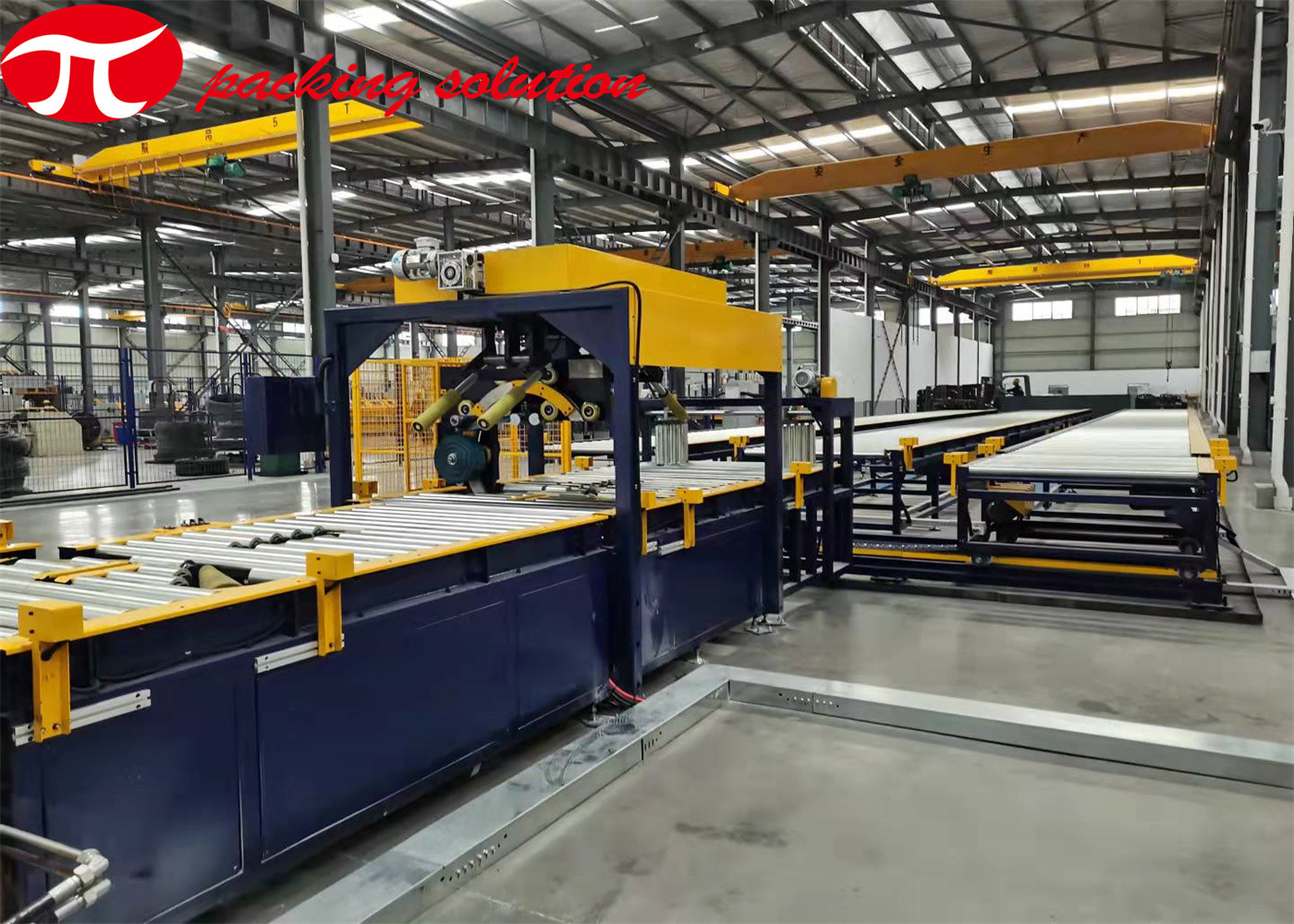

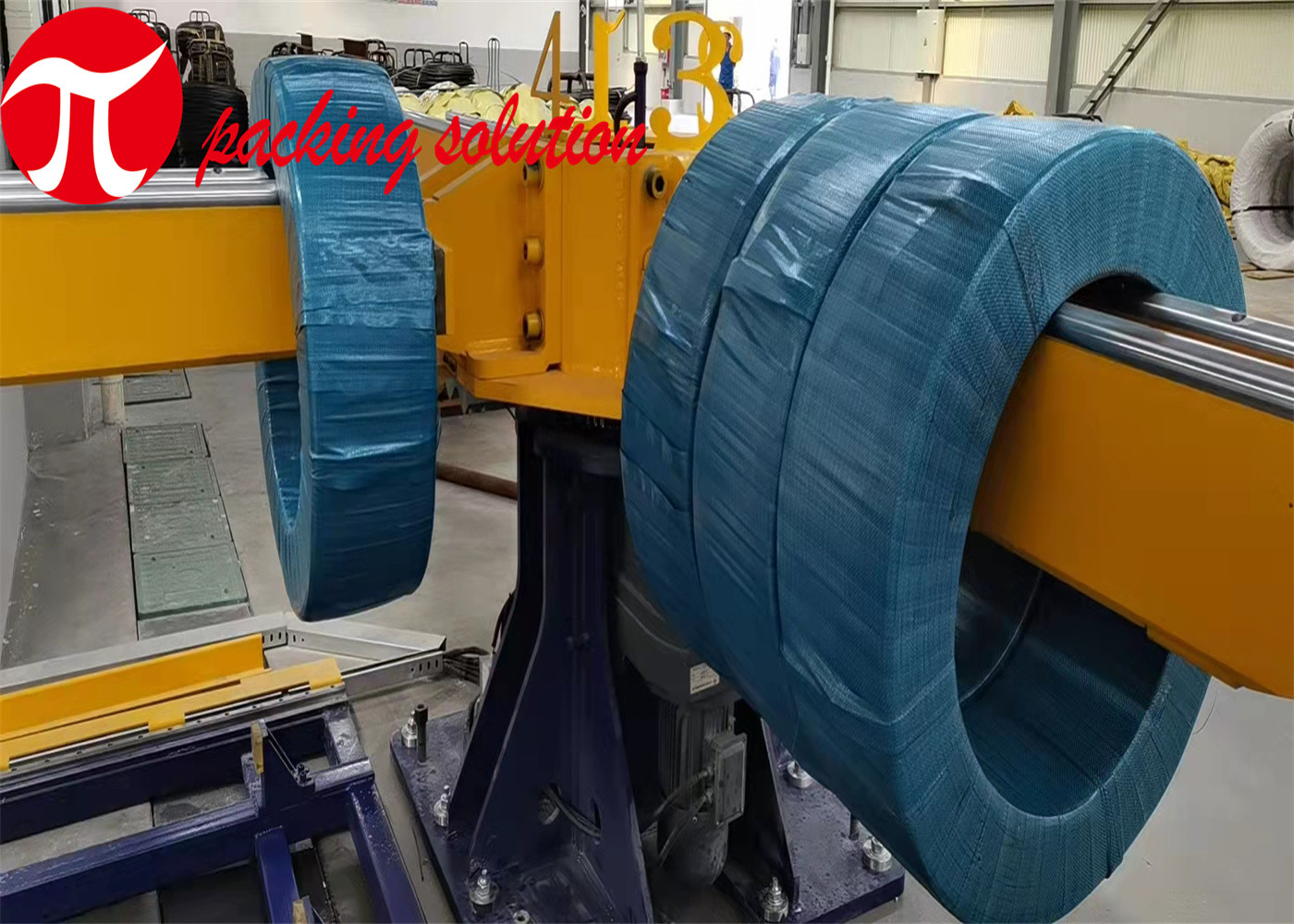

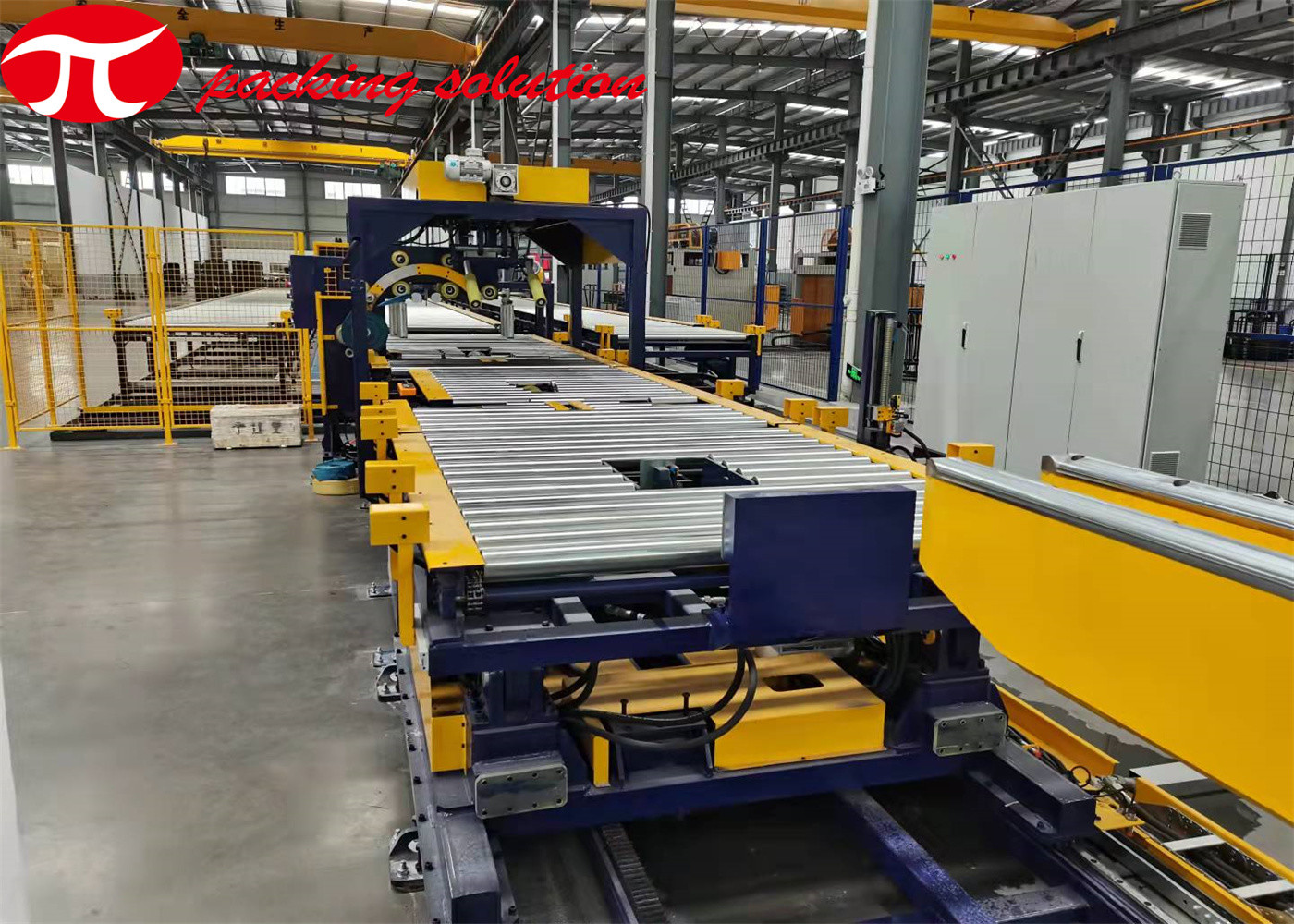

Automatic Horizontal high speed turning wire and cable packing machine with turnstile
MACHINE APPLICATION:
The wire wrapping machine is mainly applied for packing various metal wire products .
The structure is simple and easy for operation and maintenance,
The packing machine can make the product well-protected and sealed from water, dust and crushes.
The machine replaces the traditional manual packing and can greatly improve the packing efficiency and save labor force.
BASIC FEATURES:
1. The turning speed of the ring and carrier rollers is adjustable by converter.
2. The overlap of packing tape can be adjusted by inverters.
3. The wrapping tape tension can be adjusted.
4. Press roller and side rollers adopted to prevent the project from shaking in packing.
5. The wrapping material can be cut automatically.
6. The supporting rollers are wrapped by polyurethane for protection.
7. Indicator alarms automatically when trouble occurs.
8. Friction between wheel and ring is adjustable.
9. Soft start and soft stop ensure safe operation.
MAIN PARAMETERS:
| Model | GW200-N | GW200-W |
| Coil OD | 600-1200mm | 600-1200mm |
| Coil ID | ≥400mm | ≥400mm |
| Coil width | ≤200mm | ≤200mm |
| Coil weight | ≤300KG | ≤500KG |
| Cutting type | Manual cutting | Auto cutting |
| Ring speed | Appr.70r/min | Appr.80r/min |
| Packing material | knit tape, compound paper, stretch film, non-woven fabrics,etc | knit tape, compound paper etc |
| Material width | 100-120mm | 80-100mm |
| Material OD | 200mm | 450mm |
| Material ID | 55mm | 55mm |
| Power output | About 1.5KW | About 2.2KW |
| Power supply | AC/380V | AC/380V |
| Air supply | Without | With(6-8kgf/cm2) |
| Pushing-out system | Optional | Optional |
| Circular labeling system | Optional | Optional |
| Synchronous wrapping system | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
