INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GG800 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Pipe, Steel Tube, Plastic Pipe,aluminium | Turning Speed: | 20-90r/min |
|---|---|---|---|
| Packing Type: | Stretch Wrapping | Conveyor Length: | 2-9m |
| Conveyor Height: | Appr. 1000mm | Section Diameter Of The Pipe/bundle: | ≤1000mm |
| Warranty: | 12 Months | Color: | Standard Blue |
| Package Length: | Not Limited | Power Output: | About 1.5kw |
| Highlight: | 6000mm Steel Tube Bundling machine,380V Steel Tube Bundling machine |
||

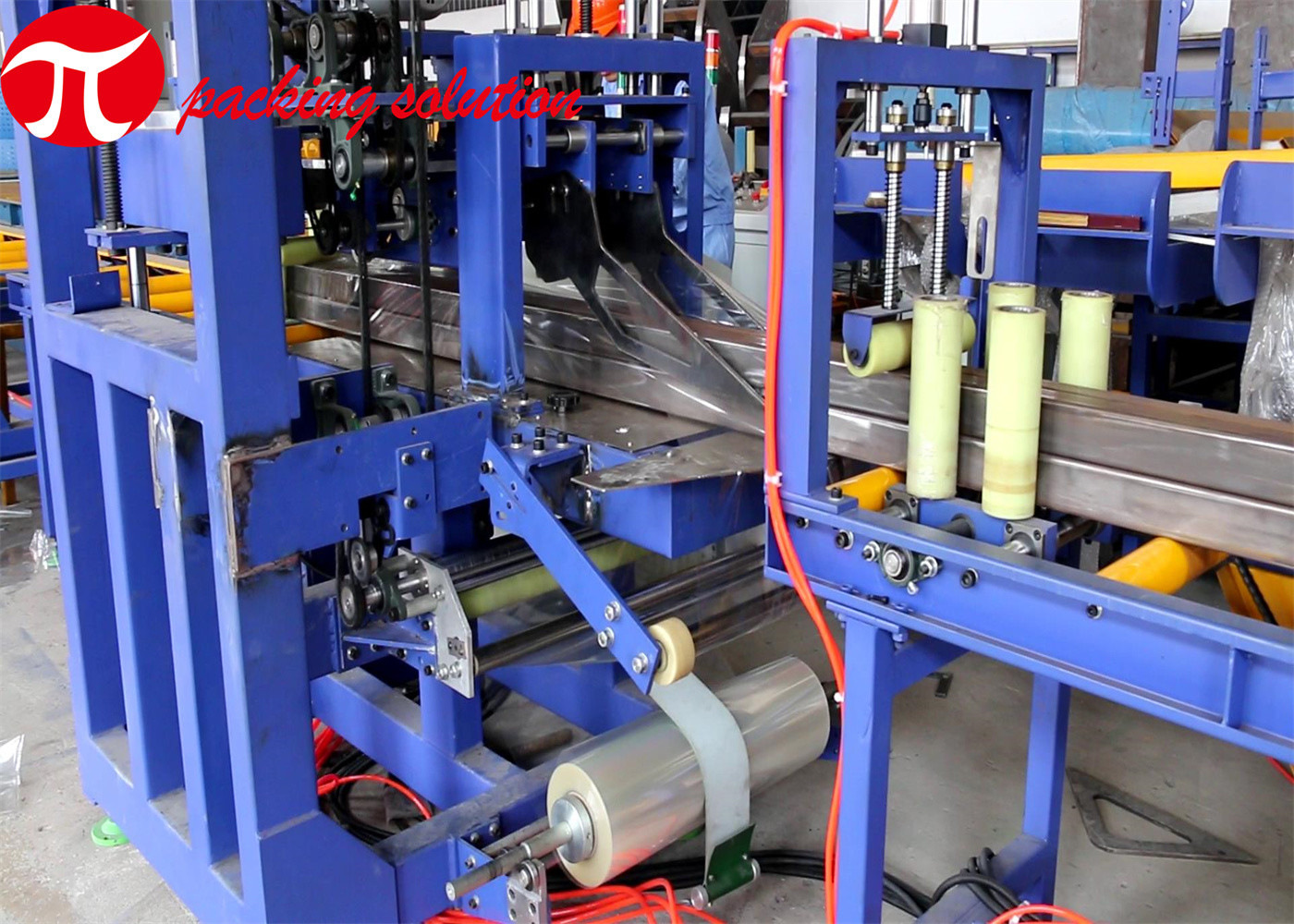

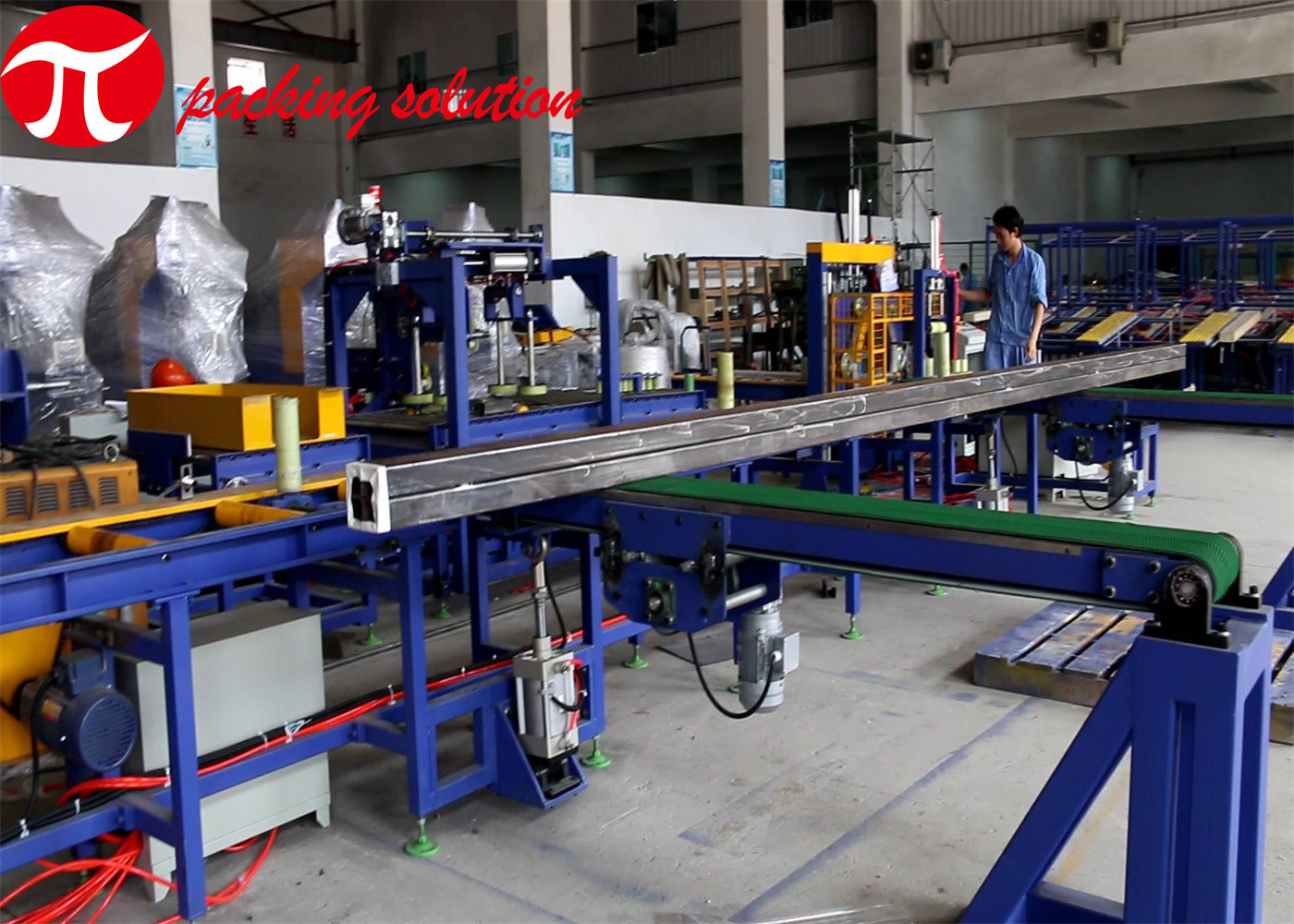

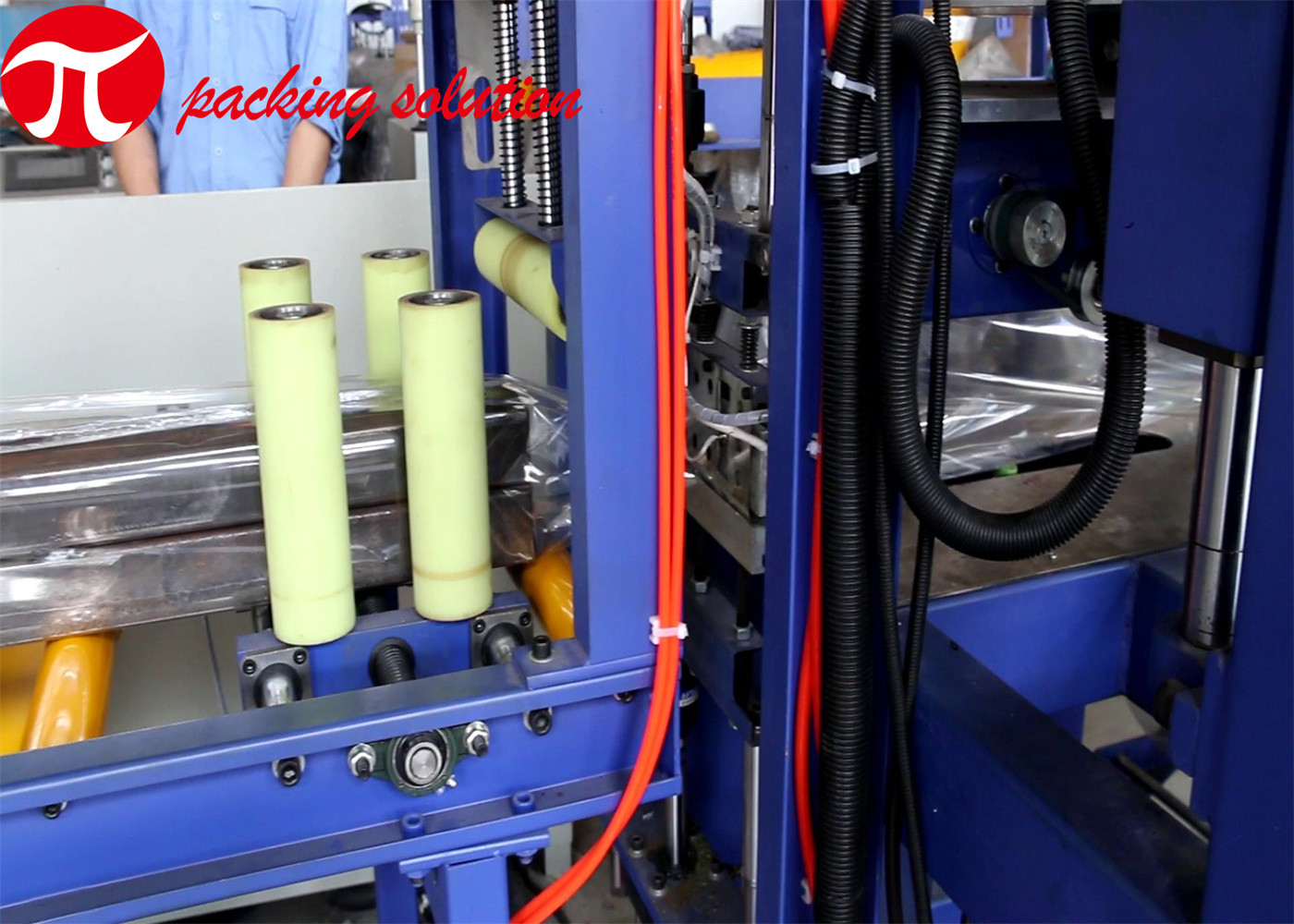

Automatic Horizontal Steel Tube Packaging Machine / Pipe Bundle Wrapping Machine
MACHINE APPLICATION:
The pipe wrapping machine is designed for outside wrapping of plastic pipes ,steel pipe, copper pipe and other horizontal objects. The packing machine is able to protect the pipes from damage during handling, transportation and storage. The stretch wrapping machine enables superior product protection, faster and more effective packaging, also greatly reduce materials consumption and energy consumption.
BASIC FEATURES:
MAIN PARAMETERS
| Items | GG800 |
| Section diameter of the pipe/bundle | ≤1000mm |
| Package length | Not limited |
| Conveyor length | 1000-6000mm |
| Conveying speed | About 1-10m/min |
| Rotating speed | 20-90r/min |
| Conveyor height | Appr. 1000mm |
| Overlap scope | About 10%-90% |
| Power output | About 1.5kw |
| Power voltage | 380V/3phase/ 50Hz |
| Wrapping material | Compound paper tape/knit tape/anti-rust tape/stretch film/etc. |
| Wrapping material roll size |
Width:≤250mm Max OD:400mm ID:55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
