INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GG800 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Pipe, Steel Tube, Plastic Pipe,aluminium | Pipe Diameter: | 200-800mm |
|---|---|---|---|
| Turning Speed: | 20-90r/min | Packing Type: | Stretch Wrapping |
| Warranty: | 12 Months | Conveyor Length: | 1000-6000mm(can Be Customized) |
| Material: | Waterproof Tape/ Stretch Film | Power Output: | About 2.4kw |
| Material Size: | Width:≤250mm Max OD:400mm ID: 55mm | Color: | Standard Blue |
| Highlight: | 380V Steel Tube Packing Machine,55mm Steel Tube Packing Machine,200mm Steel Pipe Packing Machine |
||

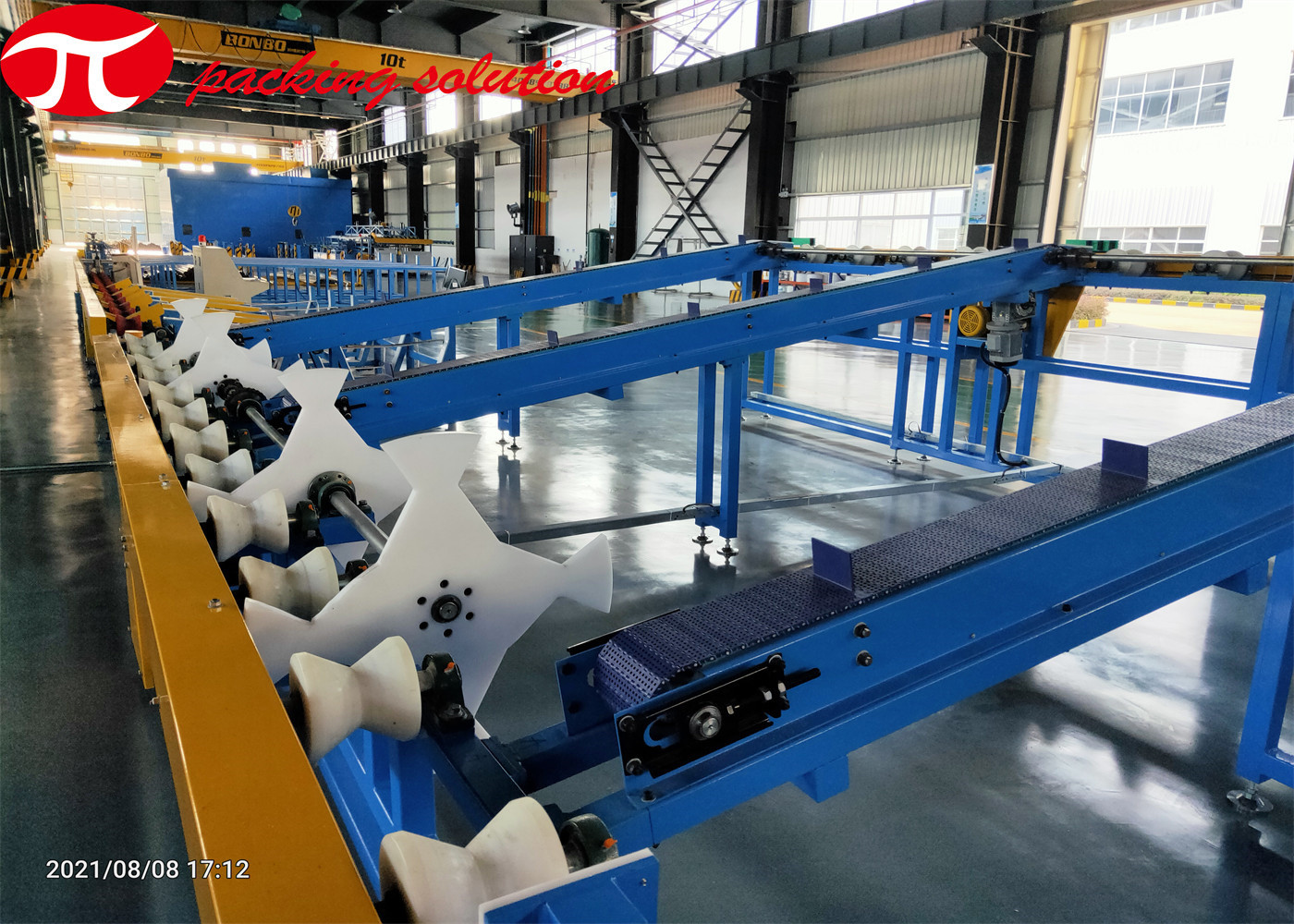

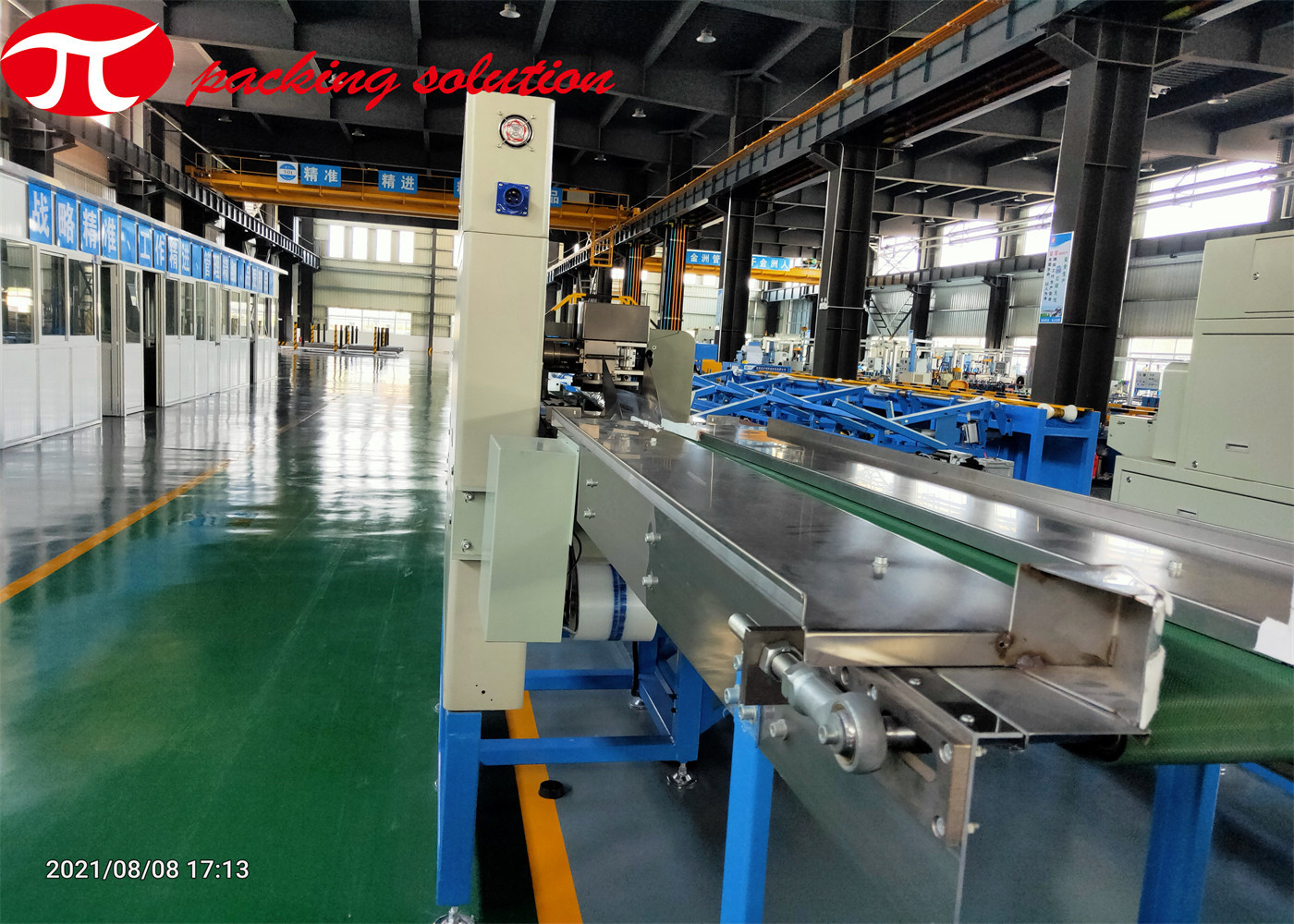

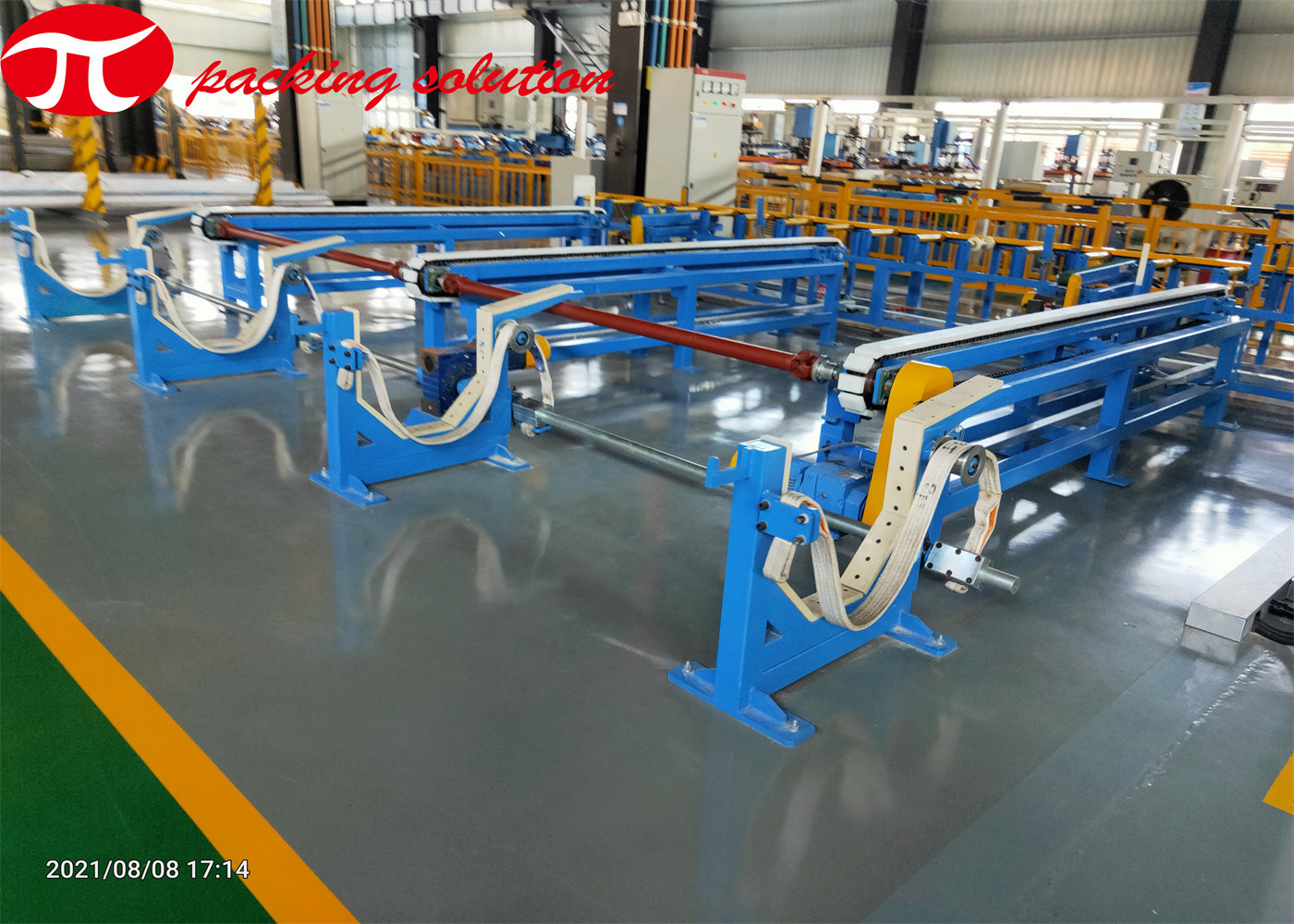

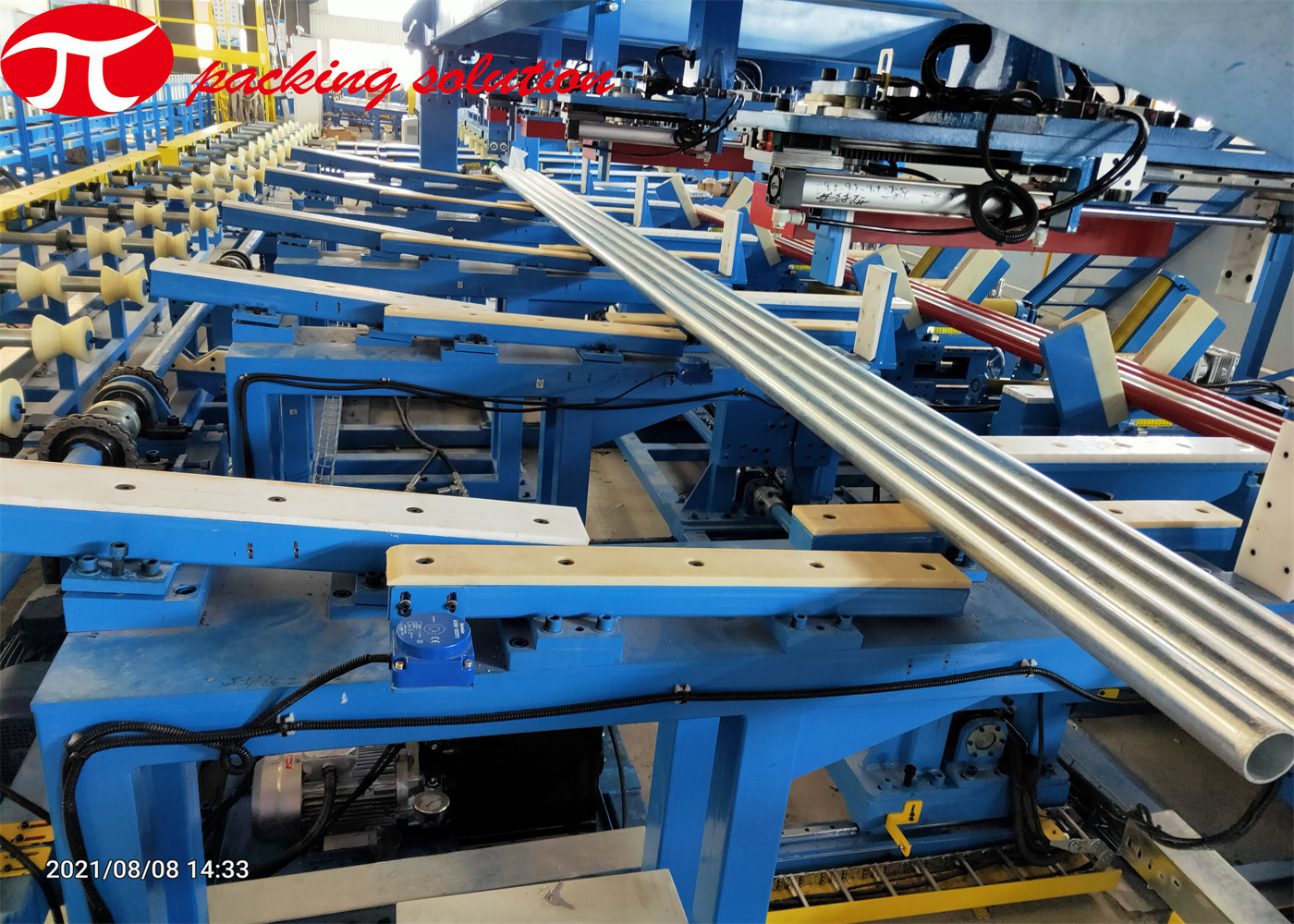

Automatic Steel Tube Packing Machine Stretch Film Wrapping Machine 200mm Dia 55mm ID
Machine application:
The horizontal steel pipe wrapping machine is specialized for wrapping horizontal shapes of steel pipes, plastic pipes, copper tubes, profiles, bars, panels, and other horizontal objects. the wrapped package is well-protected & sealed & looks more tidy.
The machine shall be mounted on flat & hard ground, where the ground load should be more than 1ton/m2.
Main Parameters:
| Section diameter of the pipe(φ) | 100-500MM |
| Conveyor length | 2000-5000MM |
| Rotating speed | About 1-10m/min |
| Overlap scope | 10%-90% |
| Power output | About 2.4kw |
| Material |
Waterproof tape/ stretch film |
| Material size |
Width:≤250mm Max OD:400mm ID: 55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Machine main features:
