INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GG800 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Aluminium Pipe, Steel Tube, Plastic Pipe | Turning Speed: | 20-90r/min |
|---|---|---|---|
| Packing Type: | Stretch Wrapping | Conveyor Length: | 2-10m |
| Warranty: | 12 Months | Color: | Standard Blue |
| Package Length: | Not Limited | Wrapping Material: | Compound Paper Tape/knit Tape/anti-rust Tape/stretch Film/etc. |
| Wrapping Material Roll Size: | Width:≤250mm Max OD:400mm ID:55mm | Power Voltage: | 380V/3phase/ 50Hz |
| Highlight: | 6000mm Aluminium Profile Wrapping Machine,GG800 Aluminium Profile Wrapping Machine,50Hz Aluminium Profile Wrapping Machine |
||
90r/min High efficiency GG800 Automatic Horizontal Aluminium Profile Wrapping Machine
MACHINE APPLICATION:
The pipe wrapping machine is designed for outside wrapping of various pipes including aluminum pipe, steel pipe and other horizontal objects. The packing machine is able to protect the pipes from damage during handling, transportation and storage. The stretch wrapping machine enables superior product protection, faster and more effective packaging, also greatly reduce materials consumption and energy consumption.

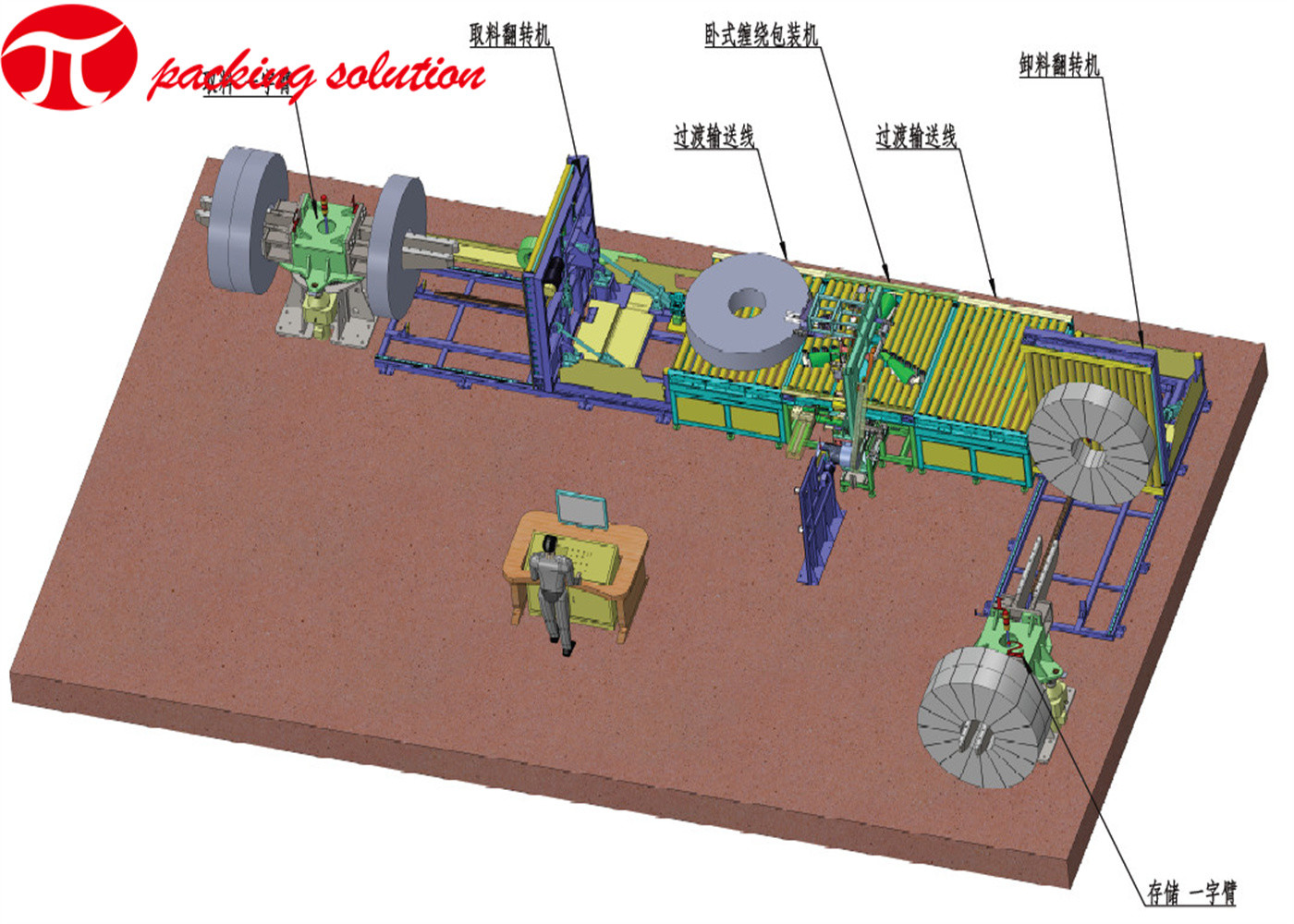

Specification designing of Coils Packing Line to connect the packing line with exit of a Slitting Line by coil car/turnstile. We offer the best solution which ensure your maximum production and packaging speed. Automatic solution is achieved without gap for the unmanned operation.
BASIC FEATURES:
MAIN PARAMETERS:
| Items | GG800 |
| Section diameter of the pipe/bundle | ≤1000mm |
| Package length | Not limited |
| Conveyor length | 1000-6000mm |
| Conveying speed | About 1-10m/min |
| Rotating speed | 20-90r/min |
| Conveyor height | Appr. 1000mm |
| Overlap scope | About 10%-90% |
| Power output | About 1.5kw |
| Power voltage | 380V/3phase/ 50Hz |
| Wrapping material | Compound paper tape/knit tape/anti-rust tape/stretch film/etc. |
| Wrapping material roll size |
Width:≤250mm Max OD:400mm ID:55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Company strength:
1. Advanced technology:
Through continuous innovation, R&D investment, product development and technical polishing, Jinglin has owned a number of advanced products and hundreds of domestic initiative technologies.
2.Diverse products:
More than 200 types of packing machines and professional solutions for 18 industries including steel industry, aluminum processing industry, copper processing industry, plastic pipe industry, wire products, bar products&etc.
3.Rich experience:
With rich experience gained in our long-term work of R&D, production and customer service, we’re able to face the pain point of the industry demands and provide custom solutions for different needs.
4.Good service:
Service is the continuation of technology and production, as well as the beginning of next development. From product to service is a leaping-over, and also a returning to the origin.
