1000mm OD Tube Wrapping Machine 12 Months Warranty With Bundling Strapping System

1000mm OD Tube Wrapping Machine 12 Months Warranty With Bundling Strapping System
1000mm OD Tube Wrapping Machine 12 Months Warranty With Bundling Strapping System 1000mm OD Tube Wrapping Machine 12 Months Warranty With Bundling Strapping System 1000mm OD Tube Wrapping Machine 12 Months Warranty With Bundling Strapping System 1000mm OD Tube Wrapping Machine 12 Months Warranty With Bundling Strapping System 1000mm OD Tube Wrapping Machine 12 Months Warranty With Bundling Strapping System 1000mm OD Tube Wrapping Machine 12 Months Warranty With Bundling Strapping System
Basic Information
Place of Origin: China
Brand Name: jlpack
Certification: ISO9001，CE
Model Number: GG800
Minimum Order Quantity: 1
Packaging Details: Wooden case /standard container
Delivery Time: Stand-alone 1 week ,the packing line 150days
Payment Terms: T/T
Supply Ability: 200 sets/Year
Get Best Price Contact Now
Application: Steel Pipe, Steel Tube, Plastic Pipe,aluminium Tube Turning Speed: 20-90r/min
Conveyor Length: 2-10m Packing Type: Stretch Wrapping
OD: 500-1000mm Conveying Speed: About 1-10m/min
Conveyor Height: Appr. 1000mm Overlap Scope: About 10%-90%
Color: Standard Green Warranty: 12 Months
Highlight:

1000mm Tube Wrapping Machine

,

GG800 Tube Wrapping Machine

1000mm OD Tube Wrapping Machine 12 months Warranty with bundling & strapping system





MACHINE APPLICATION:

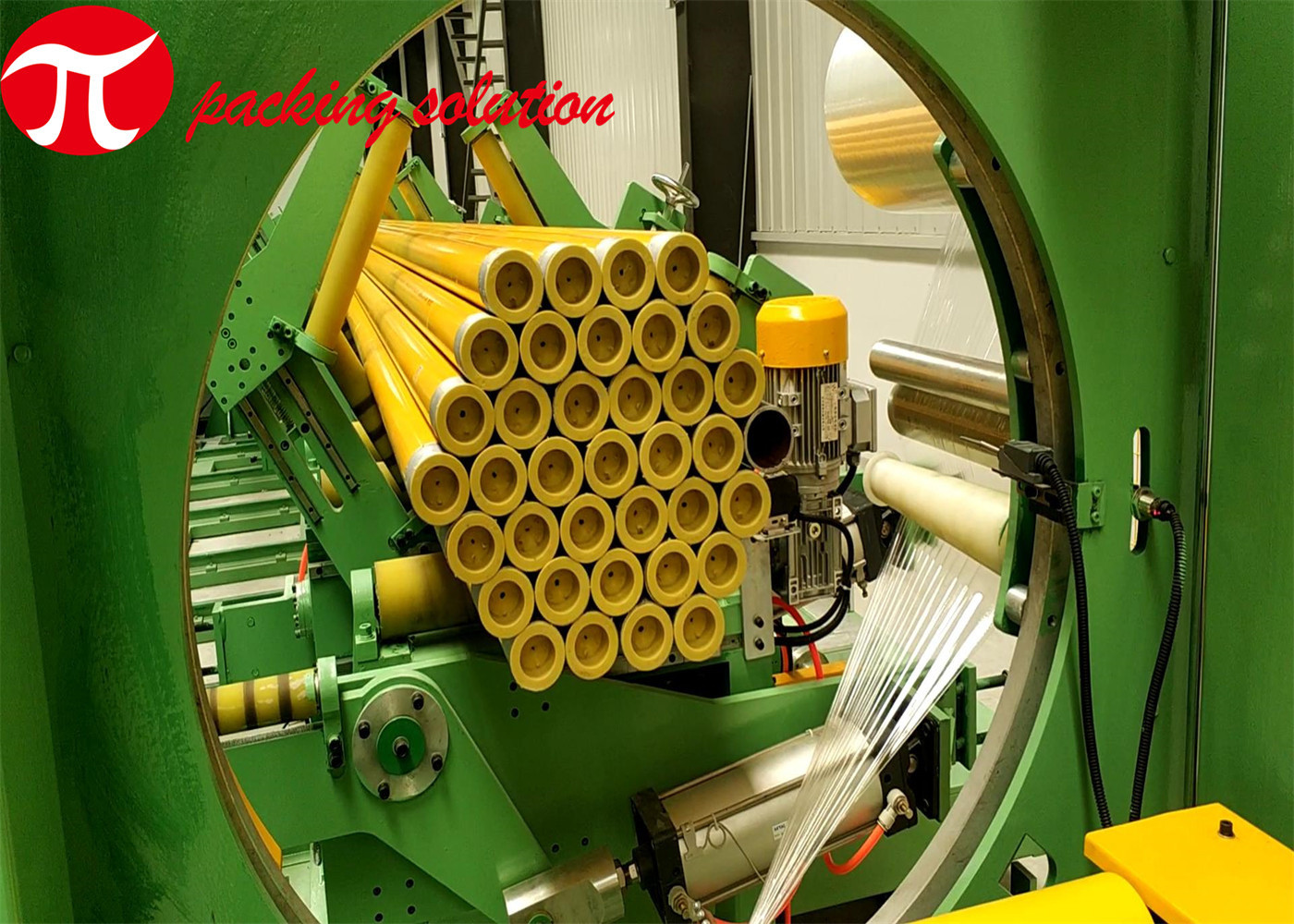

This machine is widely used for wrapping welded pipe ,seamless pipe,stainless steel pipe,copper tube,aluminum tube,plastic pipe& etc.The wrapping product is well decorated, with good effect of rust-proff,dust-proof,water-proof,anti-wear and anti-damage.





MAIN PARAMETERS:

Items GG800
Section diameter of the pipe/bundle ≤1000mm
Package length Not limited
Conveyor length 1000-6000mm
Conveying speed About 1-10m/min
Rotating speed 20-90r/min
Conveyor height Appr. 1000mm
Overlap scope About 10%-90%
Power output About 1.5kw
Power voltage 380V/3phase/ 50Hz
Wrapping material Compound paper tape/knit tape/anti-rust tape/stretch film/etc.
Wrapping material roll size

Width:≤250mm

Max OD:400mm

ID:55mm

Note: the datas are only for reference, the machine can be custom designed according to specific object size.





BASIC FEATURES:

  1. PLC programmable controller and man-machine dialogue touchscreen.
  2. Automatic fault alarming.
  3. Friction structure adopted for safe, steady and strong operation.
  4. Photocell sensor adopted for automatic object tracking, precise positioning, convenient and safe for operation.
  5. Special tension adjust system ensures uniform tension of the packing material.
  6. Protective rollers wrapped by polyurethane used to well protect the object from scratches.
  7. Height of the ring center can be adjusted in accordance with the specific product.
  8. Soft start and soft stop ensure safe operation.
  9. Independent control cabinet, convenient for operation and maintenance.
  10. The conveyor length can be customized according needs.
  11. The mechanical hand device can be chosen for automatic material feeding & cutting operation.
  12. Two different material can be wrapped synchronously (optional).

Tag:

Orbital Steel Pipe Packing Machine,

50Hz PVC Pipe Wrapping Machine,

PLC Control Orbital Wrapper Machine
