INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GG1200 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Pipe, Steel Tube, Plastic Pipe | Pipe Diameter: | 200-800mm |
|---|---|---|---|
| Packing Type: | Stretch Wrapping Machine | Turning Speed: | 20-90r/min |
| Automatic Grade: | Semi-auto | Power Output: | About 2.4kw |
| Conveyor Height: | Approx. 1000mm | Material: | Stretch Film/Compound Paper |
| Color: | Standard Colour | Warranty: | 12 Months |
| Highlight: | 20r/Min Steel Tube Packing Machine,GG800 Steel Tube Packing Machine,2.4kw Steel Tube Packaging Machine |
||
Semi-auto Steel Tube Packing Machine Horizontal Stretch Film Packing Machine 20r/min
The packing machine application:

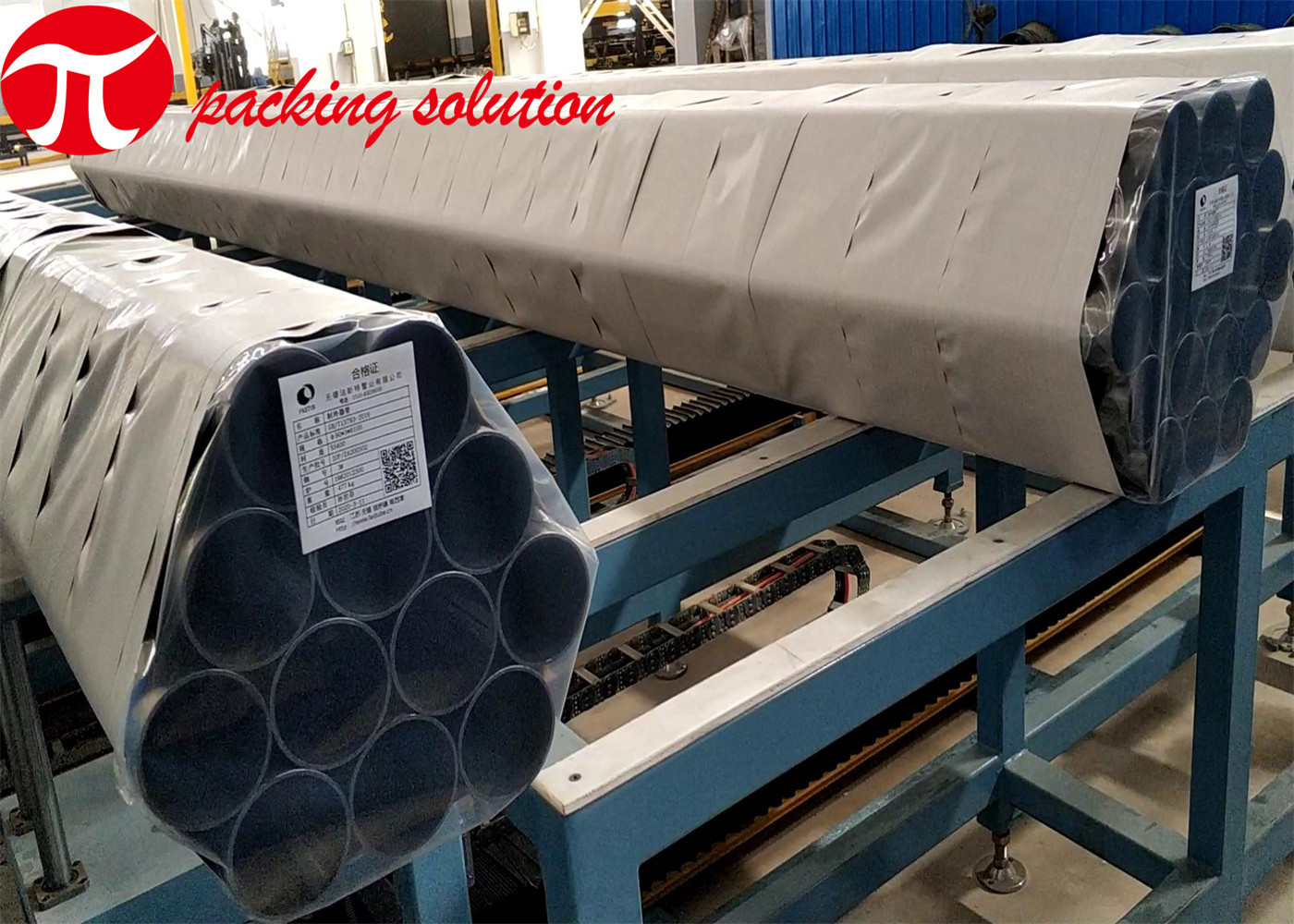

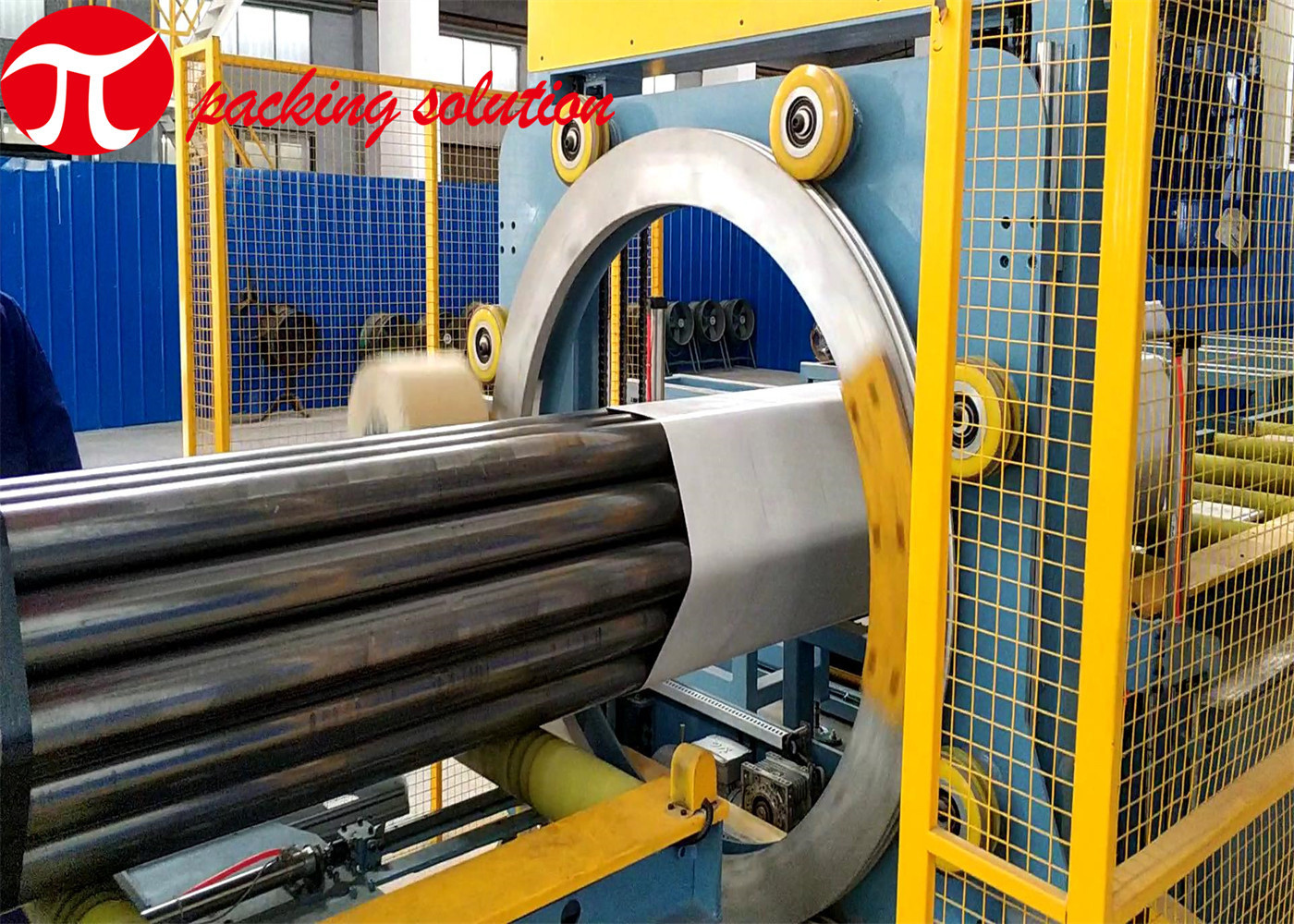

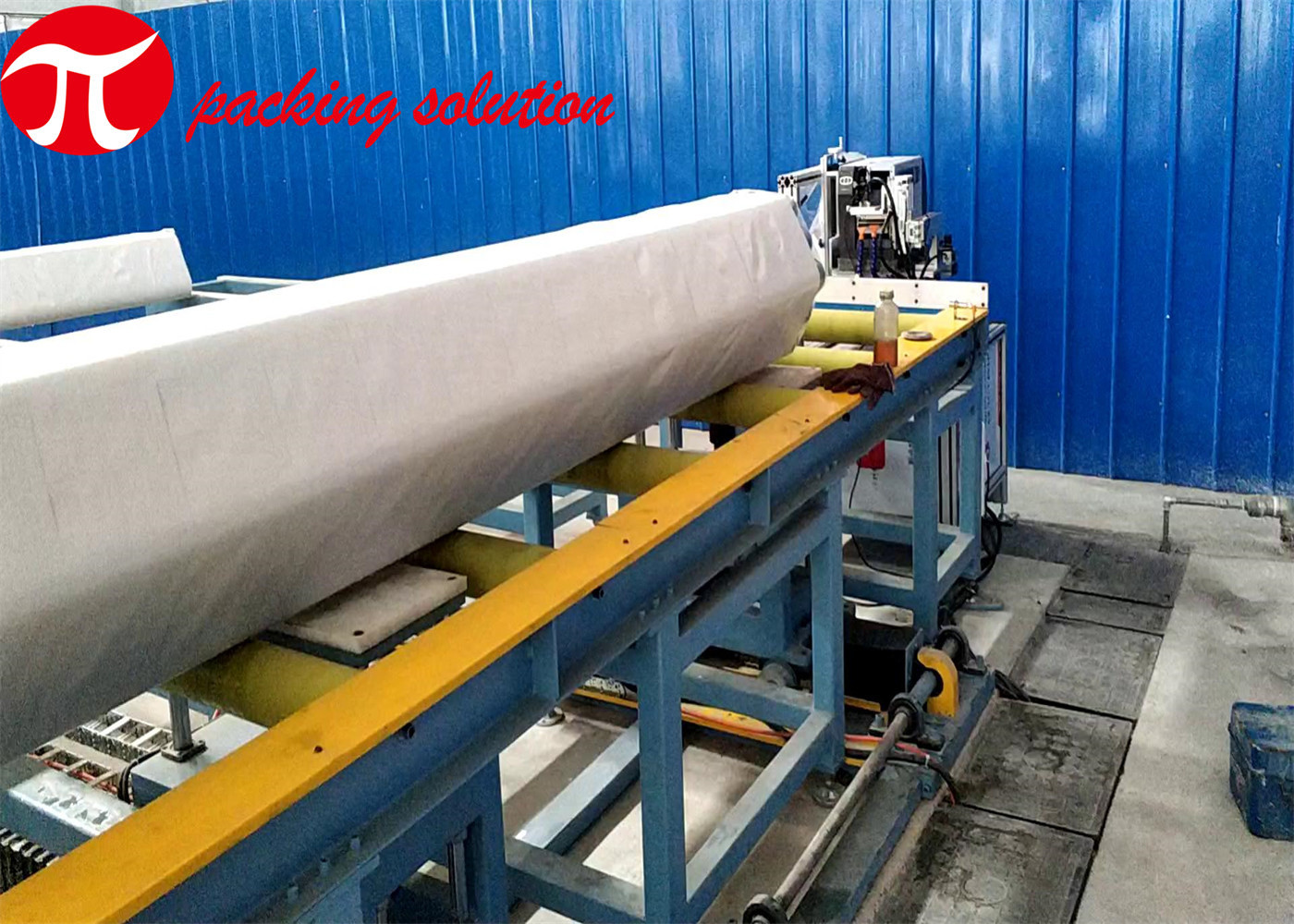

The horizontal steel pipe wrapping machine is specialized for wrapping horizontal shapes of steel pipes, plastic pipes, copper tubes, profiles, bars, panels, and other horizontal objects. the wrapped package is well-protected & sealed & looks more tidy.
The packing machine basic operation:
The machine shall be mounted on flat & hard ground, where the ground load should be more than 1ton/m2.

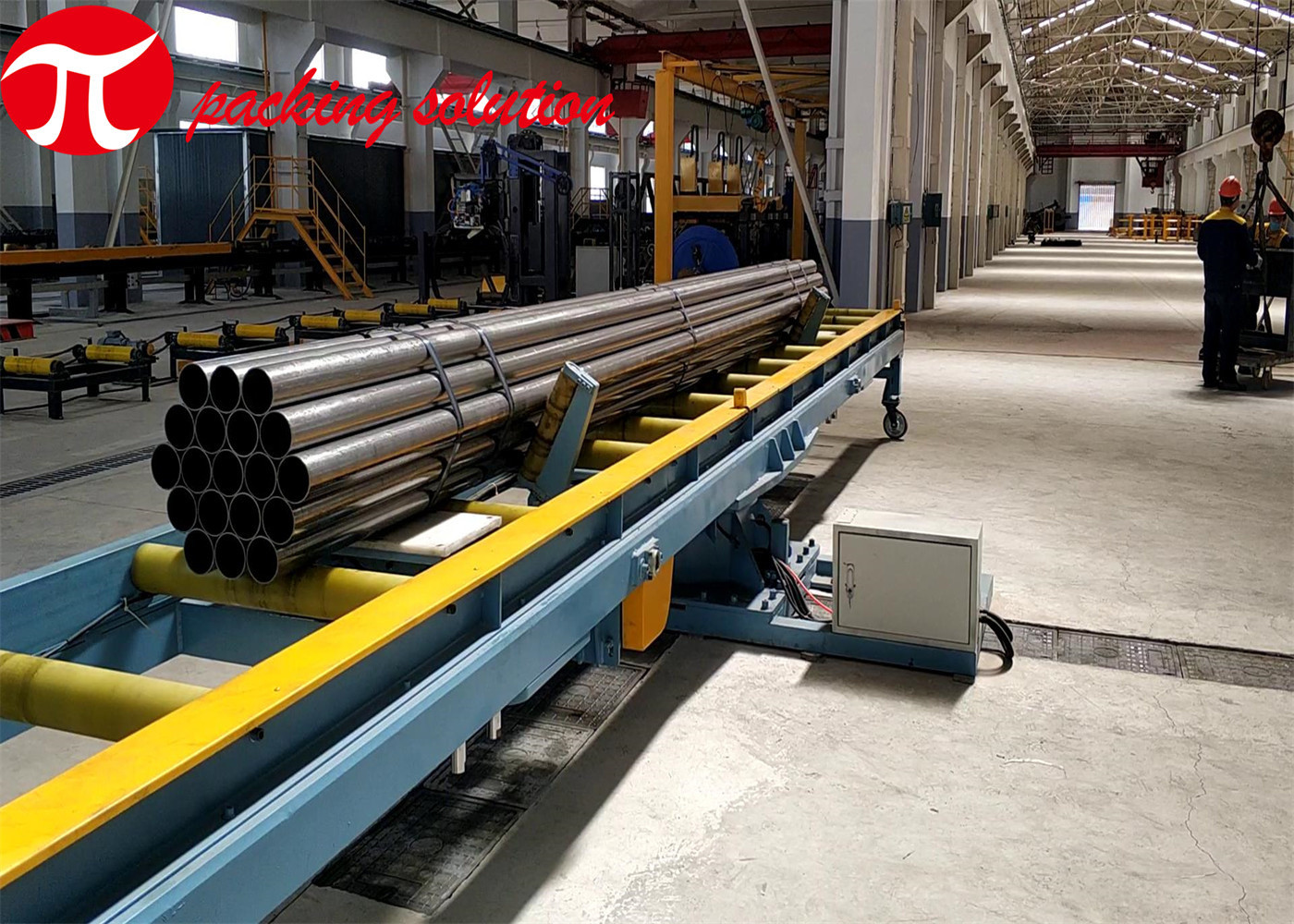

•Hoisting the pipe bundles onto the front conveyor line and ready to be wrapped, hoist the packed pipes away from the back convey line after package finished. The next wrapping process should begin after the back line cleared.
•The wrapping material is tied, fixed and cut by manual.
MAIN PARAMETERS:
| Model | GG1200 |
| Section diameter of the pipe(φ) | ≤1200mm |
| Conveyor length | 1000-6000mm(can be customized) |
| Conveying speed | About 1-10m/min |
| Rotating speed | About 70r/min |
| Conveyor height | Approx. 1000mm |
| Material |
Compound paper tape/knit tape/anti-rust tape/waterproof tape/ stretch film |
| Material size |
Width:≤250mm Max OD:400mm ID:55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
