INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application Objects: | Industrial Tires | Driven Type: | Electric |
|---|---|---|---|
| Packing Type: | Vertical Stretch Wrapping Machine | Packaging Material: | Stretch Film |
| Ring Speed: | 20-90r/min | Roller Speed: | 2-8m/min |
| Output: | About 2.0KW | Tyre OD: | 700mm-1400mm |
| Tyre Width: | 20-300mm | Voltage: | 380V/50HZ |
| Highlight: | 2.0KW Stretch Film Wrapping Machine,2000Kg Stretch Film Wrapping Machine,Vertical Tyre Packing Machine |
||

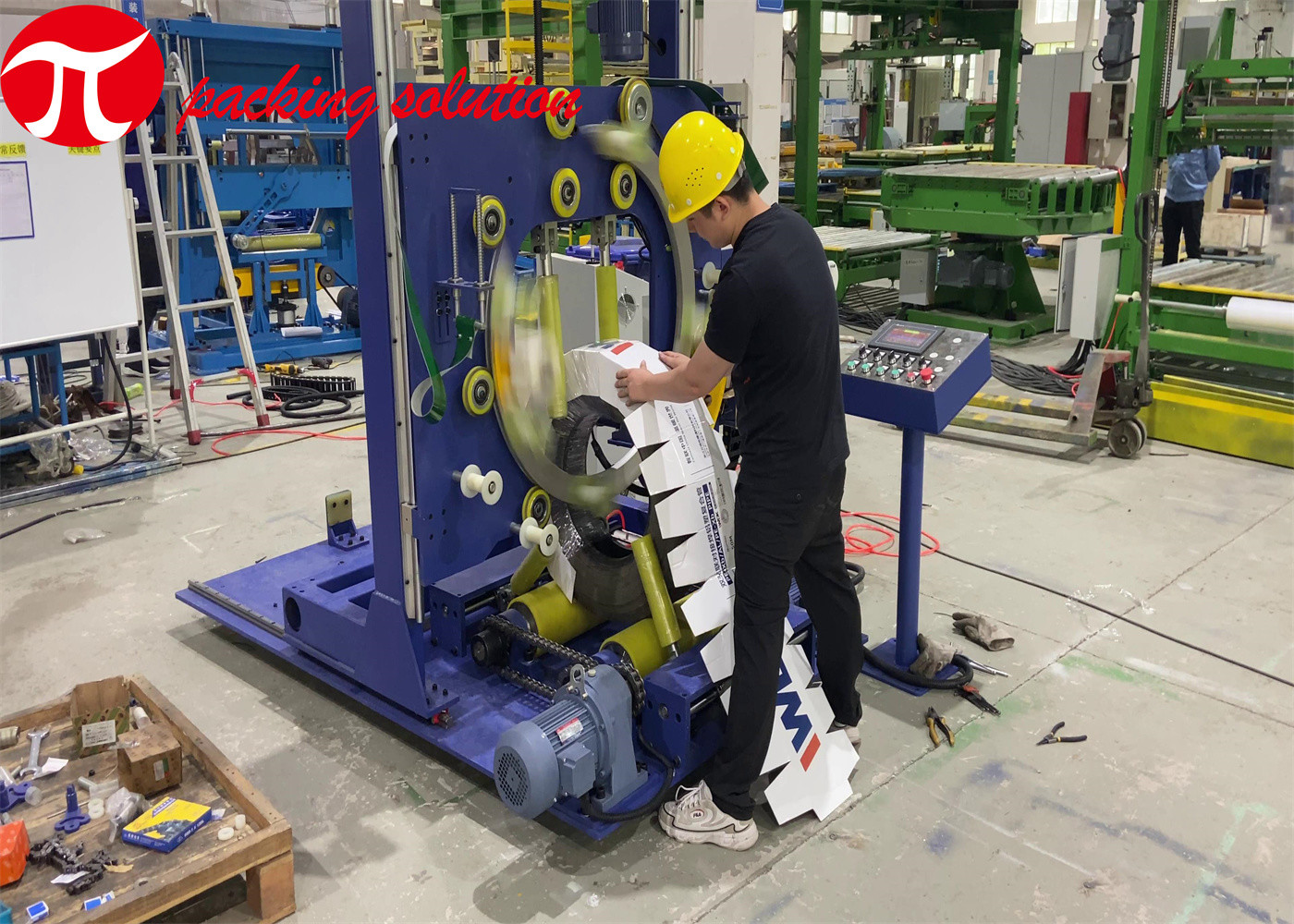

MACHINE APPLICATION
The automatic stretch film industrial tyre packaging machinery tire wrapping machinery is applicable for a wide range of tyres including car tyre/bus tyre/truck tyre/rubber tyre/wheels/bike/bicycle tyres and so on. The tire packaging machine can perfectly pack the overall surface of the tires, and make the outer packing more beautiful.
BASIC FEATURES
1. Automatic control by PLC program.
2. Standardized, modular design; stable performance and convenient maintenance.
3. The tension of the wrapping tape can be adjusted.
4. Pressing rollers adopted to hold the type position.
5. Humanized structure, ensure safe and convenient operation.
6. Soft start, soft stop and precise reset of the ring.
7. Durable high anti-friction PU adopted for friction wheels.
8. Turning ring height is changeable, to adapt to different size of tyres.
9. Different packing material can be used.

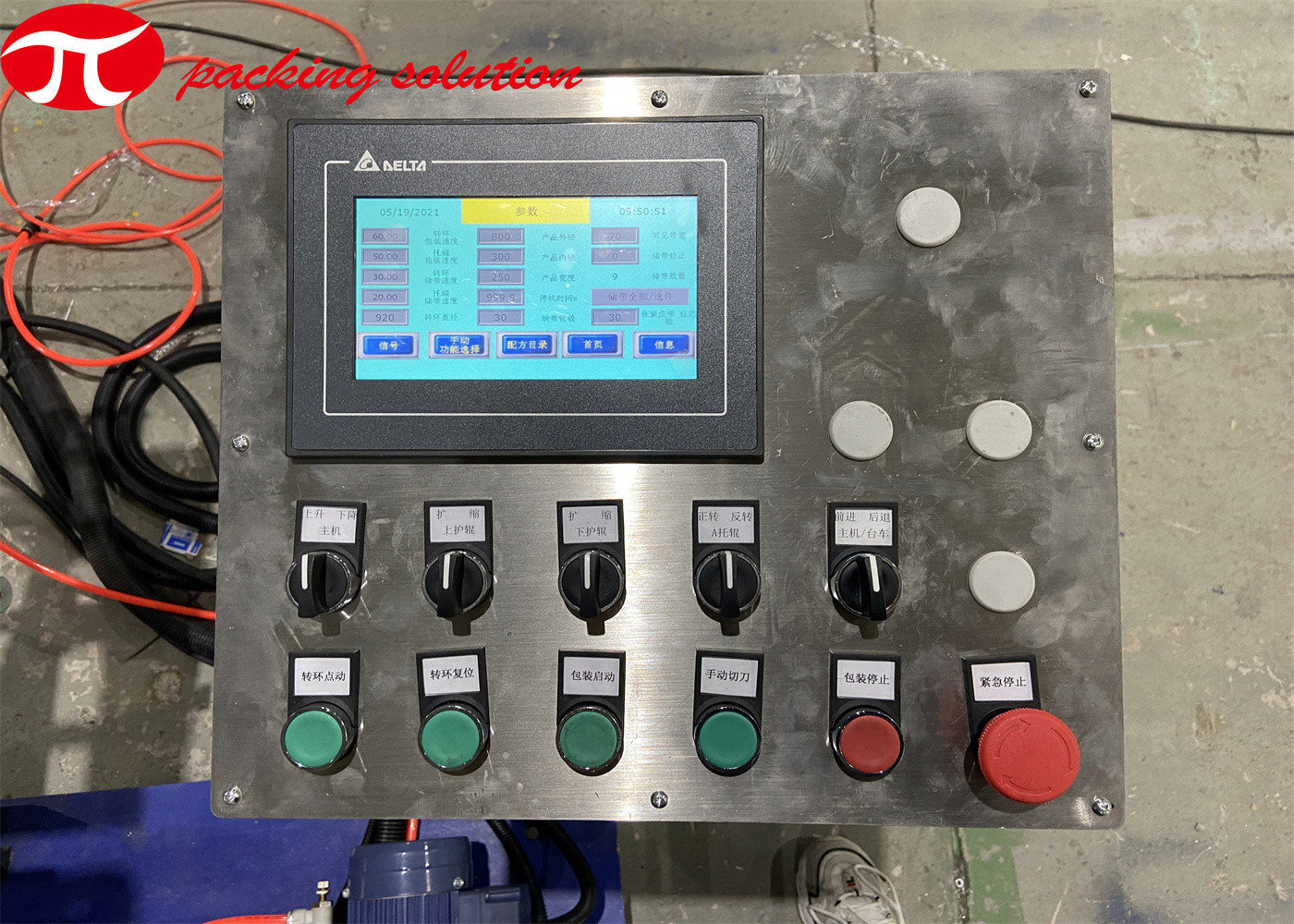

10. Separate electrical box for safe operation, trouble-shooting.
11. Protective covers for running parts of the tyre packing machine for safe operation.
12. Circumferential logo pasting device available for applying logo tape.
MAIN PARAMETERS:
| Model | GD300 |
| Type | Vertical |
| Tyre width | 20mm-300mm |
| Tyre OD | 700mm-1400mm |
| Tyre ID | 508mm/610mm |
| Tyre weight | 30kg-2000Kg |
| Ring turning speed | 20-90r/min |
| Roller turning speed | 2-8m/min |
| Power output | Approx. 2.0KW |
| Power supply | AC/380V/50Hz |
| Air supply | 6-8kgf/cm2 |
| Packing material | Knit tape/VCI paper: width:80-100mm; ID:55mm; OD≤500mm |
| Stretch film: width:80-100mm; ID:50mm;OD≤150mm | |
| Synchronous wrapping system | Optional |
| Automatic mechanical hand | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
