JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min

JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min
JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper Overlap Scope 10%-90% Conveying Speed 10m-20m/Min
Basic Information
Place of Origin: China
Brand Name: JLPACK
Certification: ISO9001，CE
Model Number: GG800
Minimum Order Quantity: 1
Packaging Details: wooden case /standard container
Delivery Time: Stand alone 1 week,the packing line 150 days
Payment Terms: T/T
Supply Ability: 200 sets/Year
Get Best Price Contact Now
Automatic Grade: Semi-Automatic Type: Wrapping Machine,Other,Packing Machine
Weight: 1200KG Packaging Type: Cartons,Film,Case,Belt,Pouch
Packing Material: Compound Paper Tape/stretch Film/flax,Steel Belt,PP BELT,stretch Film Color: Customized,Blue/custom
Machine Size: 895*565*735,1620*700*1560mm Driven Type: Electric,Pneumatic,Manual
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Overseas Third-party Support Available,Field Installation,commissioning And Training Voltage: 380V/50HZ
Highlight:

JINGLIN Horizontal Wrapping Machine

,

55mm Horizontal Wrapping Machine

,

GG800 Door Wrapping Machine

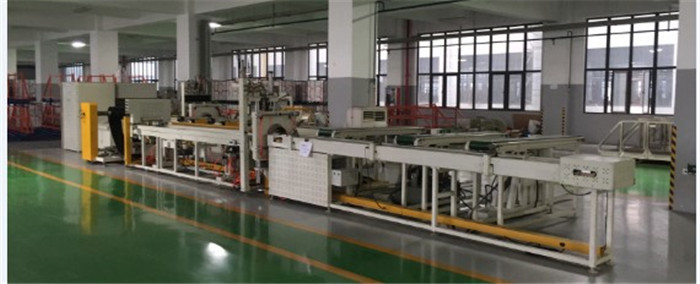

JINGLIN GG800 Horizontal Wrapping Machine Steel& Copper  Overlap scope 10%-90% Conveying speed 10m-20m/min







Automatic Industrial Use Board Packing Steel& Copper Machine Wood Door Packing Machine





Packing machine application:

This packing line takes compound paper as the main packing material,applied for coil picking,auto packing,strapping stacking&etc of slit steel coils,makes the object well packed and strapping stacked,convenient for storage and transportation.



The horizontal steel pipe wrapping machine is specialized for wrapping horizontal wood panels, wood door, batten board and other horizontal objects.





Packing machine installation:

The machine shall be mounted on flat & hard ground, where the ground load should be more than 1ton/m2.

Photocell sensors are adopted for fixing the packing position.







Packing machine installation basic operation:

  • Hoisting the pipe bundles onto the front conveyor line and ready to be wrapped, hoist the packed pipes away from the back convey line after package finished. The next wrapping process should begin after the back line cleared.
  • The wrapping material is tied, fixed and cut by manual.





Packing machine installation main features:



  1. PLC programmable control.
  2. Wrapping position reset.
  3. Both automatic and semi-auto working mode for different choice.
  4. Photocell sensors are adopted for fixing the packing position.
  5. Indicator alarms automatically when trouble occurs.
  6. The turning ring is controlled by converter.
  7. Overlap rate of the wrapping material can be adjusted according to needs.
  8. Soft stop &soft start functions.
  9. Protective fence ensure safe operation.
  10. Packing material tension could be adjusted.
  11. Separate control panel makes operation & maintenance easily.
  12. Pressing down device and supportive rollers for fix the packaging position.
  13. Double-ring & double-rub wheel system make the wrapping more safe, stable & energetic.
  14. Automatic material feed & cutting system can be equipped for human operation.
  15. Material size are width:≤250mm,Max OD:400mm and the ID:55mm.
  16. Packing material are compound paper tape/knit tape/anti-rust tape/waterproof tape and LLDPE stretch film.
  17. The machine can be custom designed according to specific object size.



MAIN PARAMETERS:

Items GG800
Height of the product ≤800mm
Weight ≤2T
Pipe length Not limited
Conveyor length 1000-6000mm(can be customized)
Conveying speed About 10m-20m/min
Rotating speed About 70r/min
Conveyor height Approx. 1000mm
Overlap scope About 10%-90%
Power output About 2.4kw
Power voltage 380V/ 3phase/50Hz
Material

Compound paper tape/knit tape/anti-rust tape/waterproof tape

stretch film
Material size

width:≤250mm

Max OD:400mm

ID:55mm



Note: the datas are only for reference, the machine can be custom designed according to specific object size.
