INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Applicated Object: | Copper Coil, Aluminium Coil, Steel Coil | Automatic Grade: | Automatic |
|---|---|---|---|
| Object OD: | 700-1200mm | Object ID: | 300-500mm |
| Ring Speed: | Appr. 20-90r/min | Roller Speed: | 5-8m/min |
| Driven Type: | Electric | Power: | About 1.5kw |
| Packaging Material: | Stretch Film, Paper, Knit Tape,etc | Machine Name: | Copper Packing Machine,copper Wrapping Machine |
| Highlight: | 1.5kw Steel Coil Packing line,1500kg Copper Wrapping Machine |
||

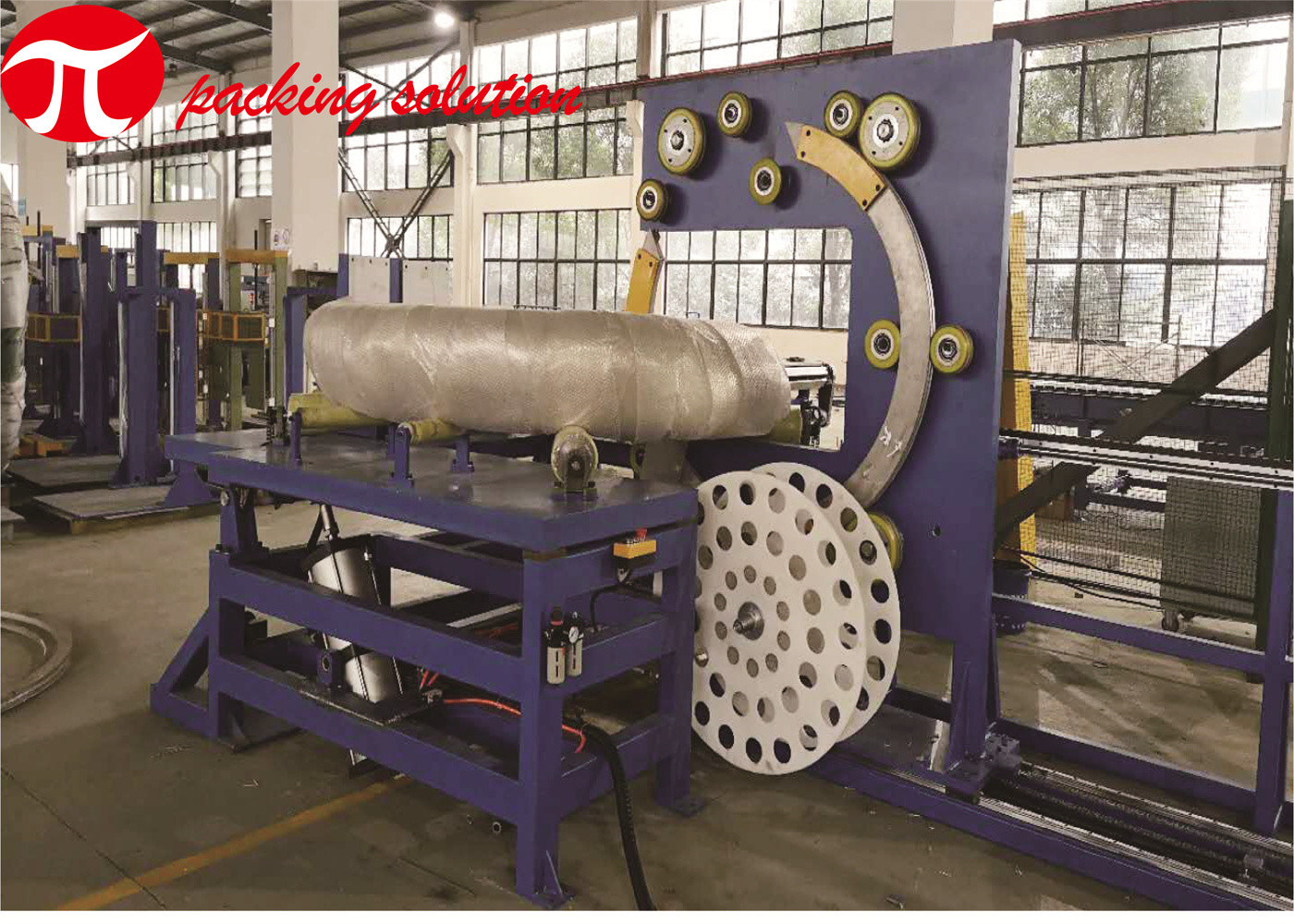

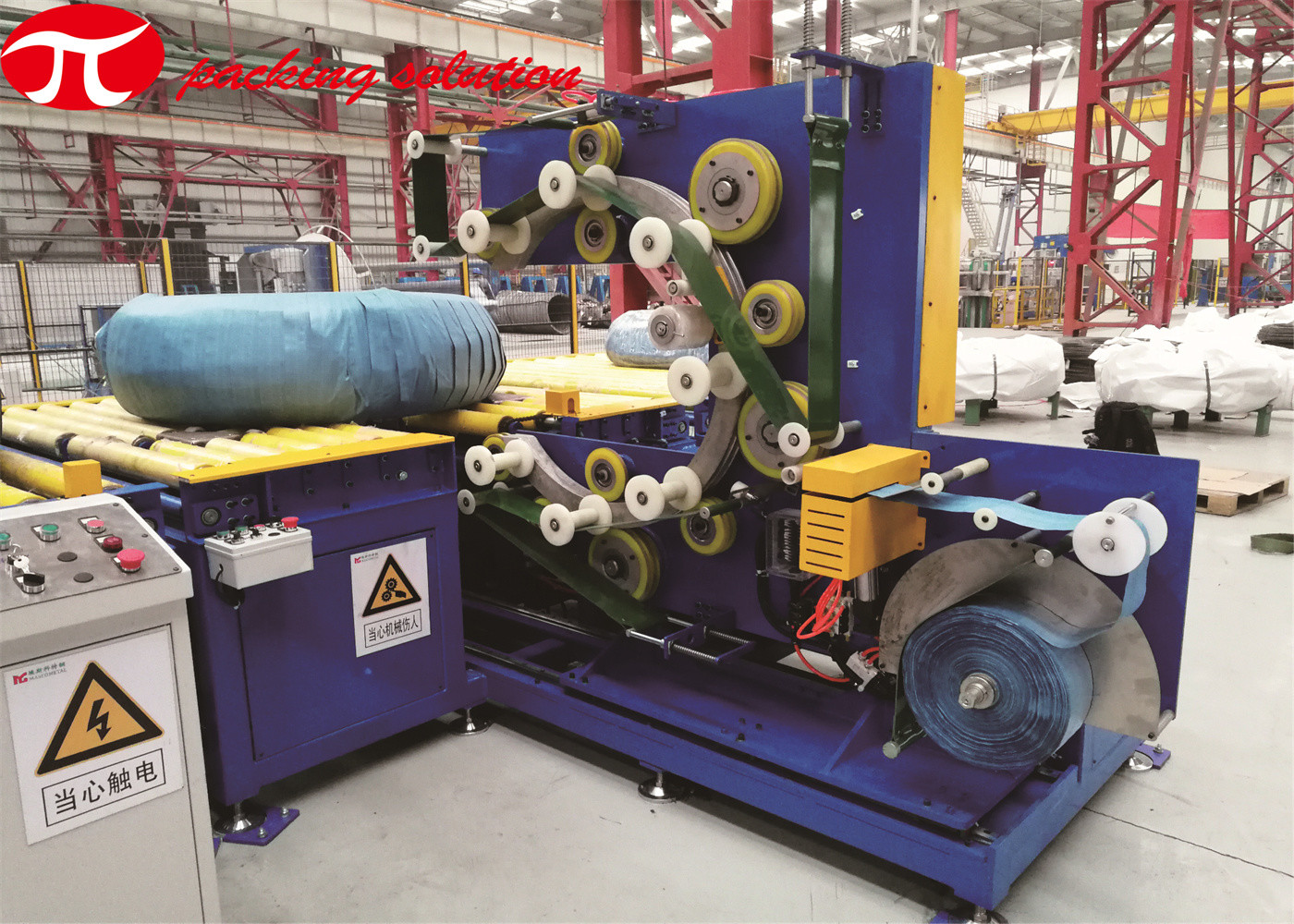

1.5kw Wire Coiling Vertical steel belt coils packing machine with custom specification
Vertical machine specification application:
The wrapping machine designed by Jlpack is specifically designed for automatic packing copper coils, steel coils, wire coils or other circular objects with different dimension to achieve a better packing performance and a higher working efficiency. In addition to standard equipment, we offer a comprehensive range of customized solutions.
Vertical machine basic features:
Vertical machine specification main datas:
| ITEMS | GD300 |
| Object width | 10-300mm |
| Object OD | 700-1200mm |
| Object ID | 300-500mm |
| Packing material |
Compound paper tape/compound knit tape W:90mm ID:54mm OD:500mm |
| Roller speed | About 2.5m/min |
| Rotating speed | 50-60r/min |
| Roller height | About 750mm |
| Roller loading | About 1500kg |
| Power output | About 2.2kw |
| Power voltage | 380V, 3phase 4 wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
