INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | JLPACK |
| Certification: | ISO9001，CE |
| Model Number: | GG1000 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand alone 1 week,the packing line 150 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Commodity,Machinery & Hardware,Chemical,Medical | Function: | Stretch Film Wrapping,Wrapping Soaps |
|---|---|---|---|
| Packaging Material: | Plastic,Paper,handheld Strapping Machine 2 | Turning Speed: | 60r/min |
| Weight: | 3000KG | Conveyor Speed: | 8-12m/min |
| Conveyor Height: | 900mm | Power Output: | 9KW |
| Voltage: | 380V/50HZ | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Overseas Third-party Support Available,Field Installation,commissioning And Training |
| Highlight: | 2.4kw Board Packing Machine,380V Door Wrapping Machine,ISO9001 Door Wrapping Machine |
||

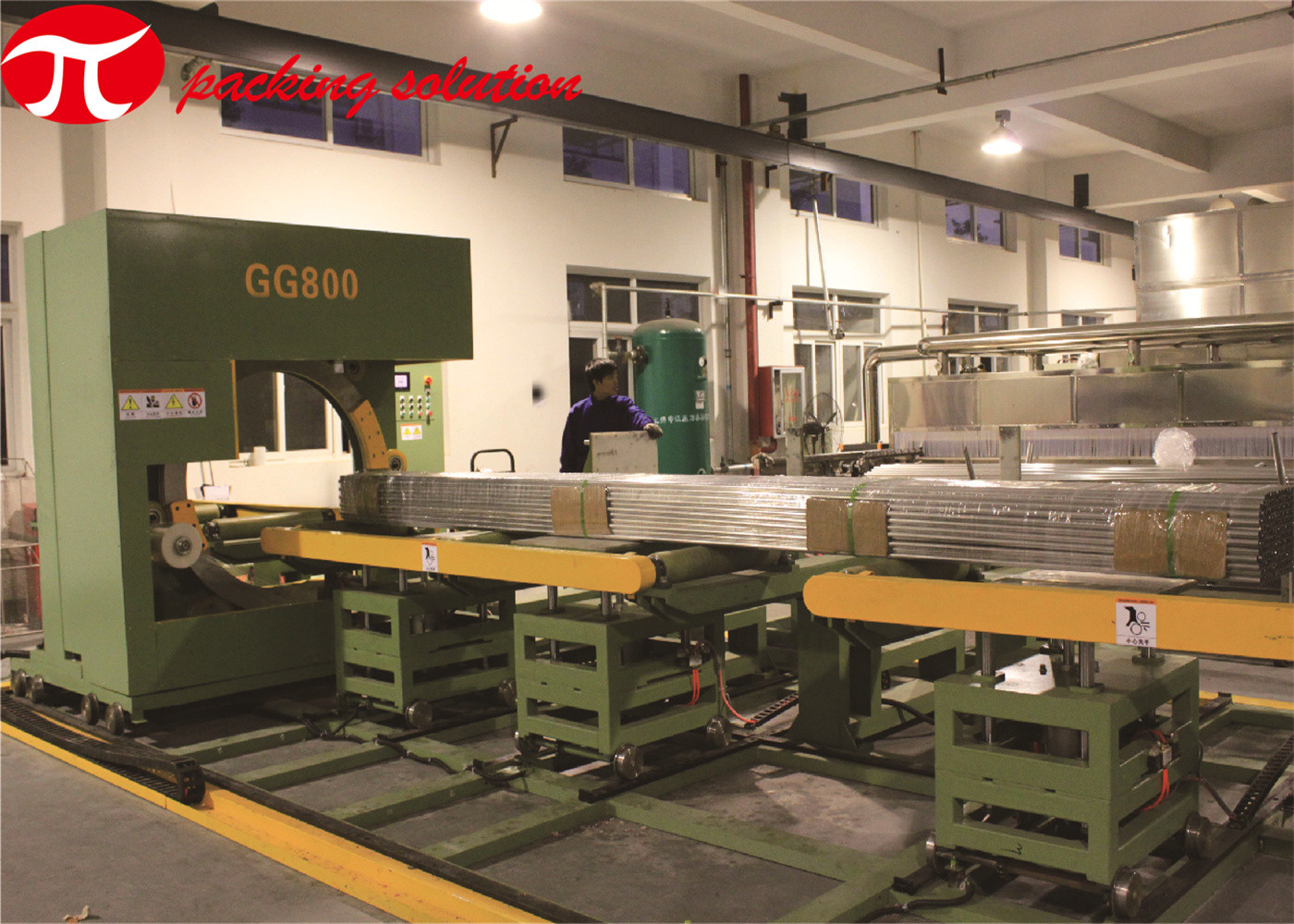

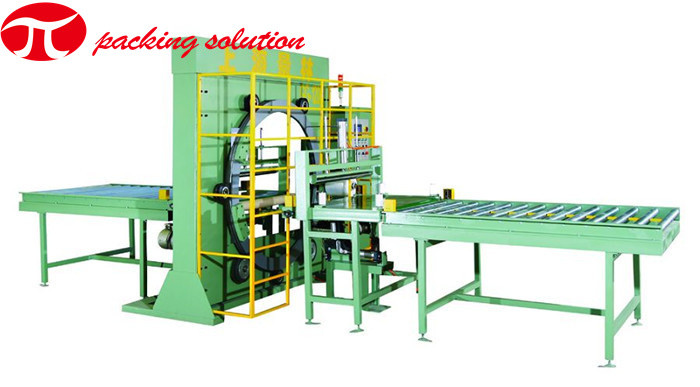

Horizontal Panel Board Steel& Copper tube Packing Machine GG800 Open-side wrapping machine
Packing machine:
This machine is widely used for wrapping welded pipes,semless pipes,steel pipe,copper tube,plastic pipe and other long-shaped products.
The wrapped product is well decorated,with good effect of rust-proof,dust-proof,water-proof,anti-proof and so on.
Packing machine basic operation:
Hoisting the pipe bundles onto the front conveyor line and ready to be wrapped, hoist the packed pipes away from the back convey line after package finished.
The next wrapping process should begin after the back line cleared.
Packing machine installation main features:
Wrapping material are compound paper tape/knit tape/anti-rust tape/waterproof tape and LLDPE stretch film.
Material size are width:≤250mm,Max OD:400mm and the ID:55mm.
MAIN PARAMETERS
| Items | GG800 |
| Max circumcircle diameter | 800mm |
| Weight | ≤3T |
| Pipe length | 2000-9000mm |
| Conveyor length | 1000-6000mm(can be customized) |
| Conveying speed | 8m-12m/min |
| Rotating speed | 60r/min |
| Conveyor height | 900mm |
| Overlap scope | 10%-90% |
| Power output | 9kw |
| Power voltage | 380V/ 3phase/50Hz |
| Material |
Compound paper tape/knit tape/anti-rust tape/waterproof tape LLDPE stretch film |
| Material size |
width:200-300mm Max OD:400mm ID:55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
