INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Packaging Material: | Stretch Film,paper Or Knit Tape |
|---|---|---|---|
| Application: | Steel, Copper, Aluminium And Metallurgic Industries | Weight: | 3T |
| ID: | 508/610mm | Type: | Packing Line |
| Width: | 60-400mm | Packaging Type: | Film And Paper Wrapping |
| Voltage: | 380V/50HZ | Warranty: | 12 Months |
| Highlight: | Electric Driven Steel Coil Wrapping Line,Steel Coil Wrapping Line 60mm,60mm Steel Coil Packaging Line |
||
Application:
This packing line take compound paper as main packing material,apply coil picking, auto packing, stacking&etc for slit steel coils, makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:

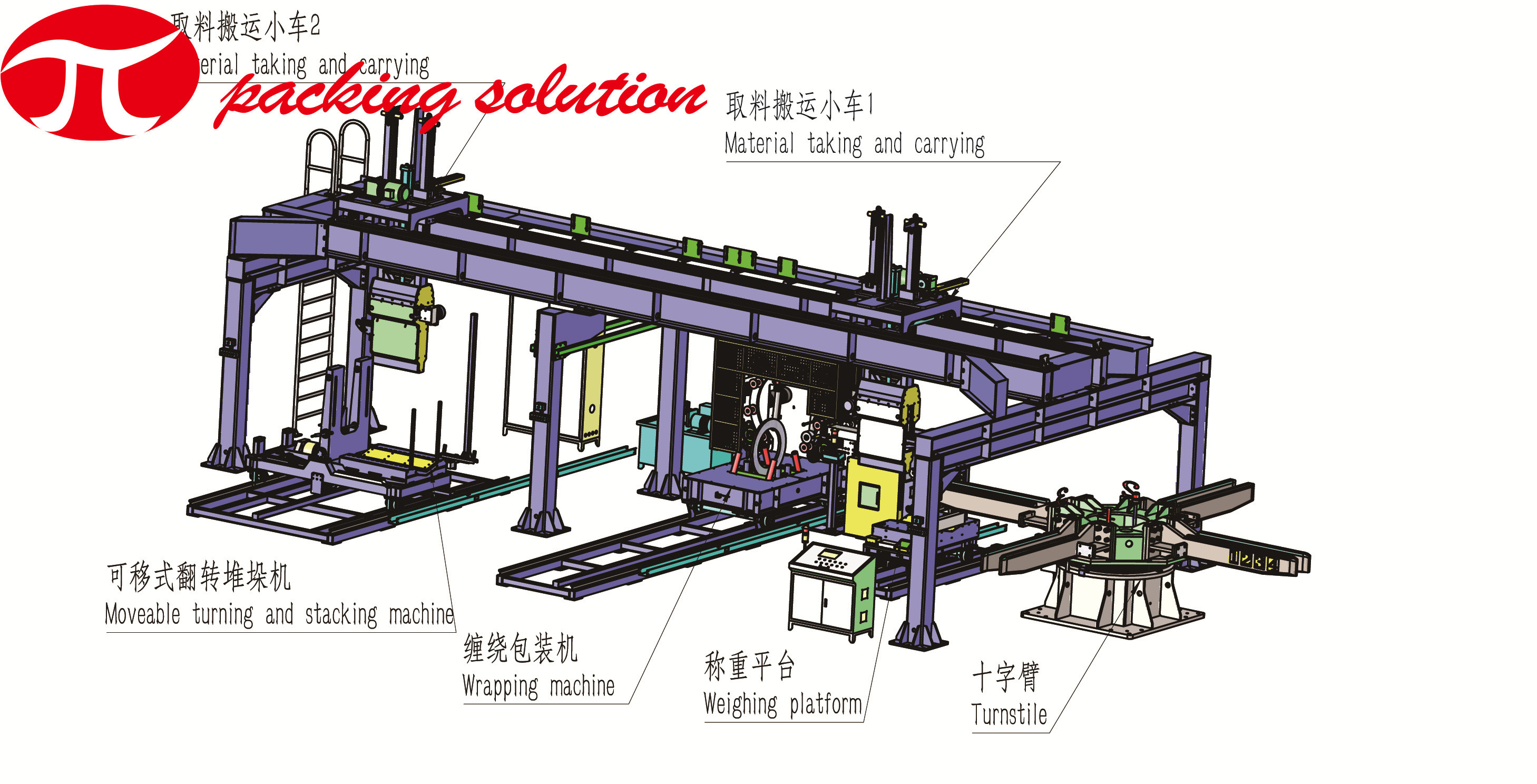

The fully auto machinery is composed of turnstile, coil picking system, coil car, wrapping machine, stacking system, steel strapping station, electrical cabinet, guardrails, hydraulic station&etc.
The semi-auto machinery is composed of coil aggregate car, pushing system, wrapping machine, coil tilter, electrical cabinet, safe guards, hydraulic station&etc.
Main technical datas(for reference):
| OD: | 800mm～1500mm |
| ID: | 508-610mm |
| Width: | 60mm～400mm |
| Weight: | ≤4T |
| Wrapping material: | LLDPE stretch film/compound paper |
| Wrapping overlap: | 30%～80% adjustable |
| Wrapping material size: | film roll width 90mm, roll OD 500mm,roll ID 76mm |
Features:
1.Well-known brands are adopted for main components.
2.Guardrails for loading and unloading safety.
3.Ring speed and Rolls speed adjustable by inverter.
4.Difference packing material can be choosing.
5.Separate electrical box for safe operation and technical testing and trouble-shooting.
