INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Packaging Material: | Stretch Film,paper Or Knit Tape |
|---|---|---|---|
| Wrapping Type: | Film And Paper Wrapping | Application: | Steel, Copper, Aluminium And Metallurgic Industries |
| Type: | Packing Line | Voltage: | 380V / 50HZ |
| ID: | 300/400/500mm | Packaging Usage: | Dustproof/anti-wear/stacking Transportation |
| Color: | Standard Color | Warranty: | 12 Months |
| Highlight: | Horizontal Copper Coil Packing Line,Copper Coil Packing Line 380V |
||
Usage and Basice application:
The packaging line uses composite paper as the main packaging material, and adopts coiling, automatic packaging, stacking and other methods for slitting steel coils, so that the items are well packaged and stacked, which is convenient for storage and transportation.
It is mainly composed of automatic coiling mechanism, automatic stacking mechanism, conveying jacking mechanism, horizontal packaging machine, conveying mechanism, electrical control system, etc.

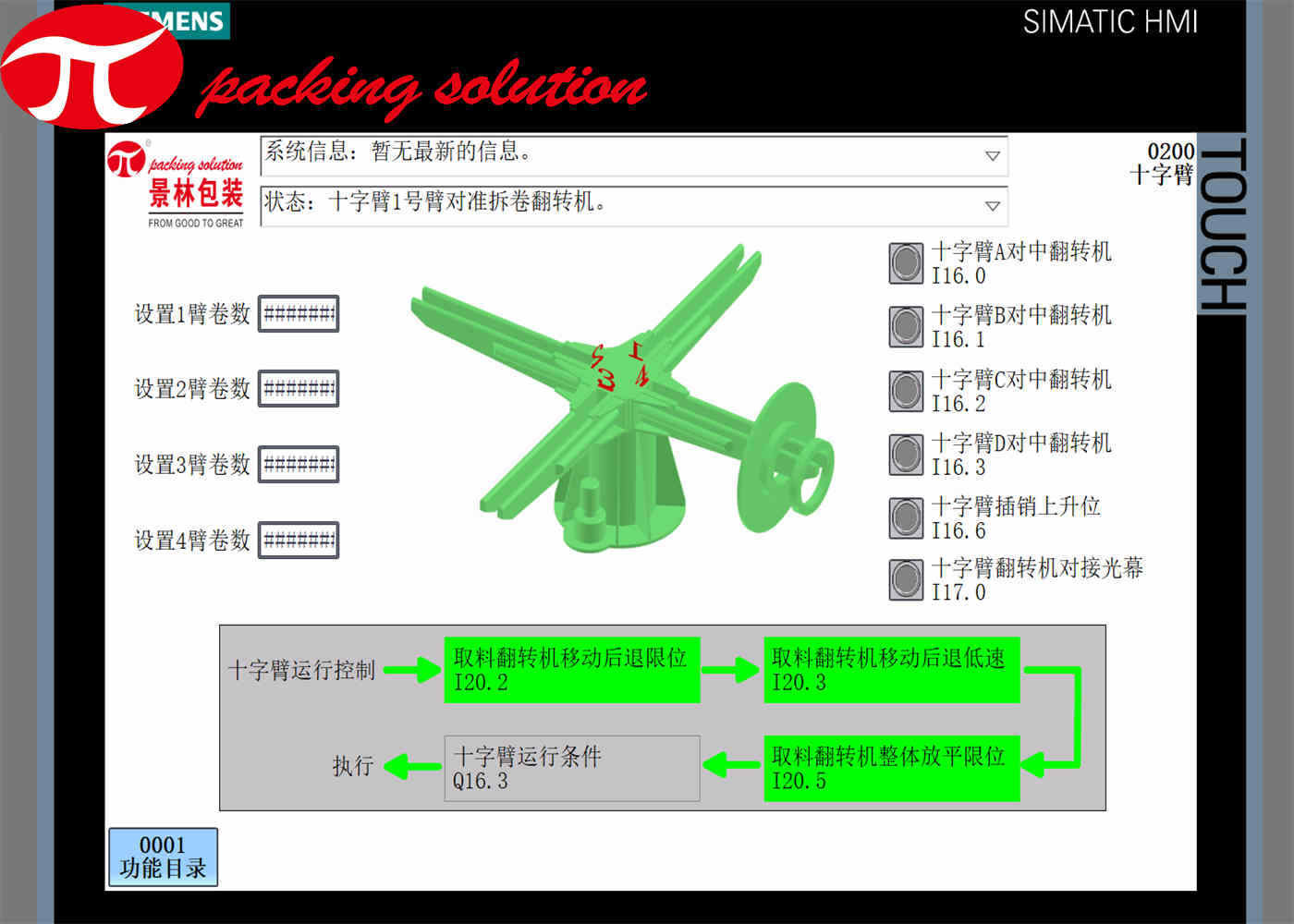

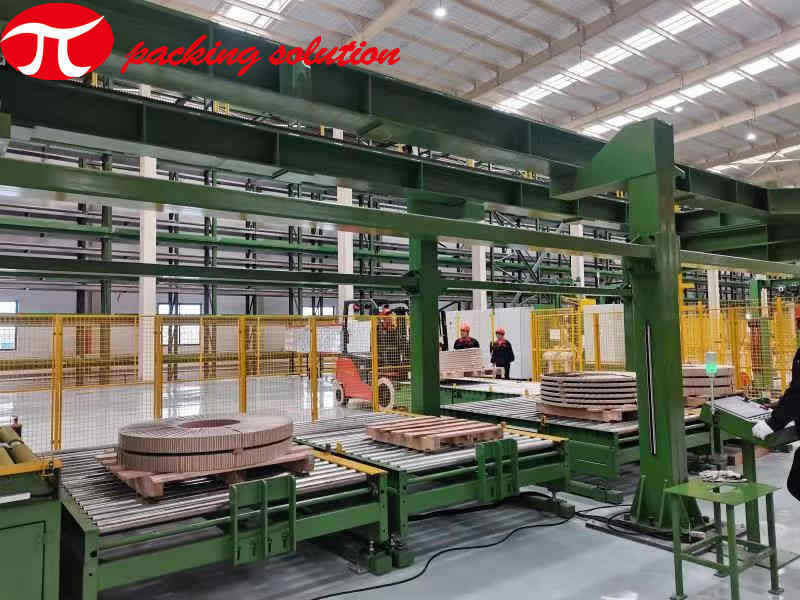

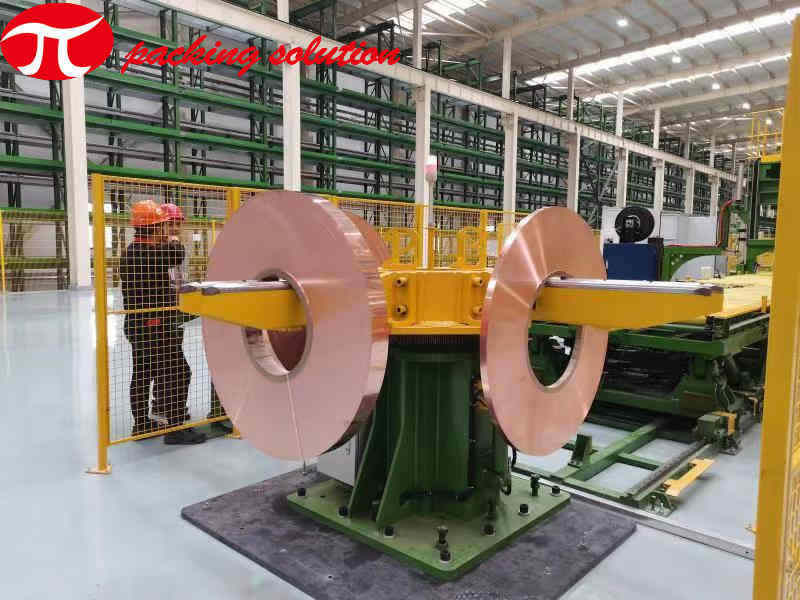

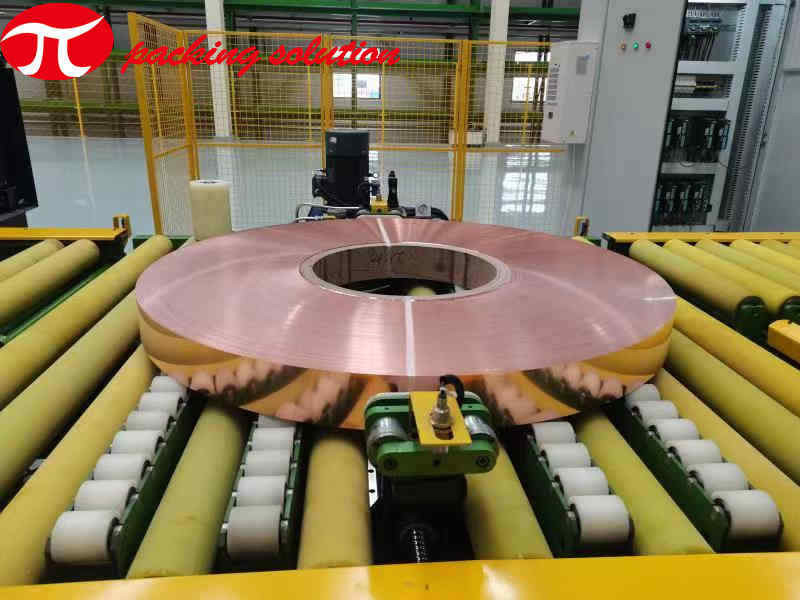

On this packaging line, an automatic coil picking system picks up the coils one by one from the revolving door hangers. The coils are then turned over 90 degrees and transported to the packaging position. After the packaging is completed, the coils are conveyed downstream to the stack Stacking position, one by one on the wooden frame.
Main technical data (for reference):
Outer diameter: 800mm～1500mm
Inner diameter: 508-610mm
Width: 60mm～500mm
Weight:≤4T
Packaging material: LLDPE stretch film/laminate paper
Winding overlap: 30%～80% adjustable
Packaging material size: film roll width 90mm, roll outer diameter 500mm, roll inner diameter 76mm
