INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Application: | Steel, Copper, Aluminium And Metallurgic Industries |
|---|---|---|---|
| Packaging Material: | Stretch Film,paper Or Knit Tape | Weight: | 2T |
| Type: | Packing Line | Width: | 60mm～500mm |
| Packaging Type: | Film And Paper Wrapping | Wrapping Material Size: | Film Roll Width 90mm, Roll OD 500mm,roll ID 76mm |
| Voltage: | 380V/50HZ | Warranty: | 12 Months |
| Highlight: | 380V Automatic Coil Wrapping Machine,50HZ Automatic Coil Wrapping Machine,Automatic Steel Coil Packing Line |
||
Basic composition:

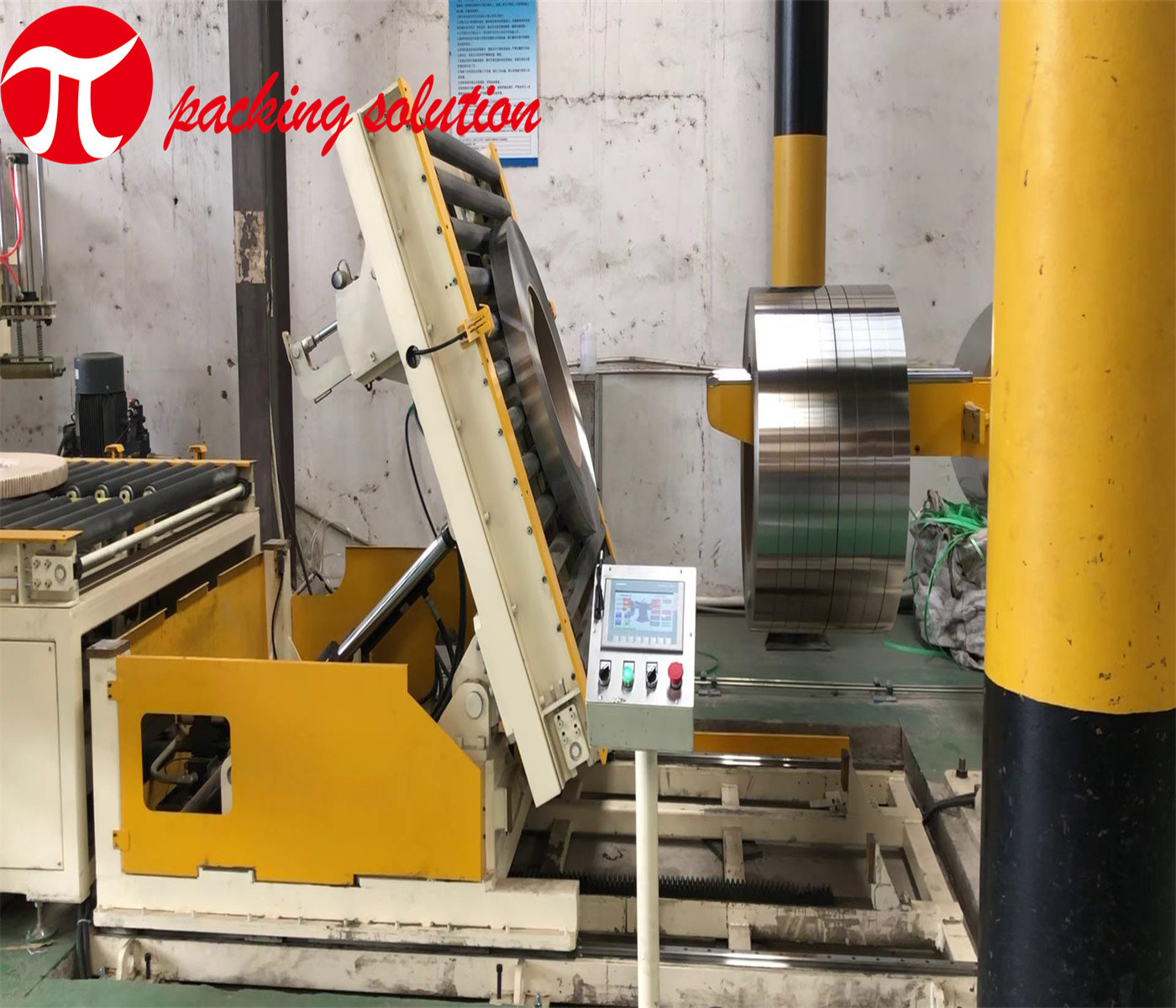

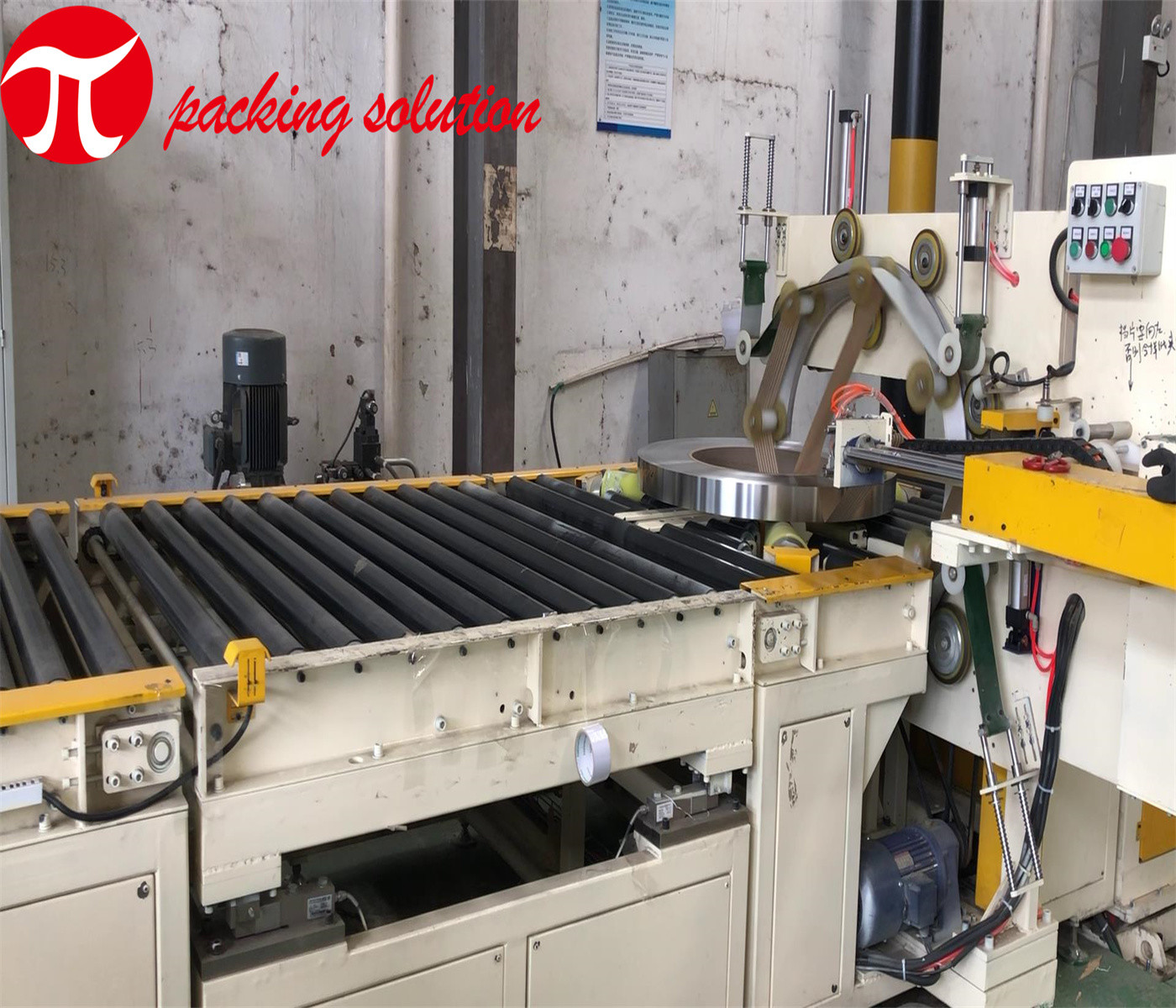

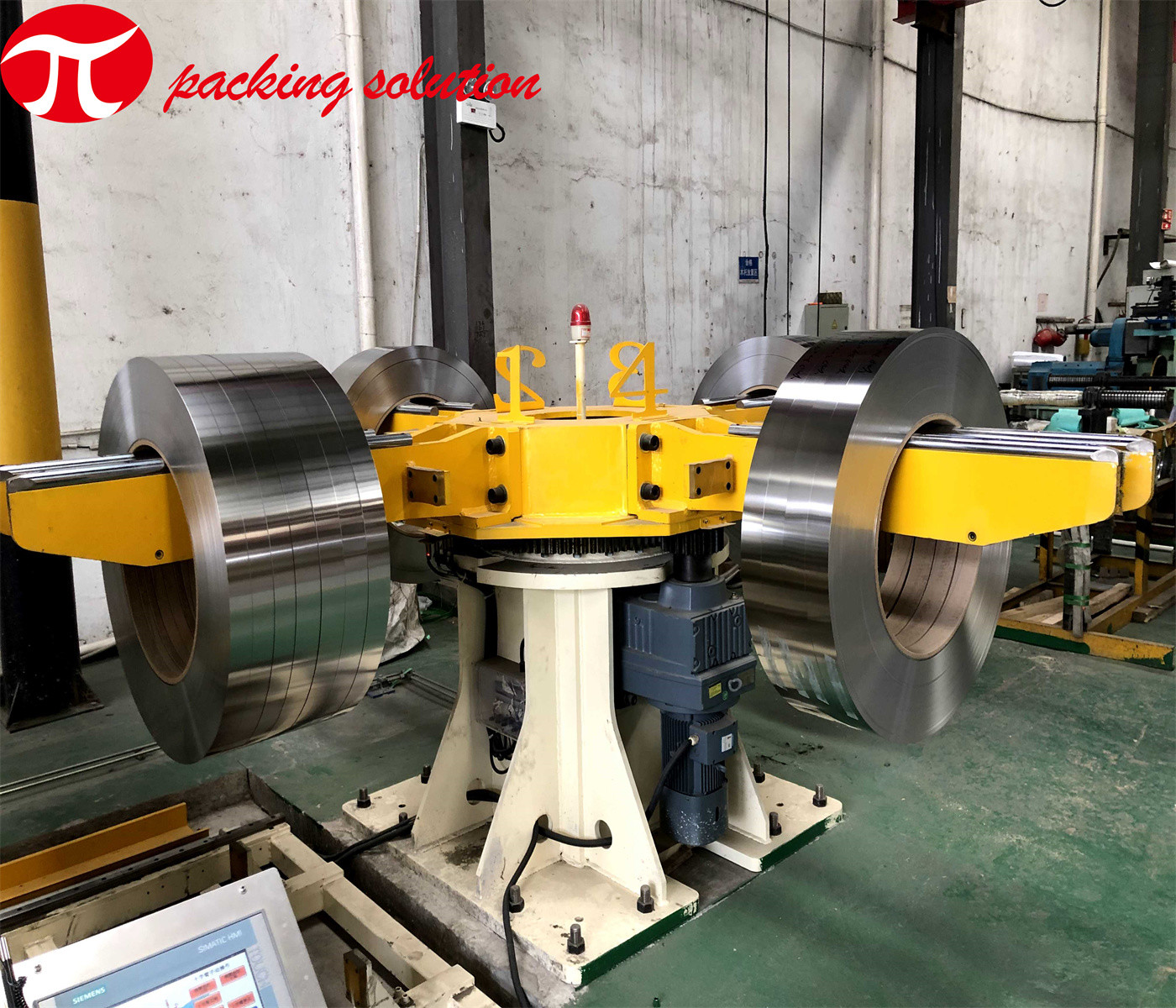

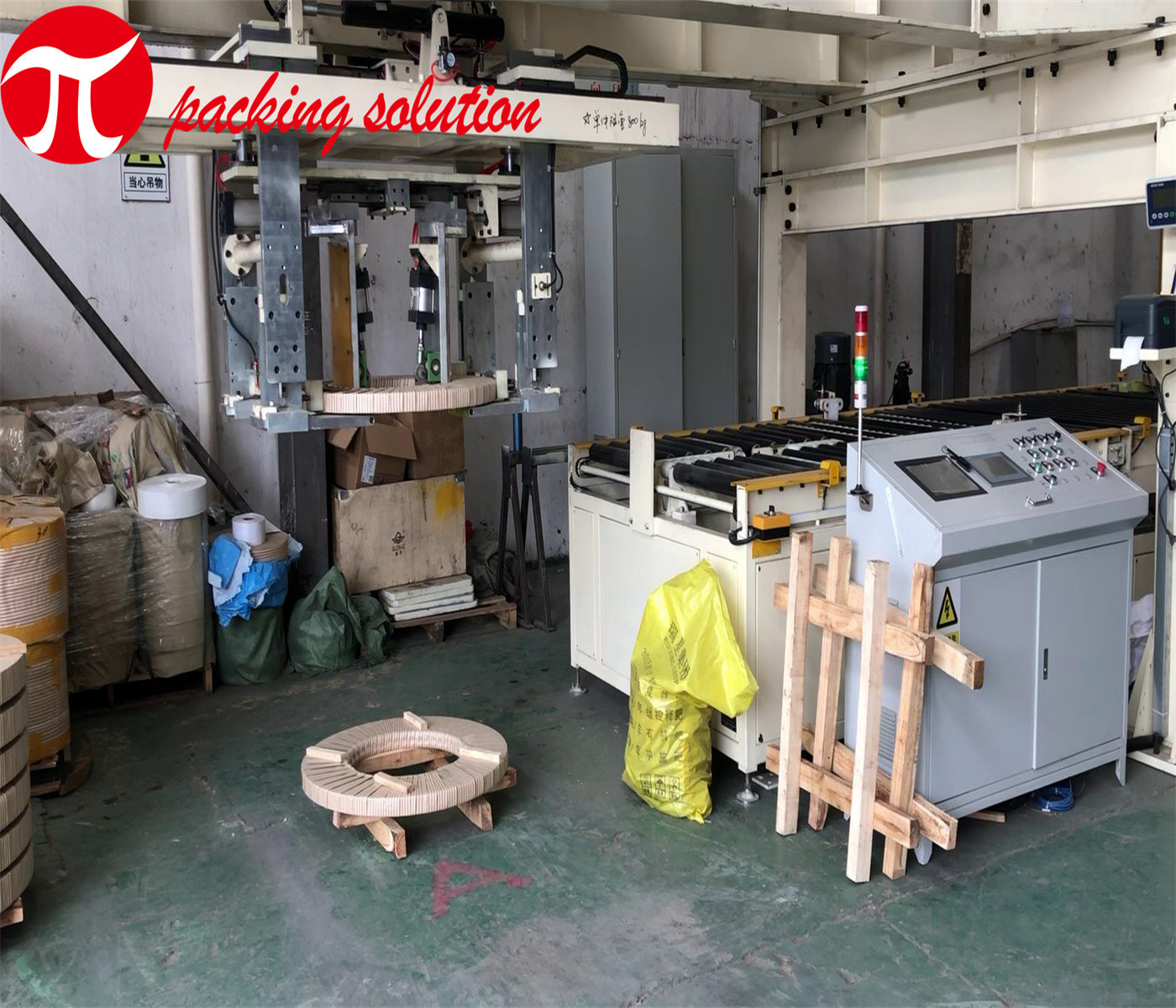

The fully auto machinery is composed of turnstile, coil picking system, coil car, wrapping machine, stacking system, steel strapping station, electrical cabinet, guardrails, hydraulic station&etc.
The semi-auto machinery is composed of coil aggregate car, pushing system, wrapping machine, coil tilter, electrical cabinet, safe guards, hydraulic station&etc.
Main technical datas(for reference):
OD: 800mm～1500mm
ID: 508-610mm
Width: 60mm～500mm
Weight: ≤4T
Wrapping material:LLDPE stretch film/compound paper
wrapping overlap: 30%～80% adjustable
Wrapping material size:
| Film roll width | 90MM |
| Roll OD | 500MM |
| Roll ID | 76MM |
Application:

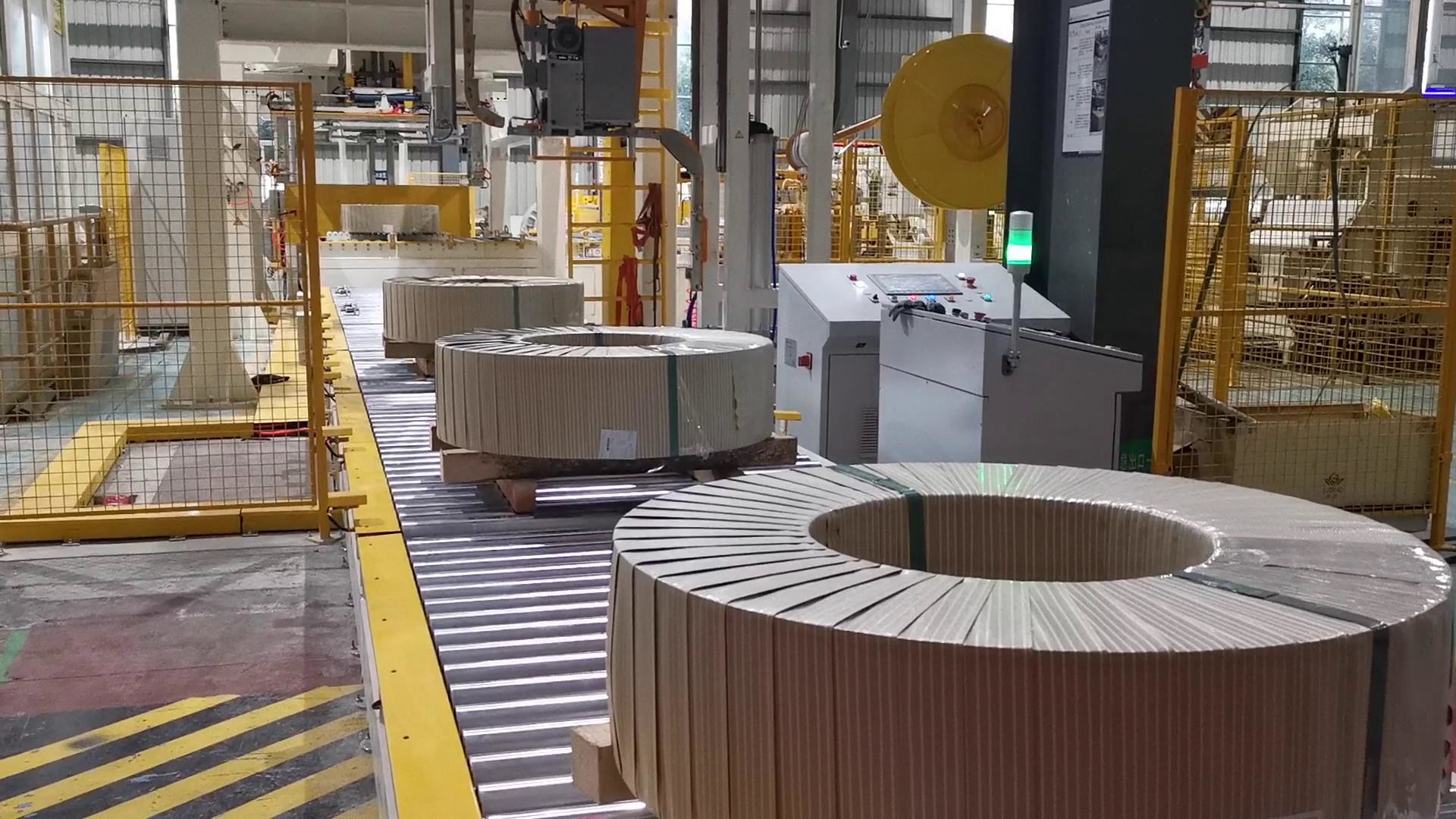

This packing line take compound paper as main packing material,apply coil picking, auto packing, stacking&etc for slit steel coils, makes the object well packed and stacked, convenient for storage and transportation.
COMPANY OVERVIEW:
Established in 1998, Shanghai Jinglin Packaging Machinery Co., Ltd. is a leading and professional manufacturer in China specialized in designing, manufacturing and marketing of specialized packing machinery.
For the past 20 years, relying on independent R&D capability&absorbing the most advanced technologies in the world, Jinglin has initiated a plenty of superior packing machines catering to customers of different industries including: the first automatic online pallet wrapping machine in China, automatic horizontal steel coil packing line, vertical steel coil packing line, automatic mastercoil stretch wrapper, special bearing packing machine, automatic plastic pipe bundling machine, small wire coil packing machine, aluminum profile packing machine, automatic pipe bagging machine&etc, which all represents the highest level of this field.
