INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GS300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Car Tyres, Truck Tyres | Driven Type: | Electric |
|---|---|---|---|
| Packing Type: | Film Stretch Wrapping Machine | Material Size: | W:100-150mm OD:150mm ID:54mm |
| Voltage: | 220V/380V/50HZ | Packaging Material: | Stretch Film,paper |
| Ring Speed: | 20-90r/min | Overlap Rate: | 20%-90% Adjustable |
| Roller Speed: | 2-4m/min | Power Output: | About 3.0kw |
| Highlight: | 1000mm Tyre Wrapping Machine,220V Tyre Wrapping Machine,GS300 Tire Wrapping Machine |
||

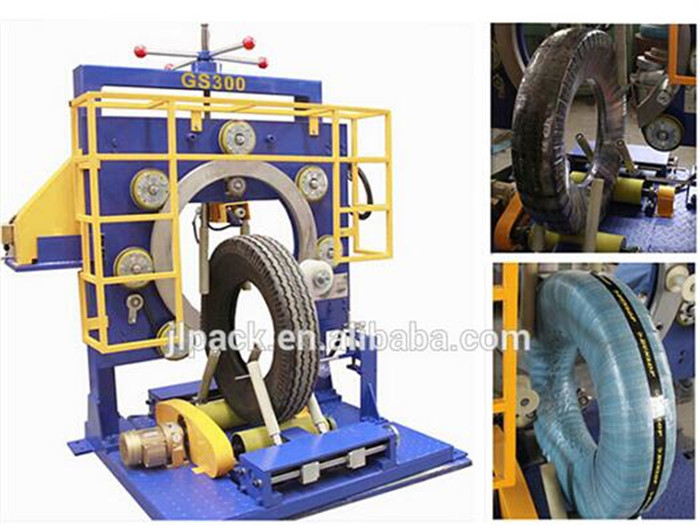

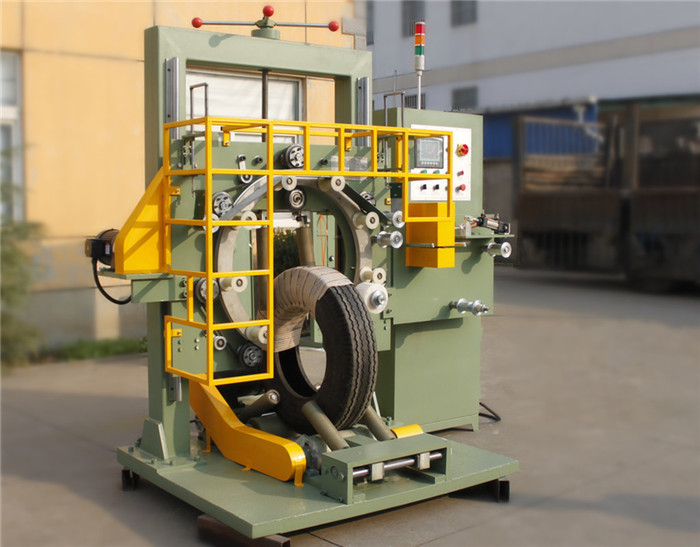

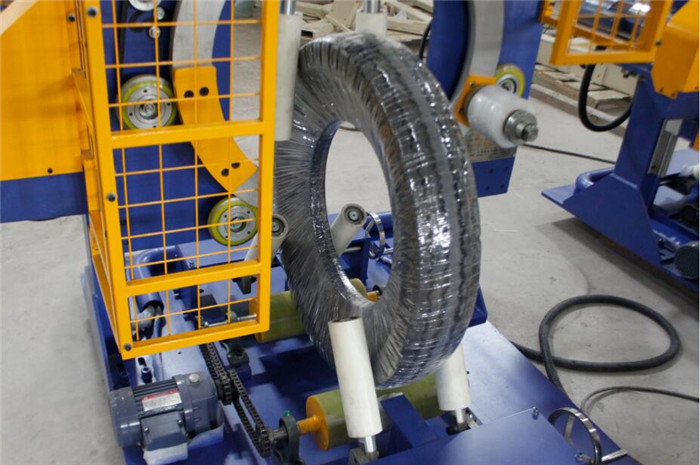

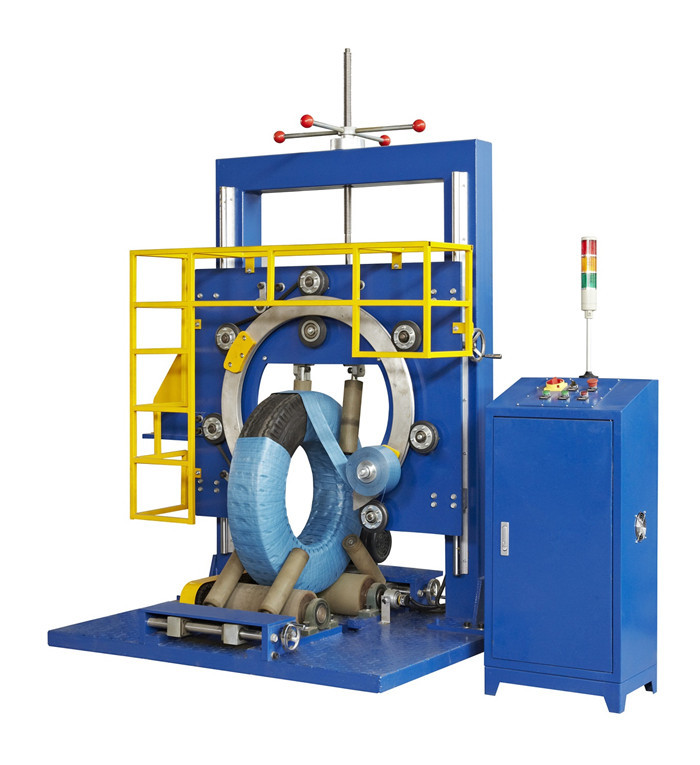

Vertical PLC control truck tyre wrapping machine car tyre packing machinery application:
This tire packaging machine is mainly designed for tire packing and can also been widely used for other coiled objects like steel coil, wire coils,pipe coil,bearings,etc.
This tire wrapping machine is with safe and easy operation,which can highly reduce high cost labor force and enhance working efficiency for modern industry. Wrapped tire is well sealed, beautiful and looks tidier. Further more, it has waterproof, dust proof, rust proof, wear proof, anti-aging effect and etc.
Vertical PLC control truck tyre wrapping machine car tyre packing machinery parameters:
| ITEMS | GS300 | GS450 | GS800 |
| Object weight | ≤500kg | ≤1000kg | ≤2000kg |
| Object height | ≤300mm | ≤450mm | ≤800mm |
| Object OD | 500-1000mm | 600-1200mm | 1000-2000mm |
| Object ID | ≥300mm | ≥400mm | ≥700mm |
| Roller speed | 2-4m,min | 2-4m,min | 2-3m,min |
| Ring speed | 30-50r,min | 30-50r,min | 20-40r,min |
| Suitable material | Stretch film, Knit tape,paper tape etc. | Stretch film, Knit tape,paper tape etc. | Stretch film, Knit tape,paper tape etc. |
| Material width | 100-150mm | 100-150mm | 150mm |
| Material OD | 150mm | 150mm | 200mm |
| Material ID | 54mm | 54mm | 54mm |
| Power output | About 3.0kw | About 4.5kw | About 6.0kw |
| Power voltage | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Vertical PLC control truck tyre wrapping machine car tyre packing machinery main features:
