INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GW300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Industrial Tyres | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Type: | Wrapping Machine |
| Voltage: | 220V/380V/50HZ | Packaging Material: | Stretch Film,paper,plastic |
| Product Name: | Automatic Tyre Packing Machine | Ring Speed: | 20-90r/min |
| Coil Width: | ≤300mm | Coil OD: | 300-600mm |
| Highlight: | Horizontal Tyre Packing Machine,1.5kw Tyre Packing Machine,GW300 Tyre Packing Machine |
||
Machine main application:

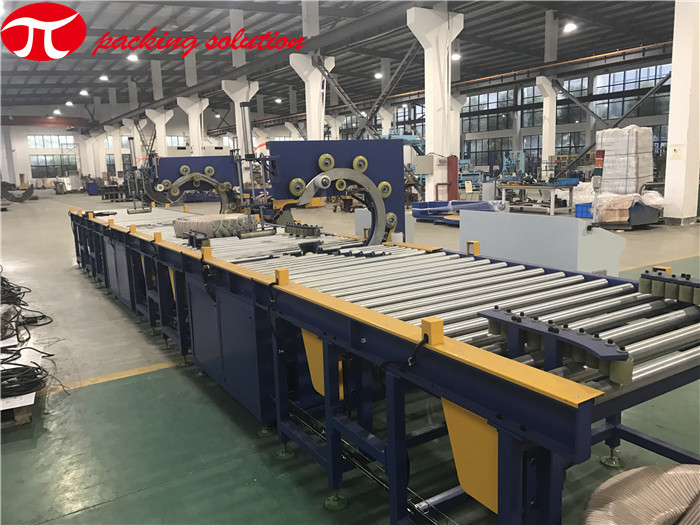

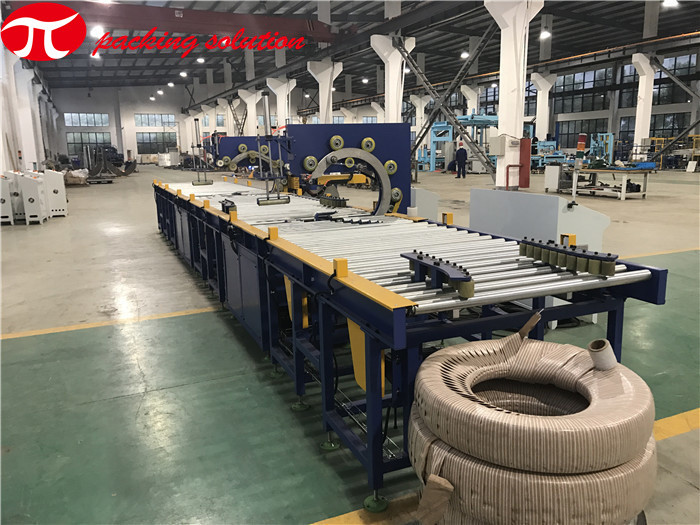

The automatic tyre packing machine is furnished with motor driven powered conveyors for transferring the tyres and complete the packing process automatically. Fully automatic operation for superior efficiency.
Machine features:
MAIN PARAMETERS:
| ITEMS | GW200 | GW300 |
| Coil width | ≤200mm | ≤300mm |
| Coil OD | 300-500mm | 300-600mm |
| Coil ID | ≥200mm | ≥250mm |
| Rotate speed | About 20-90r/min | About 20-90r/min |
| Overlapping ratio | 30%-70% | 30%-70% |
| Packing Material | Knit tape/stretch film/compound paper etc. W:100mm OD:≤300mm ID:55mm | Knit tape/stretch film/compound paper etc. W:100mm OD:≤300mm ID:55mm |
| Power output | About 1.0kw | About 1.5kw |
| Power voltage | 380V/50Hz /3 phase | 380V/50Hz /3 phase |
| Synchronous wrapping system | Optional | Optional |
| Automatic mechanical hand | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
