INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Packaging Material: | Stretch Film,paper Or Knit Tape |
|---|---|---|---|
| Type: | Packing Line | Packaging Type: | Film And Paper Wrapping |
| Application: | Copper / Steel | Voltage: | 380V/50HZ |
| Warranty: | 12 Months | Width: | 60mm |
| OD: | 1000mm | Packaging Usage: | Waterproof/anti-aging |
| Highlight: | 60mm Copper Coil Packing Line,ISO9001 Copper Coil Packing Line,Steel Coil Processing Equipment |
||
60mm Width Copper Coil Packing Line / Copper Coil Processing Equipment with compound paper as material
Application:

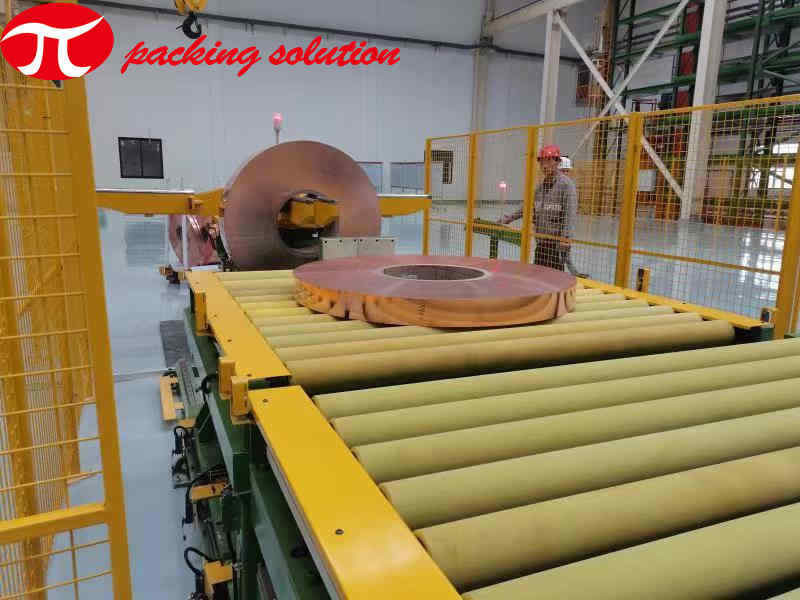

This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for plastic coils,makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:

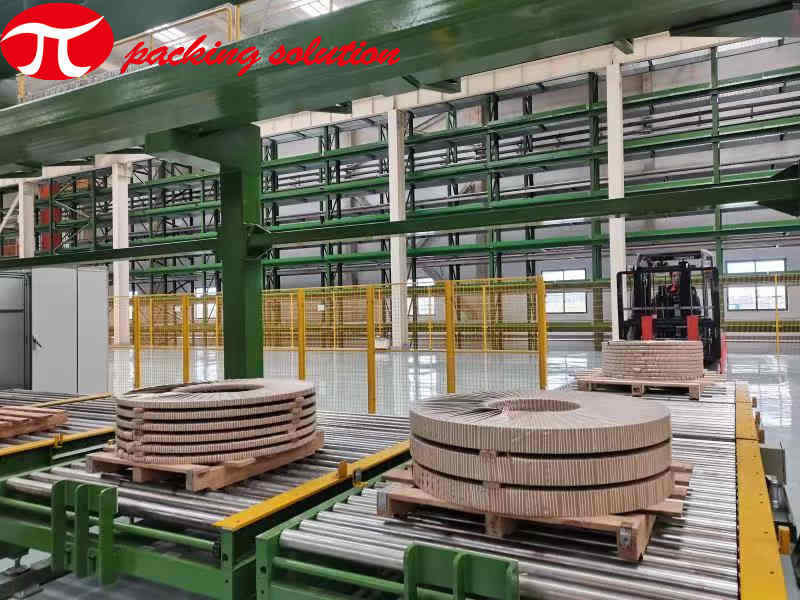

The fully auto machinery is composed of coil loading system,wrapping machine, stacking system, electrical cabinet and guardrails.
Main technical datas(for reference):
OD: 600mm～1200mm
ID: 300-800mm
Width: 60mm～500mm
Weight: ≤100KG
Wrapping material: LLDPE stretch film/compound paper
wrapping overlap: 30%～70% adjustable
Wrapping material size: film roll width 90mm, roll OD 500mm,roll ID 76mm

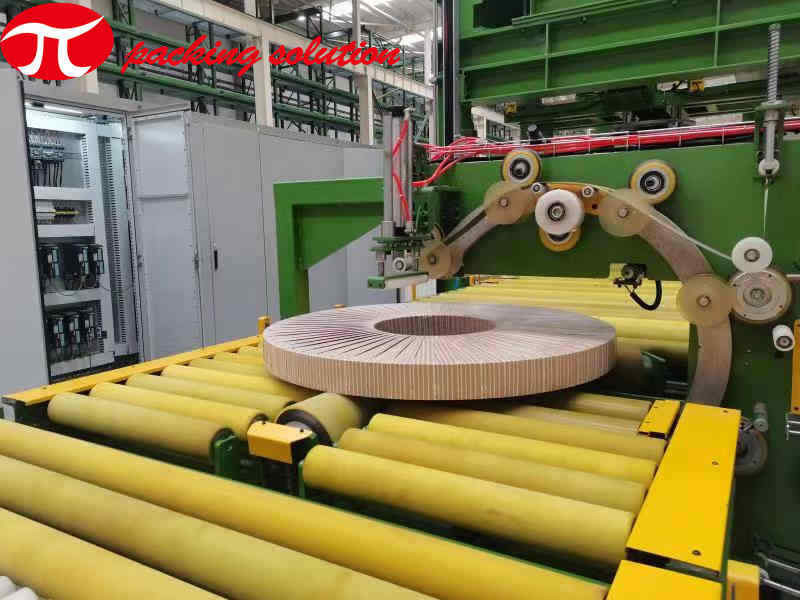

Automatic Coil Wrapping Machine:
It’s one kind of automatic coil packing. It can wrap coils one by one automatically.

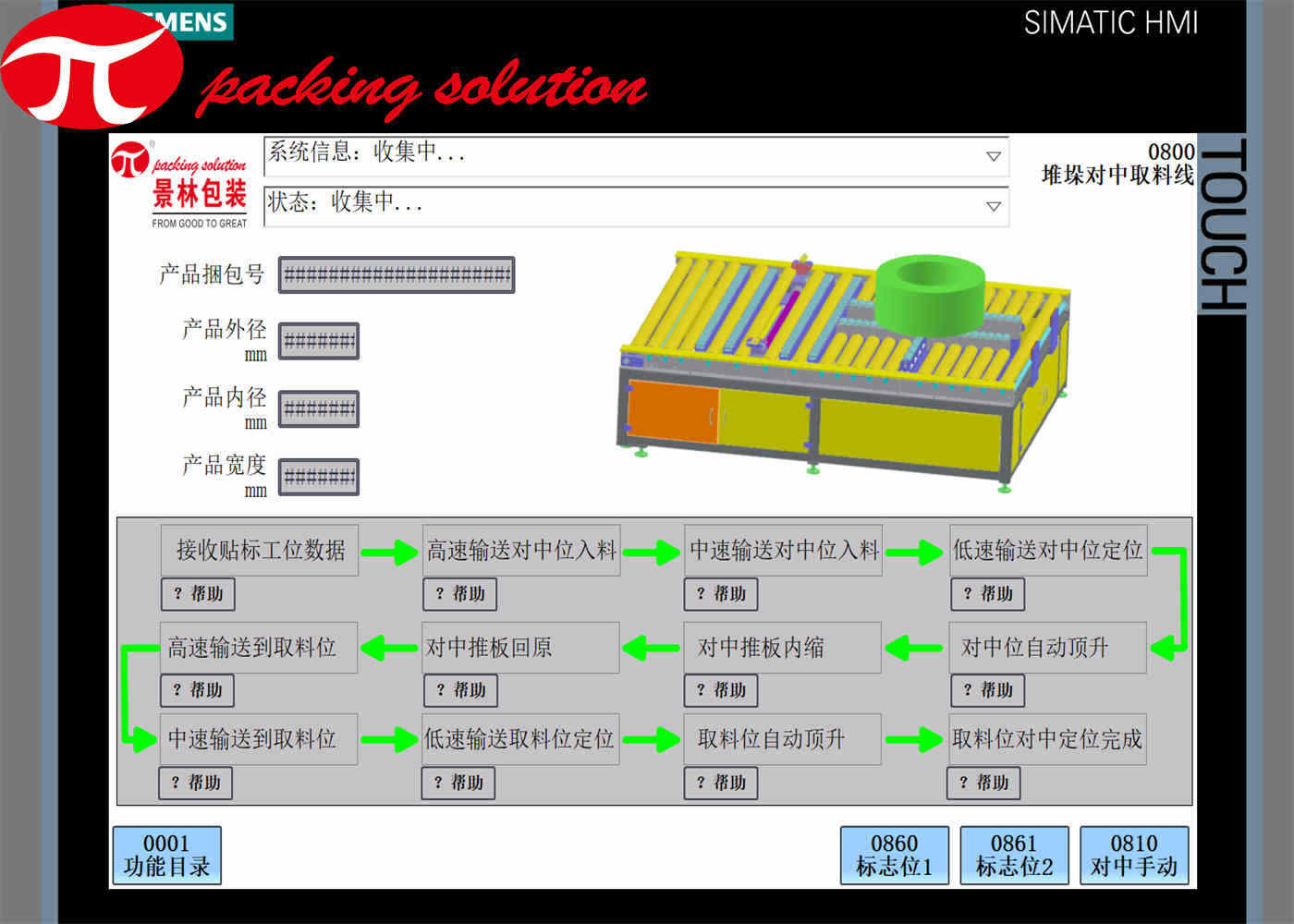

It is operated with PLC controller and HMI touch screen. The frequency converter control enables the overlapping adjustment.
The height of ring can be adjusted according to different coil size.
The packing tape tension is also adjustable.
The operator inputs the inner,outer diameter, width and correction value
PLC can automatically calculate the length of the packing tape required by the touch screen..
