INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Packaging Material: | Stretch Film,paper Or Knit Tape |
|---|---|---|---|
| Application: | Copper Strip | ID: | 300/400/500mm |
| Packaging Type: | Film And Paper Wrapping | Width: | 20mm-60mm |
| Packaging Process: | Feeding-weighing-labeling | Voltage: | 380V/50HZ |
| Warranty: | 12 Months | Color: | Standard Color |
| Highlight: | 200KG Copper Coil Packaging Line,CE Coil Packaging Line Equipment |
||
Copper Coil Packaging Line Equipment 200KG with Circumferential Labeling and palletizing system
The basic composition of the quipment :

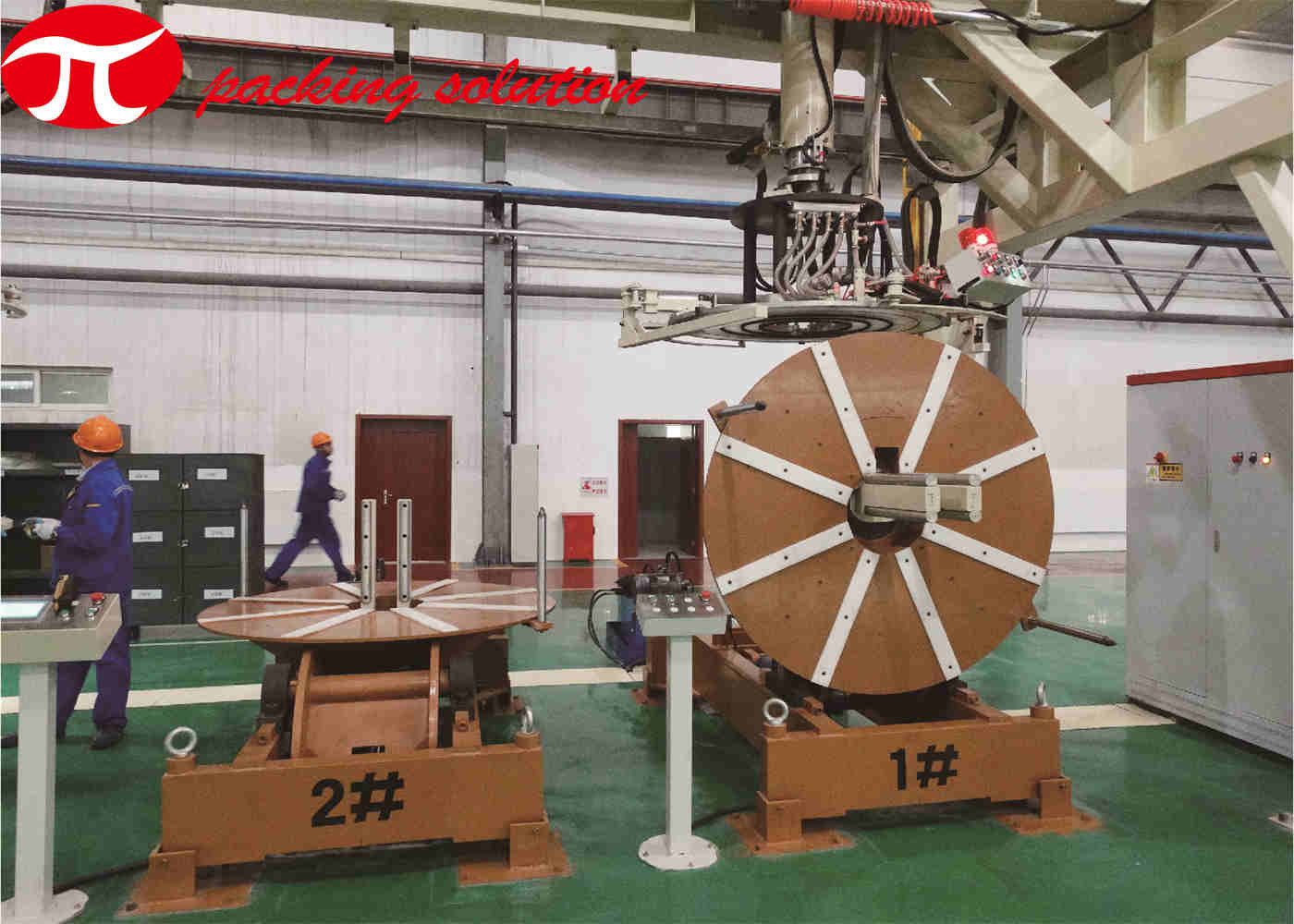

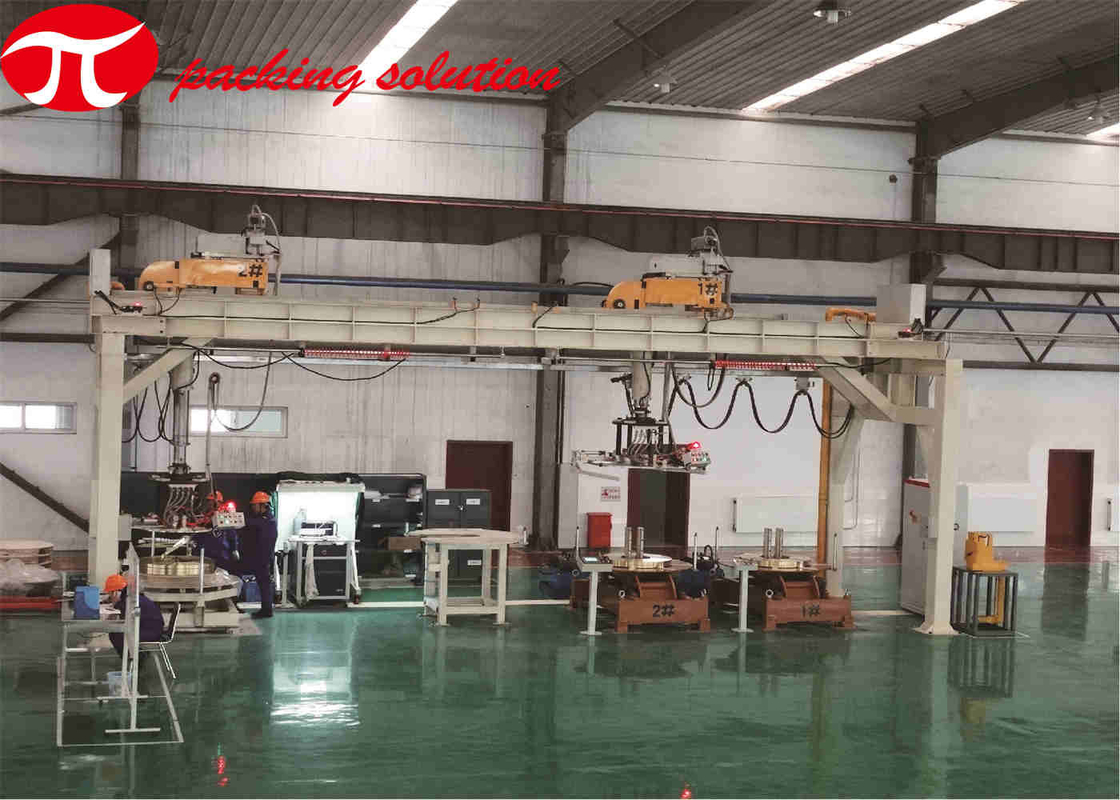

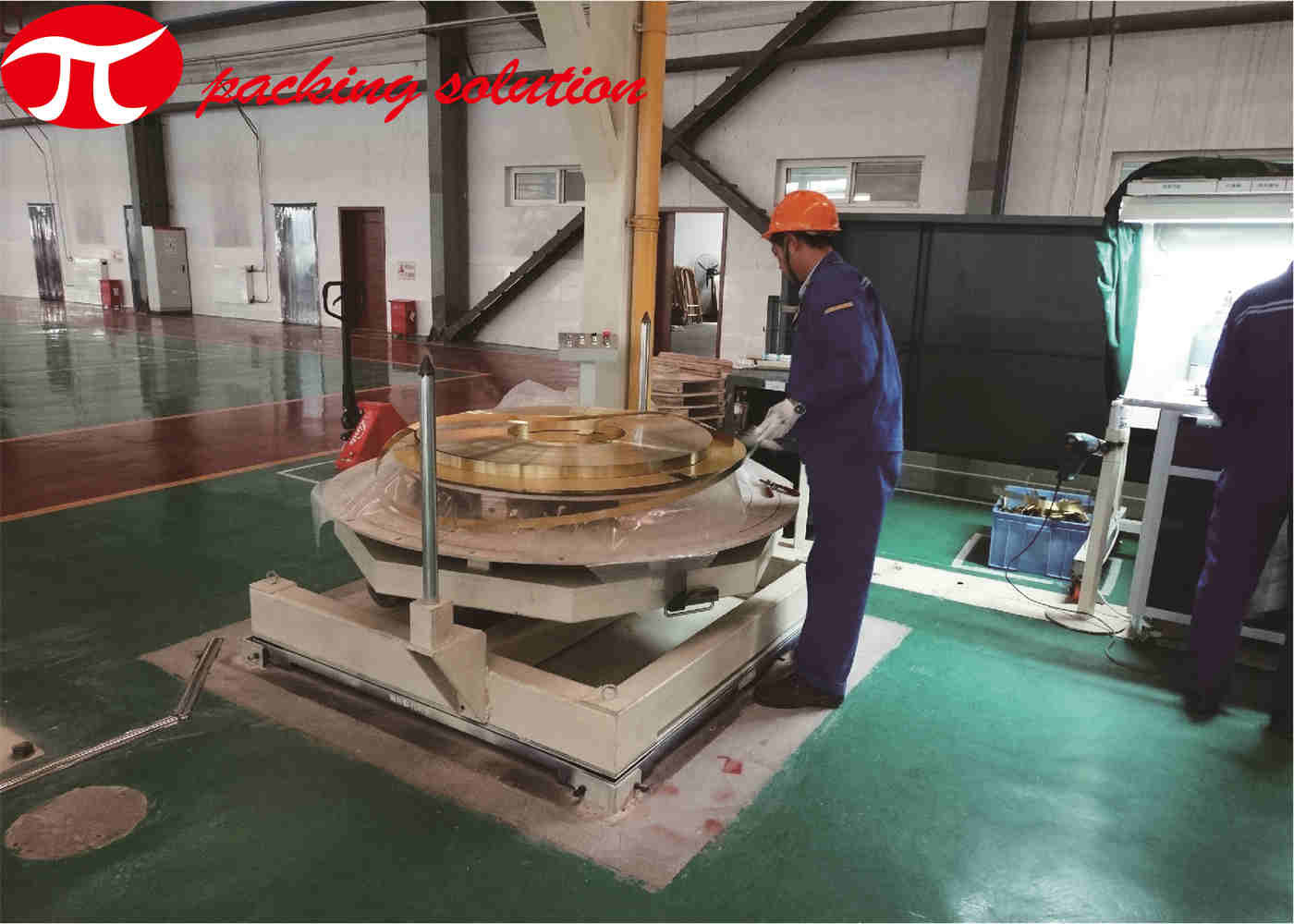

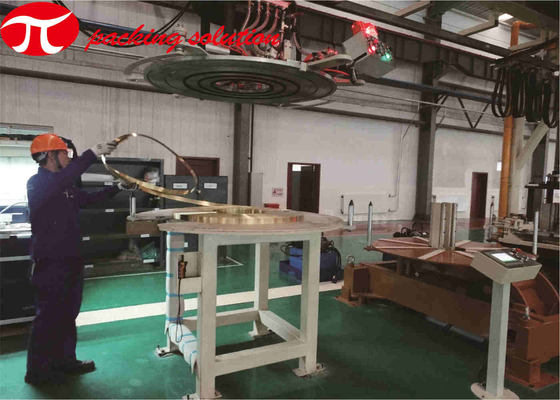

The fully automatic machine consists of winding system, wrapping machine, palletizing system, electrical cabinet and guardrail.
Main technical data of the equipment (for reference only):
| OD | 600mm～1200mm |
| ID | 300-500mm |
| Width | 20mm～50mm |
| Weight | ≤200KG |
| Packaging material | LLDPE stretch film/laminate paper |
| Material overlap | 30%～70% adjustable |
| Packaging material size | Film roll width 90mm, roll outer diameter 500mm, roll inner diameter 76mm |
Application of the equipment:
The packaging line uses composite paper as the main packaging material, and adopts the methods of coiling, automatic packaging and palletizing for the plastic coils, so that the items are well packaged and stacked, which is convenient for storage and transportation.
pre-sale service:
1. We provide various forms of pre-sales services, carry out investment budgeting, manufacturing, planning, and allow customers to make reasonable plans at a lower cost.
2. We will check the customer's goods first, and then recommend a suitable packaging machine.
3. We will recommend and provide the machine based on the customer's usage and purchase budget.
In-sale service:
1. We will provide photos of each manufacturing step on time for customers to check.
2. We will prepare packaging and shippment in advance according to customer's needs.
3. Test the machine and make a video for customers to check.
After-sale service:
1. We guarantee the quality of the machine for 1 year.
2. We provide free training and answer customers' technical questions in time.
