INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Application: | Steel, Copper, Aluminium And Metallurgic Industries |
|---|---|---|---|
| Packaging Material: | Stretch Film,paper Or Knit Tape | Width: | 50-400mm |
| Type: | Packing Line | ID: | 508mm |
| Voltage: | 380V / 50HZ | Packaging Type: | Film And Paper Wrapping |
| Color: | Standard Color | Warranty: | 12 Months |
| Highlight: | ISO9001 Steel Coil Wrapping Line,Steel Coil Wrapping Line 508mm,610mm Steel Coil Packing Line |
||
The Packing Line's application:
This packing line take compound paper as main packing material,apply coil picking, auto packing, stacking&etc for slit steel coils, makes the object well packed and stacked, convenient for storage and transportation.
The Packing Line's characteristics:
1. Simple structure, easy and safe operation.
2. PLC adopted for automatic program control.
3. Indicator alarms automatically when trouble occurs, and errors will be shown automatically.
4. HMI for option for more intelligent control.
5. A wide range sized of steel coils can be wrapped by this machine.
6. The ring height could be adjusted for different object ID&OD.
7. Anti-wearing polyurethane is adopted for the friction wheel, ring with integral mould structure.
8. Different packing material can be used according to your needs.
9. The carrier roller and protective roller are wrapped with polyurethane.
10. Soft start, soft stop and precise reset of the ring.
The Packing Line's basic composition:

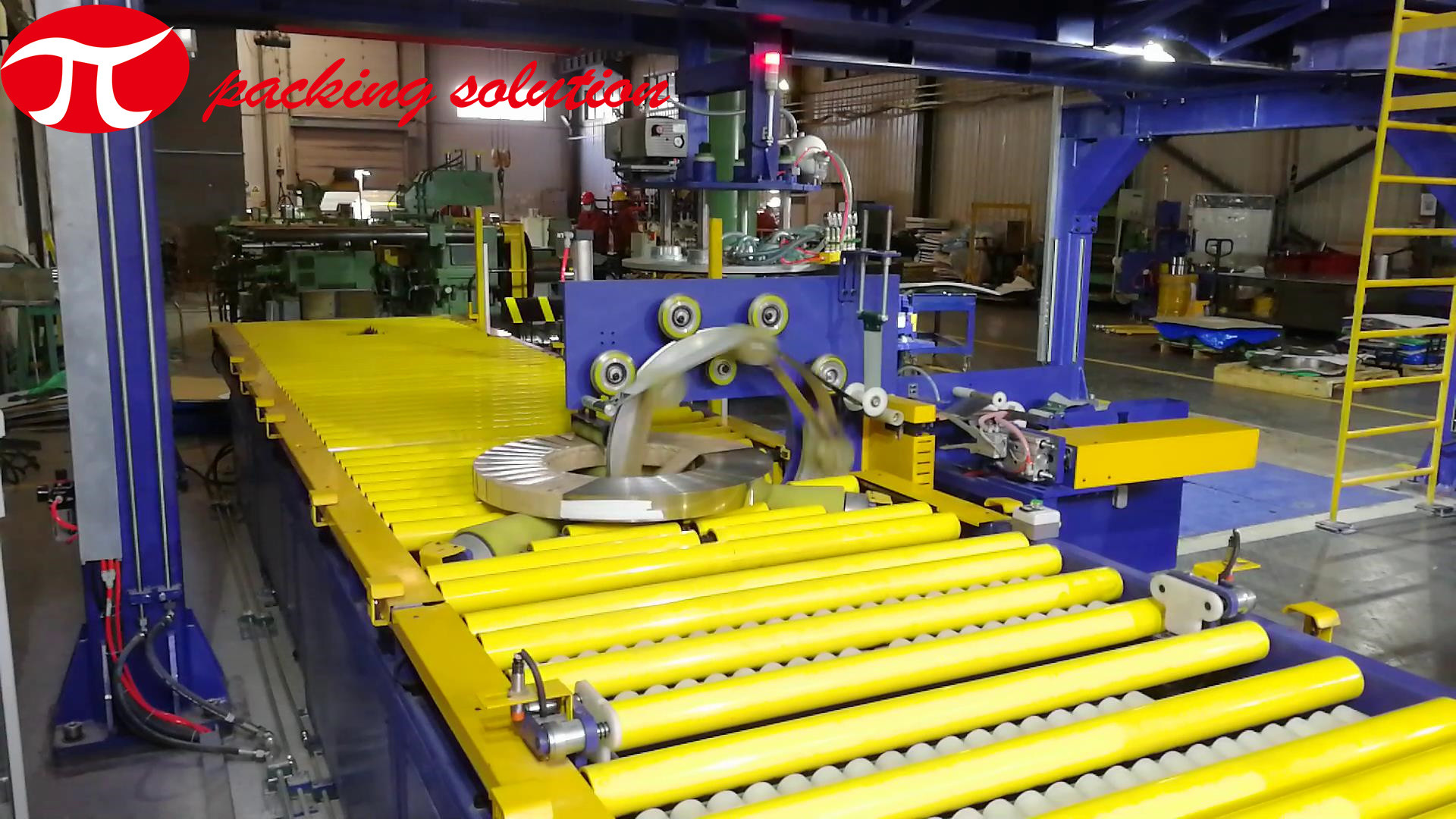

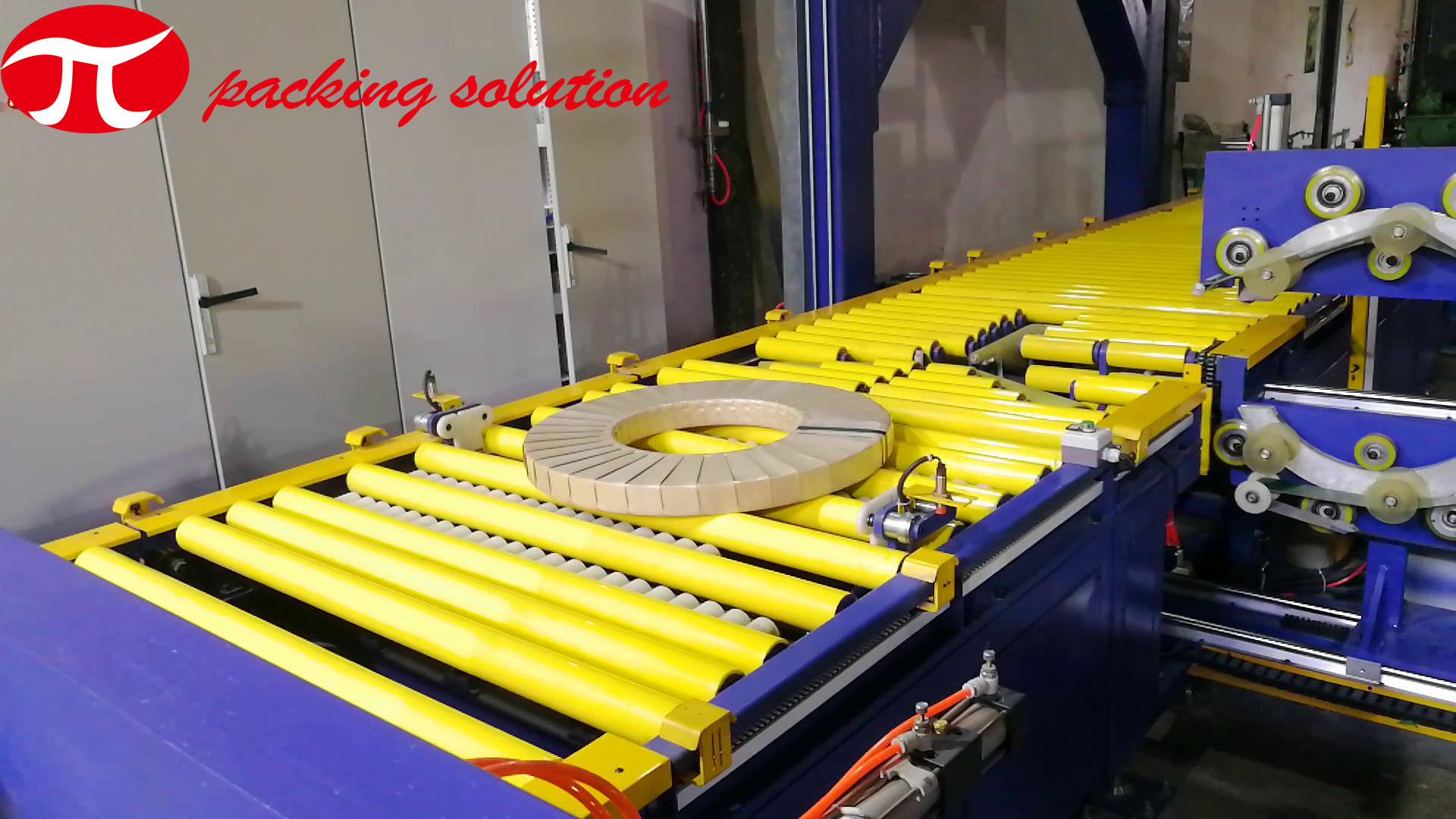

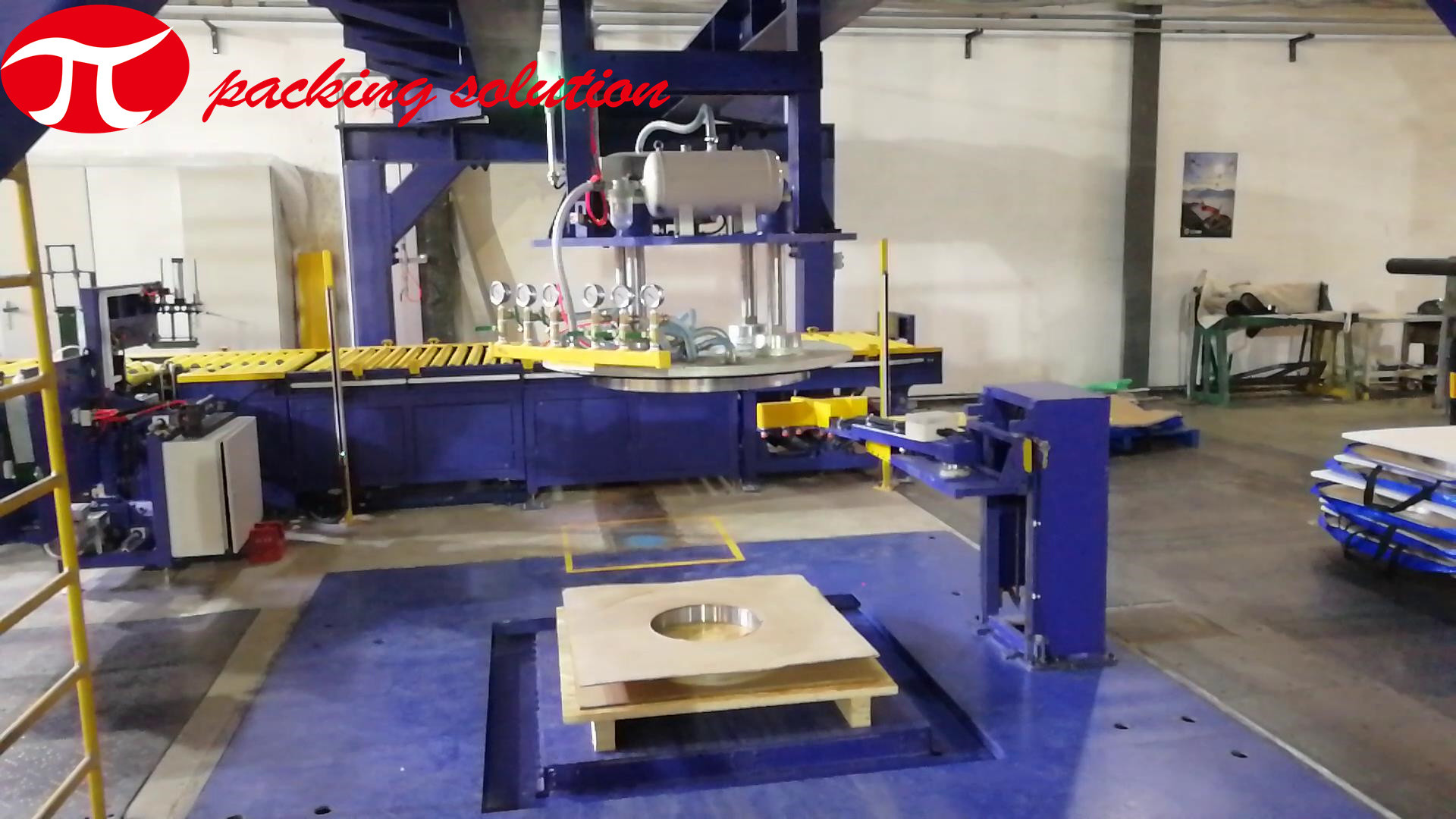

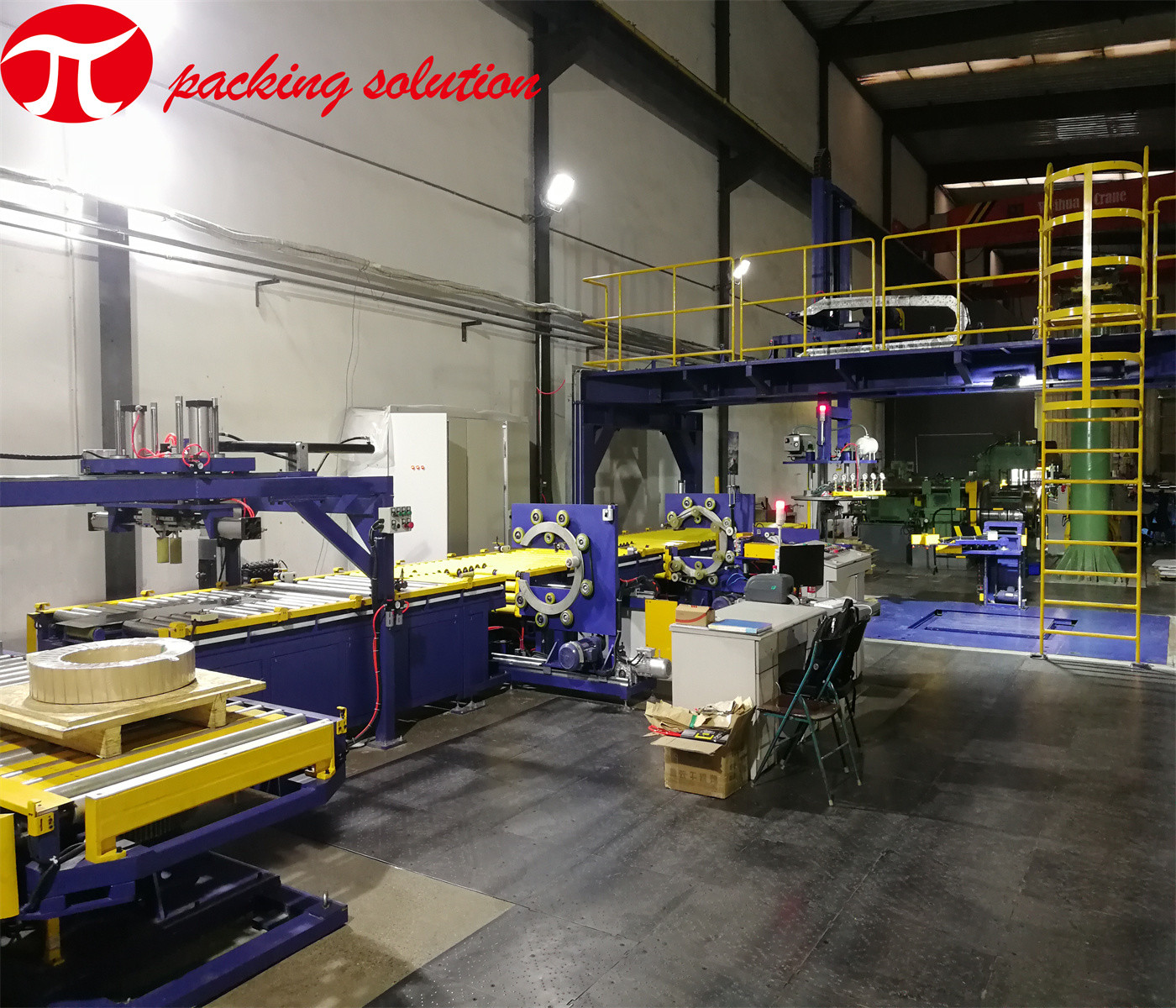

The fully auto machinery is composed of coil loading system,wrapping machine, stacking system, electrical cabinet and guardrails.
The Packing Line's main technical datas(for reference):
| OD | 800mm～1500mm |
| ID | 508-610mm |
| Width | 60mm～500mm |
| Weight | ≤4T |
| Wrapping material | LLDPE stretch film/compound paper |
| Wrapping overlap | 30%～80% adjustable |
| Wrapping material size | Film roll width 90mm, roll OD 500mm,roll ID 76mm |
