INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Pipe, Steel Tube | Driving Type: | Electrical |
|---|---|---|---|
| Stacking Type: | Electromagnetic/mechnical | Usage: | Steel Tube Stacking And Packing |
| Packing Material: | Stretch Film,paper,plastic | Tube Diameter: | 20mm～120mm |
| Length: | 4000-6000mm | Bundle Diameter: | 300-700mm |
| Warranty: | 12 Months | Convey Mode: | Hoisting |
| Highlight: | Online Seamless Pipe Packing Machine,4000mm Pipe Packing Machine,6000mm Pipe Packaging Machine |
||

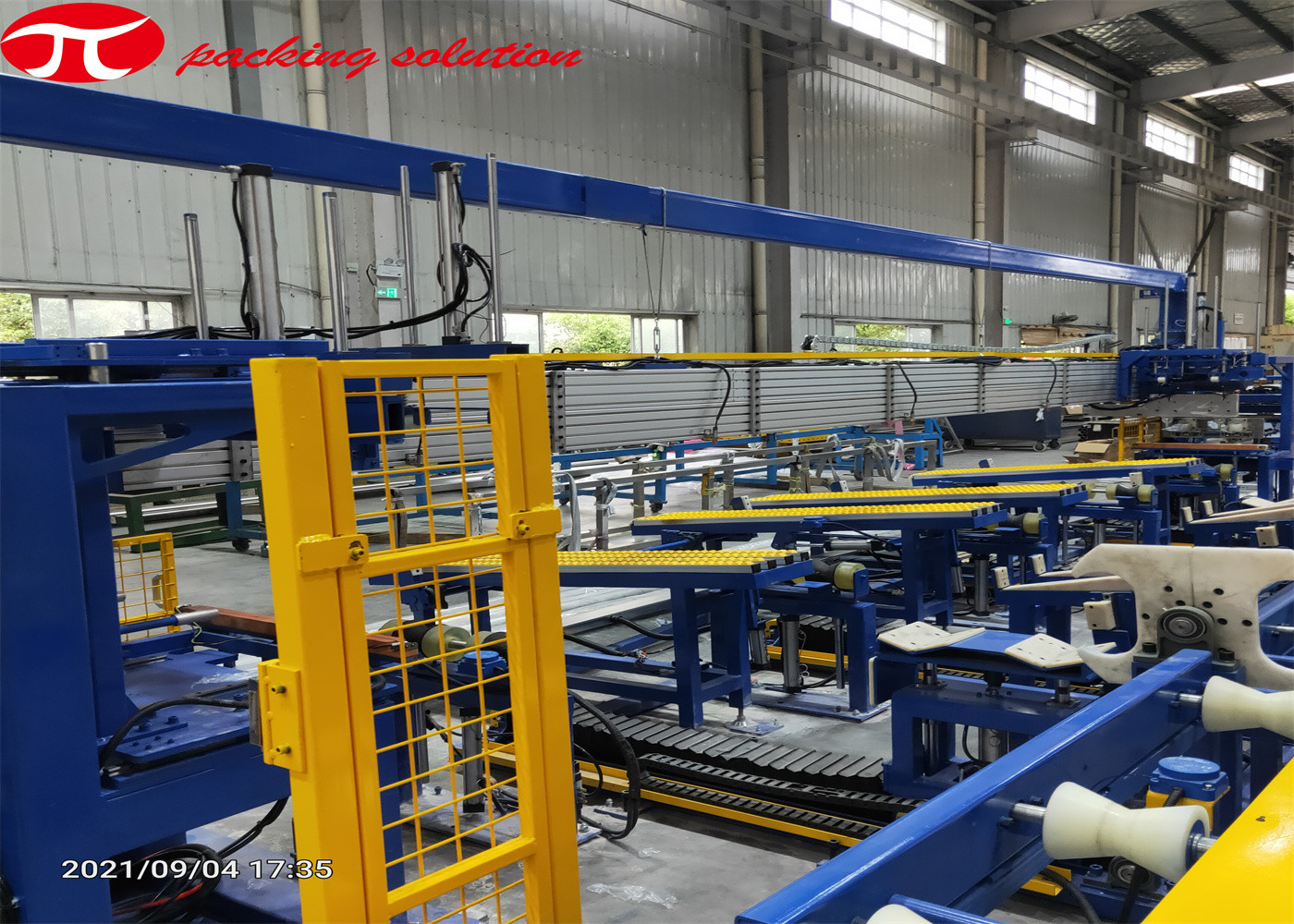

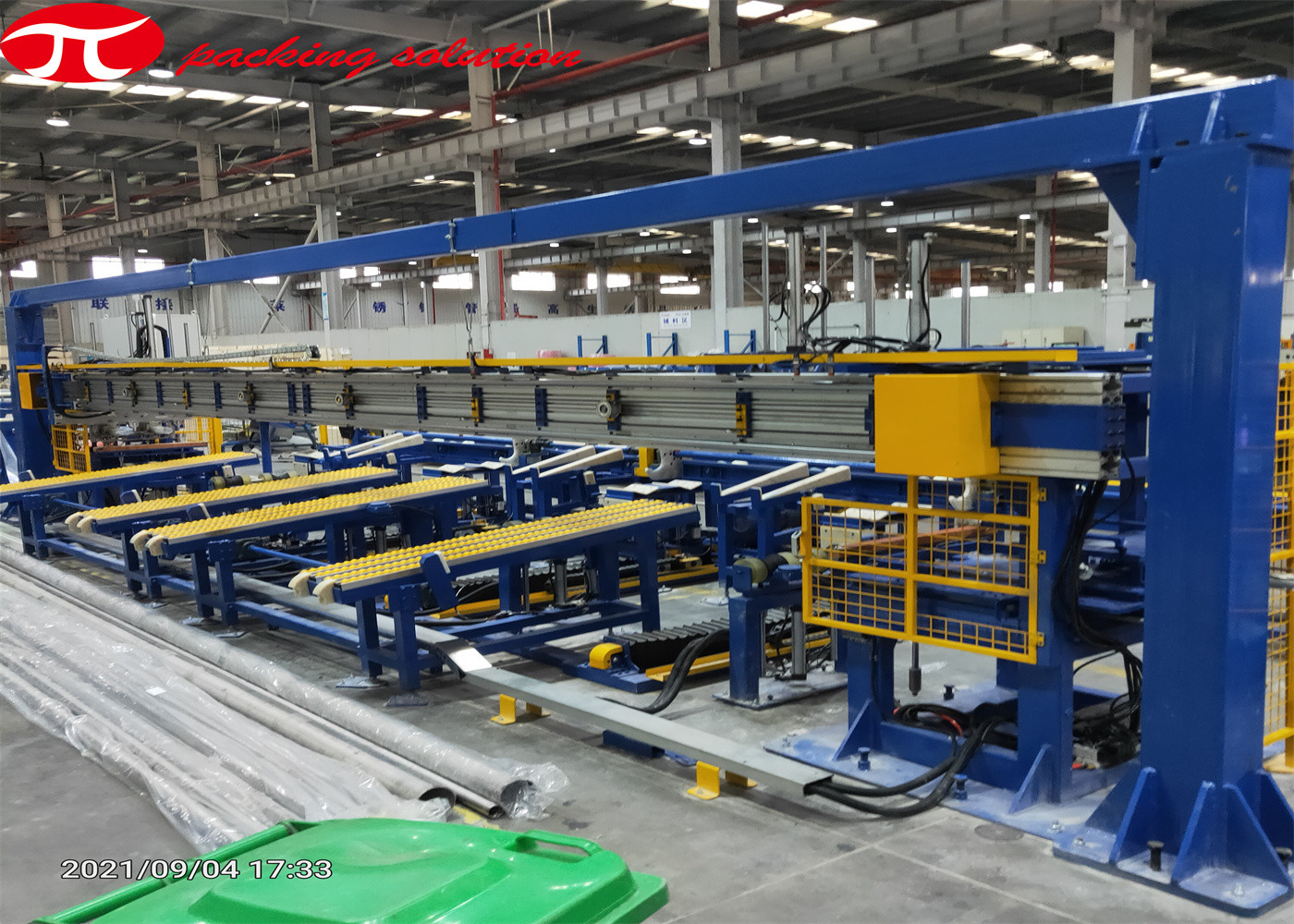

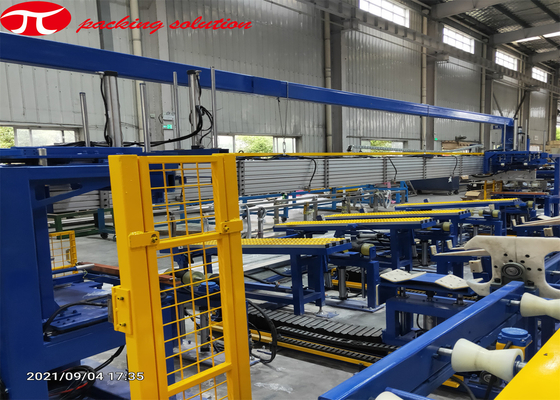

Artificial lifting Automatic online seamless steel tube bundling and stacking line
I. MACHINE APPLICATION
This automatic steel pipe packing line is specially designed for automatic bundling, stacking, conveying,weighing and storage of the steel tubes. It’s widely applicable for hexagonal/Square bundling of square or round pipes.
II. BASIC FEATURES
1. The tube quantity of each bundle, the stacking dimension and other datas can be set by the computer interface.
2. Complete management of database function including: counting, querying and stacking timely, and reflect the related parameters of each tube bundle.
3. The PLC and HMI system can self-diagnose and alert the fault of the stacking system.
III. DETAILED DESCRIPTION
Tube feeding from production line>>Tube aligning>> Tube row stacking >>bundle making layer by layer>>Shift bundle to strapping station>>shift to the conveyor>>Bundle weighing system>> Tube bundle storage station & out feeding.
1. Steel tube feeding, aligning and counting system.
2. Tube row layering and conveying system
Tube feeding system will convey the tube to the storing station and count the numbers of tubes. When the required numbers of tubes accumulated, the storing station will fall the tube row down to the stacking station.
3. Tube row stacking system:Hexagonal ,Square or Rectangular
4. Tube bundle conveying system
After stacking the tube bundle, the bundling frame will descend down,the bundle carriage will transfer the bundle out from the stacking station and conveys to the strapping position.
5.Strapping system(manual or automatic)
Semi-auto: equipped with working station for manual or auto strapping work.
Automatic:equipped with fully automatic strapping system.
6. Tube bundle weighing system
The system weighs the tube bundle automatically.
7. Tube bundle stacking system
After weighing, the tube bundle will be transferred to the storage station.
