INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GS450 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden case /standard container |
| Delivery Time: | 150 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/Year |
| Application: | Industrial Tyres | Packing Type: | Stretch Wrapping Machine |
|---|---|---|---|
| Packaging Material: | Stretch Film , Paper , Plastic | Ring Speed: | 20-90r/min |
| Object OD: | 600-1200mm | Object ID: | ≥400mm |
| Object Height: | ≤450mm | Object Weight: | ≤1000kg |
| Voltage: | 220V / 380V / 50HZ | Driven Type: | Electric |
| Highlight: | 50r/Min Tire Packing Machine,GS450 Tire Packing Machine,Jinglin Tyre Packing Machine |
||
Introduction and Application
Tire winding packaging machine, and vertical ring body winding packaging machine, is specially designed and manufactured for tire, rubber hose, steel belt, cable and other ring articles, a new three-dimensional winding packaging machine
This tire wrapping machine is with safe and easy operation,which can highly reduce high cost labor force and enhance working efficiency for modern industry. Wrapped tire is well sealed, beautiful and looks tidier. Further more, it has waterproof, dust proof, rust proof, wear proof, anti-aging effect and etc.
Main parameters
| ITEM | GS450 |
| Object weight | ≤1000kg |
| Object height | ≤450mm |
| Object OD | 600-1200mm |
| Object ID | ≥400mm |
| Roller speed | 2-4m,min |
| Ring speed | 30-50r/min |
| Suitable material | Stretch film, Knit tape,paper tape etc. |
| Material width | 100-150mm |
| Material OD | 150mm |
| Material ID | 54mm |
| Power output | About 4.5kw |
| Power voltage | 380V, 50HZ |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.

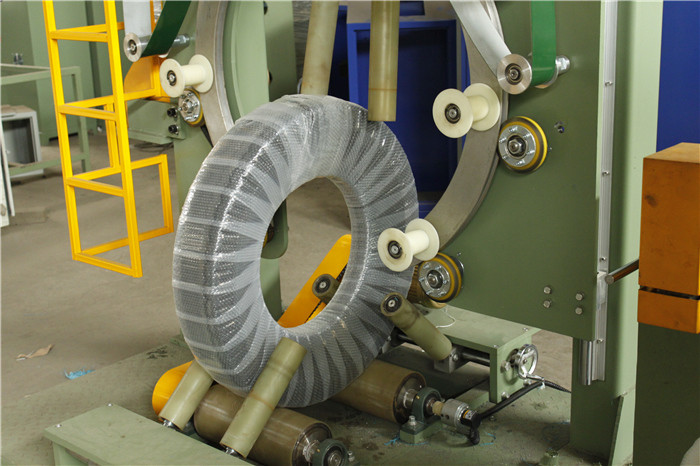

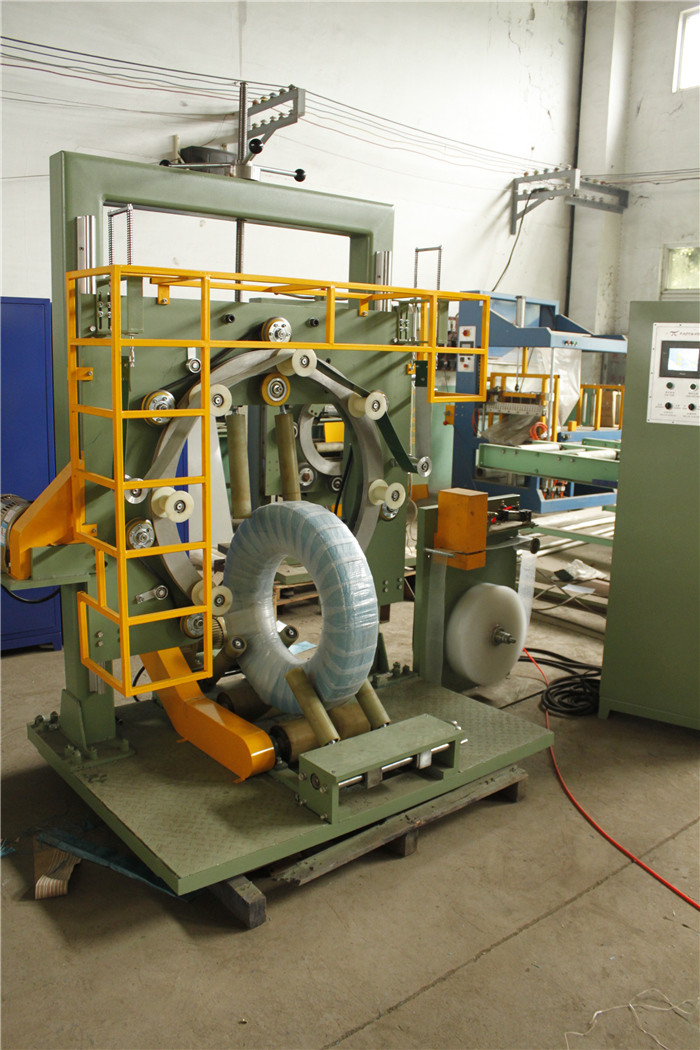

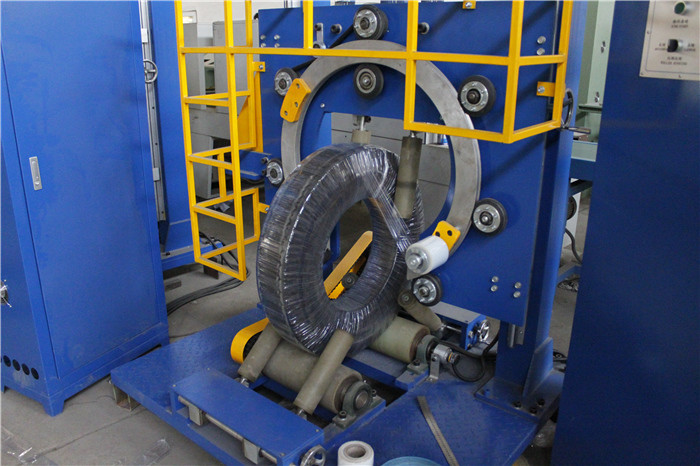

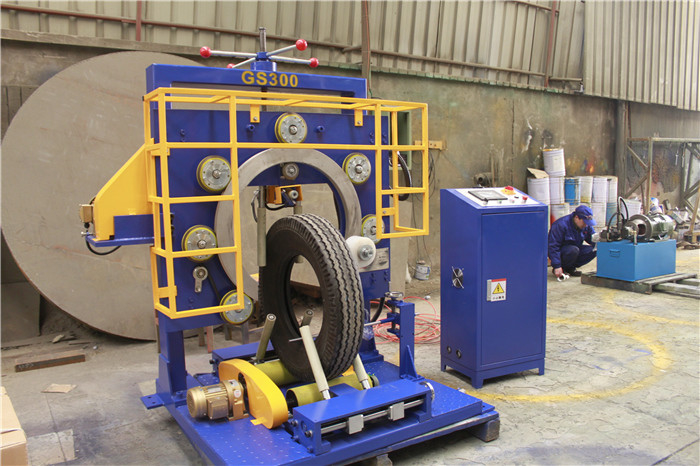

Automatic ring type wheel tyre packing machine with plastic tape main features:
