INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GS300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Industry Tyres | Packing Type: | Stretch Wrapping Machine |
|---|---|---|---|
| Packaging Material: | Stretch Film,paper | Ring Speed: | 20-90r/min |
| Overlap Rate: | 20%-90% Adjustable | Roller Speed: | 2-4m/min |
| Object Weight: | ≤500kg | Object OD: | 500-1000mm |
| Driven Type: | Electric | Voltage: | 220V/380V/50HZ |
| Highlight: | Crepe Paper Tire Packing Machine,Labor Saving Tire Packing Machine,3.0kw Coil Stretch Wrapping Machine |
||

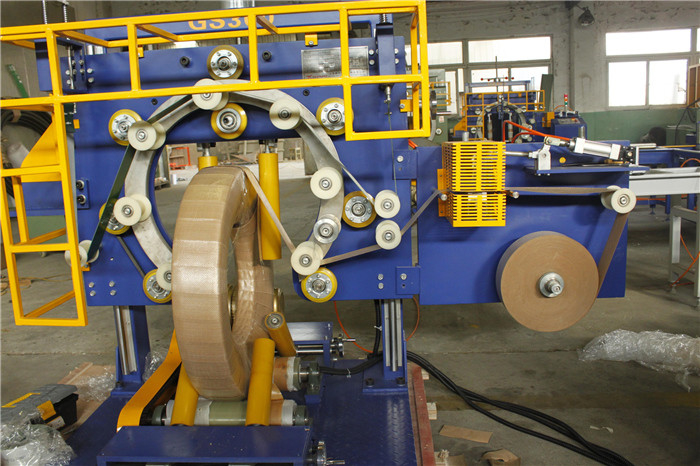

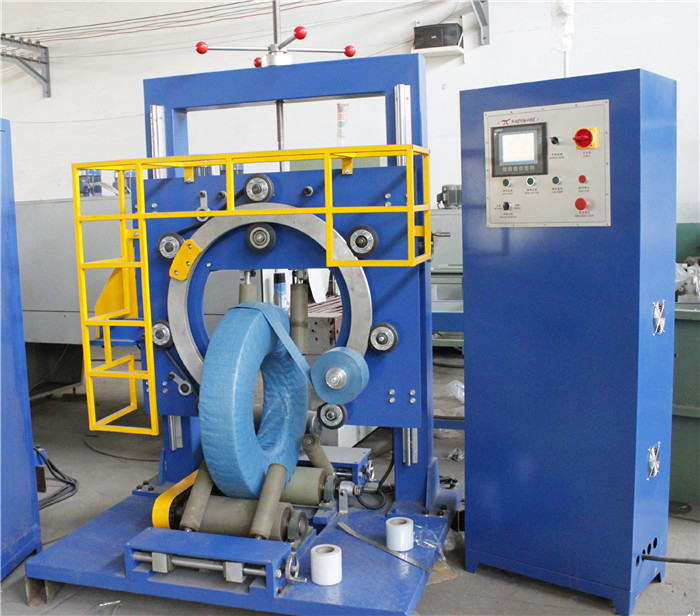

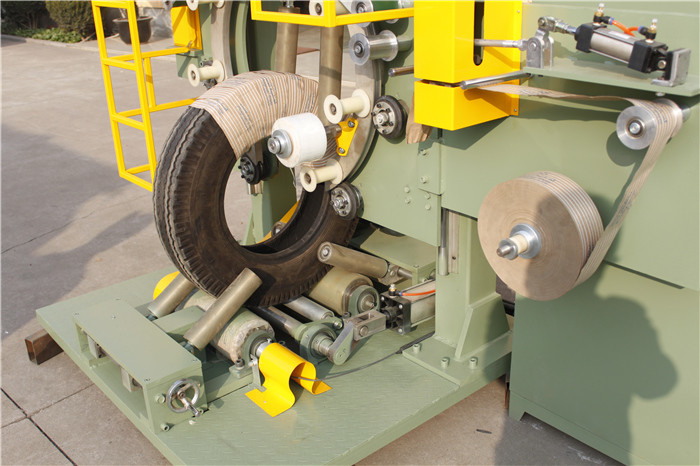

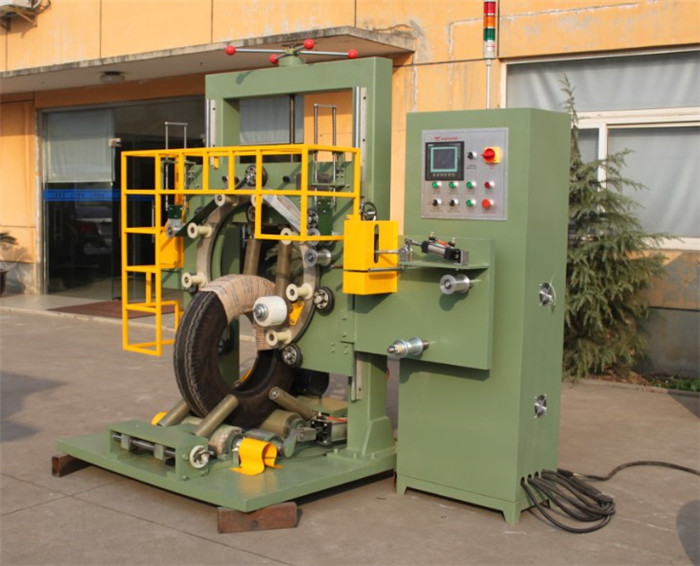

Labor saving automatic crepe paper tyre stretch wrapping machine application:
This tyre packaging machine is mainly designed for tire packing and can also been widely used for other coiled objects like steel coil, wire coils,pipe coil,bearings,etc.This tyre wrapping machine is with safe and easy operation,which can highly reduce high cost labor force and enhance working efficiency for modern industry. Wrapped tire is well sealed, beautiful and looks tidier. Further more, it has waterproof, dust proof, rust proof, wear proof, anti-aging effect and etc.
Labor saving automatic crepe paper tyre stretch wrapping machine parameters:
| ITEMS | GS300 | GS450 | GS800 |
| Object weight | ≤500kg | ≤1000kg | ≤2000kg |
| Object height | ≤300mm | ≤450mm | ≤800mm |
| Object OD | 500-1000mm | 600-1200mm | 1000-2000mm |
| Object ID | ≥300mm | ≥400mm | ≥700mm |
| Roller speed | 2-4m,min | 2-4m,min | 2-3m,min |
| Ring speed | 30-50r,min | 30-50r,min | 20-40r,min |
| Suitable material | Stretch film, Knit tape,paper tape etc. | Stretch film, Knit tape,paper tape etc. | Stretch film, Knit tape,paper tape etc. |
| Material width | 100-150mm | 100-150mm | 150mm |
| Material OD | 150mm | 150mm | 200mm |
| Material ID | 54mm | 54mm | 54mm |
| Power output | About 3.0kw | About 4.5kw | About 6.0kw |
| Power voltage | 380V, 50HZ | 380V, 50HZ | 380V, 50HZ |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Labor saving automatic crepe paper tyre stretch wrapping machine main features:
