INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Bars, Steel Tubes | Driving Type: | Electric |
|---|---|---|---|
| Stacking Type: | Mechanical | Usage: | Steel Tube Collecting,stacking,packing,storage |
| Packing Material: | Stretch Film,paper,plastic | Voltage: | 220V/380V/50Hz |
| Length: | 4000-6000mm | Bundle Weight: | ≤3T |
| Bundle Diamete: | 300-700mm(Cunstomized) | Warranty: | 12 Months |
| Highlight: | 3T Pipe Packing Machine,700mm Pipe Packing Machine,Steel Bar Bundling machine |
||

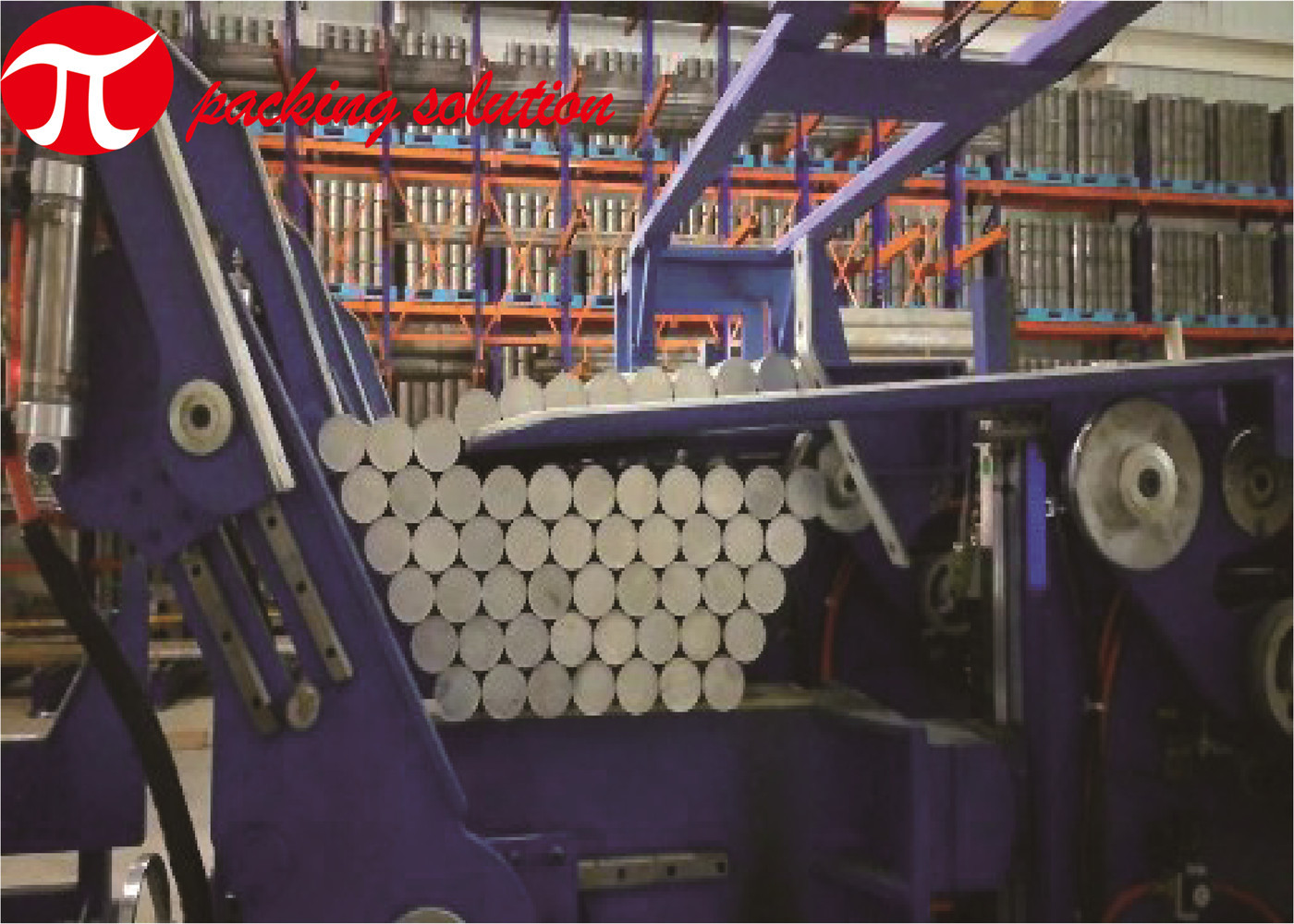

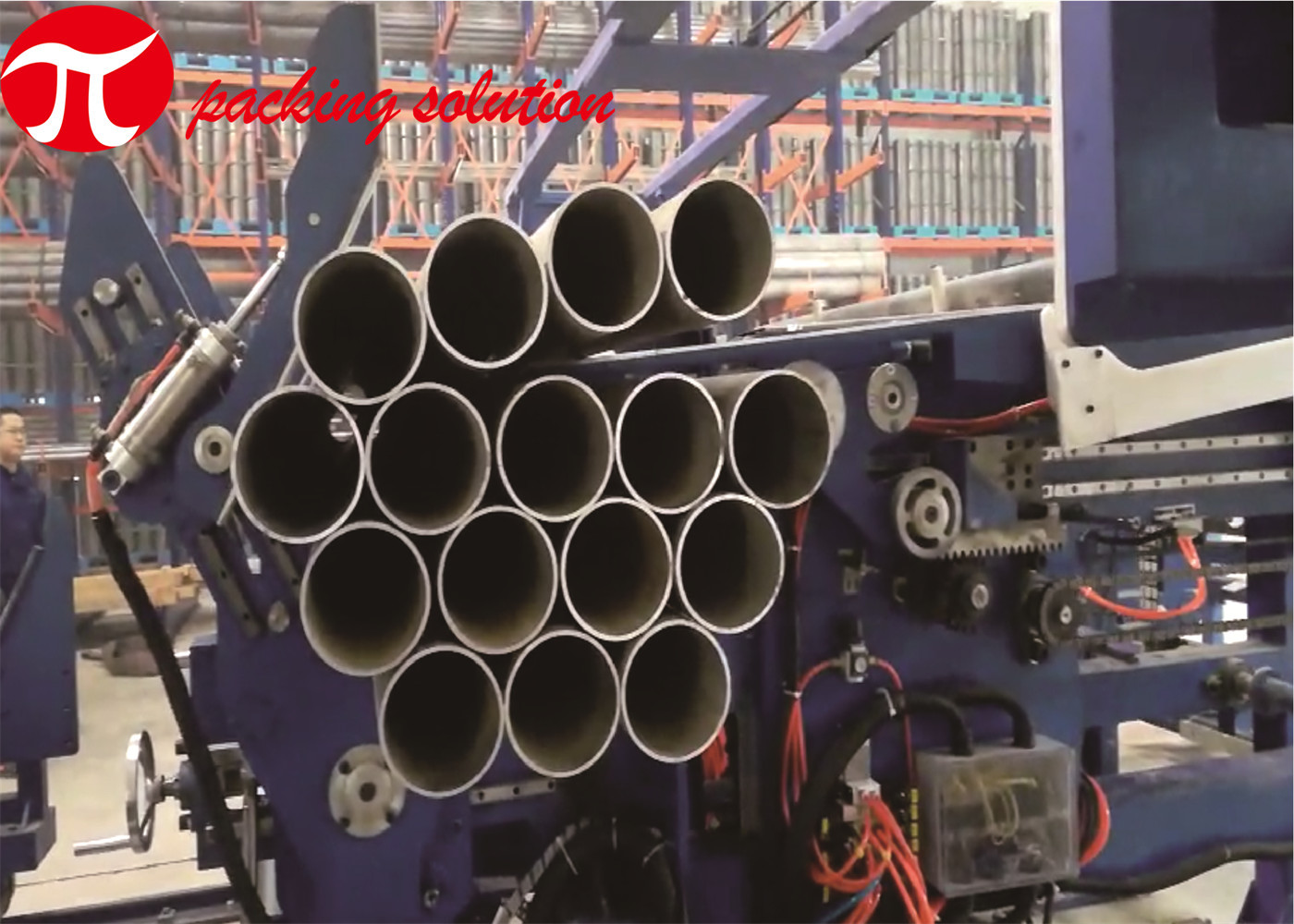

3T Pipe packing Machine, Automatic control steel bar bundle making and packing equipment
1. Automatic control steel bar bundle making and packing equipment application:
The machinery is applied for arraying, counting, stacking,strapping, ends covering, stretch wrapping and ends fixing of the steel pipes/bars, aluminium tubes/bars&etc.
2. Automatic control steel bar bundle making and packing equipment basic composition:
The line is composed of the elevating system, counting system, ends aligning system, shifting system, bundling system, steel strapping system,wrapping machine, ends covering machine, end fixing system, weighing system, electrical cabinet, safe guardrails, hydraulic station&etc.
3. Automatic control steel bar bundle making and packing equipment scope of application:
Tube diameter:20mm～120mm
Length:4000-6000mm
Bundle weight:≤3T
Bundle diameter:300-700mm
(The machine will be custom designed according to your object dimensions)
What advantage of our factory have:
1)CE certificated
2)ISO certificated
3)high performance
4)Premium quality
5)Reliable after-sales service
