INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD2000 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Aluminum/steel Wire Coils | Wrapping Material: | LLDPE Stretch Film |
|---|---|---|---|
| Material Overlap: | 20%-80% Adjustable | Automation: | Fully Automatic |
| Coil ID: | 405-502mm | Coil OD: | 800-2000mm |
| Coil Width: | 800-2200mm | Coil Weight: | ≤10T |
| Voltage: | 380V/50HZ | Functions: | Compacting, Tilting And Wrapping,etc |
| Highlight: | 2000mm Automatic Coil Packaging Line,ISO9001 Automatic Coil Packaging Line,GD2000 Jumbo Coil Packing Machine |
||
Labour saving Jumbo Coil Aluminum Wire Coil packing line for Compacting / Strapping
Application:
The packing line is used for compacting, strapping, core-removing and wrapping of large metal wire products.
It’s a highly automatic, highly integrated, safe and practical packing machinery.
Our updated coil master wrapping machines can be adapted to customer’s requirements from simple to highly complex configurations. Jinglin can offer various options from the most diverse requirements according your specific needs.
Basic application:

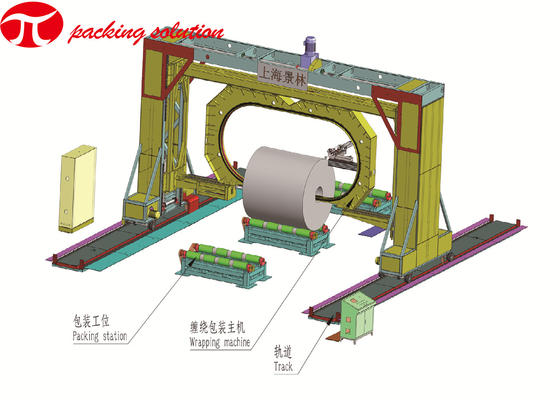

The machine is composed of feeding conveyor, compacting & rotating system, core-removing system, tilting system, wrapping machine&etc.
Scope of application:
| Application | Aluminum/steel wire coils |
| Coil ID | 405-502mm |
| Coil OD | 800-2000mm |
| Coil width | 800-2200mm |
| Coil weight | ≤10T |
| Packing station quantity | 2-3 sets |
| Wrapping material | LLDPE stretch film,compound paper& etc. |
:
Competitive Advantages:
Vertical Wrapping Machine has the advantages that the manual winding package is completely replaced, the packaging speed is fast, the operation is convenient, the production efficiency is greatly improved, and the labor intensity of the worker is reduced. It can be packaged in multi-layer packaging paper, which can protect against dust and moisture and protect the surface of the product.
