INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel, Copper, Aluminium And Metallurgic Industries | Driven Type: | Electric |
|---|---|---|---|
| Wrapping Material: | LLDPE Stretch Film/compound Paper | Wrapping Overlap: | 30%～70% Adjustable |
| Film Roll Width: | 90mm | Width: | 60-300mm |
| Automatic Grade: | Automatic | Packaging Type: | Film And Paper Wrapping |
| Voltage: | 380V / 50HZ | Warranty: | 12 Months |
| Highlight: | Horizontal Steel Coil Wrapping Line,Stacking System Steel Coil Wrapping Line,Steel Coil Auto Packing Line |
||
Product application:
This packing line take compound paper as main packing material,apply coil picking, auto packing, stacking&etc for slit steel coils, makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:

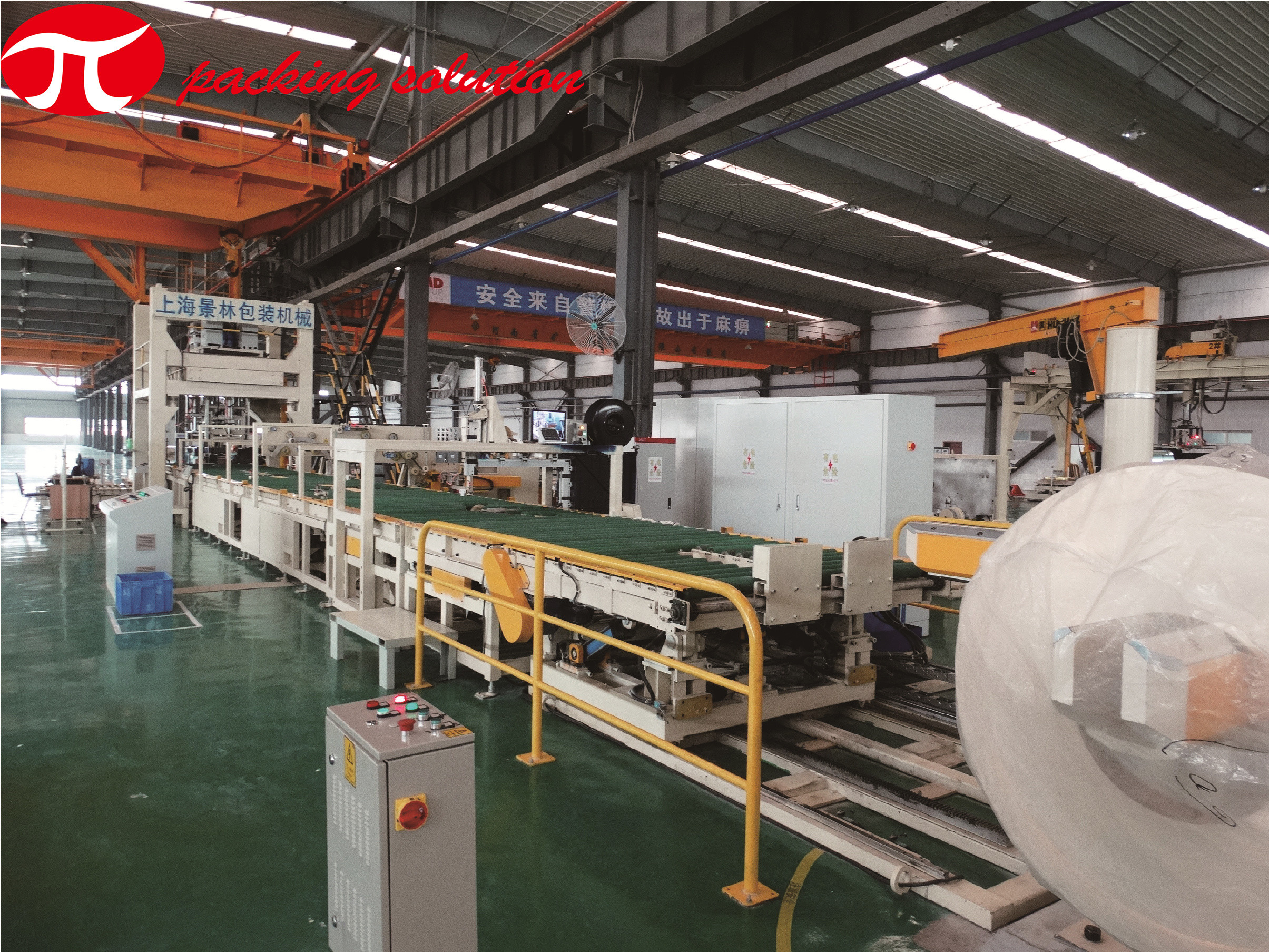

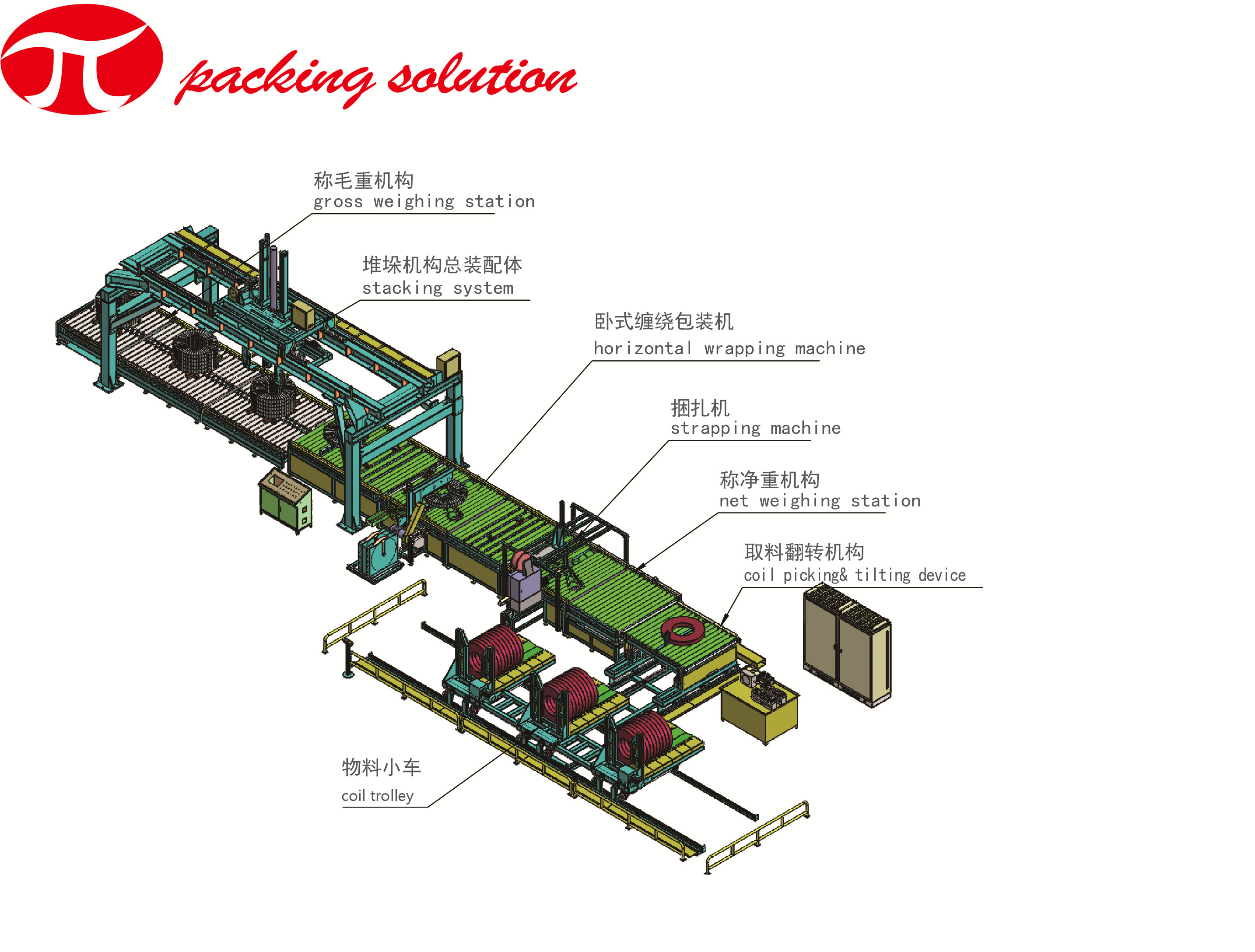

The fully auto machinery is composed of coil loading system,wrapping machine, stacking system, electrical cabinet and guardrails.
The machines can be assembly to get your packaging goal...
We offer the best metal coil packaging solution which ensure your maximum packaging production and save your labor cost.
And it providing a safety operation process for your staff.
Techincal parameters(for reference):
OD: 800mm～1500mm
ID: 508-610mm
Width: 60mm～500mm
Weight: ≤ 5T
Wrapping material: LLDPE stretch film/compound paper
wrapping overlap: 30%～70% adjustable
Wrapping material size: film roll width 90mm, roll OD 500mm,roll ID 76mm
The Fuction of the machines:
Coil Turnstile: For connecting with coil car for loading the slit coil.
Coil car: For moving the coil from packaging loading and unloading.

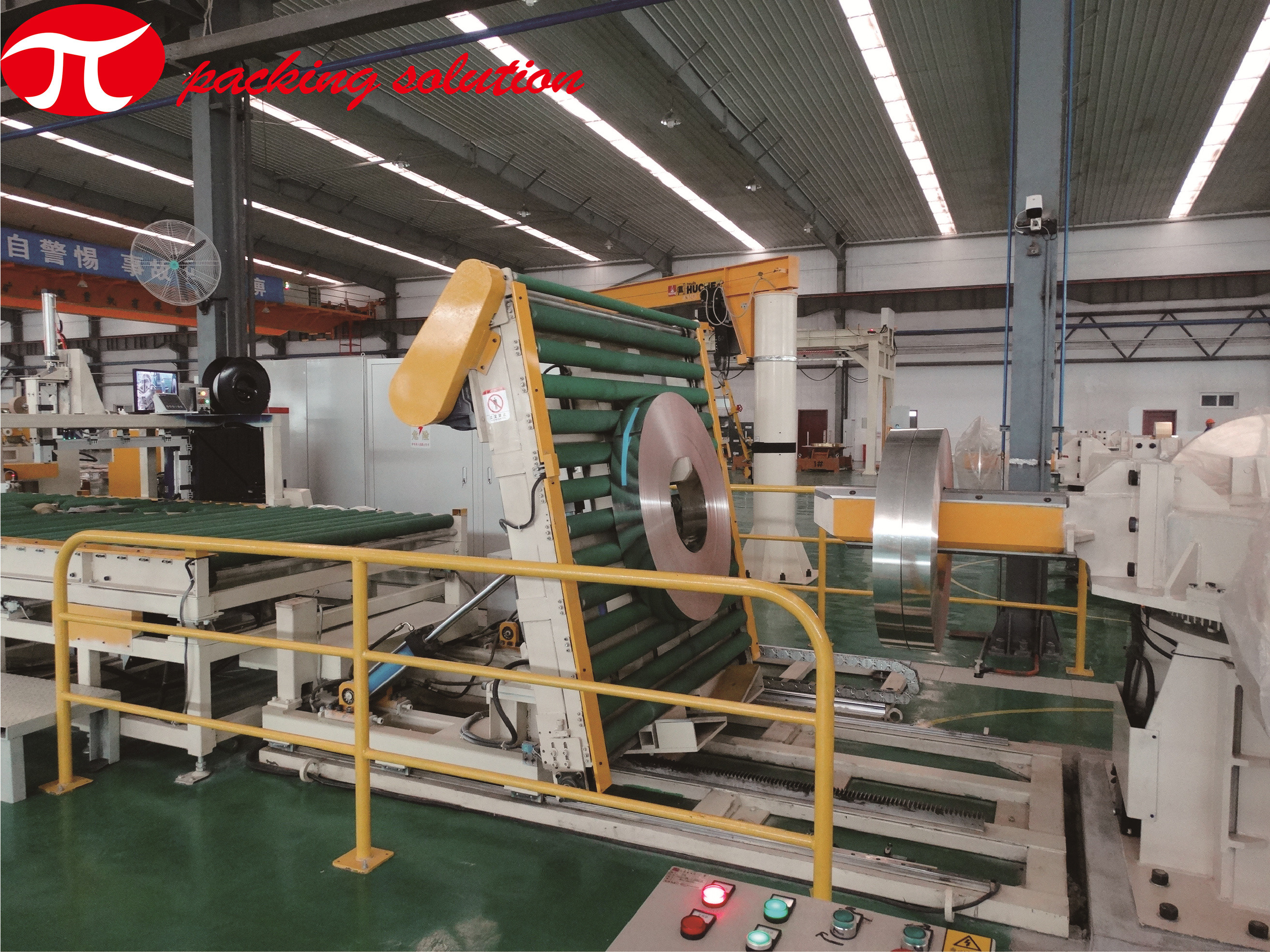

Coil down ender: For picking the slit coil from turnstile and changing coil from vertical to horizontal and moving to conveyor.
Coil strapping machine: For coil strapping by PET/PE/steel belt.

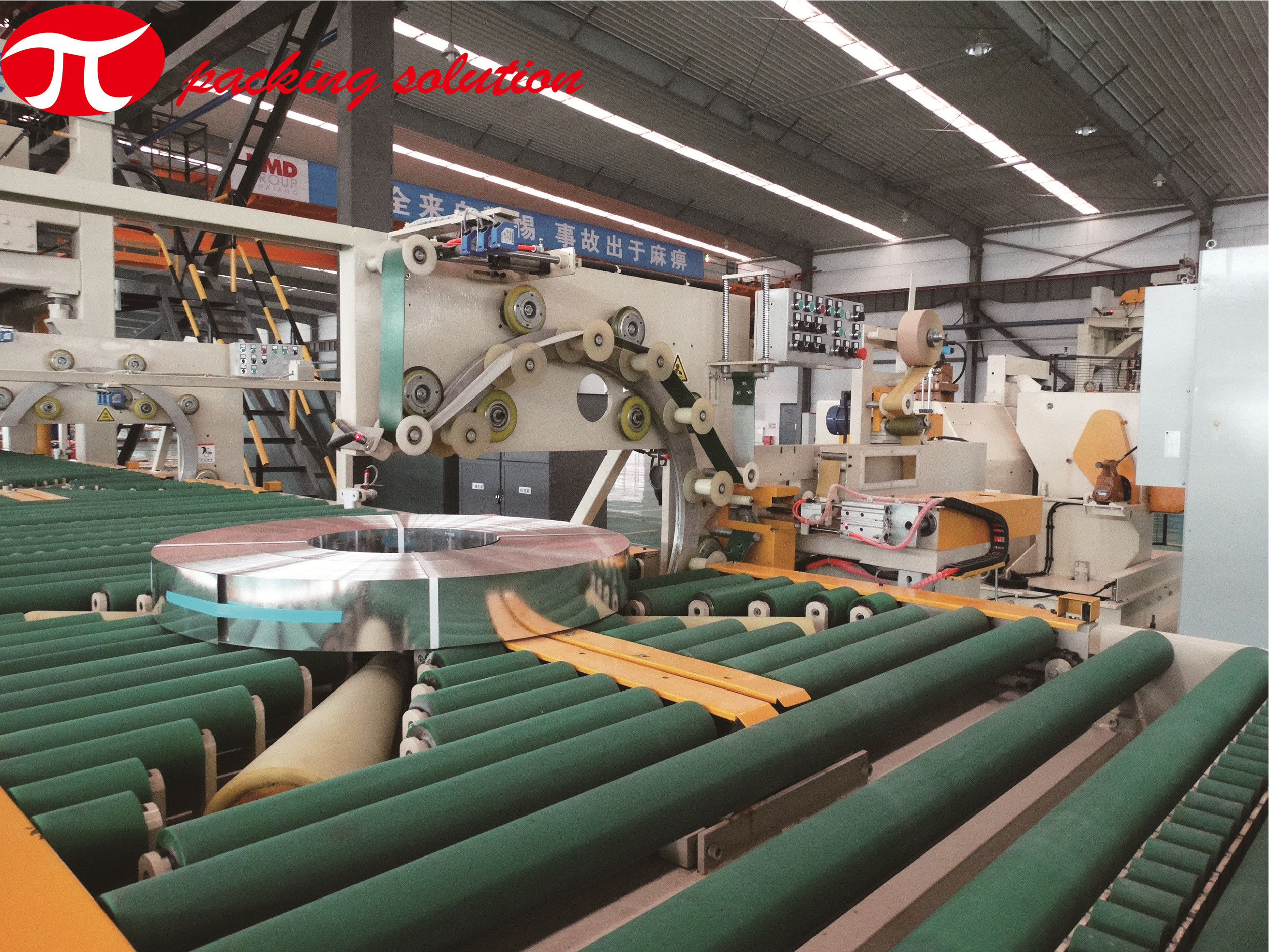

Coil wrapping machine: For coil eye cross wrapping with different packing material.
Coil Stacking machine: For moving and and storage the packed coil on pallet.
