INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Packaging Line,packing Machine | Application: | Copper Strip |
|---|---|---|---|
| OD: | 800mm-1500mm | Packaging Material: | Composite Paper Bag/stretch Film |
| Packaging Process: | Flip-weigh-wind-stack | Capacity: | 3T |
| Stacking Weight: | 5T | Voltage: | 380V/50Hz |
| Packaging Usage: | Flip Conveying/stacking Transportation | Warranty: | 12 Months |
| Highlight: | Automatic Copper Coil Packaging Machine,Horizontal Copper Coil Packaging Machine,1500mm Copper Coil Machine |
||

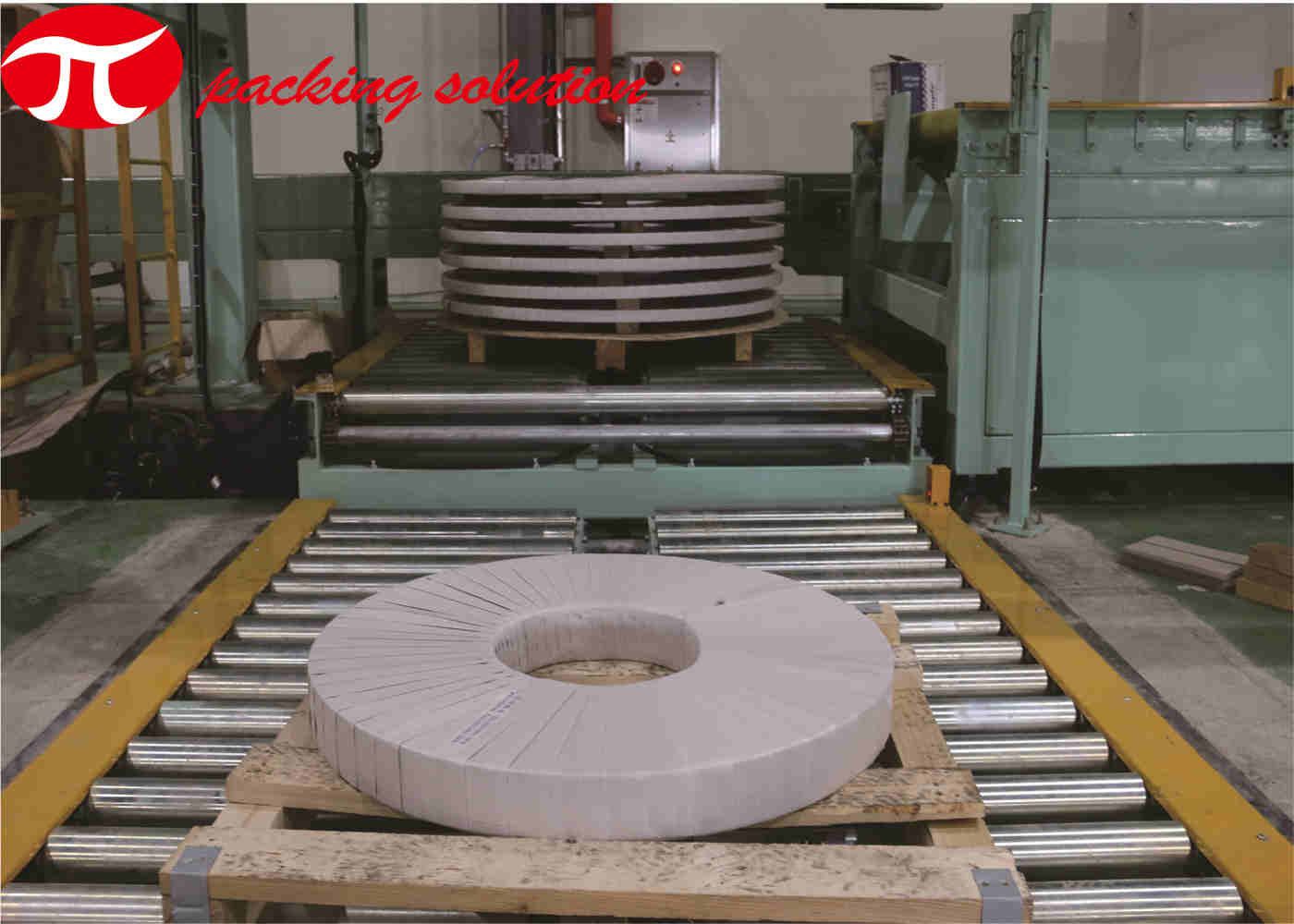

Automatic horizontal copper coil packaging machine with weighing and strapping system
Alias:COPPER STRIP PACKING LINE
Basic composition:

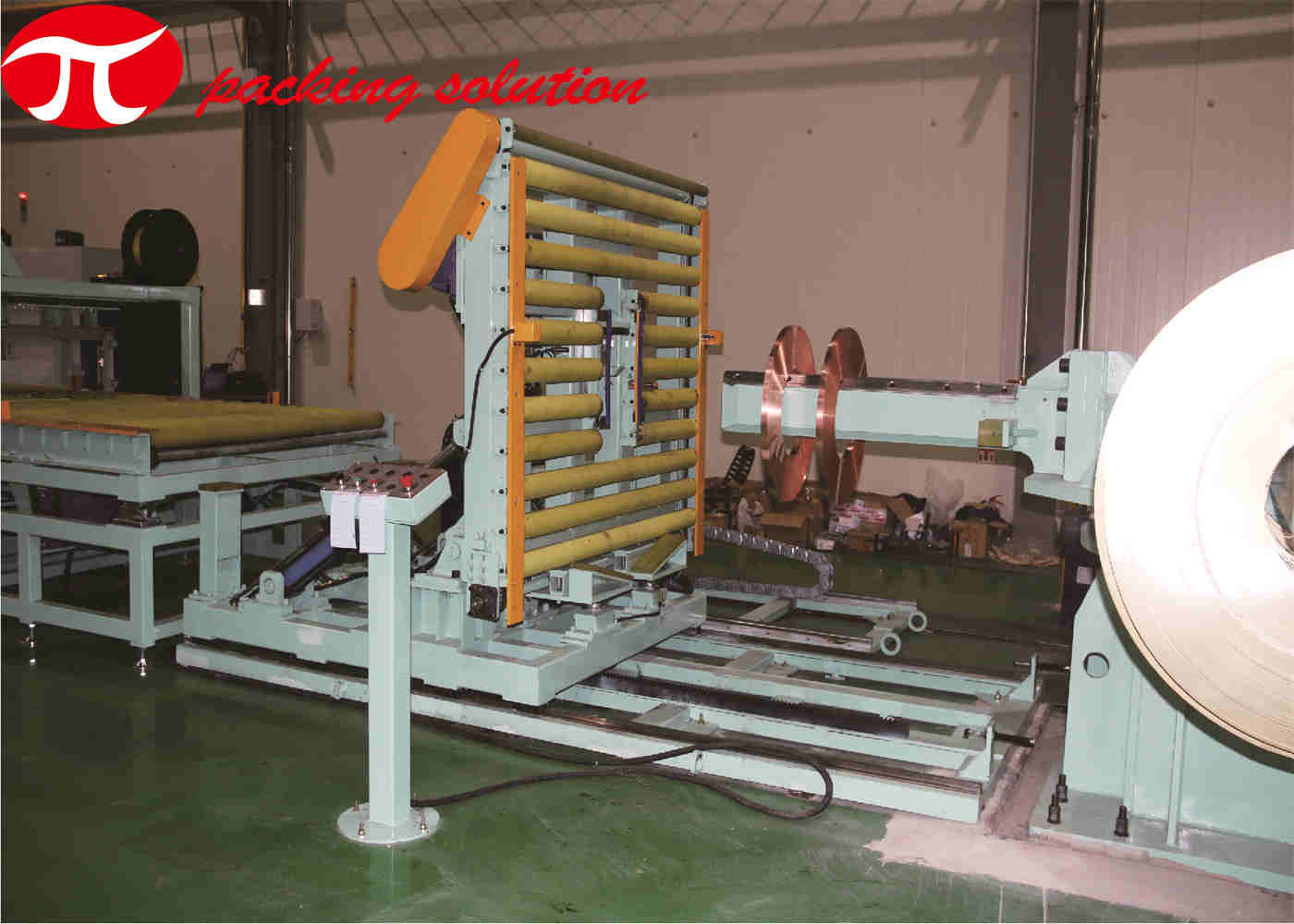

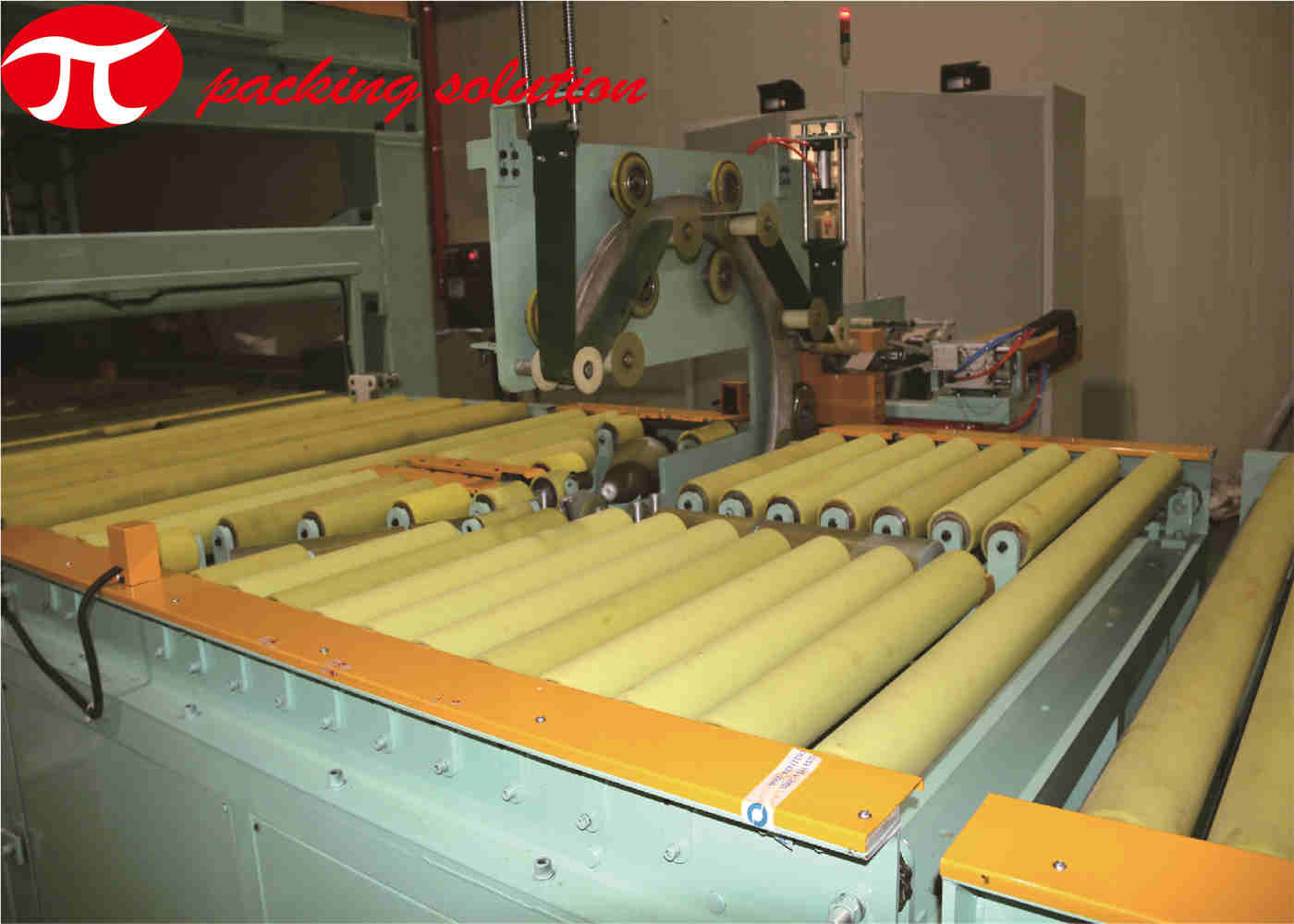

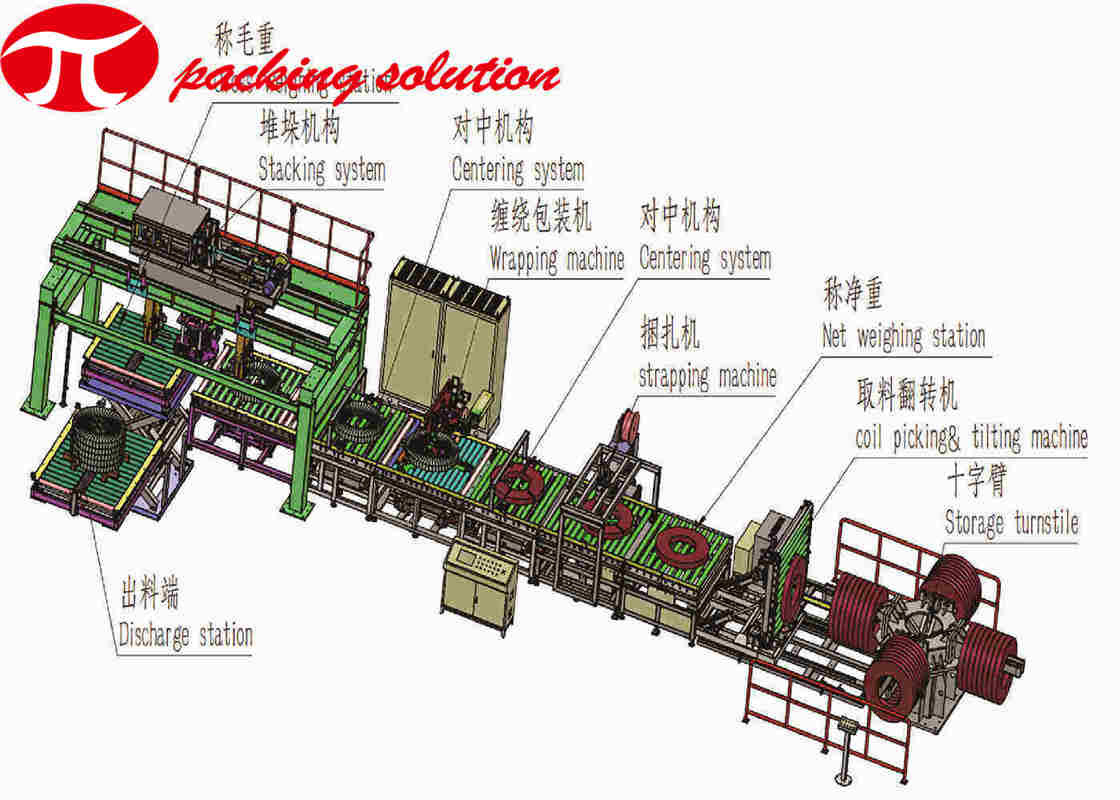

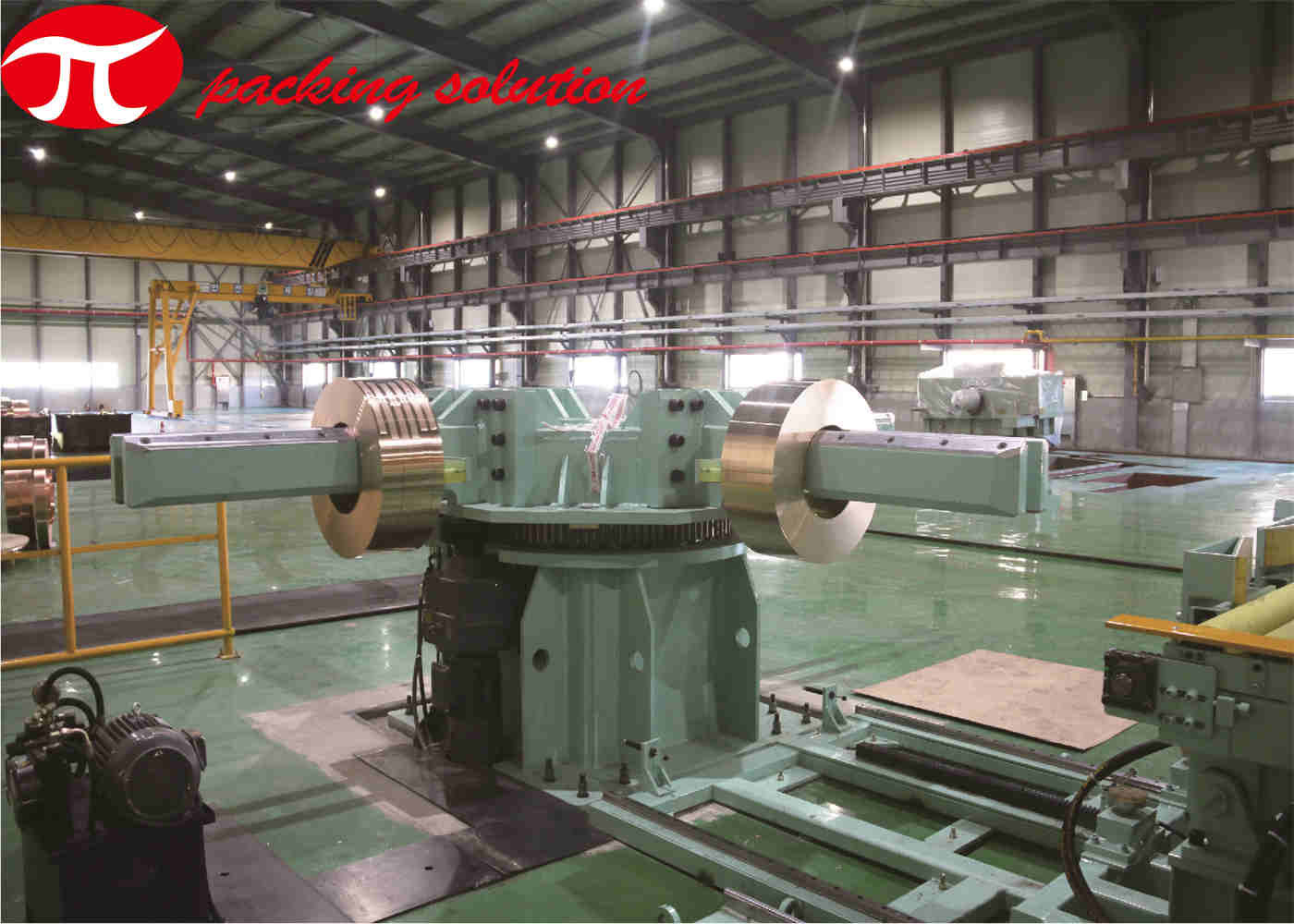

The machinery is composed of turnstile, coil picking&tilting system, strapping machine, wrapping machine,pallet feeding machine, stacking system, weighing system, labeling system, conveyor& etc.
| Applicable Products | Copper strip/copper coil/steel coil |
|---|---|
| Packaging material | Composite paper bag/stretch film |
| Packaging process | Flip-weigh-wind-stack |
| Number of packaged products | single |
| Outer diameter | 800-1500MM |
| the inside diameter of | 300-500MM |
| width | 300MM |
| Number of single rolls | 3T |
| Stacking weight |
5T |
Production Market
For the past 20 years, we have established a sales network worldwide. More than 1000 sets of our machines and packing lines have been supplied to more than 100 countries®ions over the world and have won a good reputation both at home&abroad.
