INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001,CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Metal Coil | Weight: | 3000KG |
|---|---|---|---|
| OD: | 900MM | ID: | 508-610mm |
| Packing Material: | Compound Paper | Power Type: | Electricity |
| Convey Mode: | Unpowered Conveying | Composition: | Turnstile,wrapping Machine &etc. |
| Wrapping Material Size: | Film Roll Width 90mm,roll OD 500mm,ID 76mm | Warranty: | 12 Months |
| Highlight: | Trolly Coil Wrapping Machine,Automatic Coil Wrapping Machine,610mm Steel Coil Packaging Line |
||

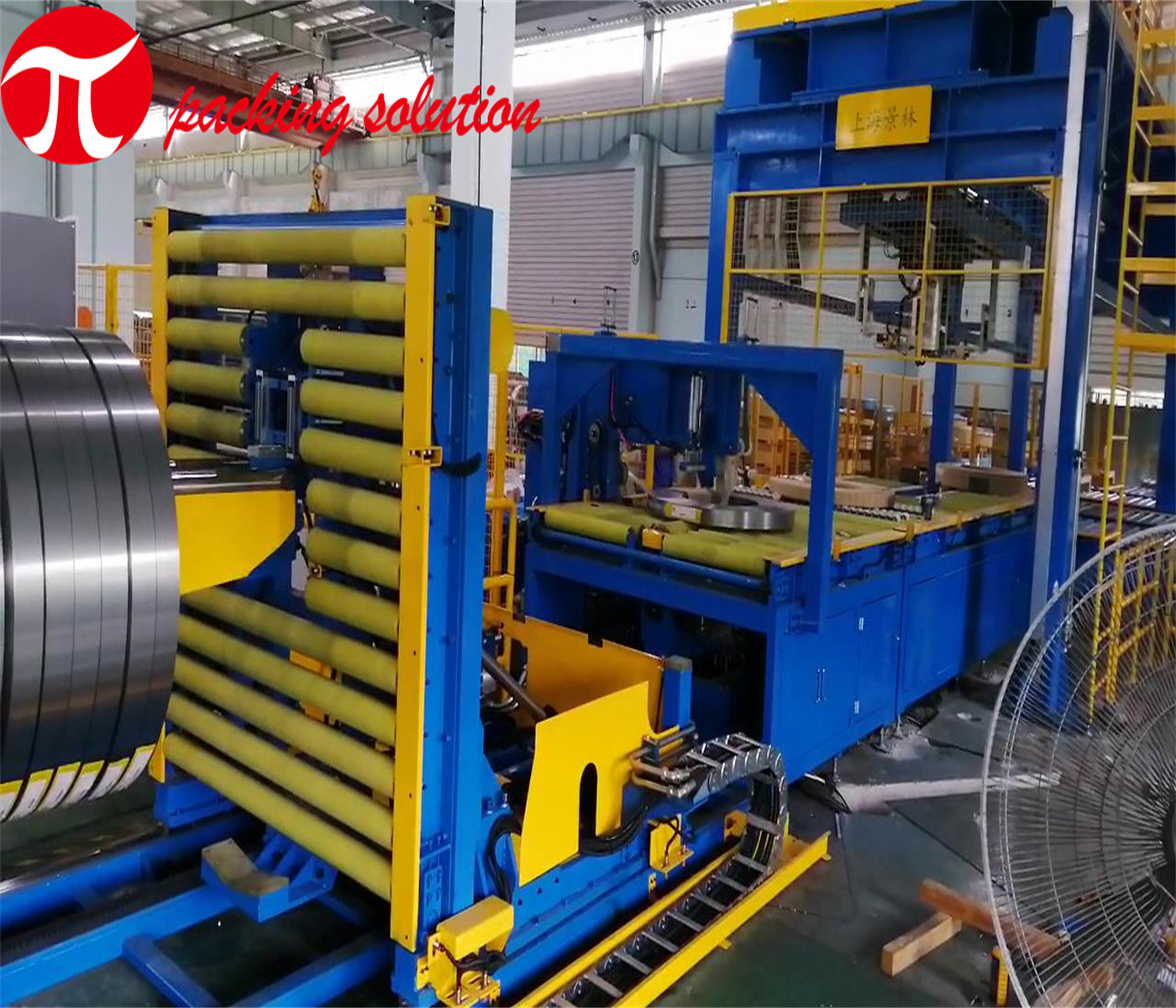

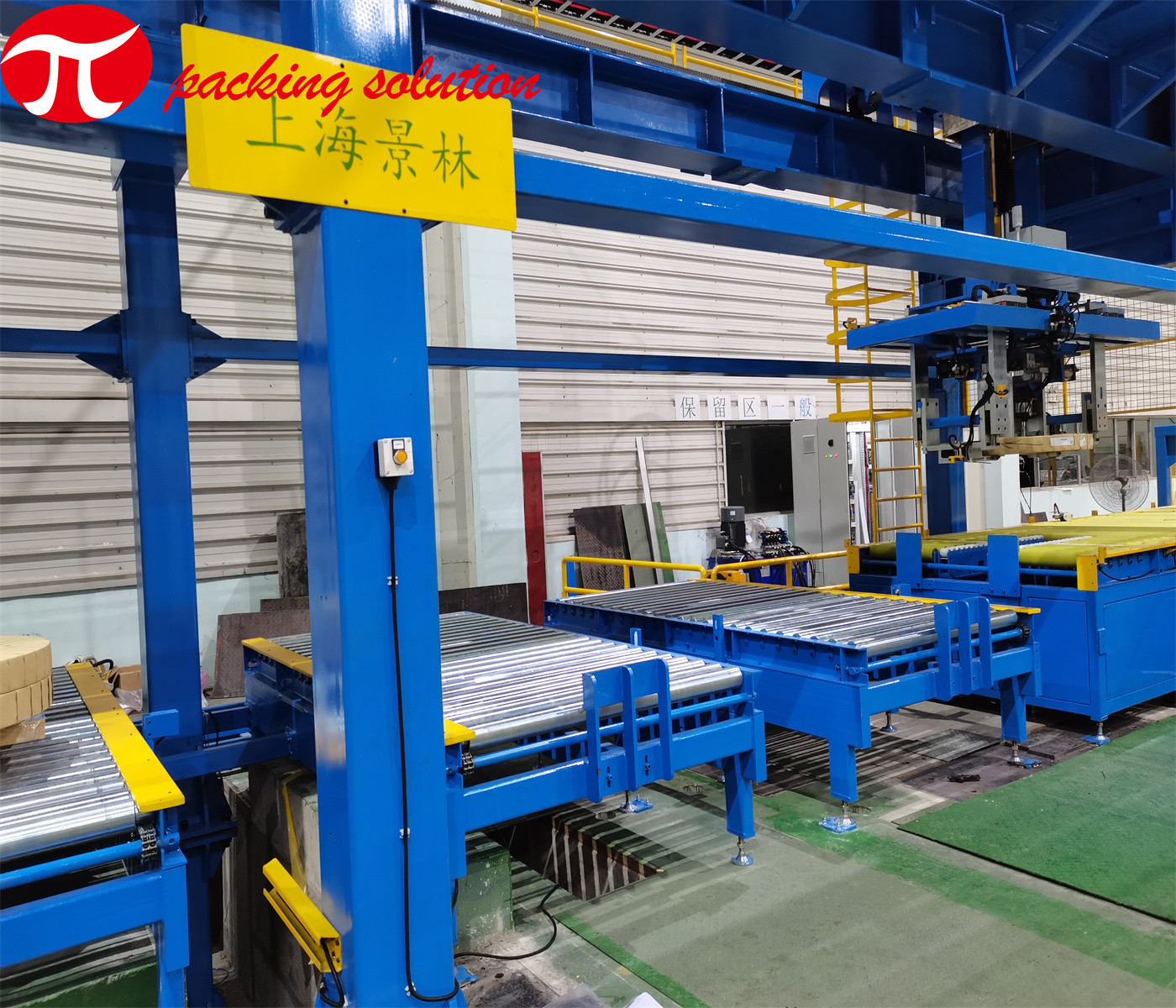

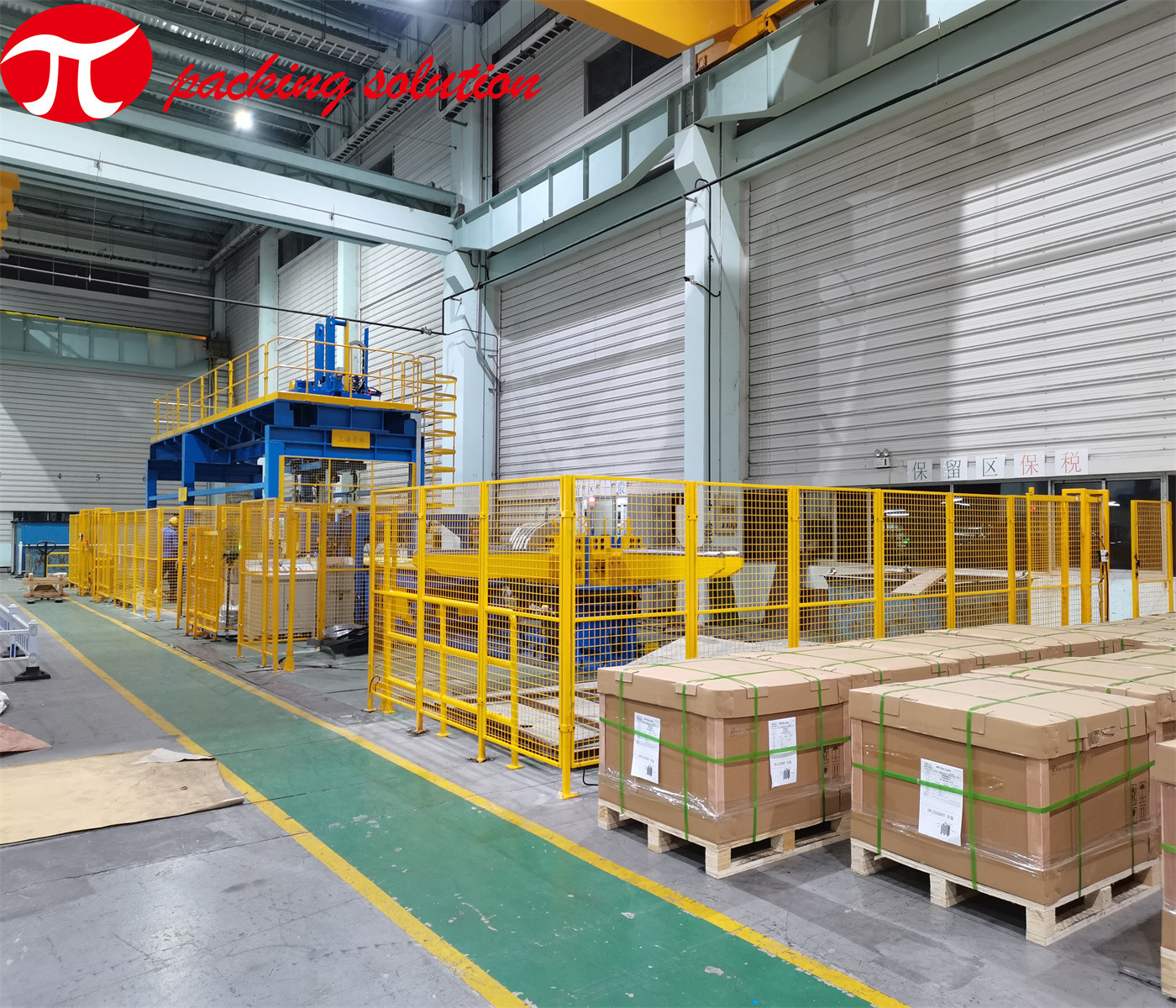

Fully Automatic Packaging Line Low Energy Consumption with trolly for coil wrapping machine
Maufacturer Introduction:
Shanghai Jinglin Packaging Machinery Co., Ltd was established in 1998. The philosophy of company is to follow the needs of clients. We have extended our business scope from stand-alone machine to complete packaging line, from local to global market. We have developed more than 200 types of packiaging machines and professional solutions for 13 industries including steel industry, aluminum/copper processing industry, plastic pipe industry, wire&bar industry, bearing industry&etc.
Application:
This packing line is designed for with heavy weight,steel coil or big size coil wrapping such as steel coil, copper coil,aluminum coil ,cable/wire coil, circular plastic tube, etc..Be suitale for many different materials such as LLDPE,Stretch film,Compound paper.
Combined parts:
Turnstile,coil picking system ,coil car ,steel strapping machine,stacking system and etc.
Package details:
| Coil OD | 800-1500mm |
| Coil ID | 508-610mm |
| Coil Width | 60-400mm |
| Coil Weight | ≦4T |
| Wrapping material | LLDPE stretch film/compound paper |
| wrapping overlap | 30%-80% adjustable |
| Wrapping material size | Film roll width 90mm,roll oD 500mm,ID 76mm |
Our advatages:
♦ CE certificated.
♦ ISO certificated
♦ High performance
♦ Premium quality
♦ Reliable after-sales service
