INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GS500 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Automatic Grade: | Automatic | Driven Type: | Electric |
|---|---|---|---|
| Type: | Packing Machine | Application: | Steel Coil, Steel Wire, Copper Wire |
| Coil ID: | ≥400mm | Packaging Material: | Stretch Film, Paper,knit Tape |
| Voltage: | 380V/50HZ | Power: | 1.5KW |
| Function: | Protect The Surface Of Goods | Warranty: | 12 Months |
| Highlight: | 50HZ Steel Wire Packing Machine,380V Steel Wire Packing Machine,1.5KW Vertical Wire Packing Machine |
||

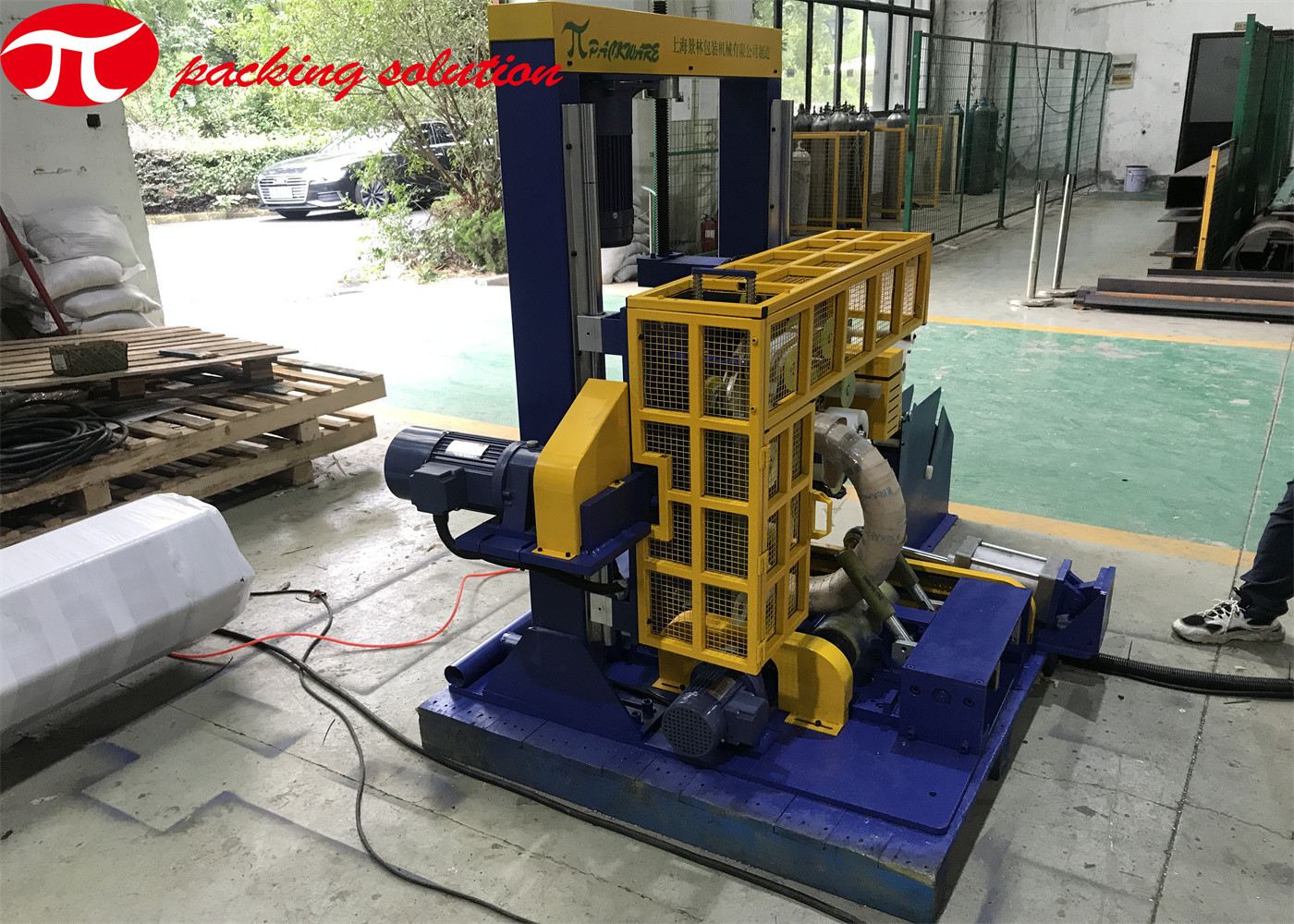

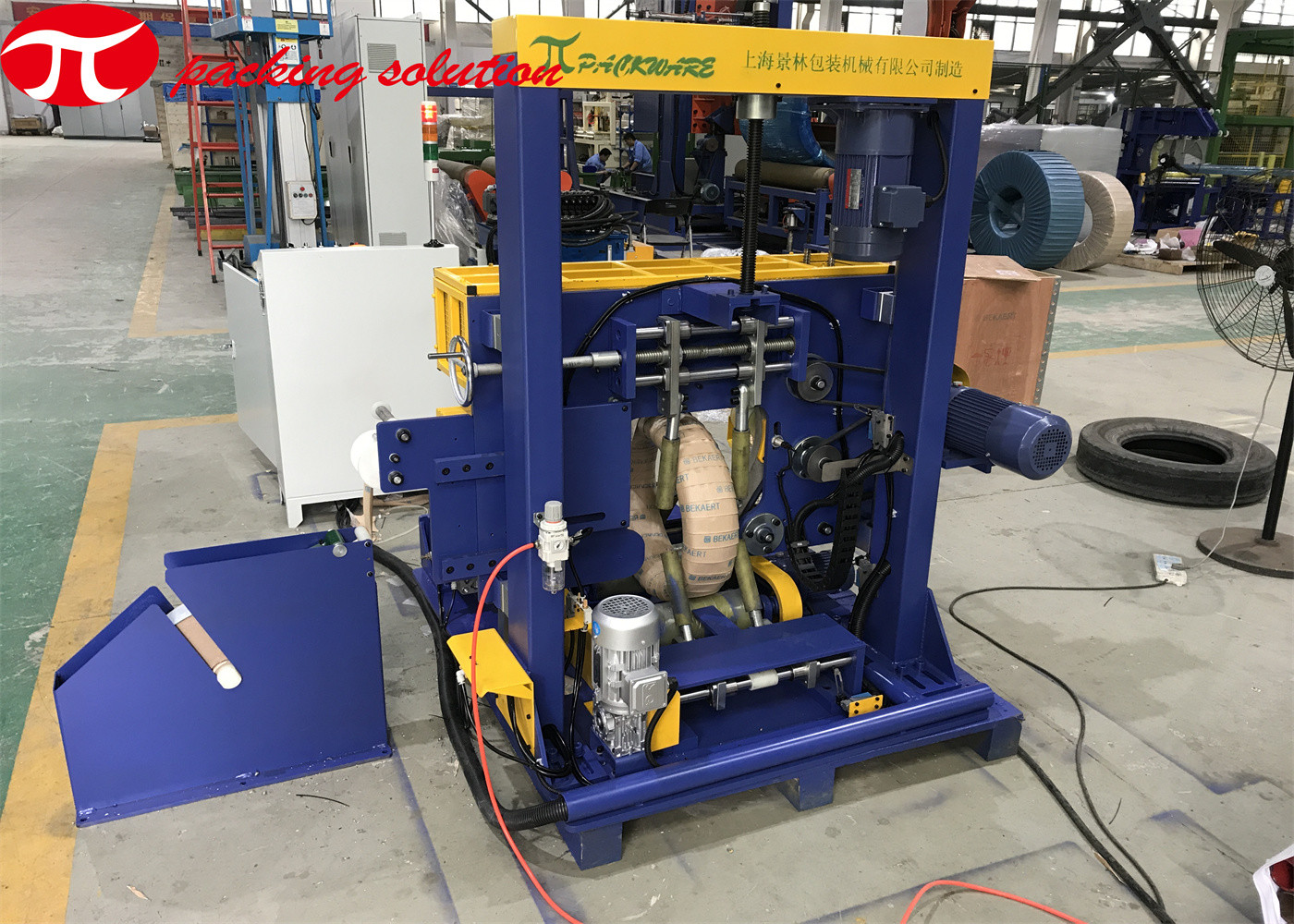

Vertical Automatic Turning Steel Wire Wrapping Machine Using Compound Paper As Materali
Alias: Vertical steel wire winding packaging machine
Packing machine application
The vertical wrapping machine is specially designed and manufactured for steel wire, steel belt, copper belt, cable and other ring packing articles. It has the advantage of completely replacing manual winding packaging, fast packaging speed, convenient operation, greatly improving the production efficiency and reducing the labor intensity of workers.
The wrapping machine can uses two different kinds of materials at the same time according needs(optional).
Packing machine features
Packing machine datas
| ITEMS | GS300 | GS500 |
| Coil weight | ≤500Kg | ≤1000kg |
| Coil width | ≤300mm | ≤500mm |
| Coil OD | 500-1000mm | 600-1200mm |
| Coil ID | ≥300mm | ≥400mm |
| Roller speed | 2-4m/min | 2-4m/min |
| Ring speed | Approx 20-80r/min | Approx 20-80r/min |
| Suitable material | Stretch film/Compound paper tape/knit tape /etc. | Stretch film/Compound paper tape/knit tape /etc. |
| Material width | 100-150mm | 100-150mm |
| Material OD | 150mm | 150mm |
| Material ID | 50mm | 50mm |
| Power output | About 3.0kw | About 4.5kw |
| Power voltage | 380V | 380V |
|
Pushing-out device (for easy offloading) |
optional | optional |
| Circumferential labeling device | optional | optional |
| Synchronous wrapping device | optional | optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
