INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GW600 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Product Name: | Automatic Tyre Packing Machine | Application: | Various Tyres |
|---|---|---|---|
| Packaging Material: | Stretch Film,paper,plastic | Driven Type: | Electric |
| Automatic Grade: | Full Automatic | Coil ID: | 1000-2500mm |
| Coil OD: | 1000-2500mm | Coil Width: | ≤600mm |
| Ring Speed: | 20-90r/min | Voltage: | 220V/380V/50HZ |
| Highlight: | 380V Tyre Packing Machine,90r/min Tyre Packing Machine,50HZ tire wrapping machine |
||
Tyre packing machine application:

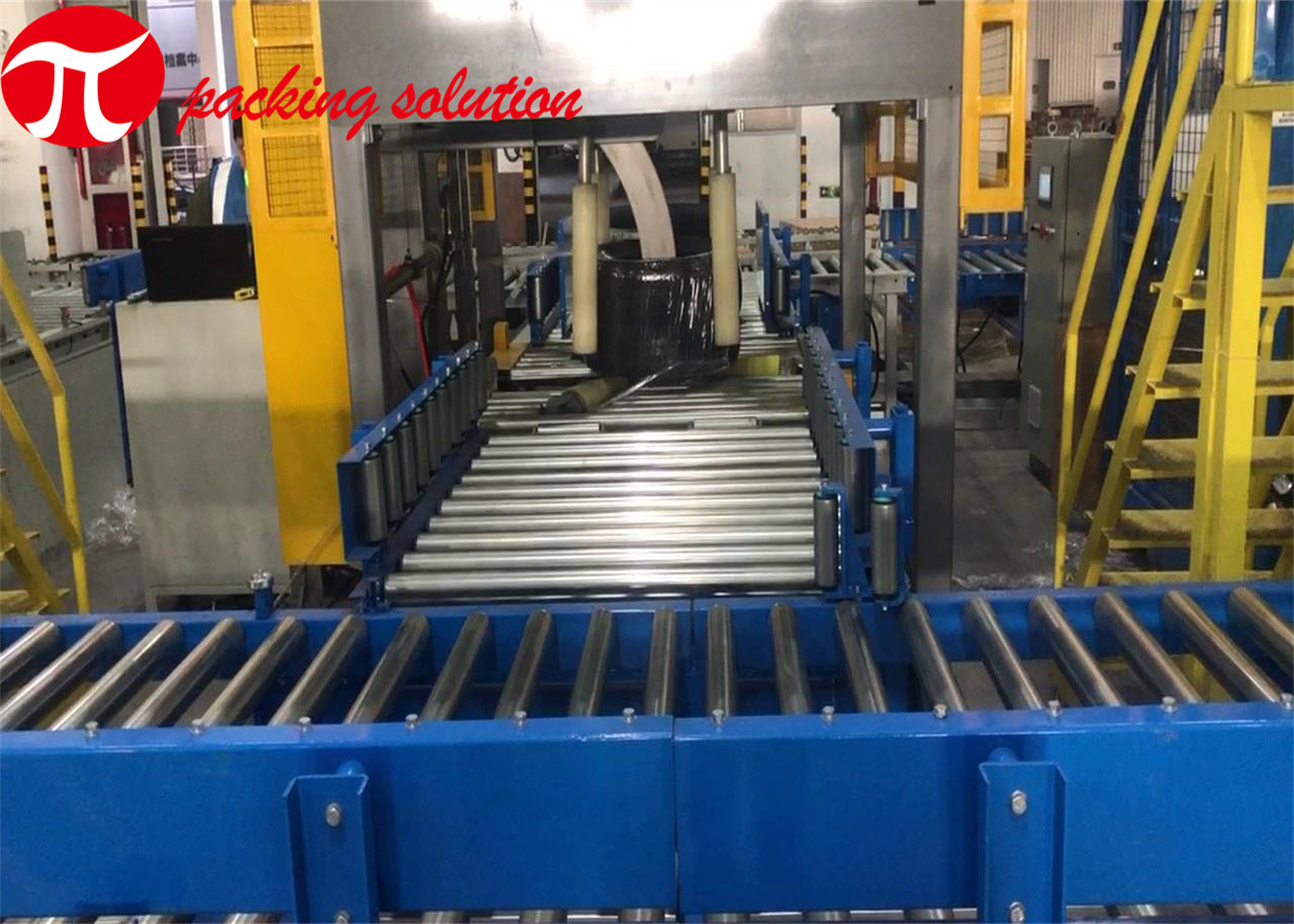

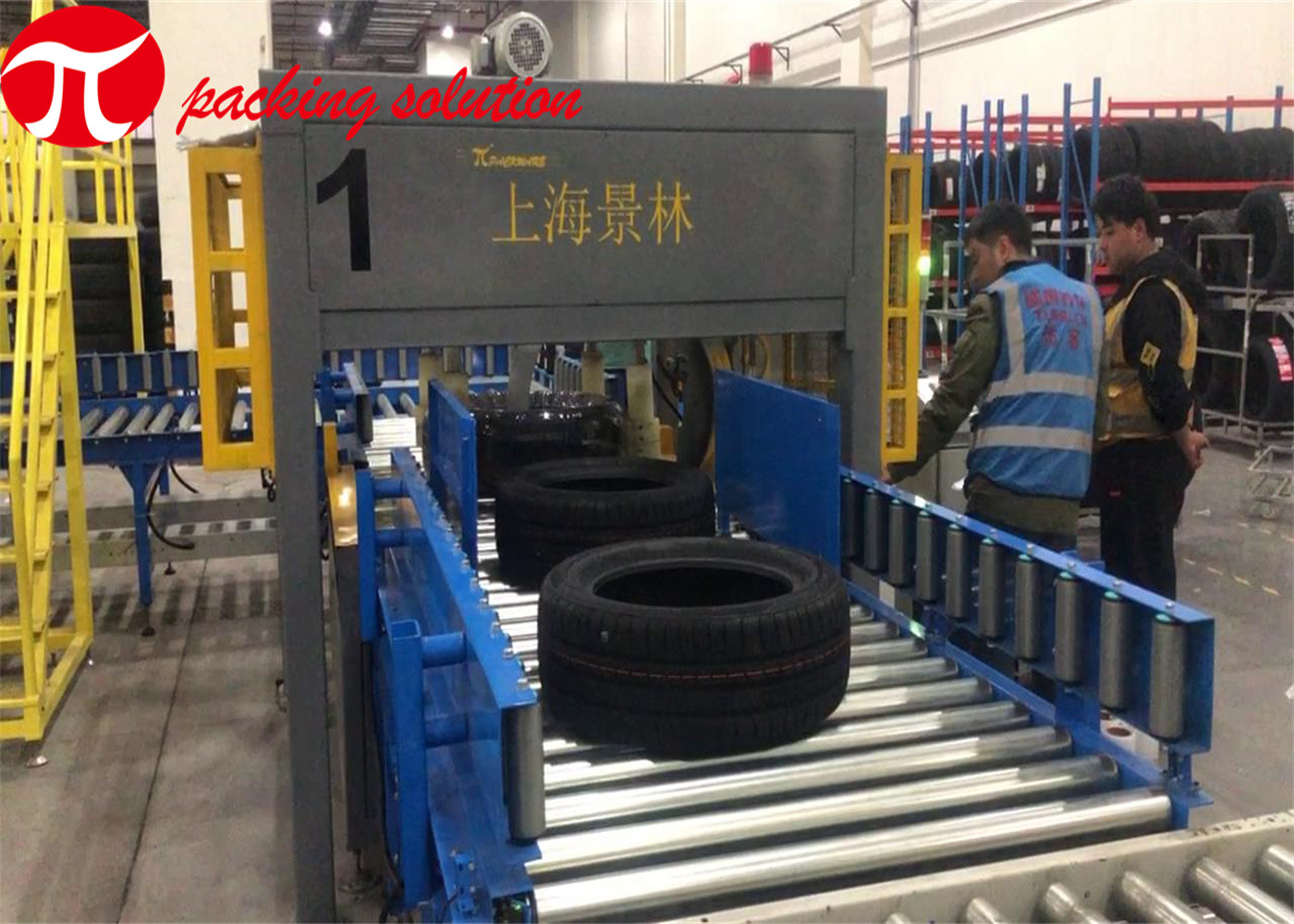

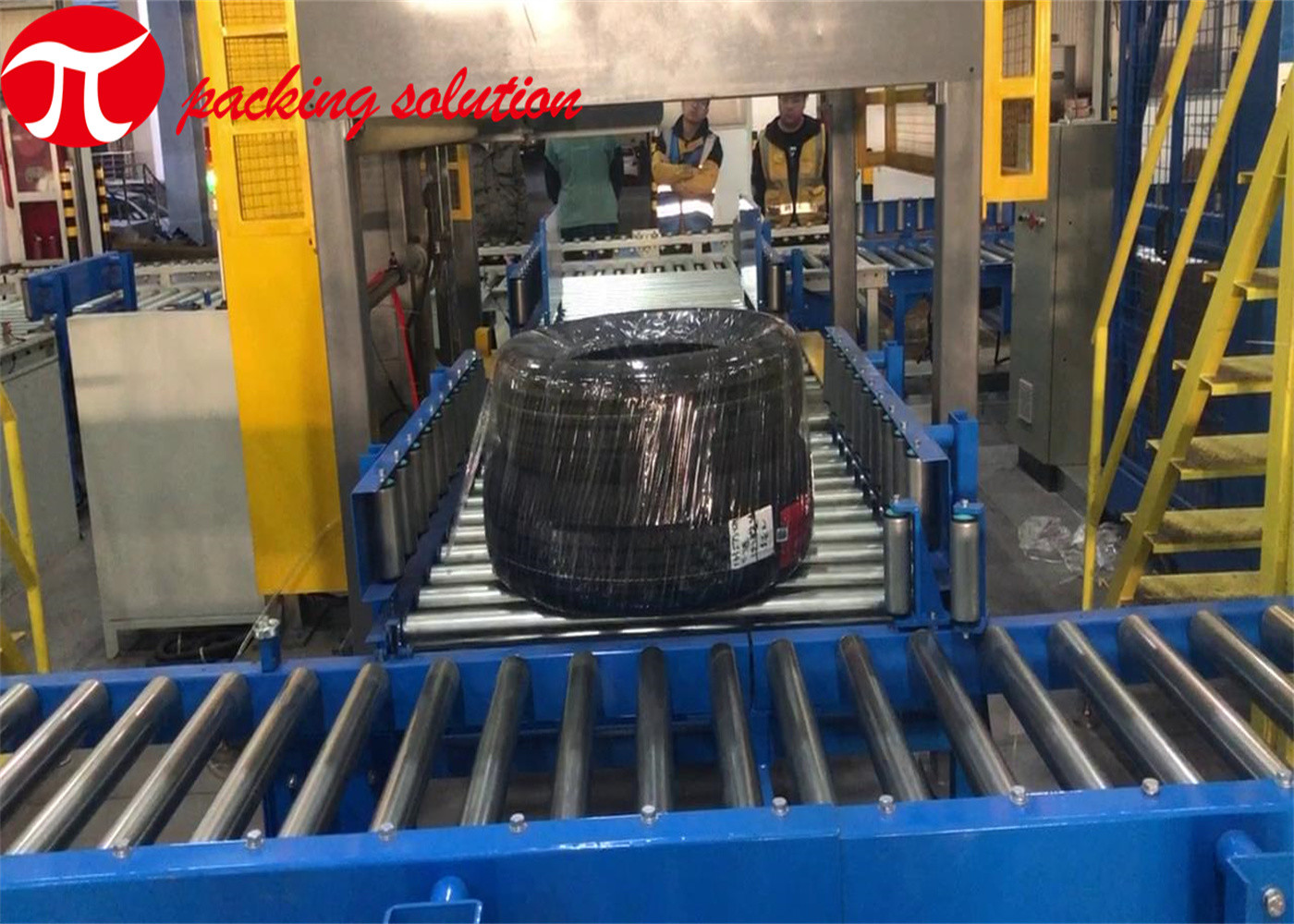

The automatic tyre packing machine is furnished with motor driven powered conveyors for transferring the tyres and complete the packing process automatically. It's easy operation by inputting the ID, OD, width of the hose coil and correction value, PLC will calculate related parameters automatically.
Tyre packing machine features:
Tyre packing machine main parameters:
| ITEM | GW600 |
| Object ID | 1000-2500mm |
| Object OD | ≤600mm |
| Object height | ≤600mm |
| Object weight | ≤250kg |
| Wrapping tape | stretch film/PP Knit belt/ paper |
| Overlap rate | 30%~70% |
| Power output | About 1.5kw |
| Power supply | 380V, 3phase 5wires |
| Ring speed | 20~80r/min |
| Air source | 6~8kgf/cm2 |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
