INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GW600 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Car Tyre, Bicycle Tyre | Driven Type: | Electric |
|---|---|---|---|
| Packing Type: | Stretch Wrapping Machine | Voltage: | 380V/50HZ |
| Packaging Material: | Stretch Film,paper | Ring Speed: | 20-90r/min |
| Machine Type: | Horizontal | Electrical Control: | PLC |
| Object Height: | ≤300mm | Object Weight: | ≤250kg |
| Highlight: | Auto Conveyor Tire Packing Machine,90r/min Tire Packing Machine,380V Horizontal Stretch Wrapper |
||
MACHINE APPLICATION:

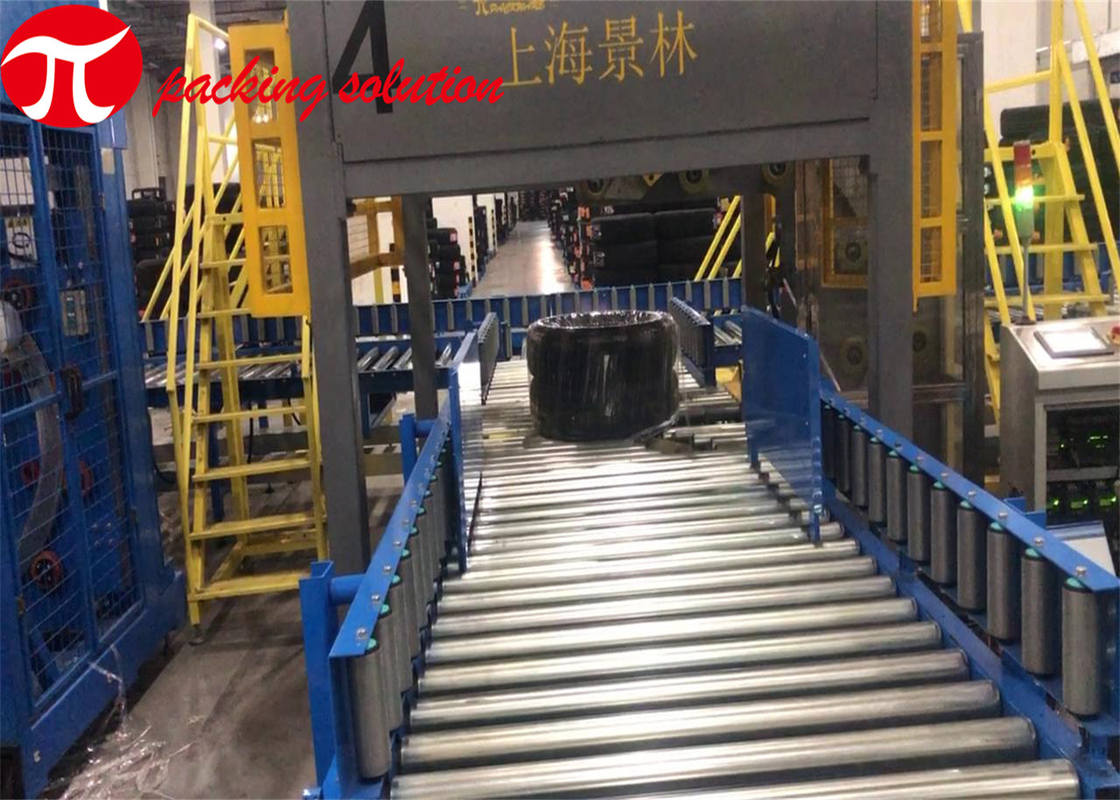

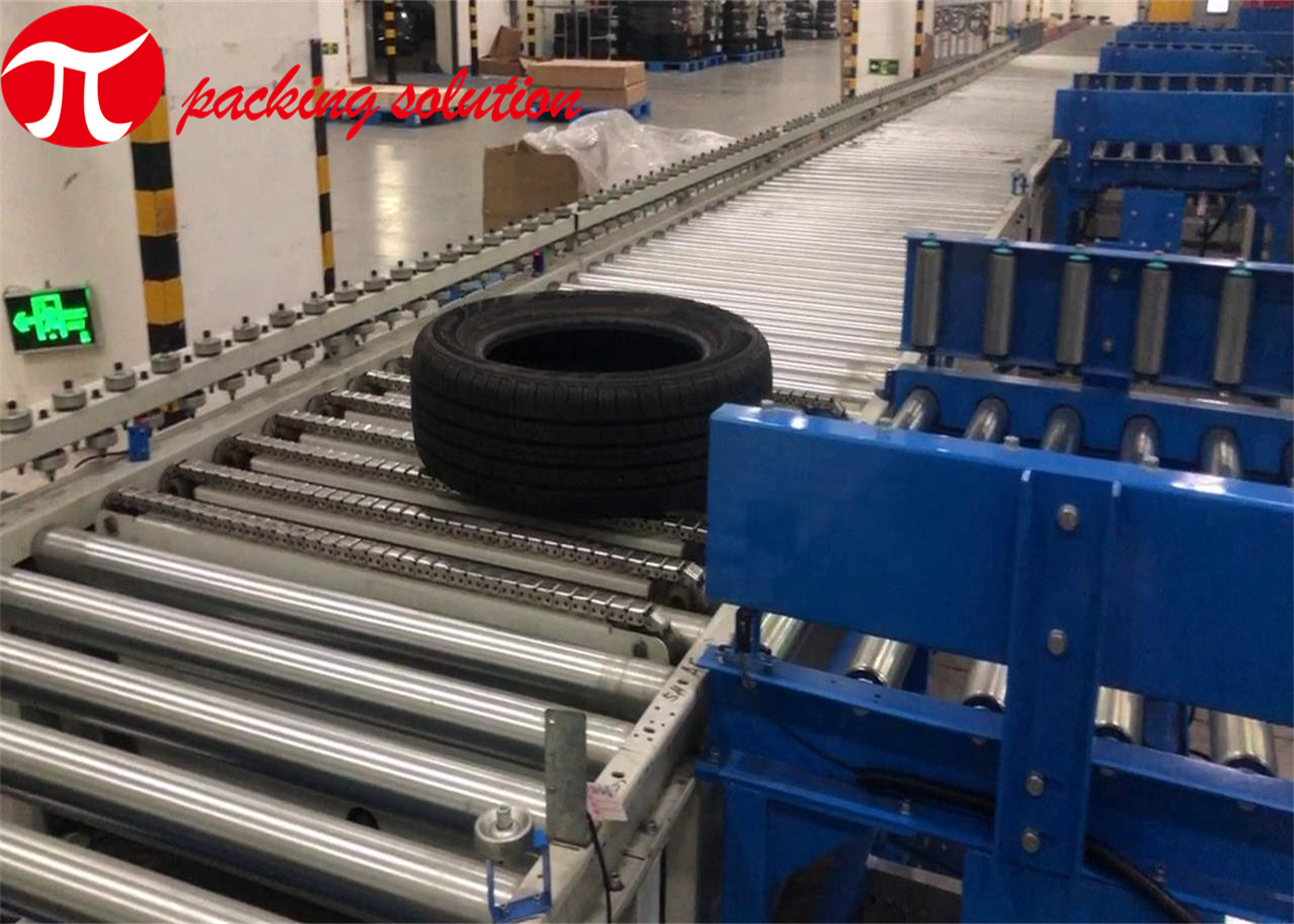

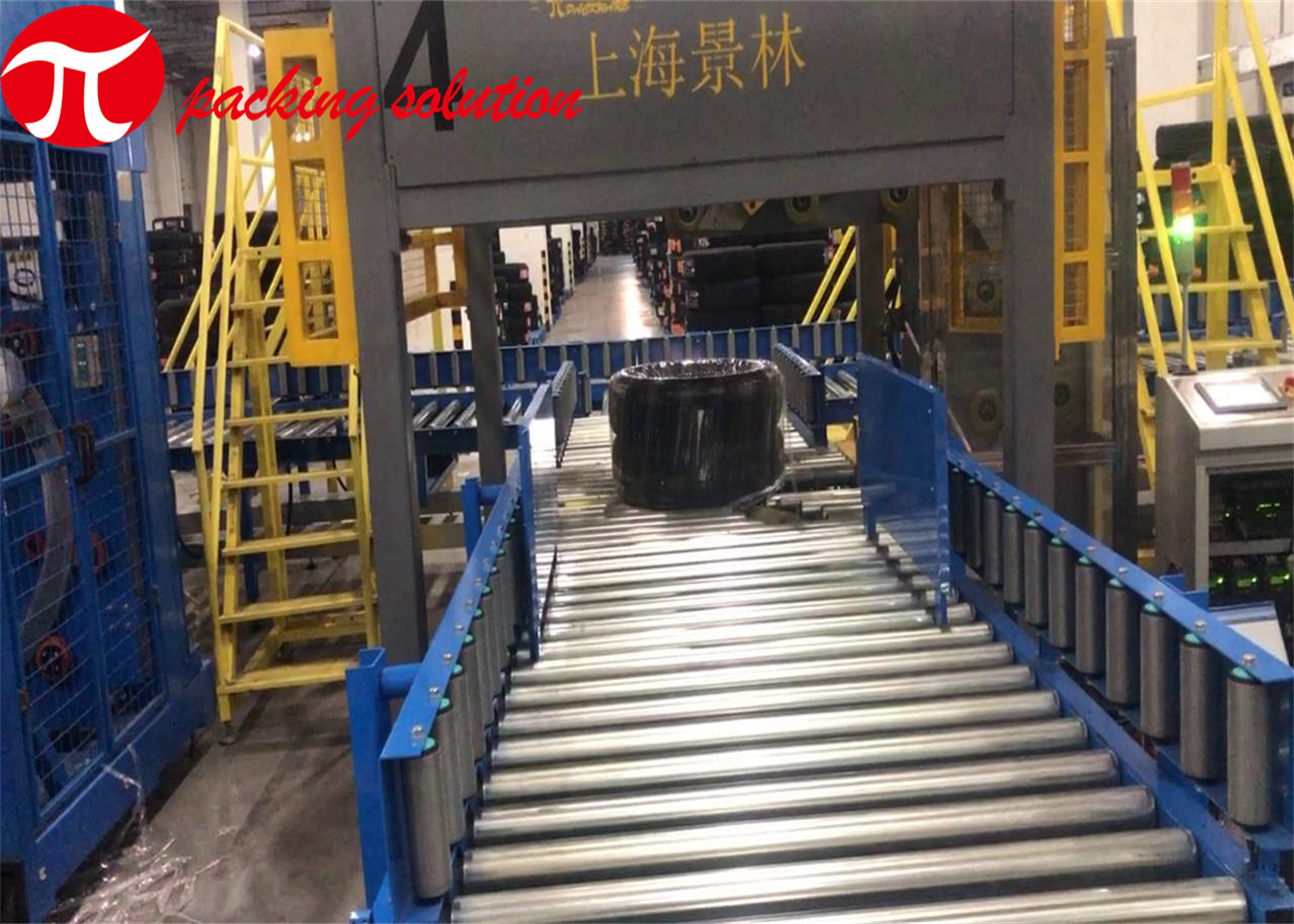

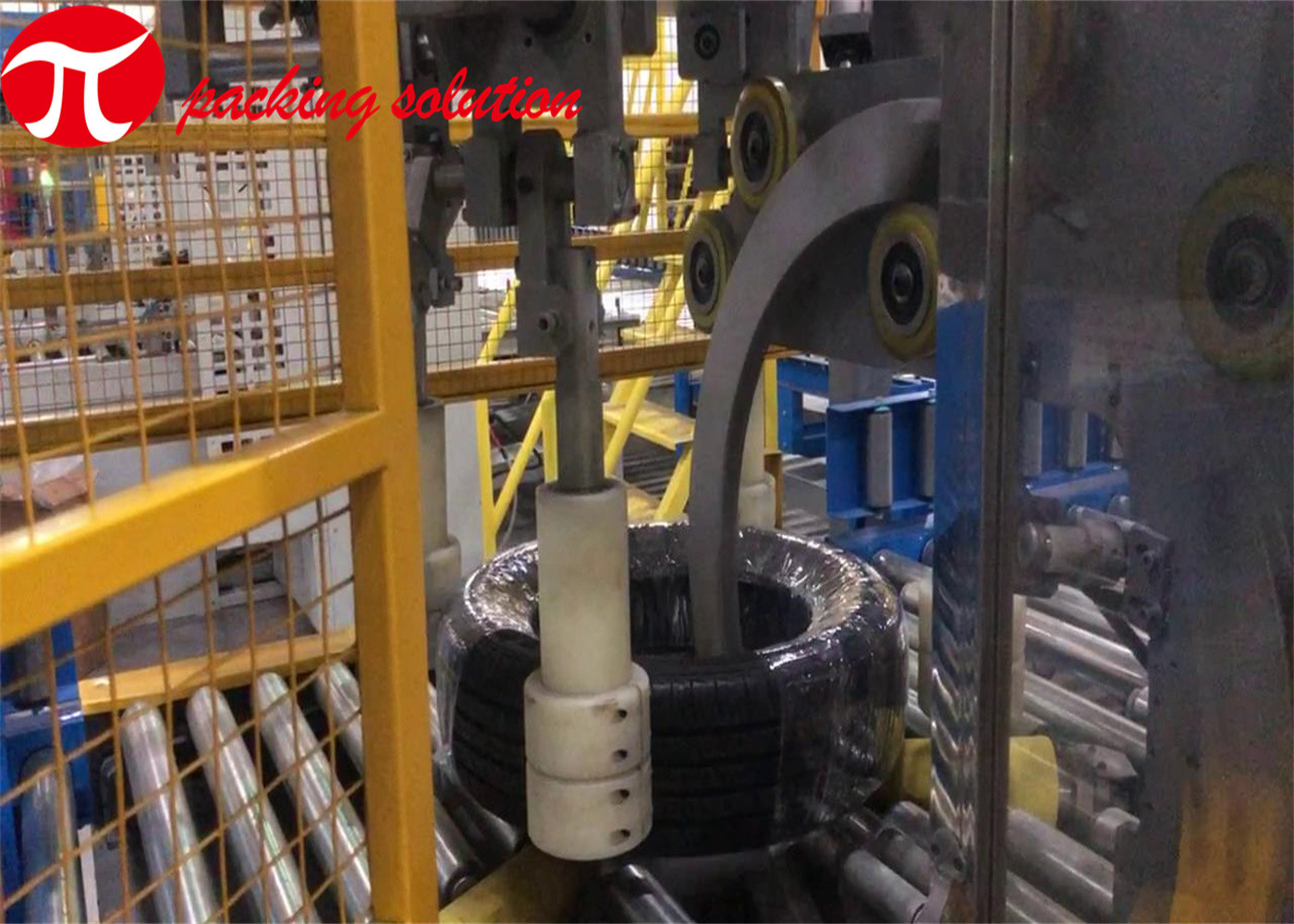

This packing machine with motor driven conveyor is an automatic solution for packing tires horizontally (eye vertical).
The machine can be cooperated with the upstream production or handling equipment to complete an automatic packing line for continuous tyre packing, which will greatly enhance the working efficiency and achieve excellent packaging effect for tyre manufacturers.
BASIC FEATURES:
TECHNICAL PARAMETERS:
| ITEMS | GW600 | GW900 |
| Object ID | ≥200mm | ≥300mm |
| Object OD | ≤600mm | ≤900mm |
| Object height | ≤600mm | ≤900mm |
| Object weight | ≤250kg | ≤400kg |
| Wrapping tape | Pp Knit belt/ paper | Pp Knit belt/ paper |
| Ring speed | 20~80r/min | 20~80r/min |
| Overlap rate | 30%~70% | 30%~70% |
| Power output | About 1.5kw | About 1.5kw |
| Power supply | 380V, 3phase 5wires | 380V, 3phase 5wires |
| Air source | 6~8kgf/cm2 | 6~8kgf/cm2 |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Machine superior features:
1.Long service life
2.Nice and firm package is both for transportation and selling.
3.Be capable of connecting to inline operation
4.High efficiency
5.Easy operation and maintenance
6.Exquisite Technology
7.Conform to CE & ISO guidelines.
