INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jl pack |
| Certification: | ISO9001，CE |
| Model Number: | GS400 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Coils Or Other Coiled Objects | Packaging Material: | Stretch Film/PVC;Woven Paper Tape |
|---|---|---|---|
| Type: | Packing Machine | Object Size: | ID:400-600mm; OD:550-750mm Width: 30-100mm |
| Object Weight: | 10-200kg | Ring Speed: | Approx.20-90r/min |
| Power Output: | App.1.2kw | Air Supply: | 6-8 Kgf /cm2 |
| Highlight: | GS400 Copper Coil Packing Line,PLC control Copper Coil Packing Line,PLC control coil packing machine |
||
Steel coil packing and wrapping machine with PLC control GS400-N3
Application:
This machine can be used to conduct relatively closed packaging for different dimensions of steel coils or other coiled objects to make the products waterproof, dustproof, anti-damage and anti-aging etc. The wrapped package is well-protected & sealed & looks tidier.
The packaging material mating with this machine is of stretch film, PE film, knit belt or other material.
Techinical specification:
| Model | GS400-N3 |
| Object | Steel coils |
| Object size | ID:400-600mm; OD:550-750mm Width: 30-100mm |
| Object weight | 10-200kg |
| Packaing material | Stretch film/PVC;Woven paper tape |
| Ring speed | Approx.20-90r/min |
| Power output | App.1.2kw |
| Air supply | 6-8 kgf /cm2 |
| Power supply | AC220v 3Phase |

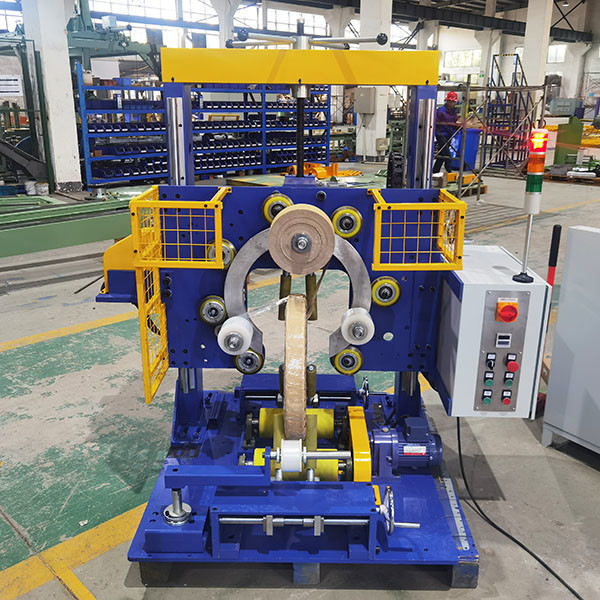

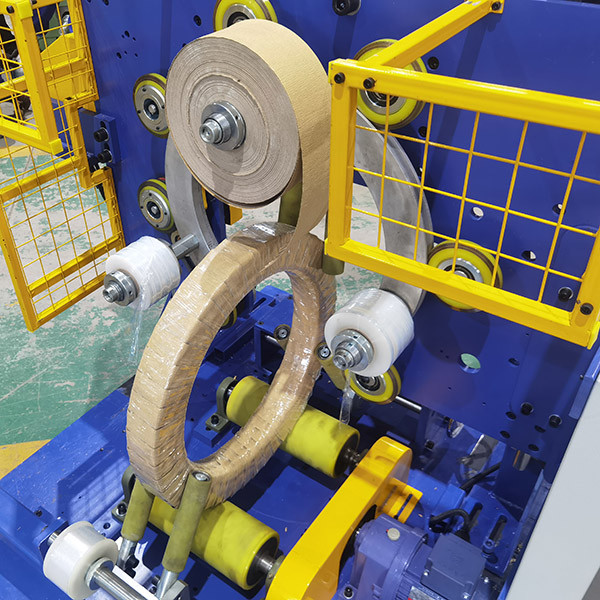

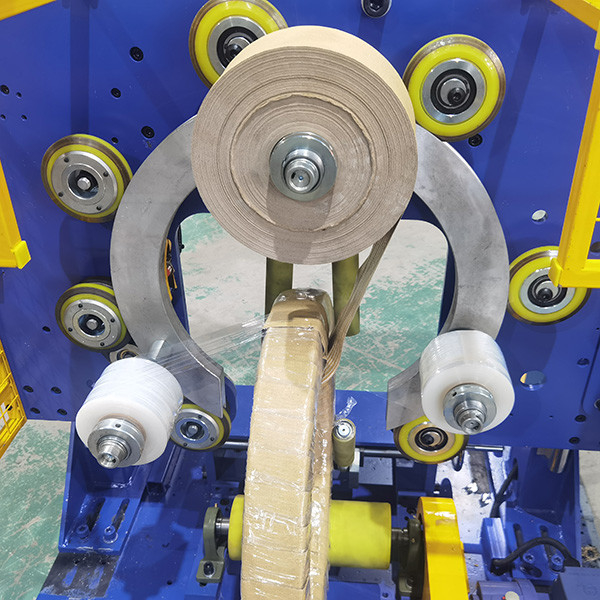

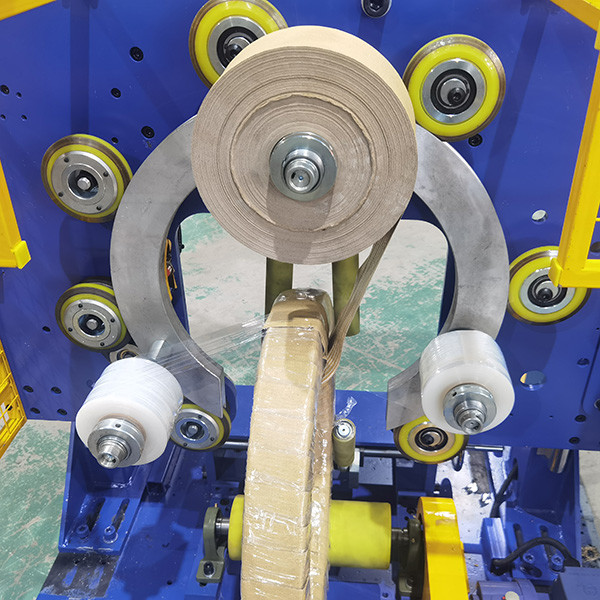

Machine photo:
