INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Packaging Material: | Stretch Film,paper Or Knit Tape |
|---|---|---|---|
| Type: | Packing Line | Packaging Type: | Film And Paper Wrapping |
| Application: | Steel, Copper, Aluminium And Metallurgic Industries | Voltage: | 380V/50HZ |
| OD: | 800mm-1500mm | Width: | 200mm |
| Warranty: | 12 Months | Color: | Standard Color |
| Highlight: | Copper Coil Packing Line,Standard Copper Coil Packing Line,Copper Coil Packaging Line |
||
Application:

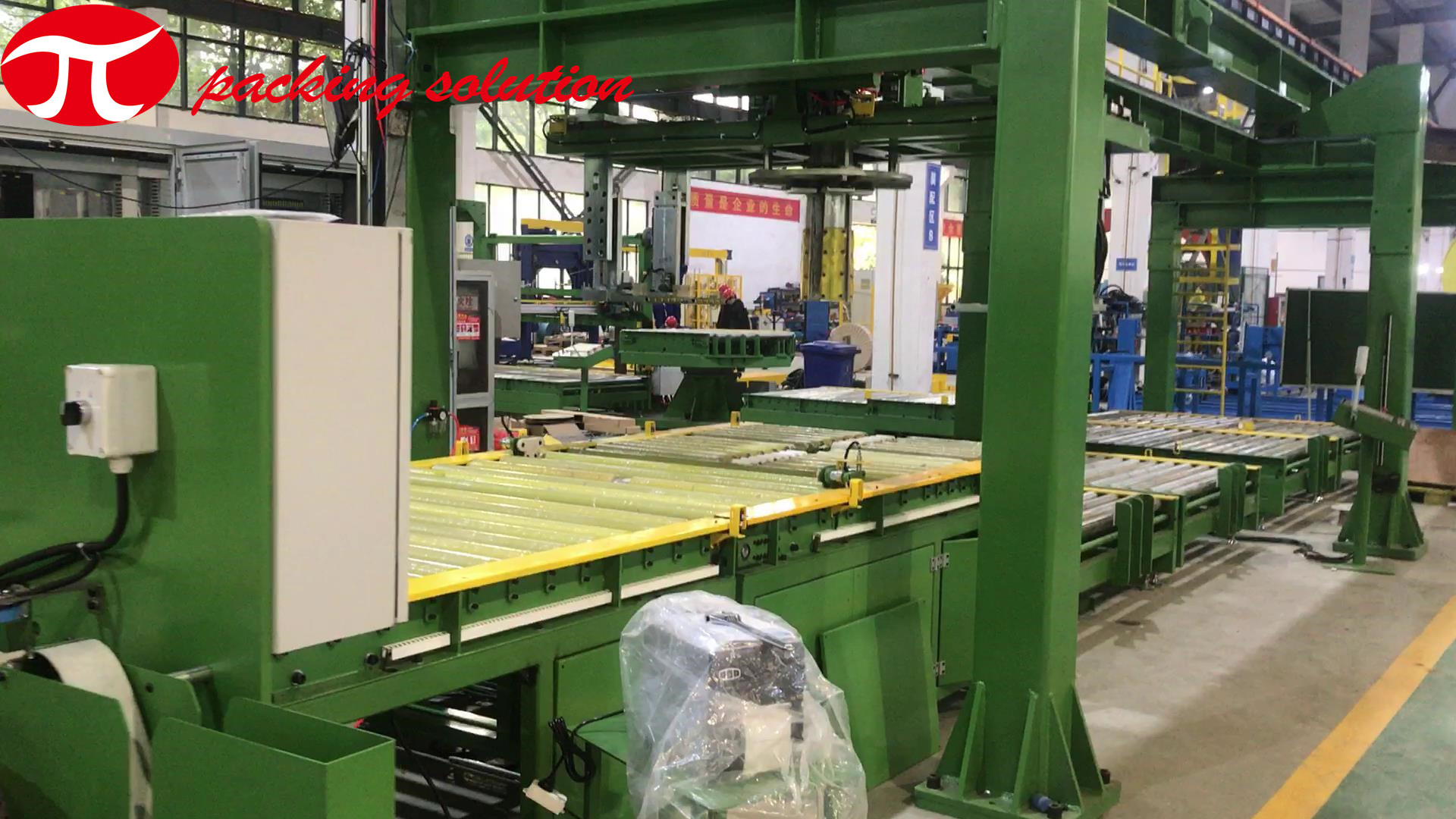

This automatic coil packing line is designed for the automatic packing operation after production of steel coils,copper coils,with high automation and high efficiency.This horizontal type coil packing line is specialized for “coil eye to sky” packing.This packing line take compound paper as main packing material,apply coil picking, auto packing, stacking&etc for slit steel coils, makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:
The fully auto machinery is composed of coil loading system,wrapping machine, stacking system, electrical cabinet and guardrails.
Main technical datas(for reference):
| coil OD | 800mm～1500mm |
| coil ID | 508-610mm |
| coil Width | 60mm～500mm |
| coil Weight | ≤4T |
| Wrapping material | LLDPE stretch film/compound paper |
| wrapping overlap | 30%～80% adjustable |
| Wrapping material size | film roll width 90mm, roll OD 500mm,roll ID 76mm |
