INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jl pack |
| Certification: | ISO9001，CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Copper Tube ,steel Tube | Object Length: | 2000-9000mm |
|---|---|---|---|
| Loading: | 3000KG | Max Circumcircle Diameter: | 800mm |
| Ring Speed: | 60r/min | Conveyor Speed: | 8-12m/min |
| Packing Material: | Compound Paper & Stretch Film | Power Output: | 9KW |

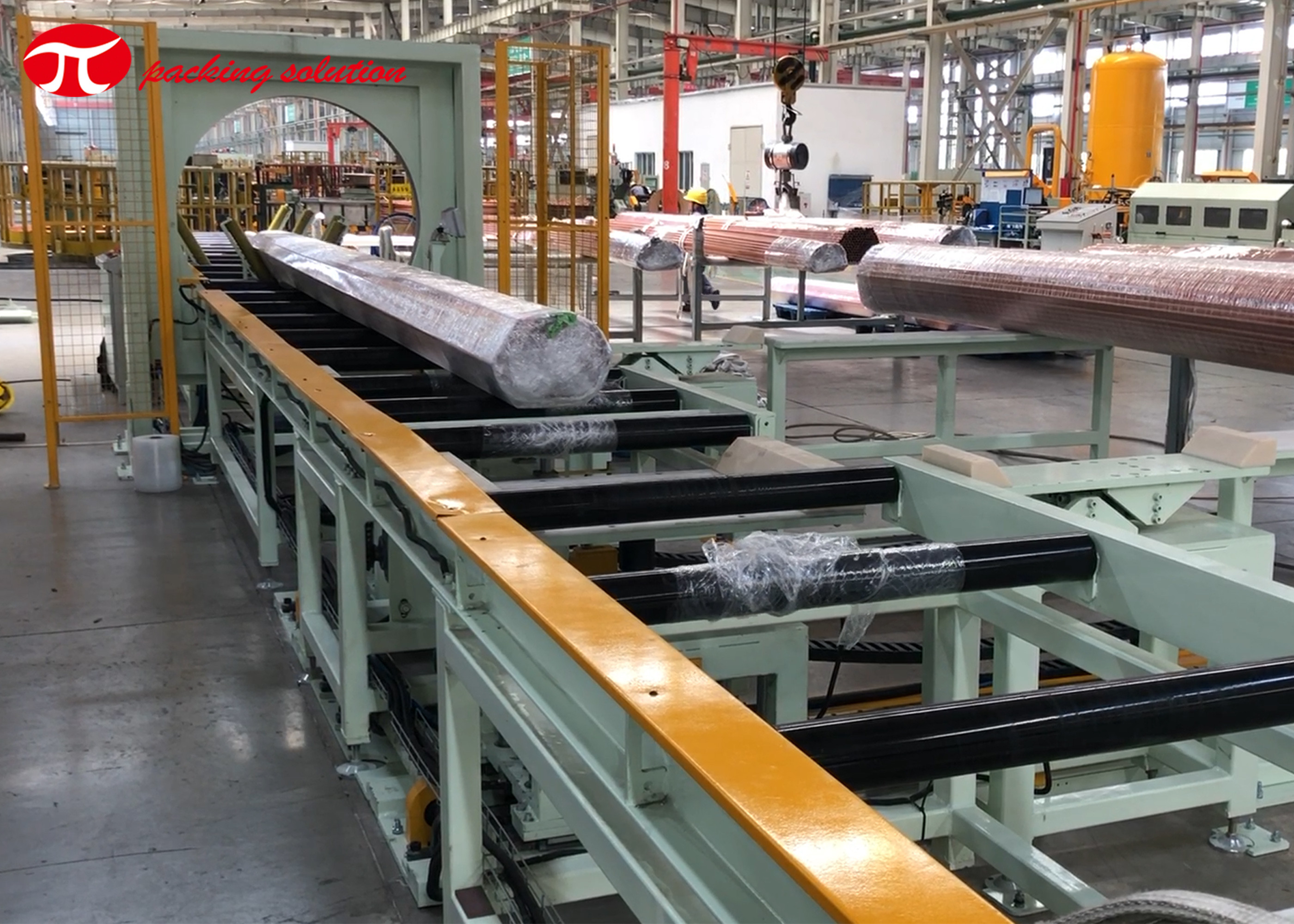

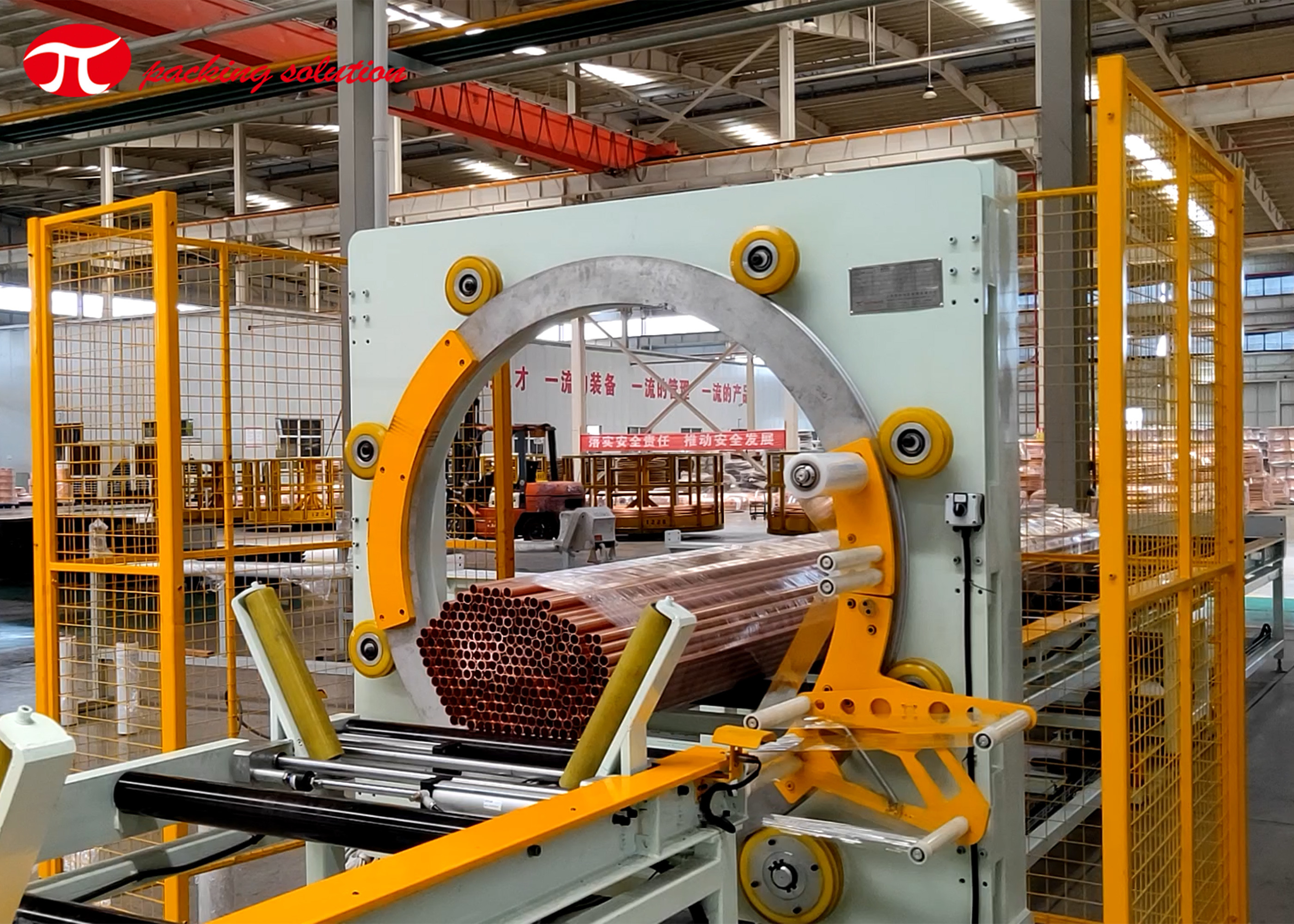

Copper tube horizontal wrapping line with end stroage system
Wrapping line 's application
The GG series horizontal stretch wrapper is widely used for wrapping welded pipe, seamless pipe ,copper tube, aluminum tube and other long-shaped product.
The wrapped product is well decorated, with good effect of rust-proof, dust proof, water-proof,anti-wear and anti-damage.
Wrapping line's basic features
1) Adapt PLC program control and HMI operation
2) Automatic fault alarming and automtic display the fault contents
3) Firction structure adopted for sale,steady and strong operation.
4) The conveyor material can be chain plates, rollers or belt
5) Special tension adjust system ensures uniform tension of the packing material
6) Can be equipped with mechanical hand for automatic film feeding & cutting, safe and efficient.
Wrapping line's techinical data
| Application | Copper tube ,steel tube |
| Object length | 2000-9000mm |
| Loading | 3000KG |
| Max circumcircle diameter | 800mm |
| Ring speed | 60r/min |
| Conveyor speed | 8-12m/min |
| Packing material | Compound paper & stretch film |
| Material size | Width: 200-300mm OD:400mm, ID:55mm |
| Power output | 9 KW |
| Air supply | Optional |

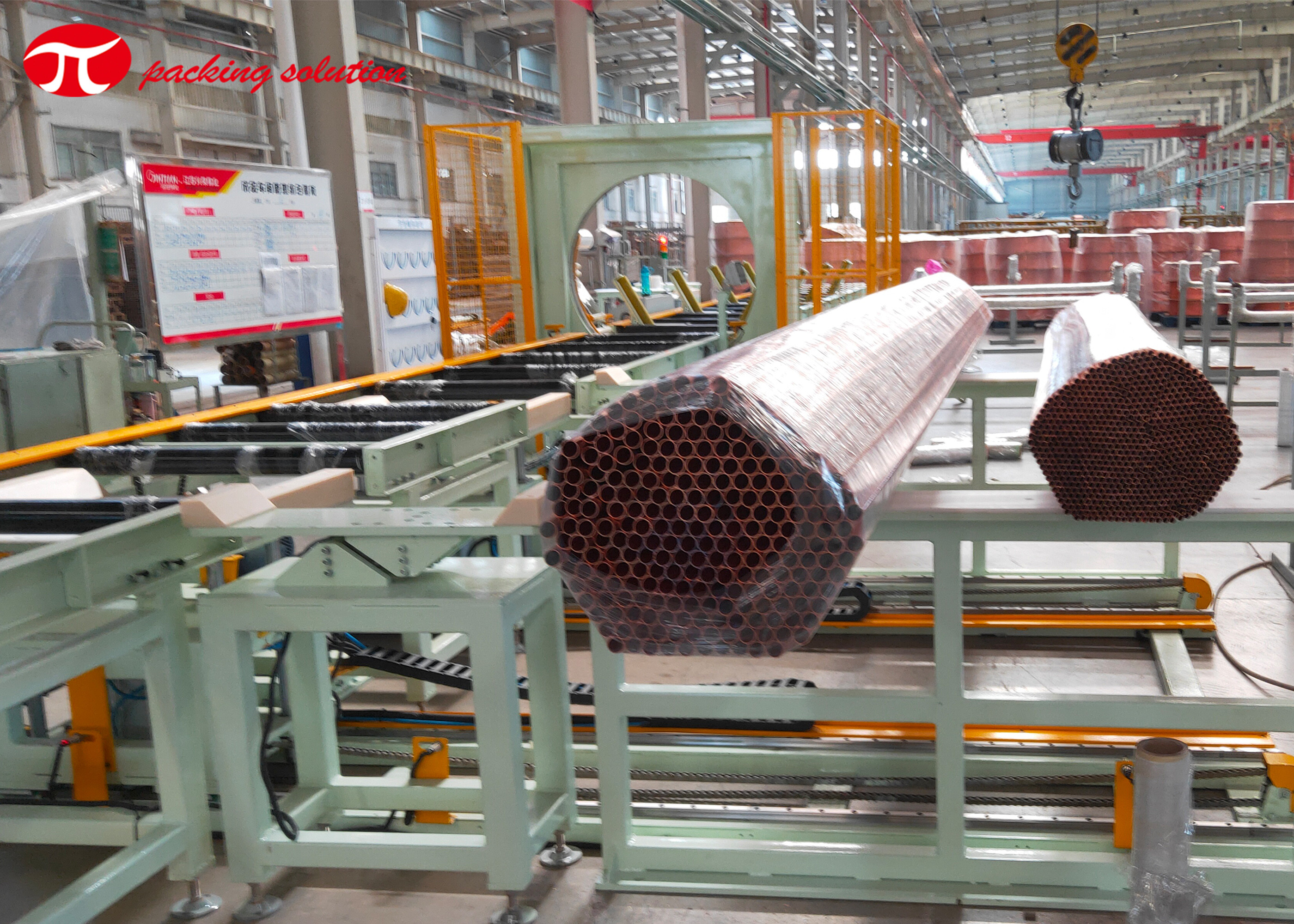

Wrapping line's end stroage system:
