INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Packaging Line | Packaging Type: | Film Stretch Wrapping |
|---|---|---|---|
| Application: | PVC, PPR, PE Pipe | Driven Type: | Electric |
| Voltage: | 220V/380V/50HZ | Automatic Grade: | Automatic |
| Pipe Diameter: | 20 Mm ~ 110 Mm | Length: | 2000mm, 3000mm, 4000mm, 6000mm |
| Bundle Outer Diameter: | 100-200mm | Warranty: | 12 Months |
| Highlight: | 4000mm Plastic Pipe Bundling Machine,PVC Pipe Packing Line,6000mm Pipe Packing Line |
||
Plastic Pipe Bundling Machine 4000mm PVC Pipe Packing Line working online or offline
Plastic pipe bundling machine functions:
This unit is suitable for automatic packaging of PVC, PPR, PE and aluminum-plastic composite plastic straight pipes. The process flow includes: automatic on-line feeding front-end storage, counting, whole column tightening, bundling, automatic frame entry, etc.
You can choose to work online or offline.
Plastic pipe bundling machine basic composition:

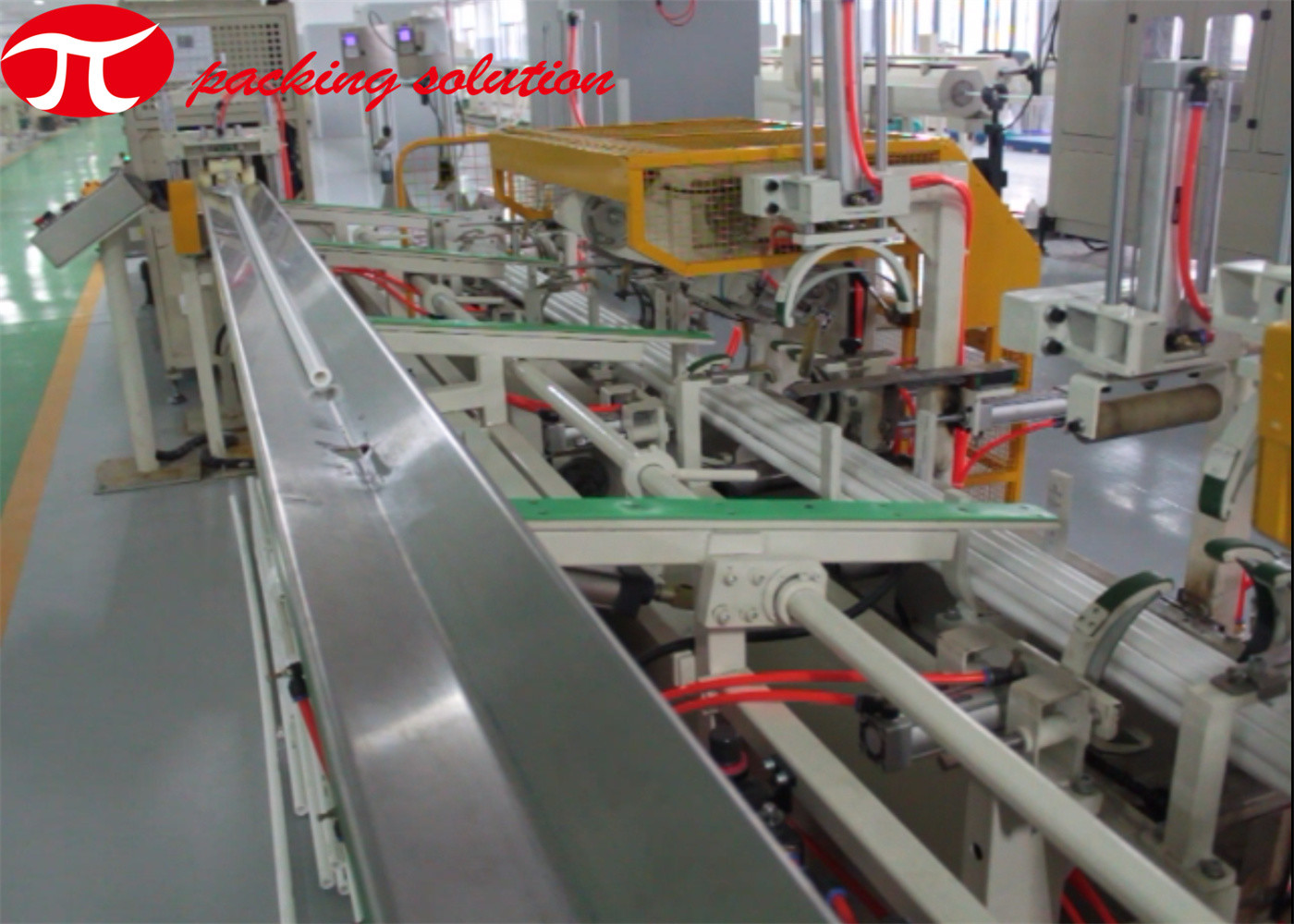

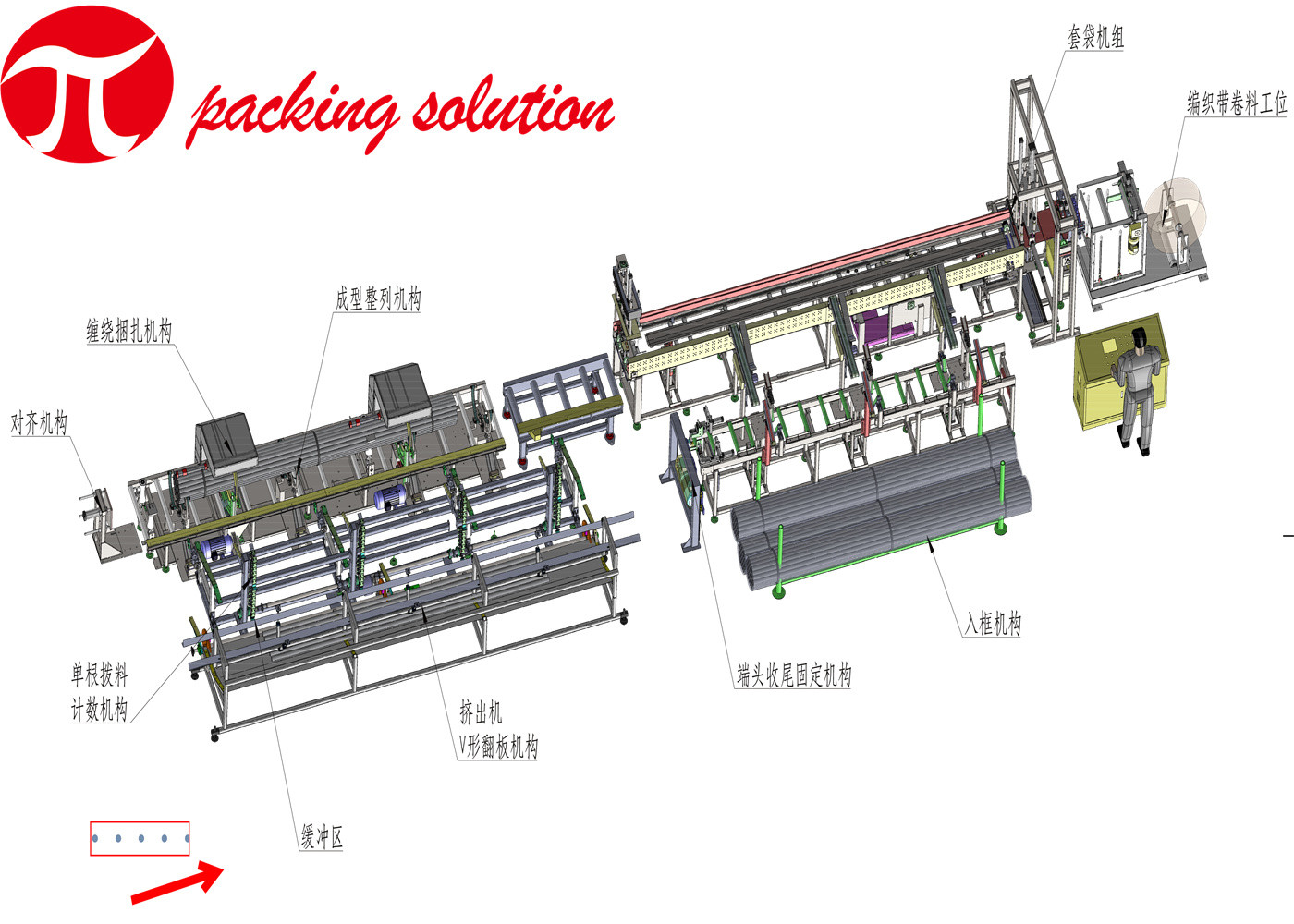

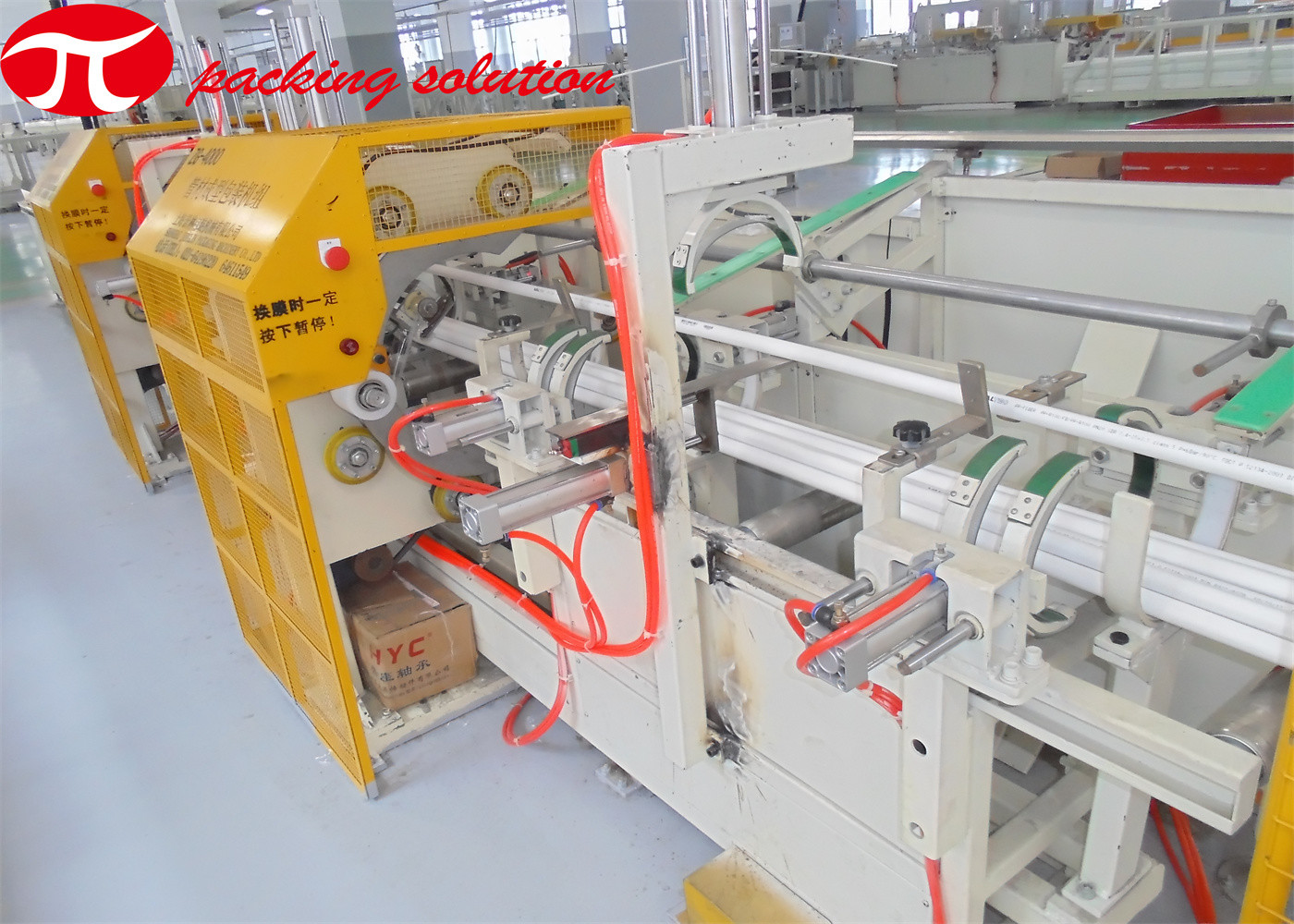

This unit is composed of on-line docking mechanism (or off-line integrated feeding mechanism), as well as front-end storage, counting and end aligning, end-face alignment, collection and shaping, wrapping and bundling, automatic frame feeding and other systems.
Plastic pipe bundling machine parameters:
Applicable scope of pipes: PVC, PPR, PE, aluminum-plastic composite
Pipe diameter: 20 mm ~ 110 mm
Length: 2000mm, 3000mm, 4000mm, 6000mm
Bundle outer diameter: 100-200mm
OUR QUALIFICATIONS:
*ISO9001:2000 and CE certified.
*Professional manufacturer with more than 20 years' experience in the field.
*Reliable and high-quality products provided.
*Custom-built machines provided according to special requirement.
*Update and powerful technical support provided.
*Long-term, reliable and friendly partnership.
