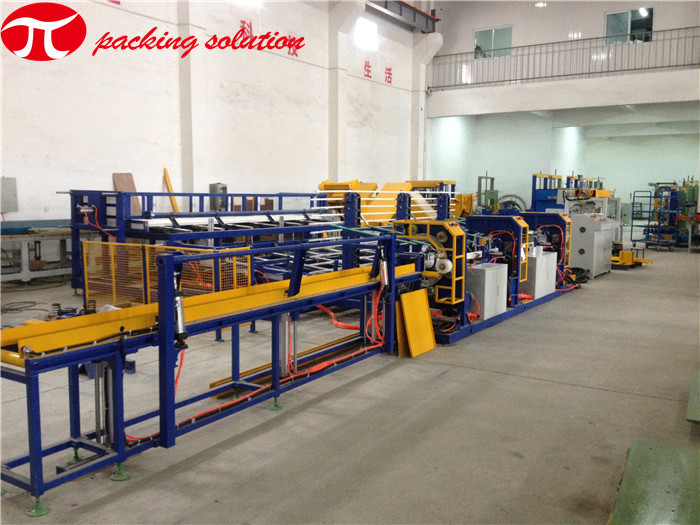

JINGLIN Panel Horizontal Wrapping Machine PLC Control 380V 10m-20m/Min Orbital Stretch Automatic Wrapper

JINGLIN Panel Horizontal Wrapping Machine PLC Control 380V 10m-20m/min Orbital Stretch Automatic Wrapper

Packing machine application:

This machine  is suitable for automatic packaging of  plastic straight pipes.steel tube and other metal straight pipes.

It uses stretch film ,compound paper & etc. as the materials.

You can choose to work online or offline,it's all easy and safe to operation.

Packing machine installation basic operation:

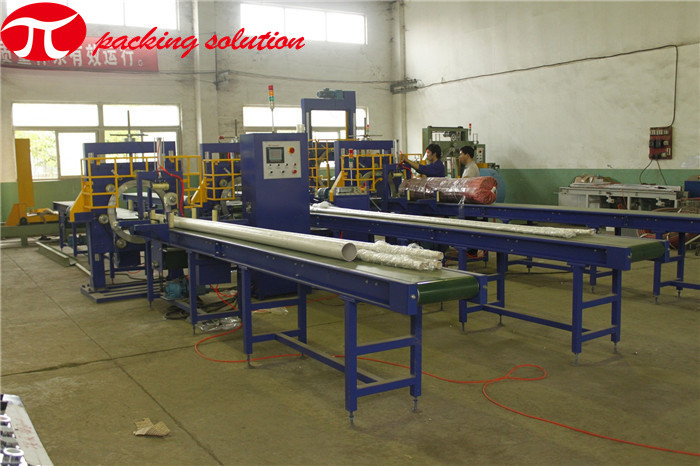

• Hoisting the pipe bundles onto the front conveyor line and ready to be wrapped, hoist the packed pipes away from the back convey line after package finished. The next wrapping process should begin after the back line cleared.
• The wrapping material is tied, fixed and cut by manual.

Packing machine installation main features:

1. Double-ring & double-rub wheel system make the wrapping more safe, stable & energetic.
2. PLC programmable control.
3. Wrapping position reset.
4. Indicator alarms automatically when trouble occurs.
5. Both automatic and semi-auto working mode for different choice.
6. Photocell sensors are adopted for fixing the packing position.
7. The turning ring is controlled by converter.
8. Packing material tension could be adjusted.
9. Soft stop &soft start functions.
10. Protective fence ensure safe operation.
11. Separate control panel makes operation & maintenance easily.
12. Pressing down device and supportive rollers for fix the packaging position.
13. Overlap rate of the wrapping material can be adjusted according to needs.
14. Material size are width:≤250mm,Max OD:400mm and the ID:55mm.
15. Packing material are compound paper tape/knit tape/anti-rust tape/waterproof tape and LLDPE stretch film.
16. Automatic material feed & cutting system can be equipped for human operation.
17. The machine can be custom designed according to specific object size.

MAIN PARAMETERS:

Scope of application: Plastic pipe,steel tube and other metal pipes.

Pipe diameter: 20 mm ~ 110 mm

Length: 2000mm, 3000mm, 4000mm, 6000mm

Bundle outer diameter: 100-200mm

Note: the datas are only for reference, the machine can be custom designed according to specific object size.
