INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GS300-N |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | HDPE Coil, PVC Coil, Drip Coil,etc | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Coil ID: | ≥400mm |
| Type: | Wrapping Machine | Coil Weight: | ≤300KG |
| Voltage: | 380V/50HZ | Packaging Material: | Stretch Film |
| Ring Speed: | 20-90r/min | Roller Speed: | 2-4m/min |
| Highlight: | 4m/min Hose Coil Wrapping Machine,ISO 9001 Hose Coil Wrapping Machine |
||
MACHINE APPLICATION:

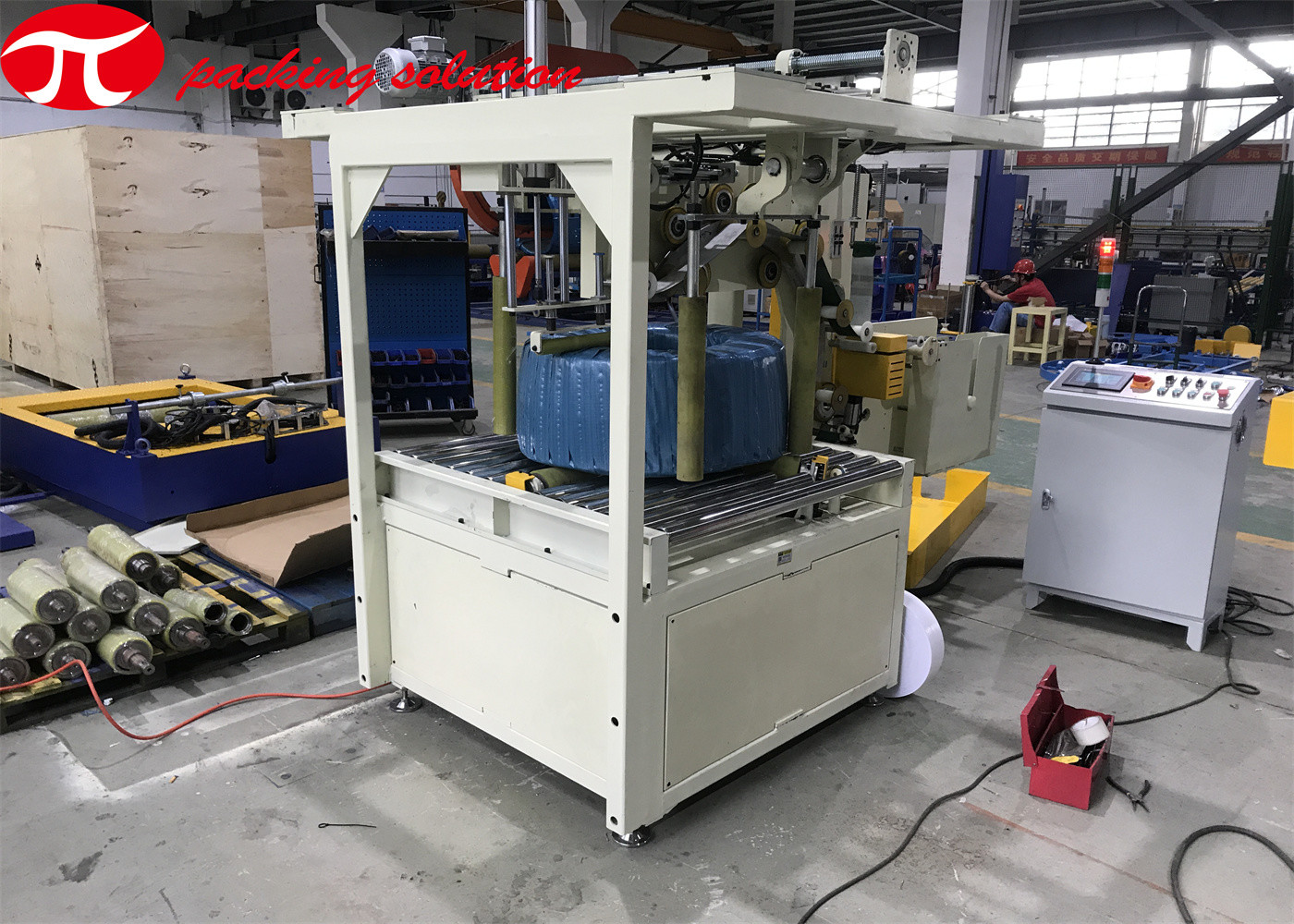

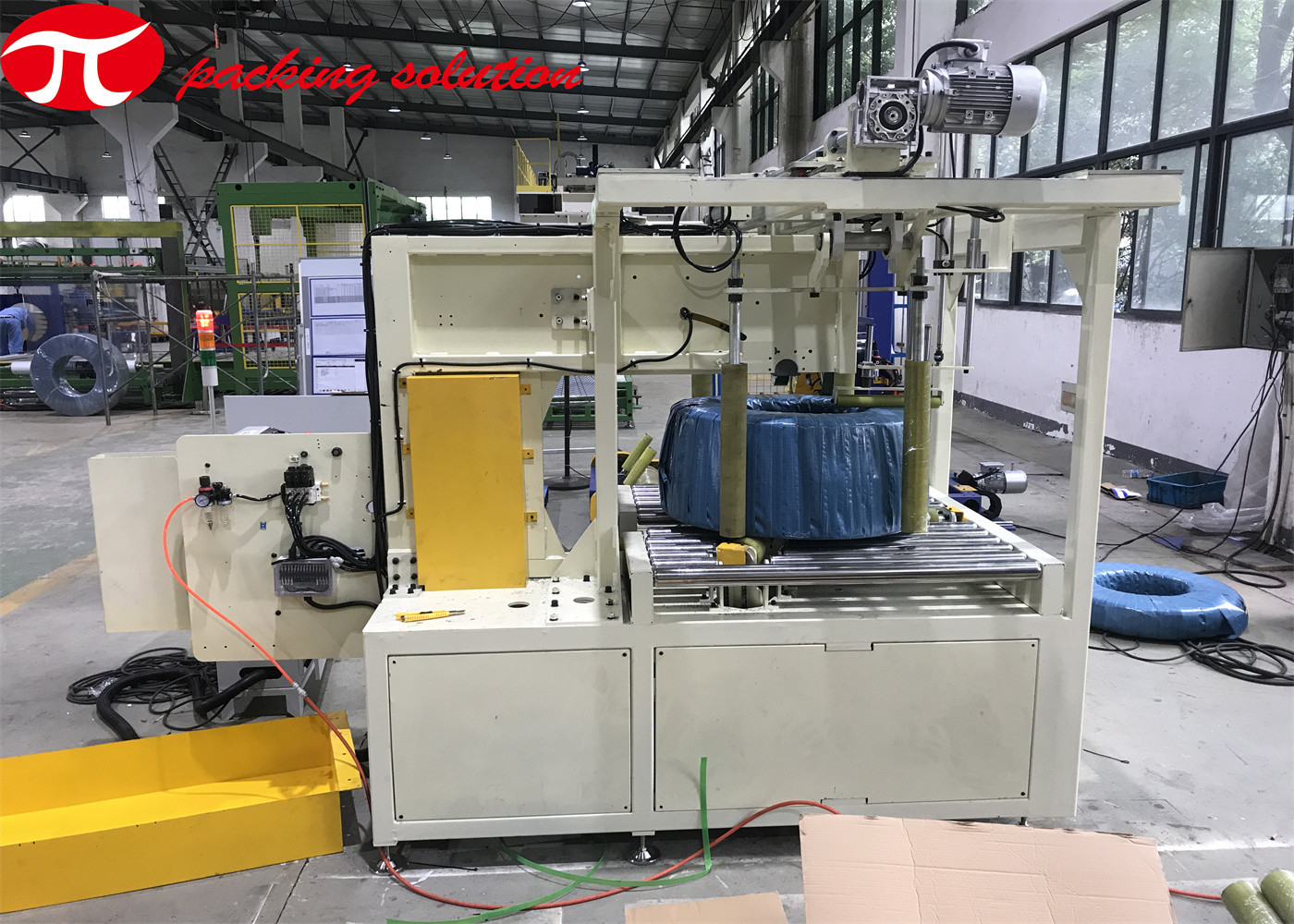

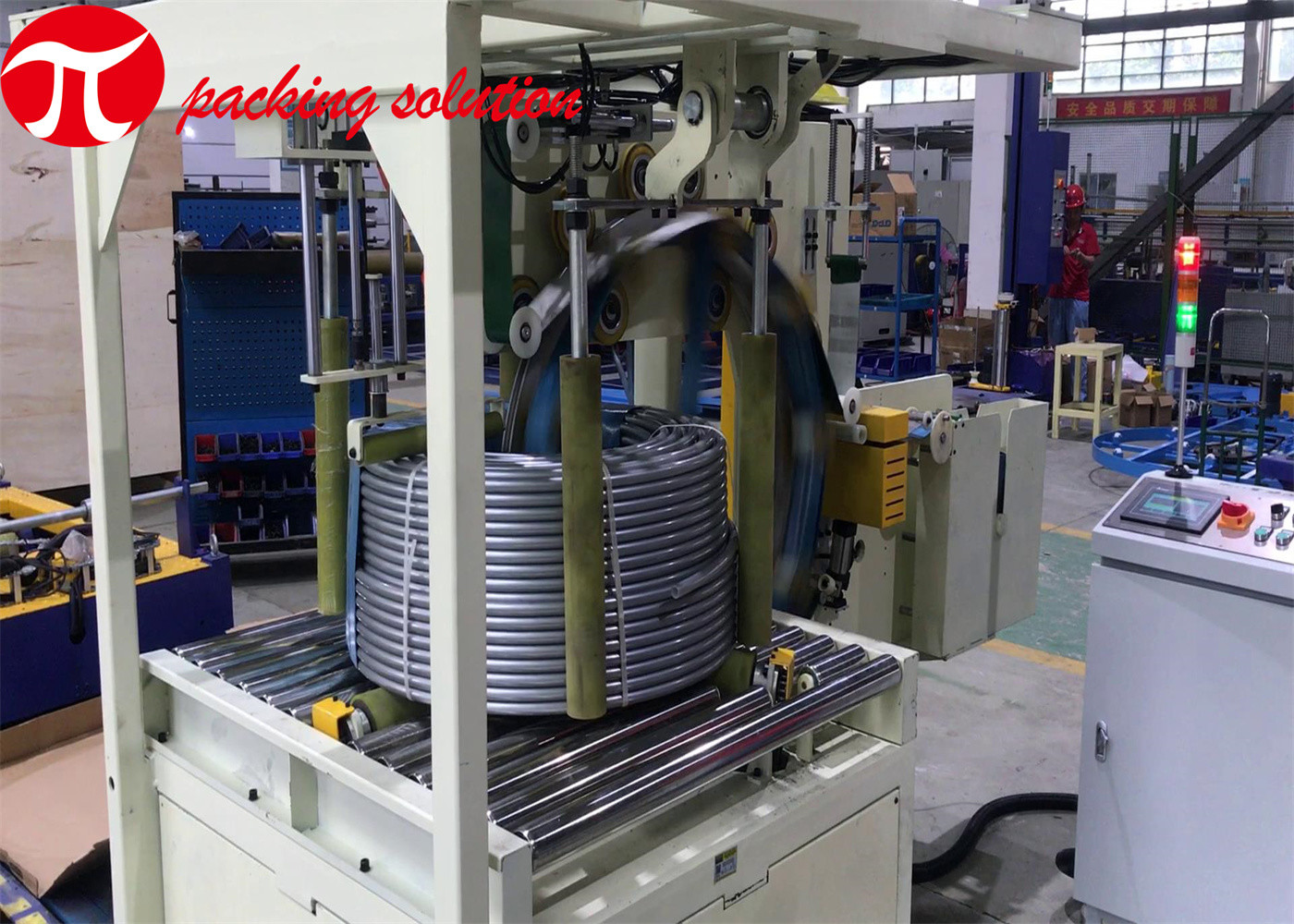

Shanghai Jinglin’s GS series hose wrapping machine is mainly used for wrapping all kinds of water hose, garden hose, drip hose coils, plastic pipe coils and other ring type objets, to make the packed objects relatively sealed, and thus play a good role in the coil protection and decoration. Our machines are CE and ISO 9001 approved. The machine will be custom made based on your specific size of hose.
YOUR BENEFITS FROM THE MACHINE:
1) Saving labor cost
2) Enhance packing efficiency
3) Custom packing solution based on specific size
4) Low consumption of energy and material
5) Easy operation and maintenance
6) Machine operating at low noise level
7) Simple and quick installation
CHARACTERISTICS:
1) Simple structure, easy operation.
2) PLC program control for automatic hose packing.
3) High wearing-resistance of polyurethane friction wheel.
4) The slip ring can be moved up and down, in order to adapt to different inside and outside diameters of the coil.
5) Unique tension adjustment mechanism, ensure a good packing effect for both big and small coils.
6) The overlap ratio of the wrapping film is adjustable based on different needs.
7) Upper and down side rollers designed for fixing and protecting the coil.
8) Pushing-out system is for optional for ejecting the heavy packed coils out from the packing station.
9) The machine can be custom designed according to special coil specification.
MAIN PARAMETERS:
| Model | GS300 |
| Coil OD | 600mm-1200mm |
| Coil ID | ≥400mm |
| Coil width | ≤300mm |
| Coil weight | ≤300KG |
| Ring speed | 20r/min-90r/min,adjustable |
| Overlap rate | 10%-90% |
| Packing material | Stretch film, knit tape, compound paper, etc |
| Material size | ID:76mm; OD:200mm;width:90mm |
| Power output | About 1.5kw |
| Power supply | AC/380V |
| Pushing device | Optional |
| Labeling device | Optional |
| Synchronous wrapping system | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
