INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GW300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Plastic And Rubber | Automatic Grade: | Automatic |
|---|---|---|---|
| Driven Type: | Electric | Type: | Wrapping Machine |
| Voltage: | 220V/380V/50HZ | Packaging Material: | Stretch Film,paper,plastic |
| Product Name: | Rubber Hose Coil Packing Machine | Ring Speed: | 20-90r/min |
| Overlapping Ratio: | 30%-70% | Warranty: | 12 Months |
| Highlight: | HDPE Coil Packaging Machine,1.0kw Hose Wrapping Machine,HDPE Hose Wrapping Machine |
||
MACHINE APPLICATION:

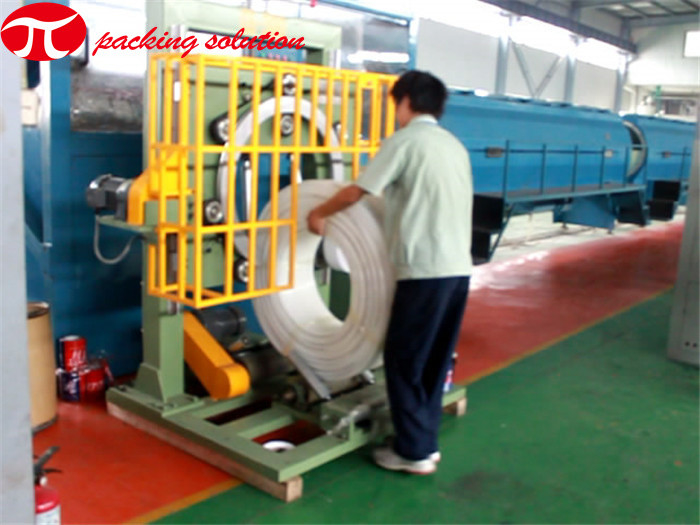

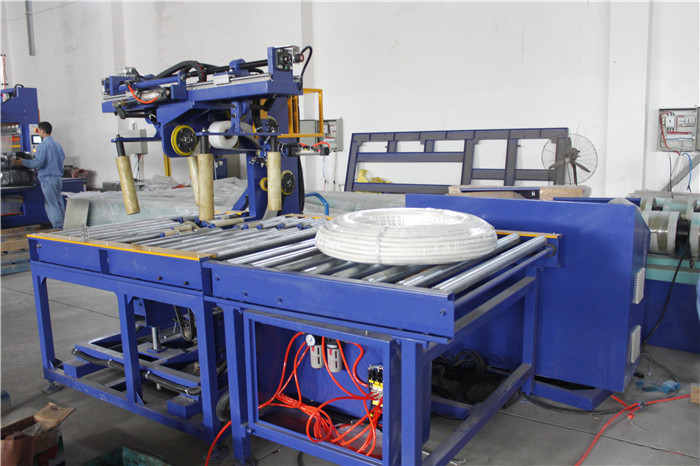

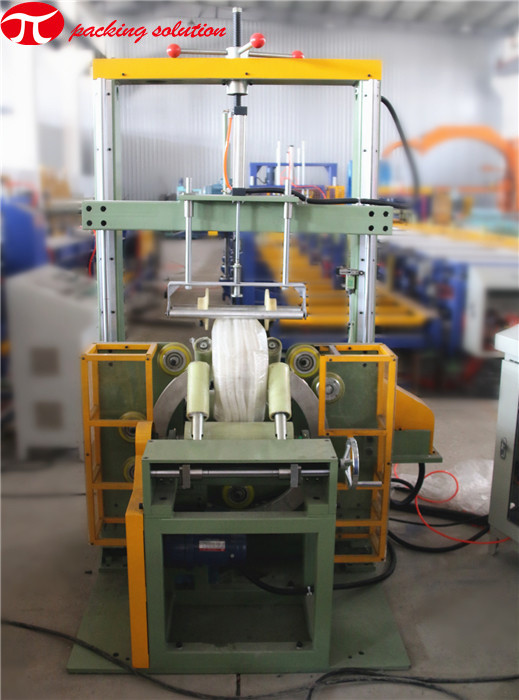

The automatic rubber hose wrapping machine is furnished with motor driven powered conveyors for transferring the hose coils and complete the packing process automatically. Fully automatic operation for superior efficiency.
BASIC FEATURES:
MAIN PARAMETERS:
| ITEMS | GW200 | GW300 |
| Coil width | ≤200mm | ≤300mm |
| Coil OD | 300-500mm | 300-600mm |
| Coil ID | ≥200mm | ≥250mm |
| Rotate speed | About 20-90r/min | About 20-90r/min |
| Overlapping ratio | 30%-70% | 30%-70% |
| Packing Material | Knit tape/stretch film/compound paper etc. W:100mm OD:≤300mm ID:55mm | Knit tape/stretch film/compound paper etc. W:100mm OD:≤300mm ID:55mm |
| Power output | About 1.0kw | About 1.5kw |
| Power voltage | 380V/50Hz /3 phase | 380V/50Hz /3 phase |
| Synchronous wrapping system | Optional | Optional |
| Automatic mechanical hand | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
OPERATIONS:
1) Rotate POWER switch to connect to the power supply of the machine.
2) Rotate EMERGENCY STOP switch clockwise.
3) Place the coil on the front conveyor, where it can be sensored by photo sensor switch on the baffle.
4) Fix the wrapping material by manual or by mechanical hand(optional).
5) Switch “Manual/Auto” button to Auto position. Set the parameter of coil dimensions,“ring speed”,“roller speed”and other parameters needed in HMI.
6) Press “Start” button or “Auto start” in HMI.
7) The machine starts packing automatically until one coil is packed.
8) Cut off the packaging tape manually or by mechanical hand(optional) and use adhesive tape or other method to fix the ends of tape.
9) Move the packaged object away safely. A whole packaging process is completed.
