INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GW300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Packaging Material: | Stretch Film,paper | Stretch Film/VCI Film Size: | Width: 50-60mm; Core ID: 50mm; OD: 100-200mm |
|---|---|---|---|
| Driven Type: | Electric | Application: | Bearing, Ball Bearing, Roller Bearing,etc |
| Voltage: | 380V/50Hz | Automatic Grade: | Automatic/semi-auto |
| Type: | Wrapping Machine | Function: | Protective Wrapping |
| Product Name: | Bearing Coil Packing Machine | Output: | Appr. 1.5kw |
| Highlight: | JINGLIN Horizontal Coil Wrapping Machine,1.5kw Horizontal Coil Wrapping Machine |
||
GENERAL APPLICATION:

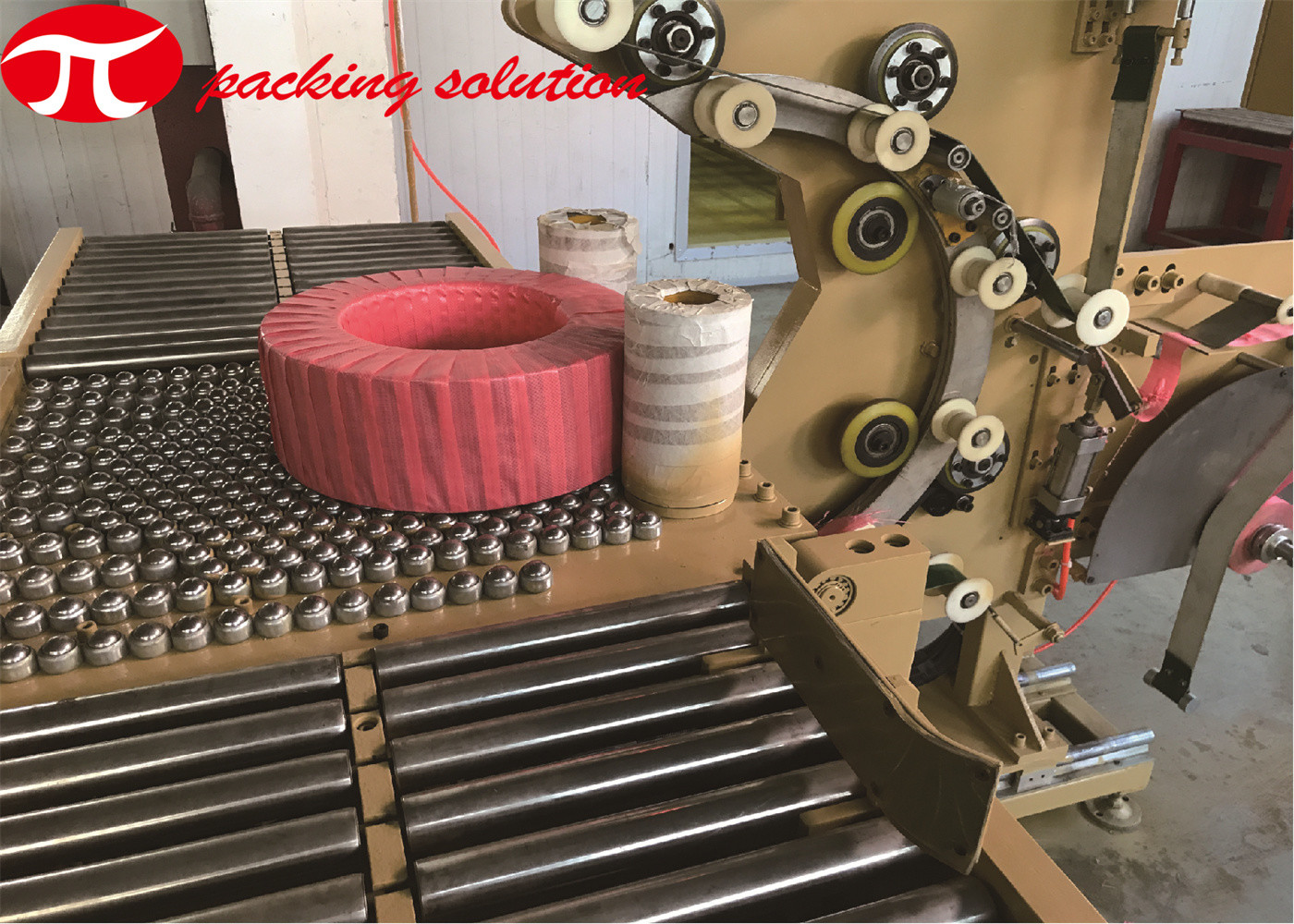

The horizontal bearing packing machine is widely used for various bearings by stretch film, compound paper, VCI paper&etc to achieve the closed and protective packing and to simplify the wrapping procedure and lessen the labor density, it’s suitable for both small and large size bearings. The machine can be connected with associated production line to or operated independently.
MAIN PARAMETERS:
| Mode | ZC100 | ZC200 | ZC300 |
| Type | Horizontal | Horizontal | Horizontal |
| Object width | ≤100mm | ≤200mm | ≤300mm |
| Object ID | ≥150mm | ≥250mm | ≥400mm |
| Object OD | ≤500mm | ≤700mm | ≤1300mm |
| Object weight | ≤100kg | ≤300kg | ≤500kg |
| Ring speed | 10-100r/min | 10-100r/min | 10-100r/min |
| Roller speed | 1-3m/min | 1-3m/min | 1-3m/min |
| Packing material |
Stretch film/VCI film,etc Width: 50-60mm; core ID: 50mm; OD: 100-200mm |
Stretch film/VCI film,etc Width: 50-60mm; core ID: 50mm; OD: 100-200mm |
Stretch film/VCI film,etc Width: 50-60mm; core ID: 50mm; OD: 100-200mm |
| Output | Appr. 1.5kw | Appr. 1.5kw | Appr. 1.5kw |
| Supply voltage | 220V/380V, 50HZ/60HZ | 220V/380V, 50HZ/60HZ | 220V/380V, 50HZ/60HZ |
| Air supply | 6～8kgf/cm2 | 6～8kgf/cm2 | 6～8kgf/cm2 |
| Automatic mechanical hand | Optional | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
CHARACTERISTICS

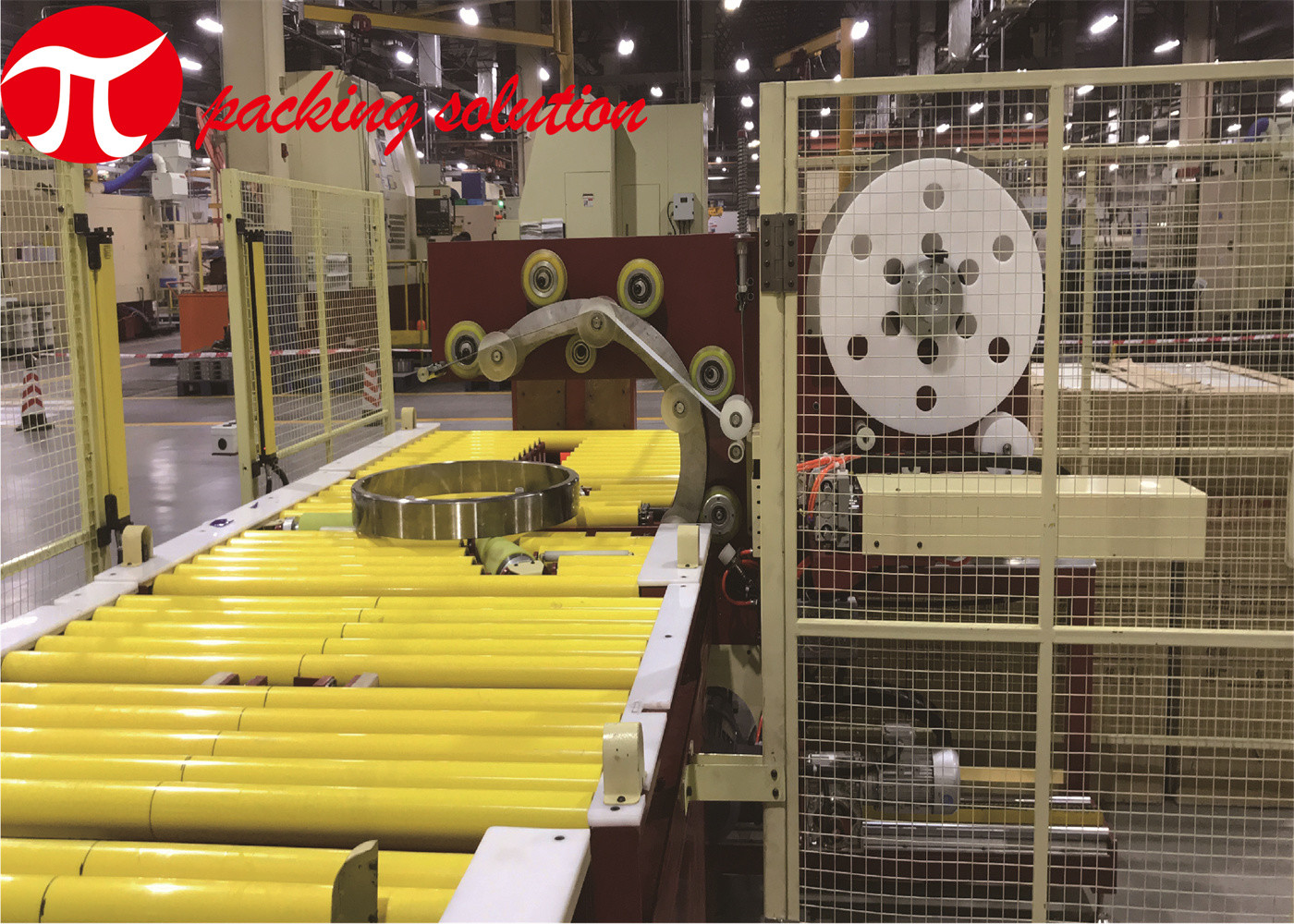

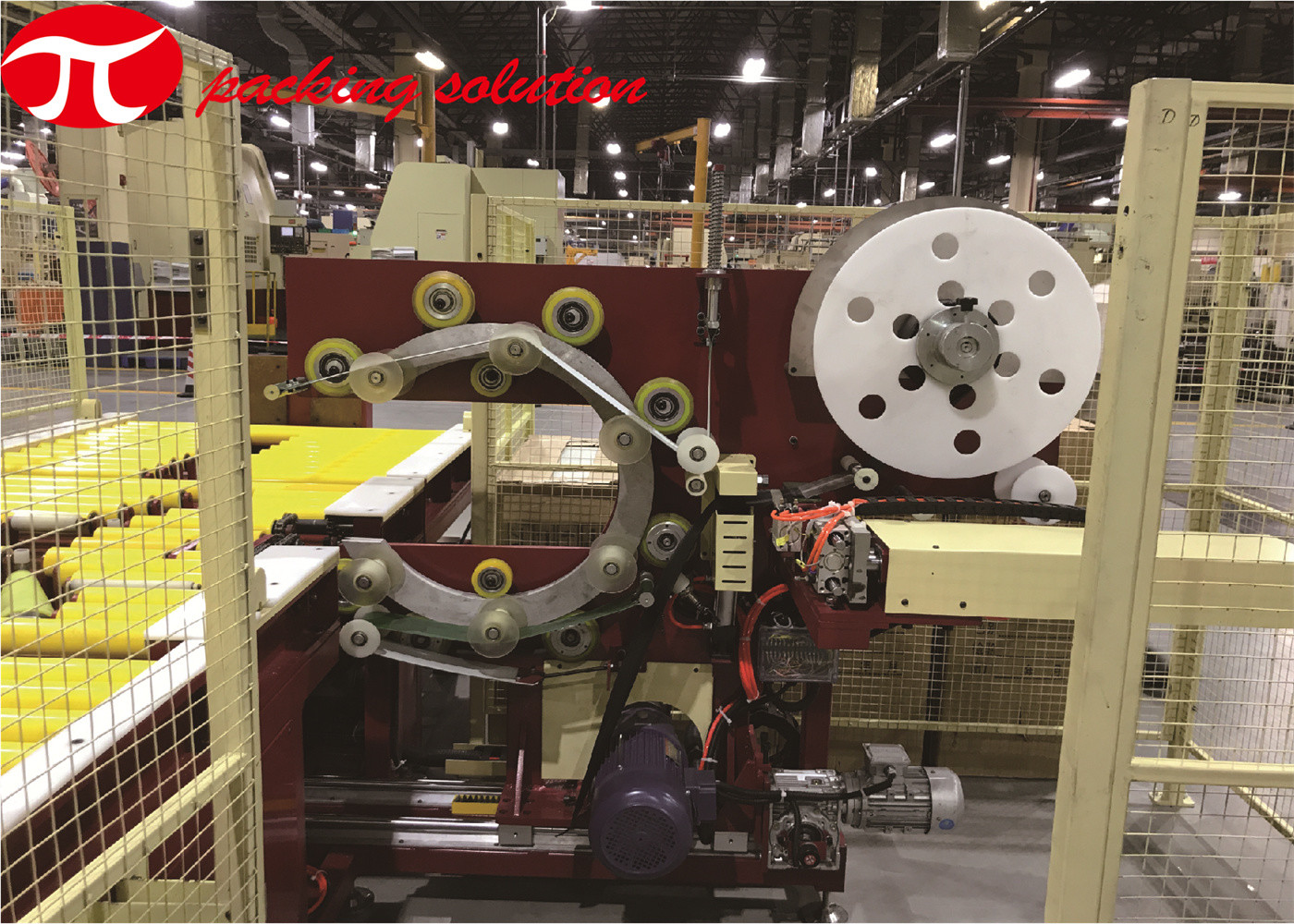

1. Horizontal structure with motorized conveyors for efficient packing.
2. Flexible wrapping table specially designed for turning of bearings.
3. PLC and HMI for automatic operation.
4. The tension and overlapping degree of wrapping material can be adjusted.
5. Photo sensors for automatic coil positioning.
6. Different packing material can be chose.
7. Packaging tension is adjustable by special breaker.
8. Independent control cabinet easy for operation and maintenance.
9. Automatic material feeding and cutting is available.
10. Safe guardrails for turning part ensure safe operation.
11. The rollers wrapped by polyurethane to protect the products.
12. Conveyors length can be customized.
