INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD500 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Name: | Bearing Packing Machine | Application: | Various Bearings |
|---|---|---|---|
| Automation: | Automatic | Ring Speed: | Appr. 20-90r/min |
| Driven Type: | Electric | Coil Width: | ≤500mm |
| Roller Speed: | About 2.5/min | Voltage: | 220V/380V/50HZ |
| Packaging Material: | Stretch Film, Paper, Knit Tape,etc | Usage: | Outer Protective Wrapping |
| Highlight: | 40r/Min Bearing Packing Machine,380V Bearing Packing Machine,50Hz Steel Coil Packing Machine |
||

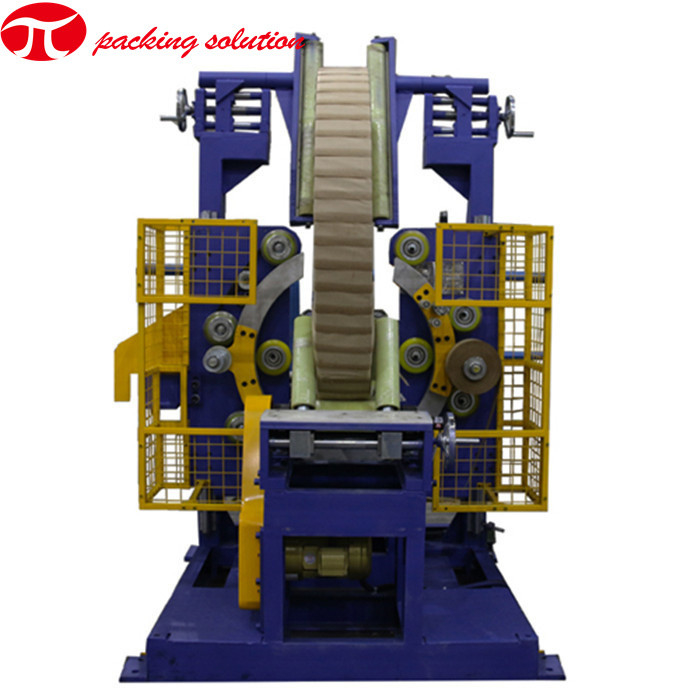

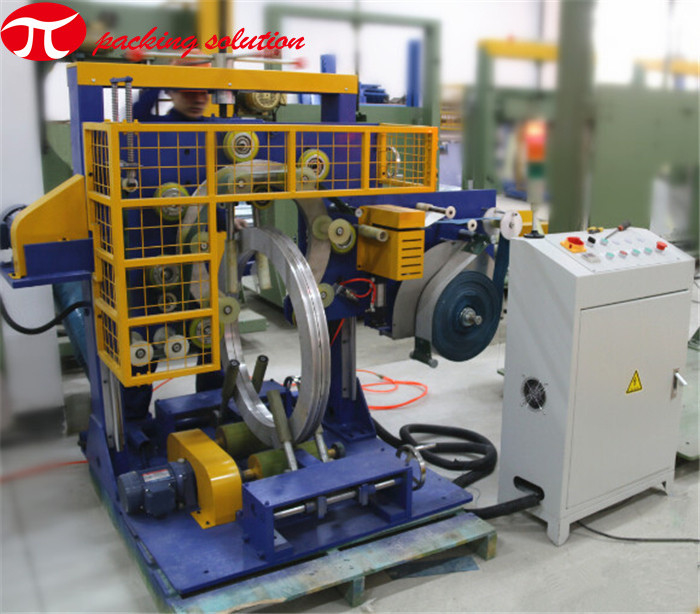

Simple structure 40r/min Rotating Bearing Packing Machine 380V / 50Hz for steel coils
Rotating Bearing Packing Machine application:
With 20 years experience in packing machine, Jlpack developed this automatic steel strip packing machine suit for wrapping needs of various circular articles such as steel coils, copper coil, wire coils, pipe coils, bearings, tyres & etc. The object is tidy and neat and well protected from dust,water,rust. The automatic steel coil packing machine can greatly increase the packing efficiency of the traditional packing, is more and more being used by modern steel industries.
Rotating Bearing Packing Machine parameters
| ITEMS | GD300 | GD400 | GD500 | GD600 |
| Coil width | ≤300mm | ≤400mm | ≤500mm | ≤600mm |
| Coil OD | ≤1200mm | ≤1500mm | ≤1600mm | ≤1600mm |
| Coil ID | ≥508mm | ≥508mm | ≥508mm | ≥508mm |
|
Packing material |
Crepe paper/compound woven tape/ VCI paper/stretch film W:90mm ID:54mm OD:600mm |
Crepe paper/compound woven tape/ VCI paper/stretch film W:90mm ID:54mm OD:600mm |
Crepe paper/compound woven tape/ VCI paper/stretch film W:90mm ID:54mm OD:600mm |
Crepe paper/compound woven tape/ VCI paper/stretch film W:90mm ID:54mm OD:600mm |
| Rotating speed | About 80r/min | About 80r/min | About 50r/min | About 40r/min |
| Roller speed | About 2.5/min | About 2.5/min | About 2.5/min | About 2.5/min |
| Power voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Automatic mechanical hand | Optional | Optional | Optional | Optional |
| Synchronous wrapping system | Optional | Optional | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Rotating Bearing Packing Machine basic features:
