INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | ZC300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden case /standard container |
| Delivery Time: | 150 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/Year |
| Application: | Large Bearing, Strand Wire Coil | Ring Speed: | Appr. 20-90r/min |
|---|---|---|---|
| Object OD: | 1000-2500mm | Object ID: | ≥500mm |
| Roller Speed: | 5-8m/min | Driven Type: | Electric |
| Voltage: | 380V/50HZ | Packaging Material: | Paper, Plastic |
| Usage: | Outer Protective Wrapping | Type: | Wrapping Machine |
| Highlight: | Waterproof Bearing Packing Machine,220V Bearing Packing Machine,100r/min bearing wrapping machine |
||

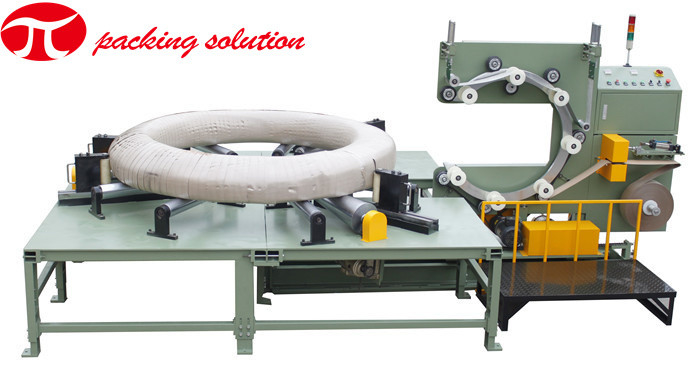

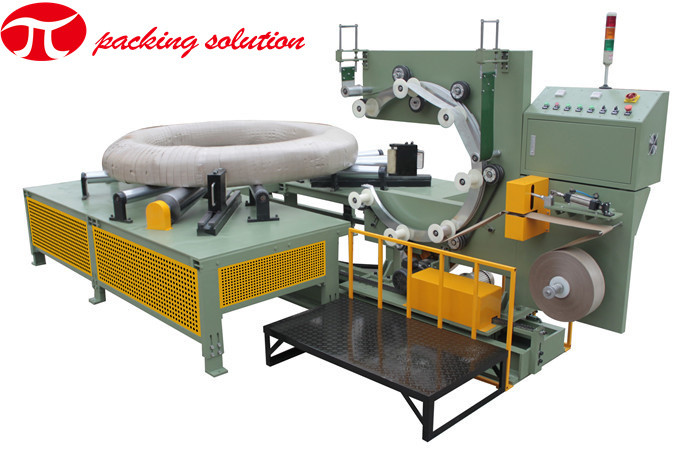

Waterproof large size support bearings Packing Machine Horizontal type 220V 100r/min
Machine application:
This bearing packing machine is widly usde for lager bearing and strand wire coil.The packed object is well decorated and has good effect of rust-proof,dust-proof,water-proof,anti-wear and anti-damage.
Machine main parameters:
| Mode | ZC300 |
| Type | Horizontal |
| Application | All kinds of bearings |
| Object width | ≤300mm |
| Object ID | ≥500mm |
| Object OD | 1000-2500mm |
| Ring speed | Approx. 10-100r/min |
| Roller speed | 1-3m/min |
| Packing material |
Water proof tape, anti-rust paper, knit tape, stretch film/VCI film,etc Width: 120mm; core ID: 50mm; OD: 100-200mm |
| Output | Appr. 3kw |
| Supply voltage | 220V/380V, 50HZ/60HZ |
| Air supply | 6～8kgf/cm2 |
| Automatic mechanical hand | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Machine basic features:
