INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | JLPACK |
| Certification: | ISO9001，CE |
| Model Number: | GG1200 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden case /standard container |
| Delivery Time: | Stand alone 1 week,the packing line 150 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Power: | 380V/50HZ | Packing Type: | Stretch Film Wrapping |
|---|---|---|---|
| Color: | Standard Blue | Automatic Grade: | Semi-Automatic |
| Condition: | New | Type: | Wrapping Machine |
| Packaging Type: | Cartons | Warranty: | 12 Months |
| Function: | Stretch Film Wrapping | Strapping Speed: | 2.18 Sec/strap |
| Highlight: | Customized Horizontal Wrapping Machine,GG1200 Horizontal Wrapping Machine,20m/Min Panel Wrapping Machine |
||
JINGLIN 2.4kw Power output Panel Horizontal Steel& Copper Wrapping Machine GG1200 Rotating speed 70r/min
Automatic Orbital Door Packing Machine Panel Film Wrapping Machine
Automatic wood panel wood door packing machine application and installation:

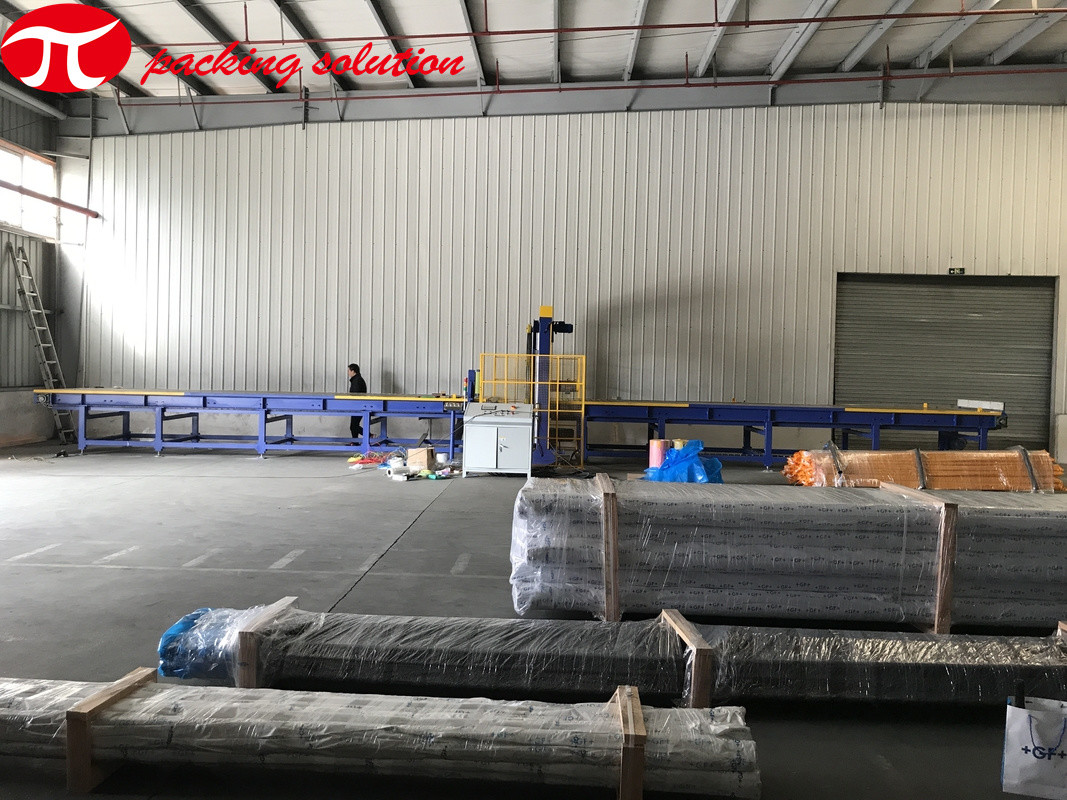

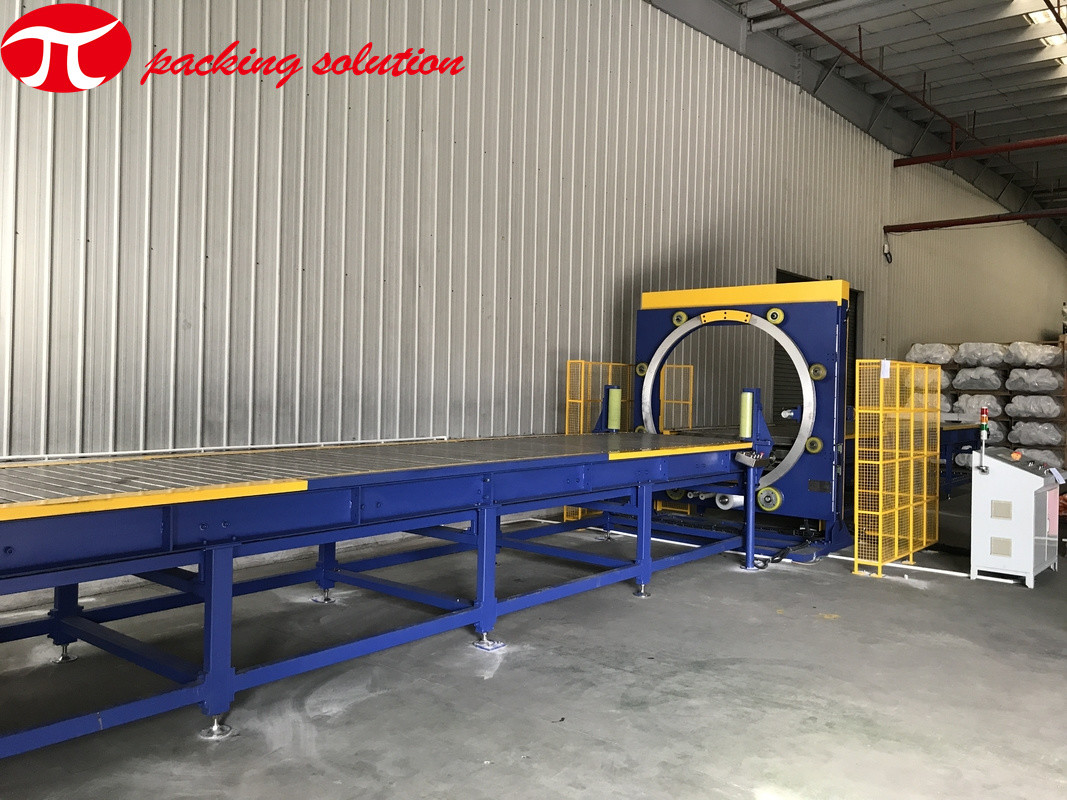

The horizontal steel pipe wrapping machine is specialized for wrapping horizontal wood panels, wood door, batten board and other horizontal objects.
The machine shall be mounted on flat & hard ground, where the ground load should be more than 1ton/m2.
The next wrapping process should begin after the back line cleared.The wrapping material is tied, fixed and cut by manual.
Automatic wood panel wood door packing machine basic composition:
This packing line is composed of turnstile,coil packing&tilting systerm,net/gross weighing statiom,PP/PET strapping,wrapping machine,stacking systerm,electrial cabinet,guardrails,hydraulic station&etc.
Automatic wood door wood panel packing machine installation main features:
MAIN PARAMETERS:
| Items | GG1200 |
| Height of the product | ≤1000mm |
| Pipe length | Not limited |
| Weight | ≤2T |
| Conveyor length | 1000-6000mm(can be customized) |
| Conveying speed | About 10m-20m/min |
| Rotating speed | About 70r/min |
| Conveyor height | Approx. 1000mm |
| Overlap scope | About 10%-90% |
| Power output | About 2.4kw |
| Power voltage | 380V / 3 phase / 50Hz |
| Material |
Compound paper tape/knit tape/anti-rust tape/waterproof tape stretch film |
| Material size |
width:≤250mm Max OD:400mm ID:55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
