Place of Origin: | China |
---|---|
Brand Name: | JLPACK |
Certification: | ISO9001,CE |
Model Number: | GG400 |
Minimum Order Quantity: | 1 |
Packaging Details: | Wooden case /standard container |
Delivery Time: | Stand alone 1 week,the packing line 150 days |
Payment Terms: | T/T |
Supply Ability: | 200 sets/Year |
Application: | Steel Pipe,wood Panel,batten Panel Board Etc | Type: | Wrapping Machine,Other Packing Machine |
---|---|---|---|
Packaging Material: | Plastic,Metal,Paper,sretch Film | Material Size: | W:150-200mm Max OD:250mm ID:55mm |
Product Length: | 1500-6000mm | Strapping Speed: | 2.18 Sec/strap |
Driven Type: | Electric,Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Overseas Third-party Support Available,Field Installation,commissioning And Training |
Voltage: | 220V,380V/50HZ | Warranty: | 1 Year |
High Light: | 90r/min Horizontal Orbital Stretch Wrapper,Customized Horizontal Orbital Stretch Wrapper |
Automatic Horizontal Stretch Standard blue Steel & Copper Wrapper Customized For Board
Automatic Orbital Door Packing Machine Stretch Film Wrapping Machine
Machine application and installation:

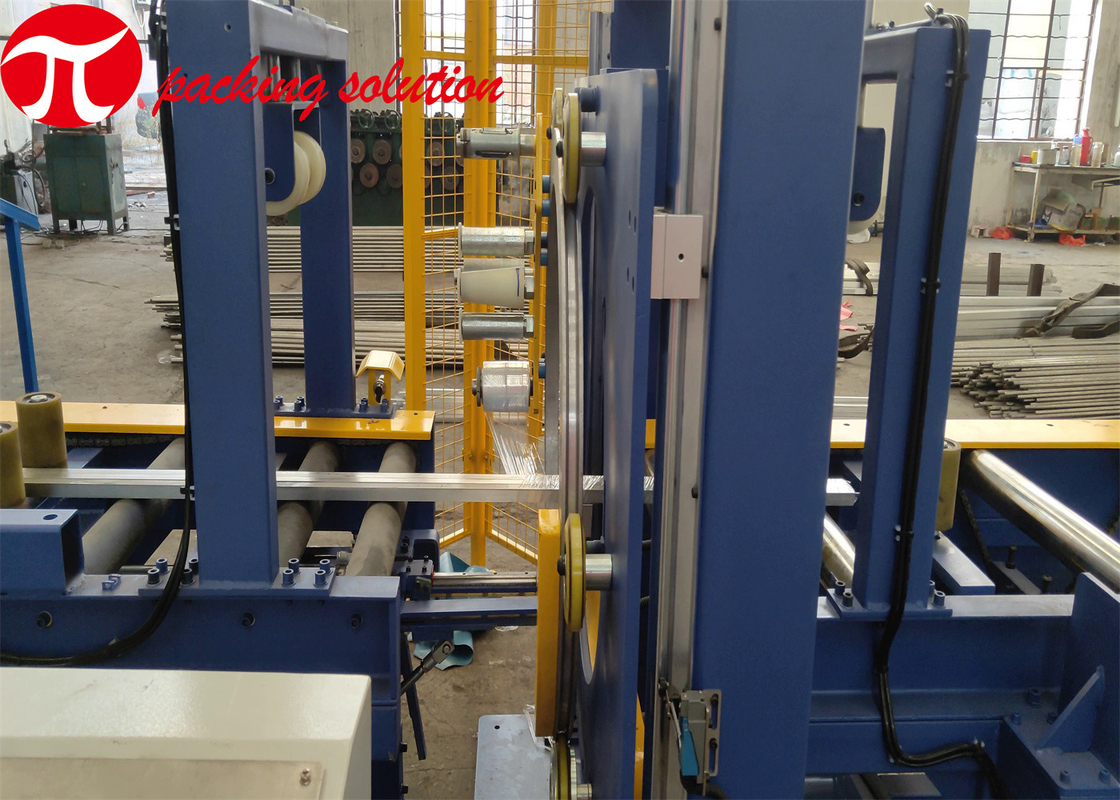

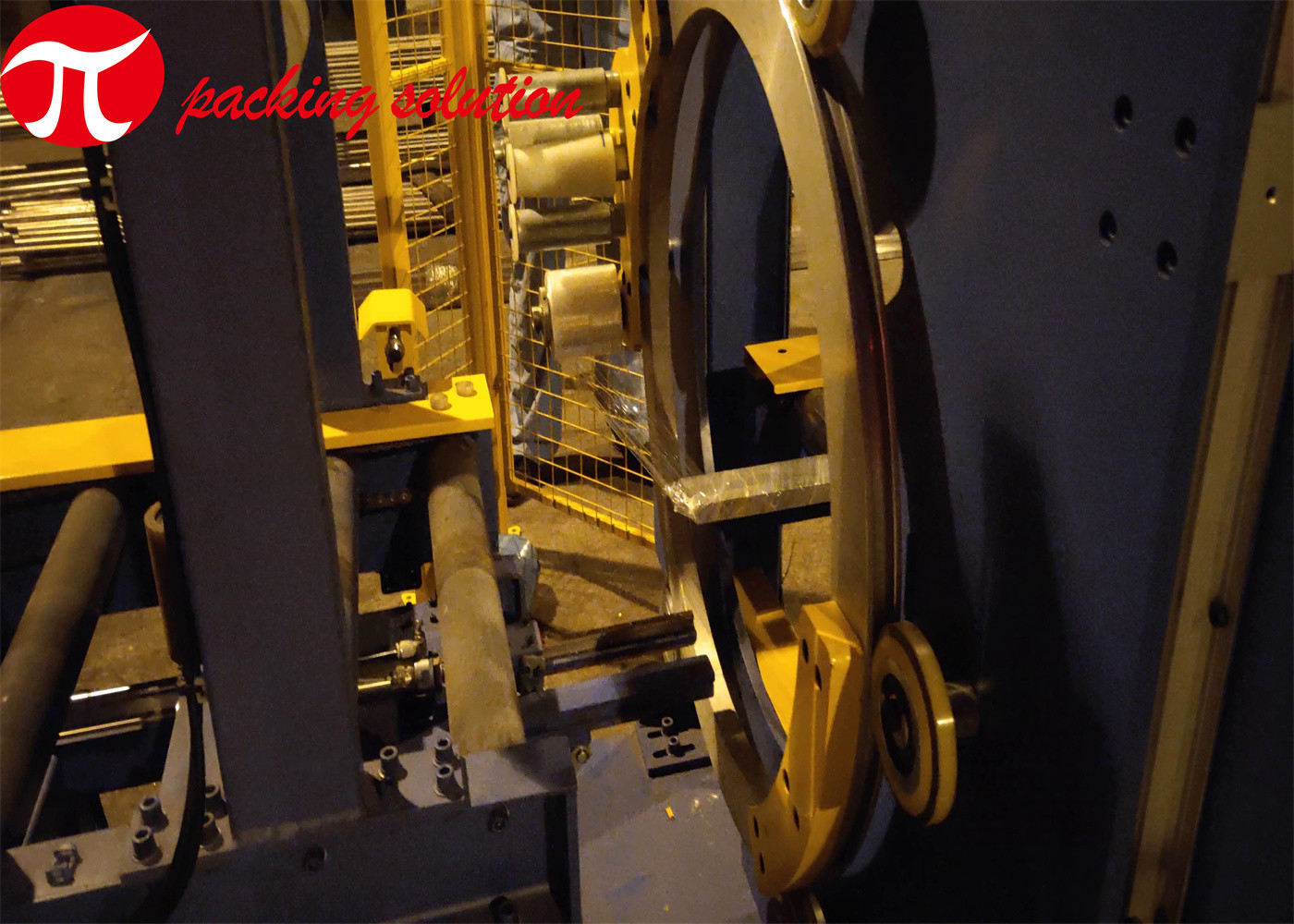

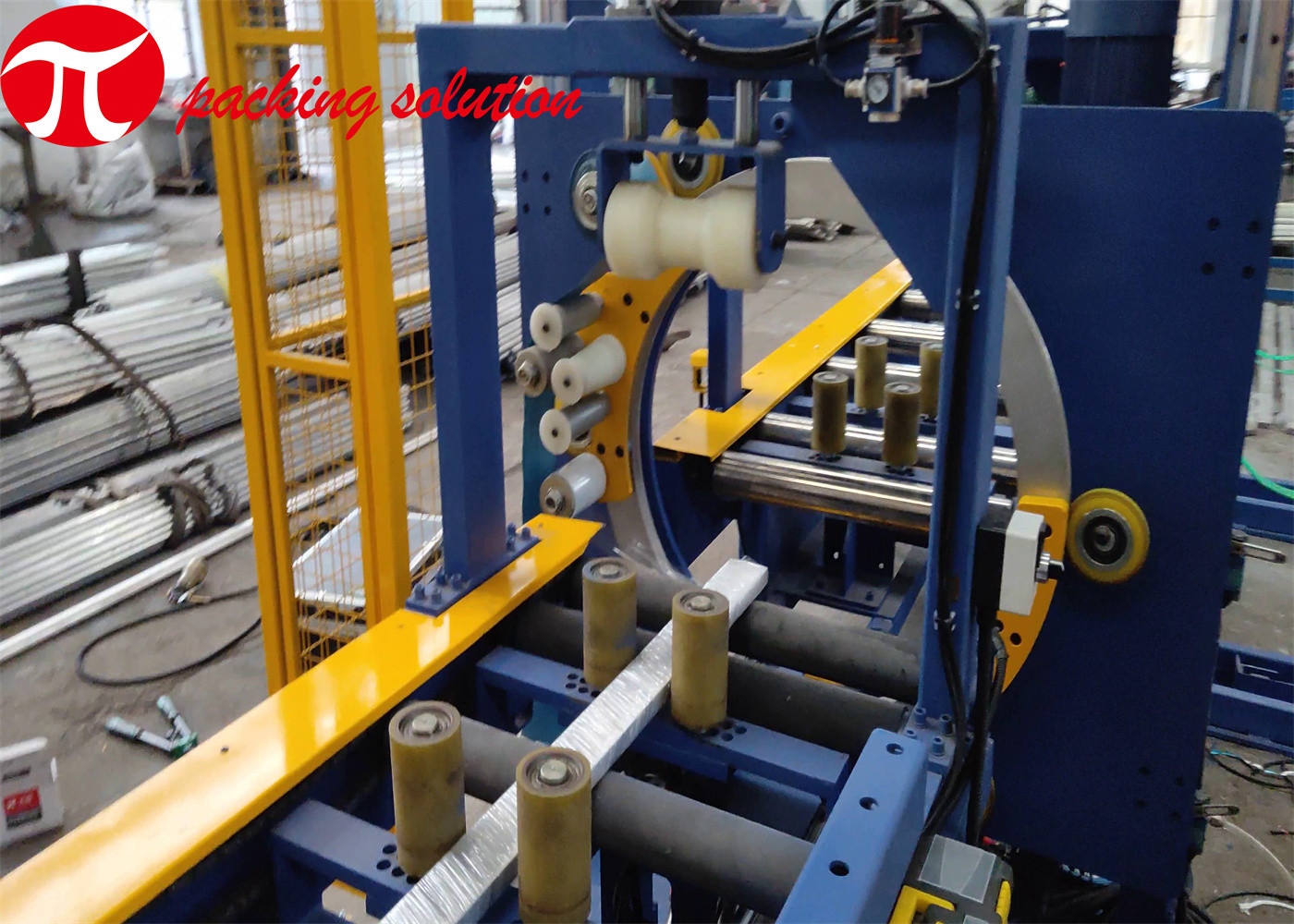

The horizontal steel pipe wrapping machine is specialized for wrapping horizontal wood panels, batten board and other horizontal objects.
It makes the object well packed and strapping stacked,convenient for storage and transportation.
The machine shall be mounted on flat & hard ground, where the ground load should be more than 1ton/m2.
Machine installation main features:
MAIN PARAMETERS:
Items | GG400 |
Height of the product | ≤1000mm |
Pipe length | 1500-6000 |
Conveyor length | 1000-6000mm(can be customized) |
Weight | 200KG |
Conveying speed | About 6-12m/min |
Rotating speed | About 90r/min |
Conveyor height | Approx. 750mm |
Overlap scope | About 10%-90% |
Power output | About 2.5kw |
Power voltage | 380V/ 3phase/50Hz |
Material |
Compound paper tape/knit tape/anti-rust tape/waterproof tape LLDPE stretch film |
Material size |
width:150-200mm Max OD:250mm ID:55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Maufacturer Introduction:
Shanghai Jinglin Packaging Machinery Co., Ltd was established in 1998. The philosophy of company is to follow the needs of clients. We have extended our business scope from stand-alone machine to complete packaging line, from local to global market. We have developed more than 200 types of packiaging machines and professional solutions for 13 industries including steel industry, aluminum/copper processing industry, plastic pipe industry, wire&bar industry, bearing industry&etc.
