INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GG1200 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand alone 1 week,the packing line 150 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Pipe ,wood Door,wood Panel,batten Panel Etc | Packing Type: | Stretch Film Wrapping |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service: | Online |
| Turning Speed: | 20-90r/min | Automatic Grade: | Semi-Automatic |
| Packing Material: | Compound Paper Tape/stretch Film/flax | Strapping Speed: | 2.18 Sec/strap |
| Condition: | New | Voltage: | 220V,380V/50HZ |
| Highlight: | 1000mm Horizontal Wrapping Machine,CE Horizontal Wrapping Machine,JINGLIN Horizontal Stretch Wrapper |
||
Horizontal Wrapping Machine GG1200 CE Approved Convey Power voltage 380V/ 3phase/50Hz
Packing machine application:

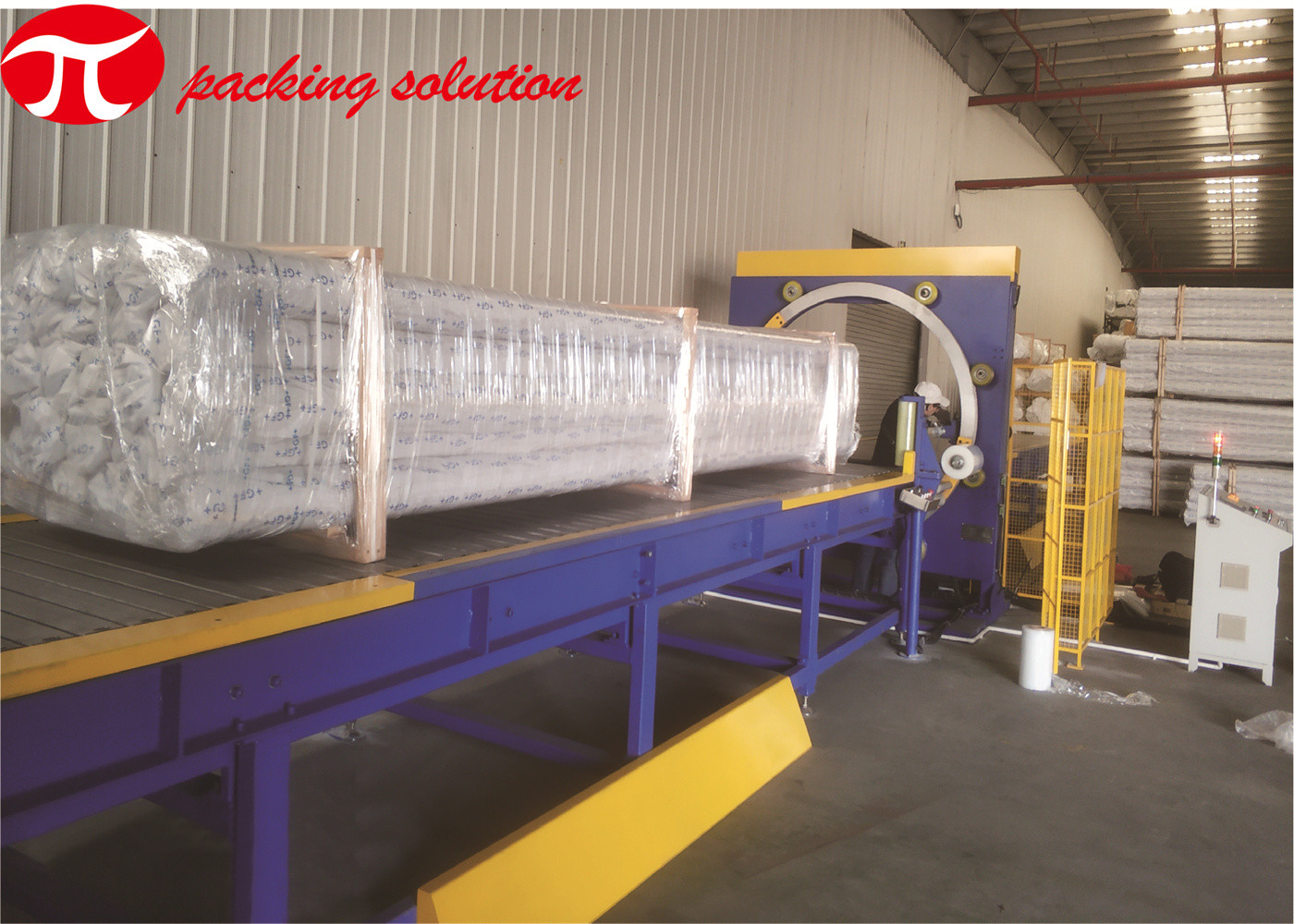

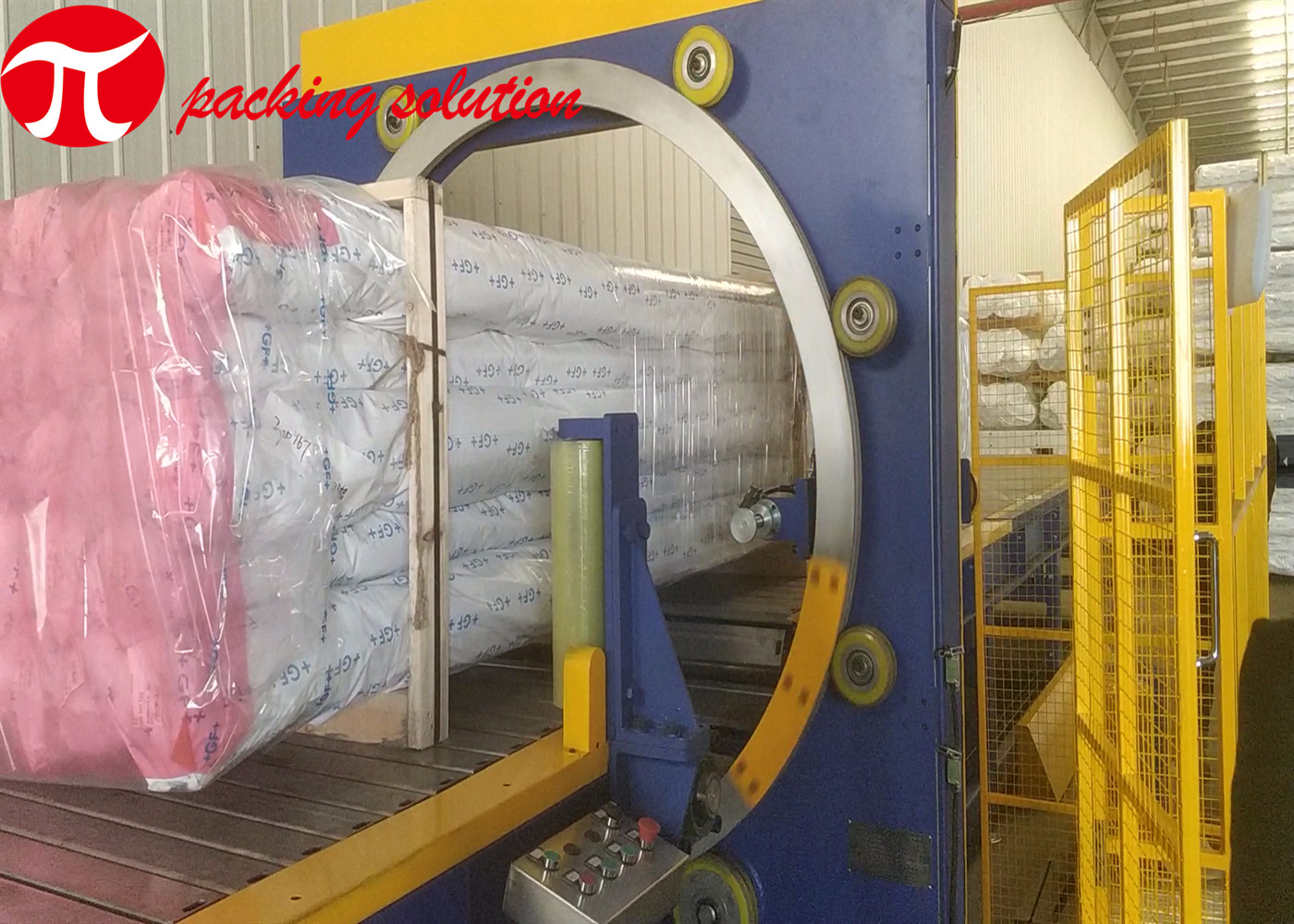

The horizontal steel pipe wrapping machine is specialized for wrapping horizontal wood panels, wood door, batten board and other horizontal objects. the wrapped package is well-protected & sealed & looks more tidy.

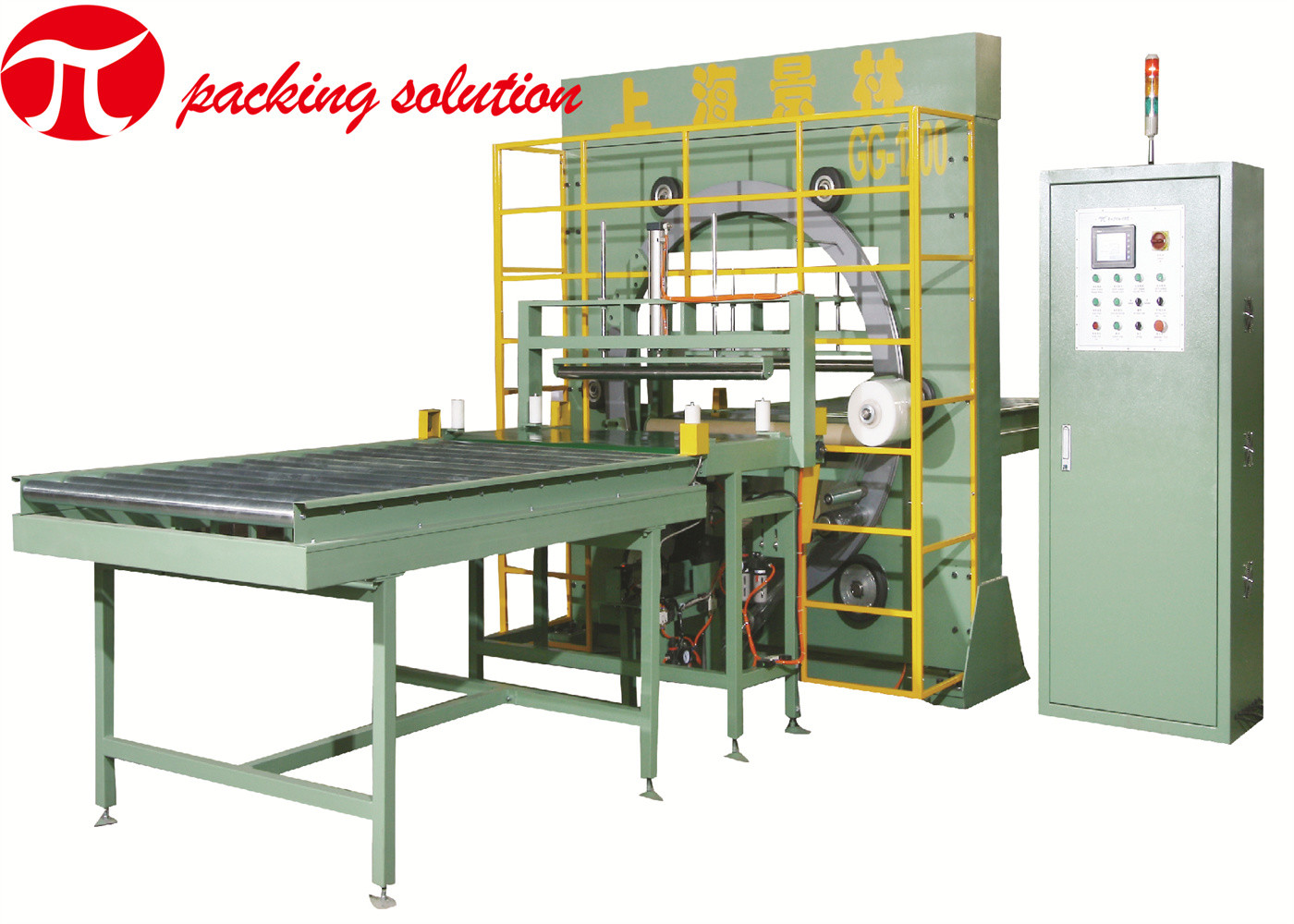

The machine have the separate control panel that makes operation easily.
Packing machine installation main features:
MAIN PARAMETERS:
| Items | GG1200 |
| Height of the product | ≤1200mm |
| Pipe length | Not limited |
| Conveyor length | 1000-6000mm(can be customized) |
| Conveying speed | About 10m-20m/min |
| Rotating speed | About 70r/min |
| Conveyor height | Approx. 1000mm |
| Overlap scope | About 10%-90% |
| Power output | About 2.4kw |
| Power voltage | 380V/ 3phase/50Hz |
| Material |
Compound paper tape/knit tape/anti-rust tape/waterproof tape stretch film |
| Material size |
width:≤250mm Max OD:400mm ID:55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
