INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GG200 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand alone 1 week,the packing line 150 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Wood Door,wood Panel,batten Panel Etc | Function: | Stretch Film Wrapping |
|---|---|---|---|
| Packing Material: | Compound Paper Tape/stretch Film/flax | Turning Speed: | 100r/min |
| Strapping Speed: | 2.18 Sec/strap | Packing Type: | Stretch Film Wrapping |
| Conveyor Height: | Approx 750mm | Power Output: | About 1.2KW |
| Warranty: | 1 Year | After-sales Service: | Online |
| Power: | 380V/50HZ | ||
| Highlight: | 2.4kw Horizontal Wrapping Machine,10m/Min Horizontal Wrapping Machine,DustProof Horizontal Stretch Wrapper |
||
100r/min High Efficiency Horizontal Wrapping Machine , Dust Proof Horizontal Stretch Wrapper
Application:

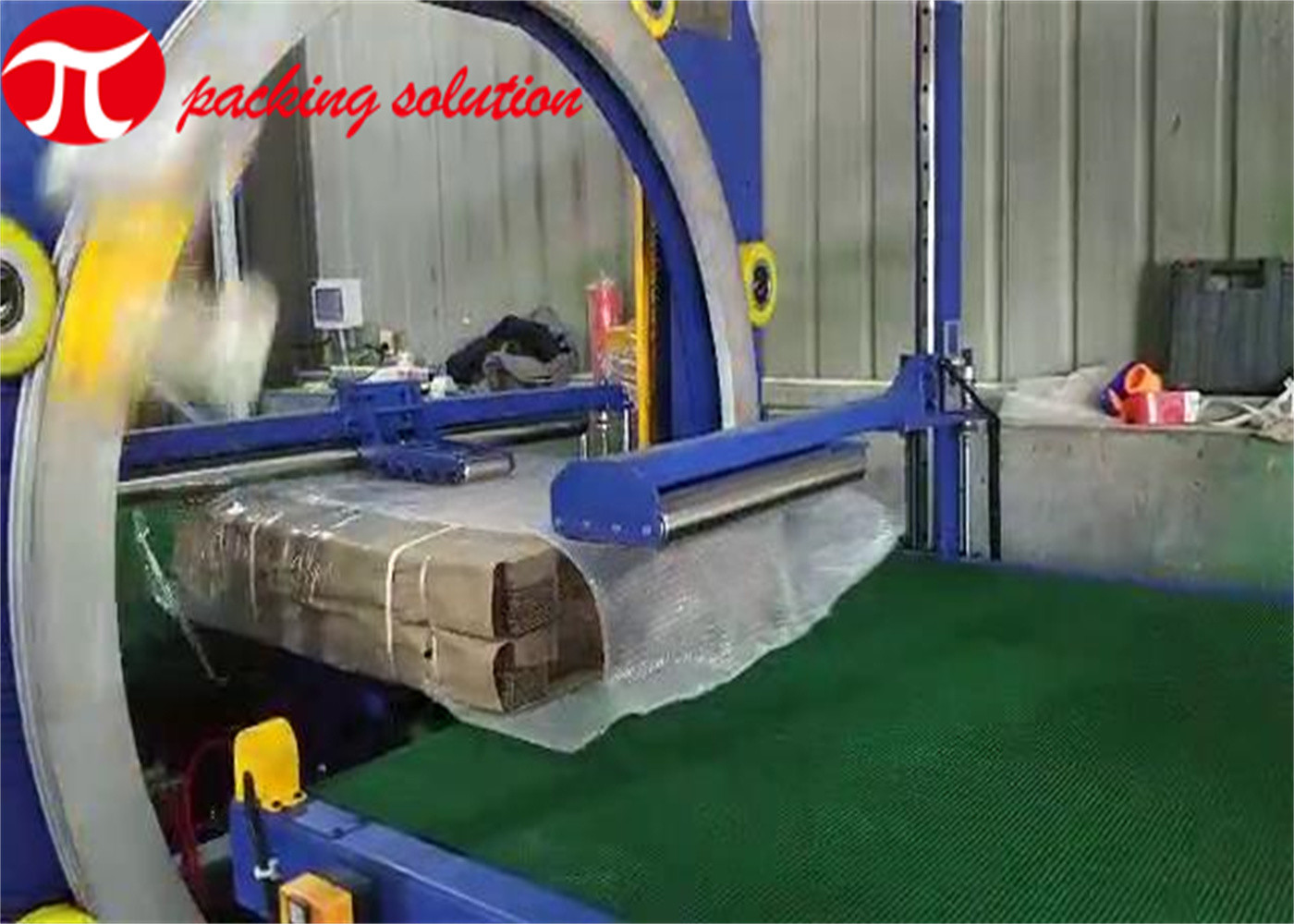

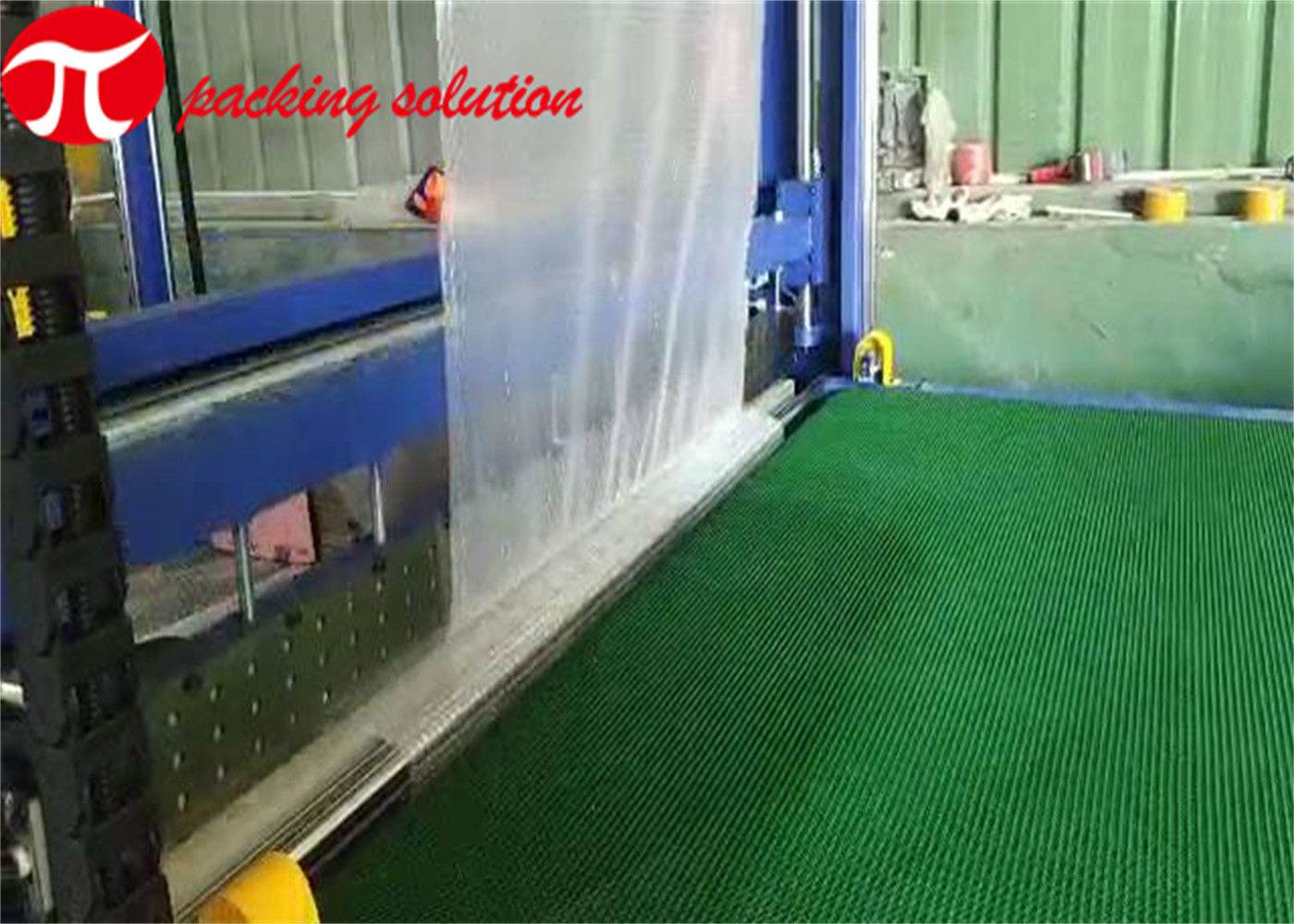

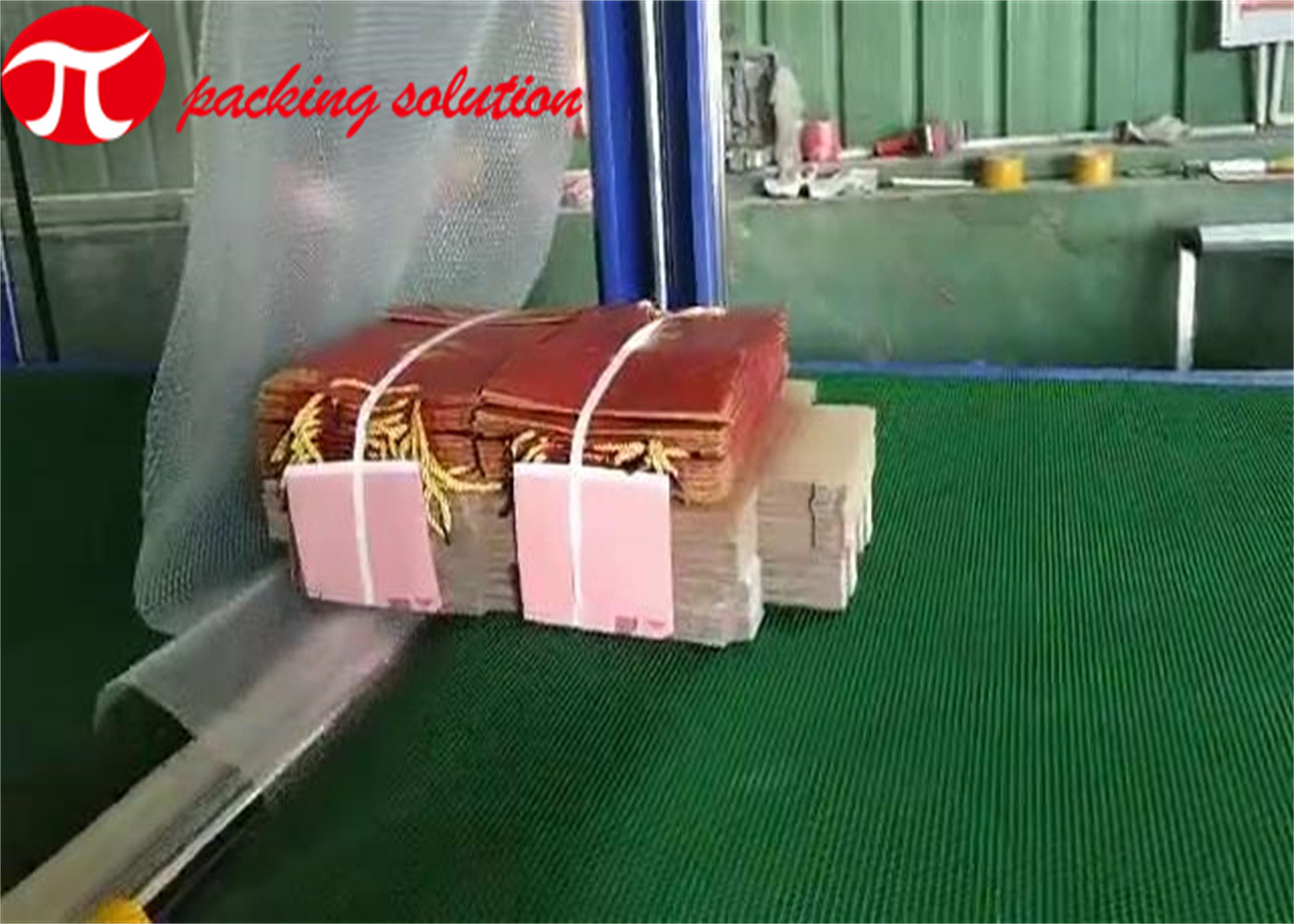

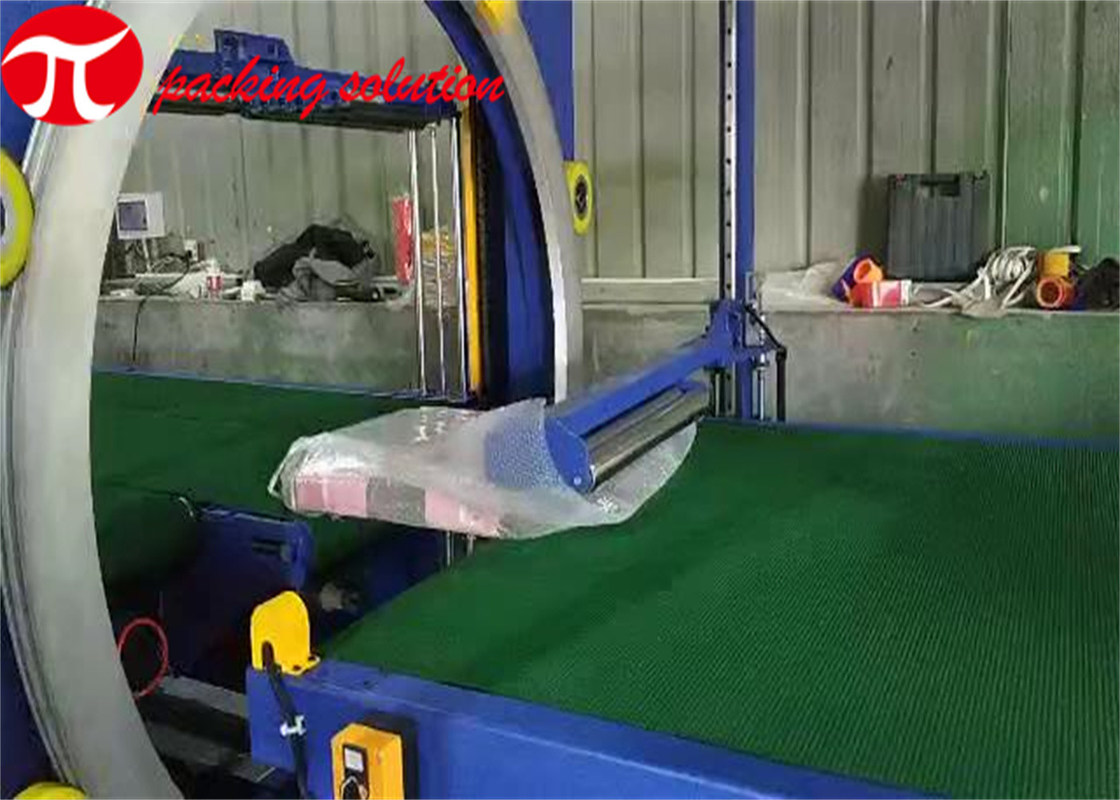

The horizontal wrapping machine is specialized for wrapping horizontal wood panels, wood door, batten board and other horizontal objects. The wrapped package is well-protected & sealed & looks more tidy.
Automatic wood door wood panel packing machine installation main features:
MAIN PARAMETERS
| Items | GG200 |
| Height of the product | ≤200mm |
| Pipe length | Not limited |
| Conveyor length | 1000-6000mm (can be customized) |
| Conveying speed | About 6m-12m/min |
| Rotating speed | About 100r/min |
| Conveyor height | Approx 750mm |
| Overlap scope | About 10%-90% |
| Power output | About 1.2kw |
| Power voltage | 380V/ 3phase/50Hz |
| Material |
Compound paper tape/knit tape/anti-rust tape/waterproof tape stretch film |
| Material size |
width:60-100mm Max OD:200mm ID:55mm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
