INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Aluminum Coil , Steel Wire, Copper Belt,etc | Name: | Aluminum Coil Wrapping Machine |
|---|---|---|---|
| Automation: | Automatic | Ring Speed: | Appr. 20-90r/min |
| Roller Speed: | 5-8m/min | Driven Type: | Electric |
| Voltage: | 220V/380V/50HZ | Packaging Material: | Stretch Film,crepe Paper, Knit Plastic |
| Material Size: | Width:80-100mm; ID:50mm;OD≤150mm | Warranty: | 12 Months |
| Highlight: | 3000Kg Steel Coil Wrapping Machine,80r/min Steel Coil Wrapping Machine,4.0KW Steel Belt Wrapping Machine |
||

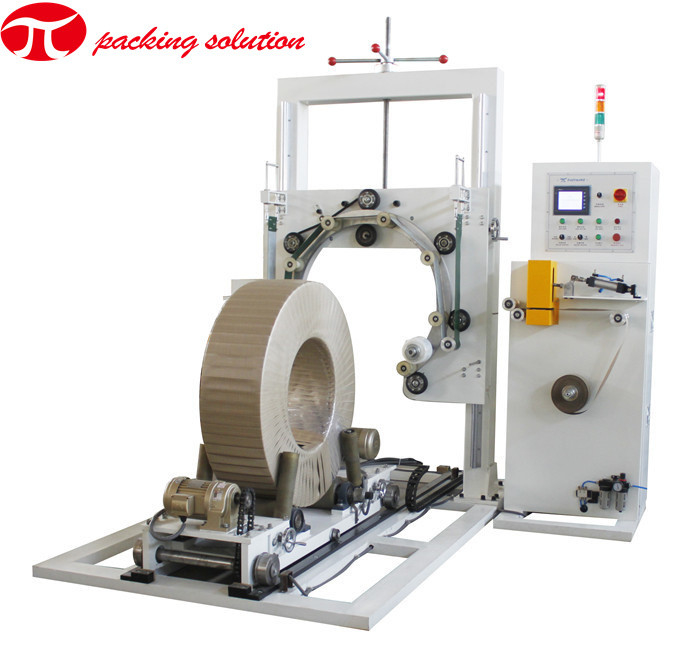

Easy loading Vertical Aluminum Coil Wrapping Machine With PLC Programmable Controller
Easy loading Vertical Aluminum Coil Wrapping Machine application
The packing machine is developed for packing different ring-shaped products including steel coils, aluminum coils, copper coils, wire coils, cable coils, pipe coils, tyres&etc by stretch film, paper or other packing material available. Easy operation and convenient maintenance. It greatly save the labor force and improve the work efficiency from the traditional manual packing.
Easy loading Vertical Aluminum Coil Wrapping Machine features
Easy loading Vertical Aluminum Coil Wrapping Machine parameters
| Model | GD300 | GD600 |
| Type | Wrapper moveable | Wrapper moveable |
| Coil OD | 700mm-1500mm | 700mm-1500mm |
| Coil ID | 508mm/610mm | 508/610mm |
| Coil width | 20mm-300mm | 30mm-600mm |
| Coil weight | 50kg-2000Kg | 50kg-3000Kg |
| Roller speed | 5-8m/min | 5-8m/min |
| Ring speed | 80r/min | 80r/min |
| Power supply | AC/380V/50Hz | AC/380V/50Hz |
| Air supply | 6-8kgf/cm2 | 6-8kgf/cm2 |
| Driven type | Electric | Electric |
| Power output | About 4.0KW | About 4.0KW |
| Wrapping material |
Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm Stretch film: width:80-100mm; ID:50mm;OD≤150mm |
Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm Stretch film: width:80-100mm; ID:50mm;OD≤150mm |
| Automatic mechanical hand | Optional | Optional |
| HMI screen | Optional | Optional |
| Synchronous wrapping system | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 2 years.
2.We provide free training and answer customer's question on technology in time.
