Place of Origin: | China |
---|---|
Brand Name: | jlpack |
Certification: | ISO9001,CE |
Model Number: | GW200 |
Minimum Order Quantity: | 1 |
Packaging Details: | Wooden case /standard container |
Delivery Time: | Stand-alone 1 week ,the packing line 150days |
Payment Terms: | T/T |
Supply Ability: | 200 sets/Year |
Packing Type: | Stretch Wrapping | Applicable Products: | Aluminium Coil,steel Coil,copper Coil |
---|---|---|---|
Automatic Grade: | Automatic/semi-auto | Driven Type: | Electric |
Voltage: | 220/380V/50Hz | Packaging Material: | Stretch Film,crepe Paper |
Coil OD: | 600-1200mm | Coil ID: | 400-1000mm |
Coil Weight: | ≤500KG | Warranty: | 12 Months |
High Light: | GW200 Aluminum Coil Wrapping Machine,1200mm Aluminum Coil Wrapping Machine,80r/min Coil Packaging Line |

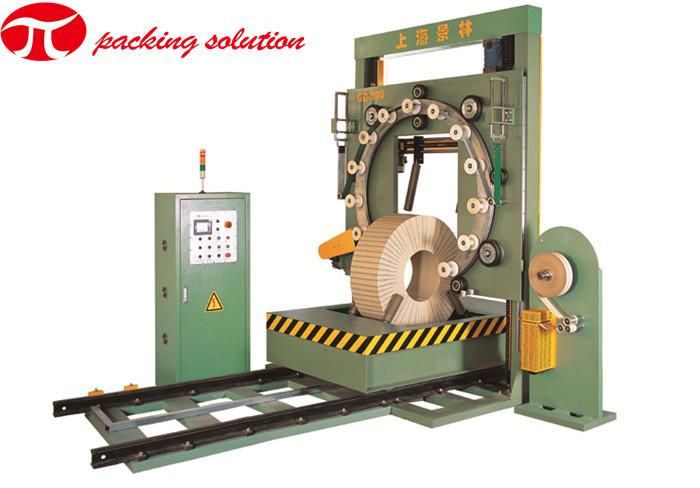

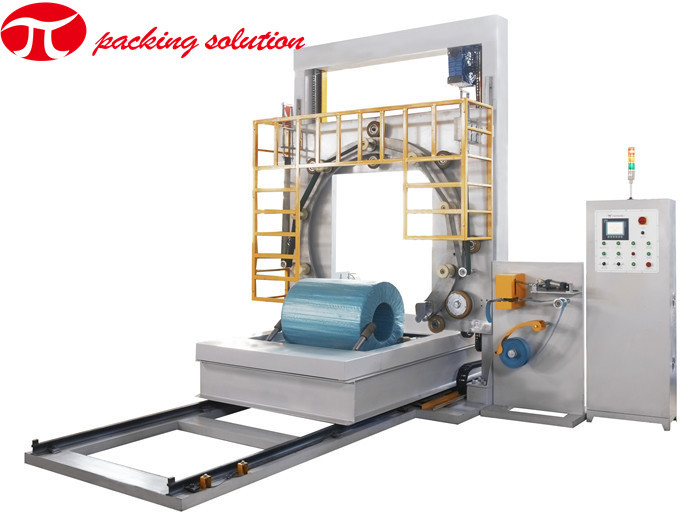

OD 1200mm Aluminum coil Wrapping Machine 80r/min Coil Packaging Line With Conveyor
Application
Mainly designed for outside packing metallurgical industries, could be widely used in the exterior wrapping of coiled articles
such as steel belt, bronze belt, wire material, rubber tube, bearing, electric wire cable & etc.
Basic features
Main parameters
Model | GW200-N | GW200-W |
Coil OD | 600-1200mm | 600-1200mm |
Coil ID | ≥400mm | ≥400mm |
Coil width | ≤200mm | ≤200mm |
Coil weight | ≤300KG | ≤500KG |
Cutting type | Manual cutting | Auto cutting |
Ring speed | About 70r/min | About 80r/min |
Wrapping material | knit tape, compound paper tape,stretch film, non-woven fabrics,etc | knit tape,compound paper tape, etc |
Material width | 100-120mm | 80-100mm |
Material OD | 200mm | 450mm |
Material ID | 55mm | 55mm |
Power output | 1.5KW | 2.2KW |
Power supply | AC/380V | AC/380V |
Air supply (6-8kgf/cm2) | Without | With |
Circular labeling system | Optional | Optional |
Synchronous wrapping system | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Advantages of machine
1. Long service life
Strong structure, heavy duty, laser cutting & rigid board, anti-wearing PU friction wheels and PVC conveyor belt, protective
guardrail, separated electrical cabinet, protective shield, etc.
2. Reinforcing aluminum cast-solid ring
It is able to undertake the heavy packing material and roll device in high speed turning, and to avoid the deformation caused by
centrifugal force in wrapping.
3. Nice and firm package is both for transportation and selling
Material releasing device: It is able to provide tight and constant wrapping packing force. The package is tighten and nice.
4. Be capable of connecting to inline operation
Automatic mechanical hand: Feed and cut the packing material automatically. It is programmable controlled by PLC.
