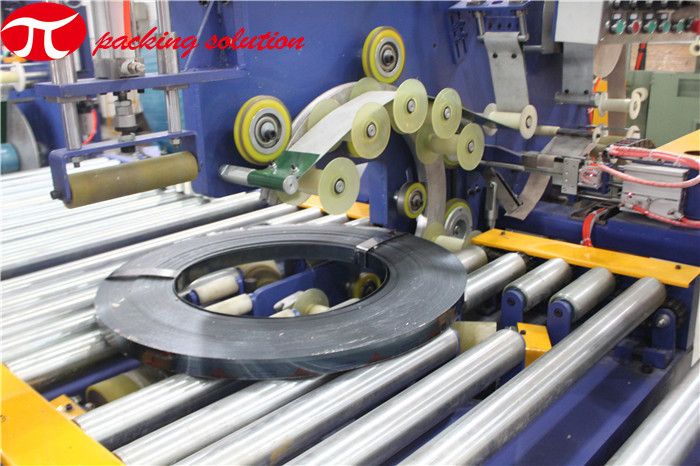

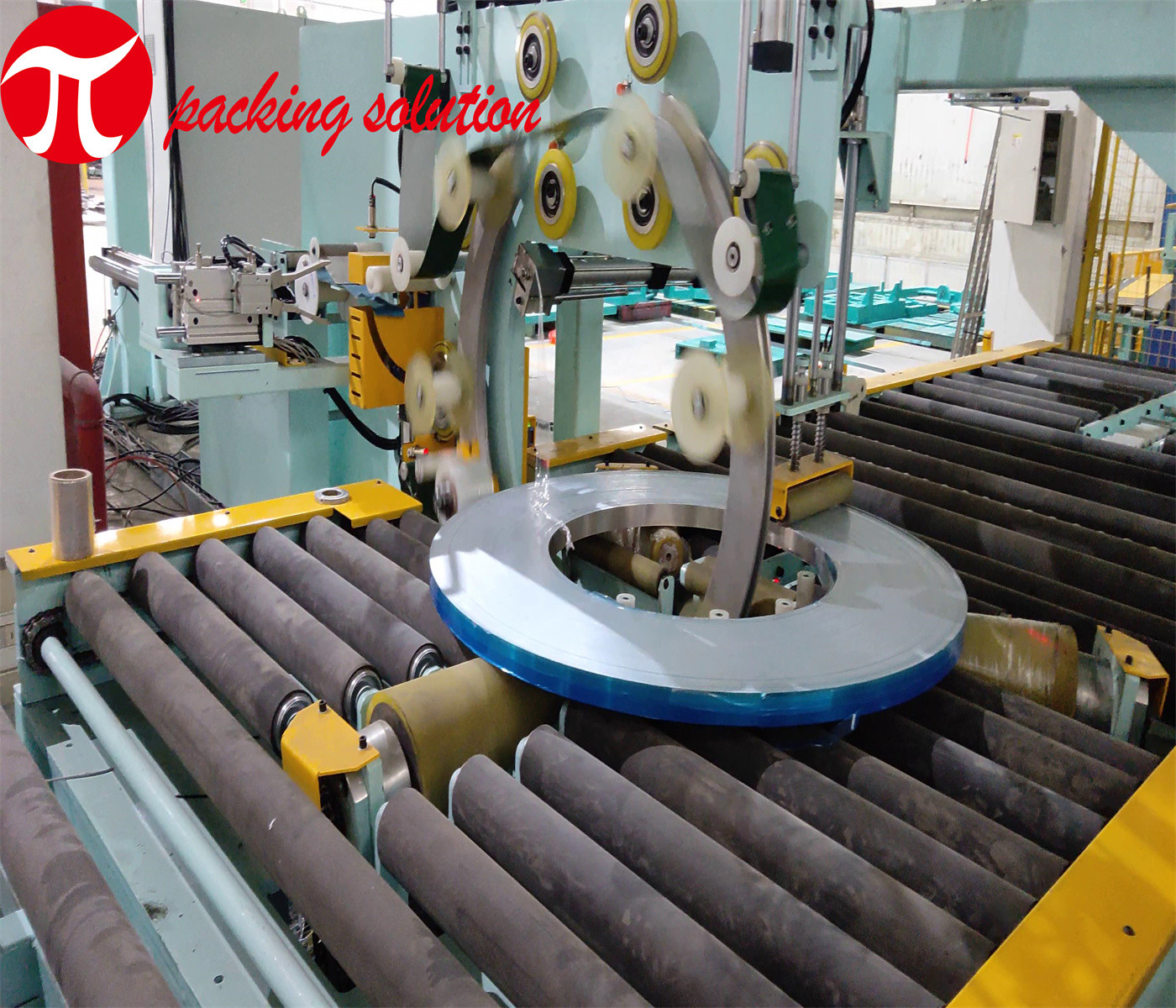

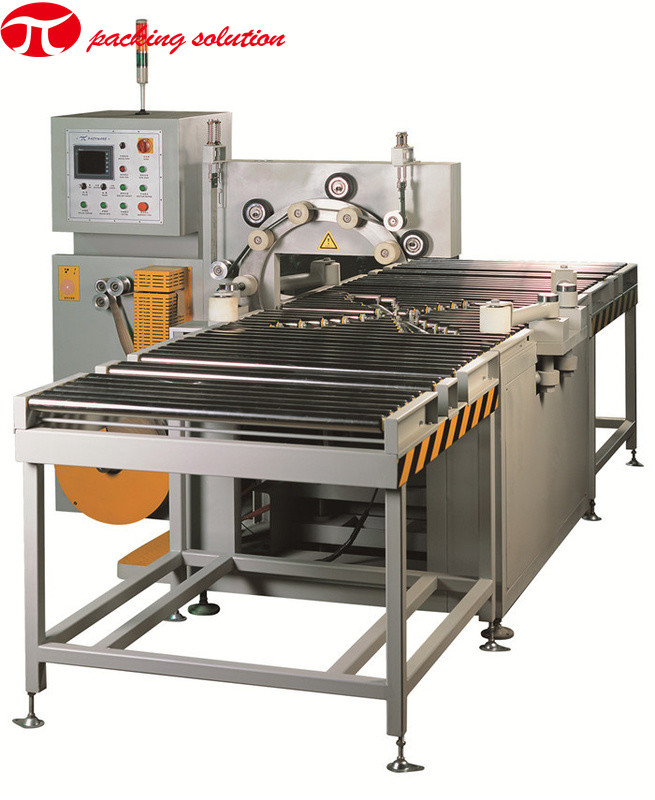

Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90%

Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90%
Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90% Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90% Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90% Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90% Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90% Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90% Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90% Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90% Steel Coil Horizontal Wrapping Machine GG1000 Conveyor 70r/Min Overlap Scope 10%-90%
Basic Information
Place of Origin: China
Brand Name: JLPACK
Certification: ISO9001，CE
Model Number: GG1000
Minimum Order Quantity: 1
Packaging Details: wooden case /standard container
Delivery Time: Stand alone 1 week,the packing line 150 days
Payment Terms: T/T
Supply Ability: 200 sets/Year
Get Best Price Contact Now
Application: Commodity,Machinery & Hardware Type: Wrapping Machine,Packing Machine
Packaging Material: Plastic,Metal,Paper,handheld Strapping Machine 2 Strapping Speed: 2.18 Sec/strap
Weight: 1200KG Driven Type: Electric
Packaging Type: Cartons,Film Voltage: 380V/50HZ
Warranty: 12 Months After-sales Service Provided: Online Service
Highlight:

GG1000 Horizontal Wrapping Machine

,

70r/min Horizontal Wrapping Machine

JINGLIN GG1000 Conveyor length Steel Coil Horizontal Wrapping Machine 70r/min Overlap scope 10%-90%



Automatic Horizontal Orbital Door Packing Machine Panel Wrapping Machine





Machine application and installation:



The horizontal steel pipe wrapping machine is specialized for wrapping horizontal wood panels, wood door, batten board and other horizontal objects. Protective fence ensure safe operation.And photocell sensors are adopted for fixing the packing position.



The machine be mounted on flat & hard ground, where the ground load should be more than 1ton/m2.





Machine installation basic operation:

  • Hoisting the pipe bundles onto the front conveyor line and ready to be wrapped, hoist the packed pipes away from the back convey line after package finished.
  • Rotating speed is about 70r/min.Conveying speed is about 10m-20m/min.



Machine installation main features:

  1. Double-ring & double-rub wheel system make the wrapping more safe, stable & energetic.
  2. Automatic material feed & cutting system can be equipped for human operation.
  3. Both automatic and semi-auto working mode for different choice.
  4. PLC programmable control.
  5. Delivery Date stand alone 1 week,the packing line 150 days.
  6. The turning ring is controlled by converter.
  7. Photocell sensors are adopted for fixing the packing position.
  8. Indicator alarms automatically when trouble occurs.
  9. Overlap rate of the wrapping material can be adjusted according to needs.
  10. Packing material tension could be adjusted.
  11. The machine can be custom designed according to specific object size.
  12. Pressing down device and supportive rollers for fix the packaging position.
  13. Protective fence ensure safe operation.
  14. Conveying speed is about 10m-20m/min.
  15. Material size is width:≤250mm,Max OD:400mm,ID:55mm.
  16. Separate control panel makes operation & maintenance easily.
  17. Wrapping material is compound paper tape/knit tape/anti-rust tape/waterproof tape and stretch film.





MAIN PARAMETERS:



Items GG1000
Height of the product ≤800mm(can be adjustable)
Pipe length Not limited
Conveyor length 1000-6000mm (can be customized)
Conveying speed About 10m-20m/min
Rotating speed About 70r/min
Conveyor height Approx 1000mm
Overlap scope About 10%-90%
Power output About 2.4kw
Power voltage 380V/ 3phase/50Hz
Material

Compound paper tape/knit tape/anti-rust tape/waterproof tape

stretch film
Material size

width:≤250mm

Max OD:400mm

ID:55mm



Note: the datas are only for reference, the machine can be custom designed according to specific object size.
