INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GW300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Plastic Pipe Coils | Automation: | Automatic |
|---|---|---|---|
| Package Width: | ≤300mm | Package ID: | ≥250mm |
| Type: | Wrapping Machine | Voltage: | 380V/50HZ |
| Packaging Material: | Stretch Film,paper,plastic | Machine Name: | Plastic Pipe Coil Packaging Machine |
| Driven Type: | Electric | Ring Speed: | 20-90r/min |
| Highlight: | 500mm PVC Pipe Packing Machine,HMI PVC Pipe Packing Machine,HMI Pipe Packaging Machine |
||

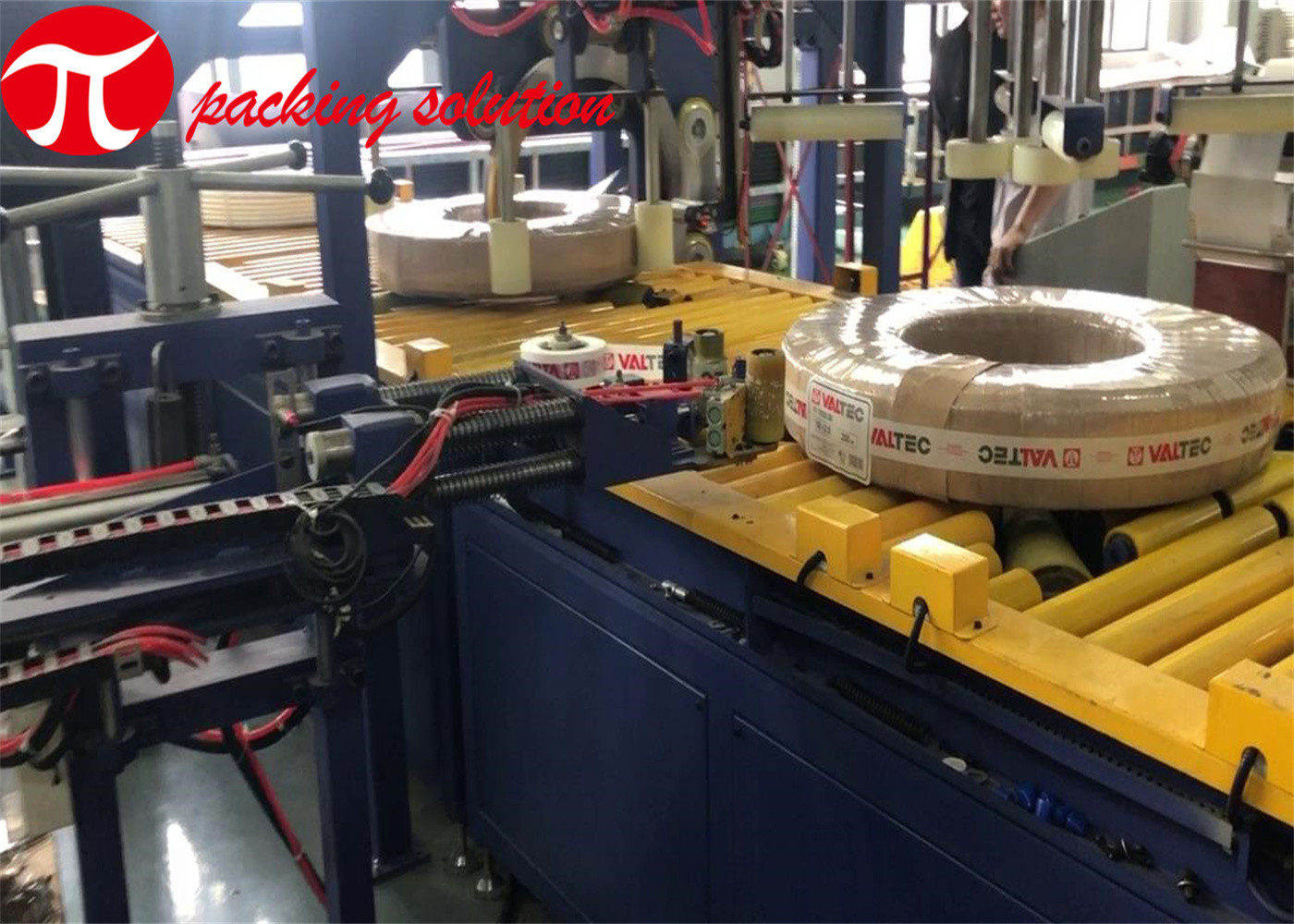

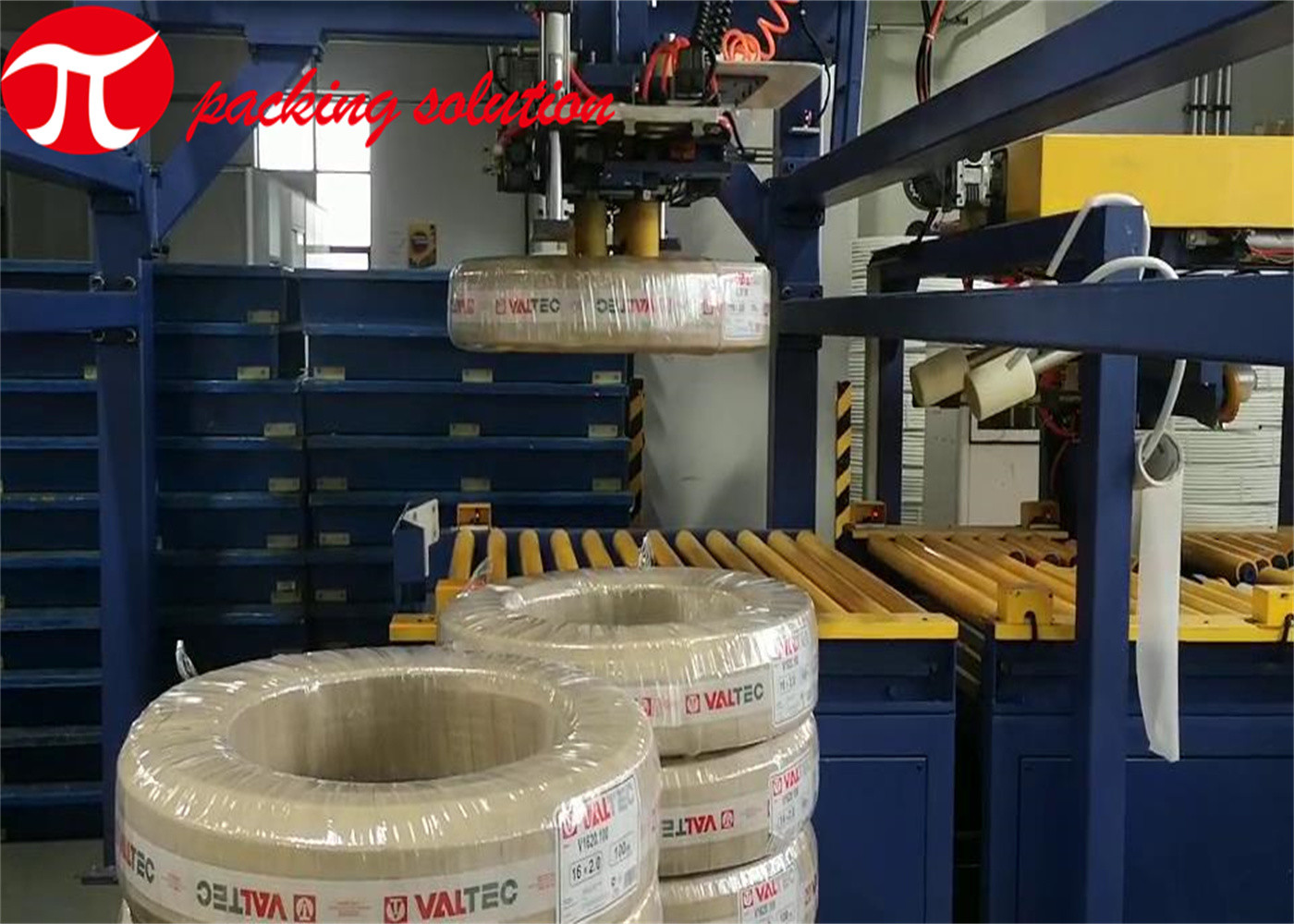

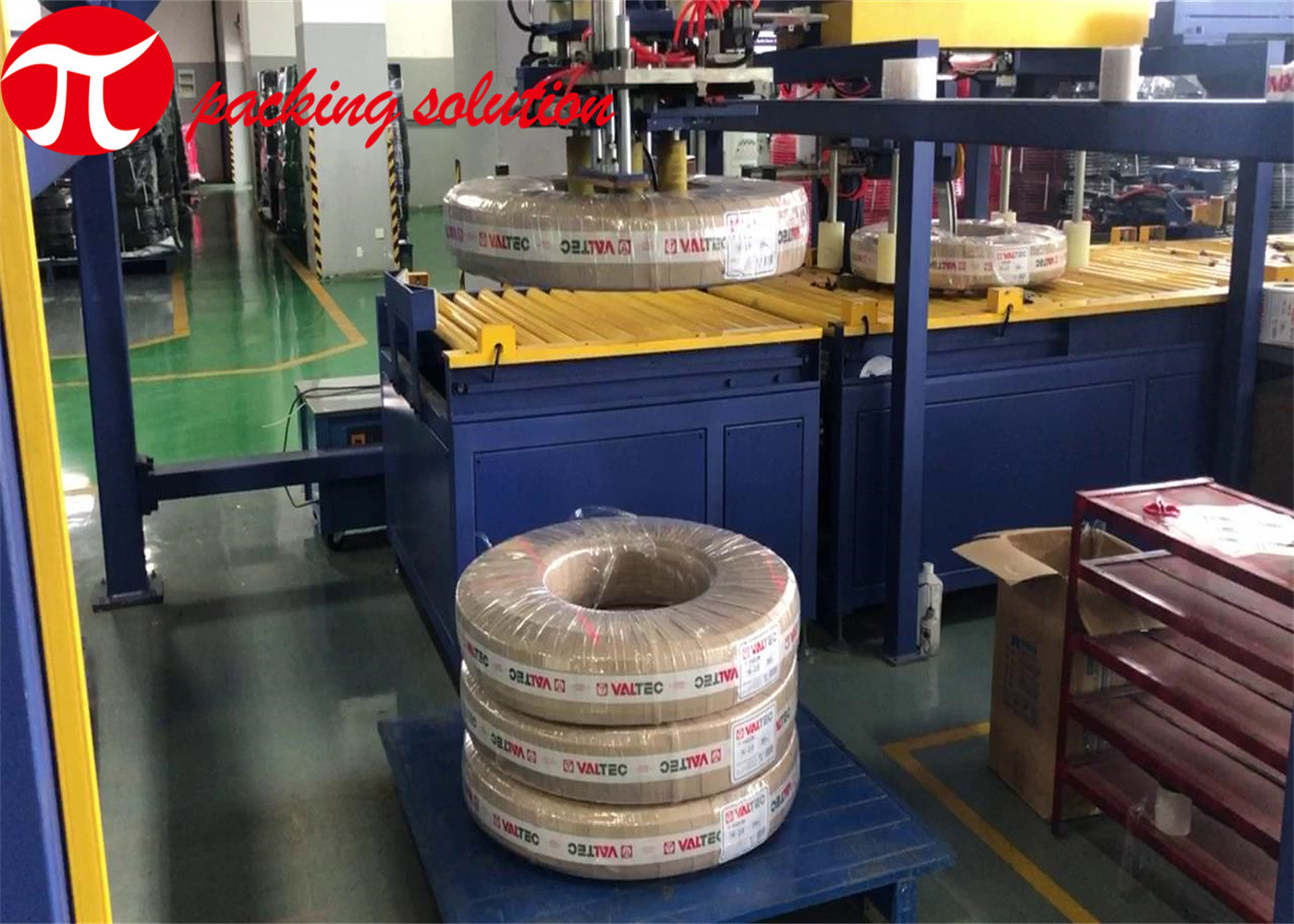

Horizontal packaging machine with conveyor application
The automatic pipe wrapping machine is equipped with infeeding and outfeeding conveyors to achieve automatic packing procedure and maximize the production efficiency. The machine is widely applicable for wrapping pipe coils, hose coils, and other coiled product. Easy operation and maintenance but with extremely high packing efficient.
Horizontal machine with conveyor basic features
Horizontal packaging machine with conveyor parameters
| ITEMS | GW200 | GW300 |
| Package width | ≤200mm | ≤300mm |
| Package OD | 300-500mm | 300-600mm |
| Package ID | ≥200mm | ≥250mm |
| Rotating speed | About 20-90r/min | About 20-90r/min |
| Overlap scope | 30%-70% | 30%-70% |
| Material | Knit tape/stretch film/compound paper etc. W:100mm OD:≤300mm ID:55mm | Knit tape/stretch film/compound paper etc. W:100mm OD:≤300mm ID:55mm |
| Power output | About 1.0kw | About 1.5kw |
| Power voltage | 380V / 50Hz / 3 phase | 380V/50Hz /3 phase |
| Synchronous wrapping system | Optional | Optional |
| Automatic mechanical hand | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
INSTALLATION, COMMISSIOING & TRAINING
◆We shall provide the following commissioning & training service and ensure that the equipment is
◆working smoothly. We estimate that one service engineer will finish these works within 7 days if needed.
◆Installation carried out under our supervision and observation
◆Checking, cabling, programming setting & communication
◆Startup & dry test of whole machine
◆Site Acceptance Test
◆Operation, troubleshooting, repair training to customer
◆All charges for round-tickets fare, accommodation & lodging for our personnel shall be borne by the customer.
