INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Plastic Coils | Driven Type: | Electric |
|---|---|---|---|
| Packaging Material: | Stretch Film,paper Or Knit Tape | Width: | 60-500mm |
| Packaging Type: | Film And Paper Wrapping | Weight: | ≤100KG |
| Voltage: | 380V/50HZ | Type: | Packing Line |
| Warranty: | 12 Months | Color: | Standard Color |
| Highlight: | Horizontal Pipe Packing Machine,Pipe Packing Machine 300mm,380V Plastic Coil Packing Machine |
||

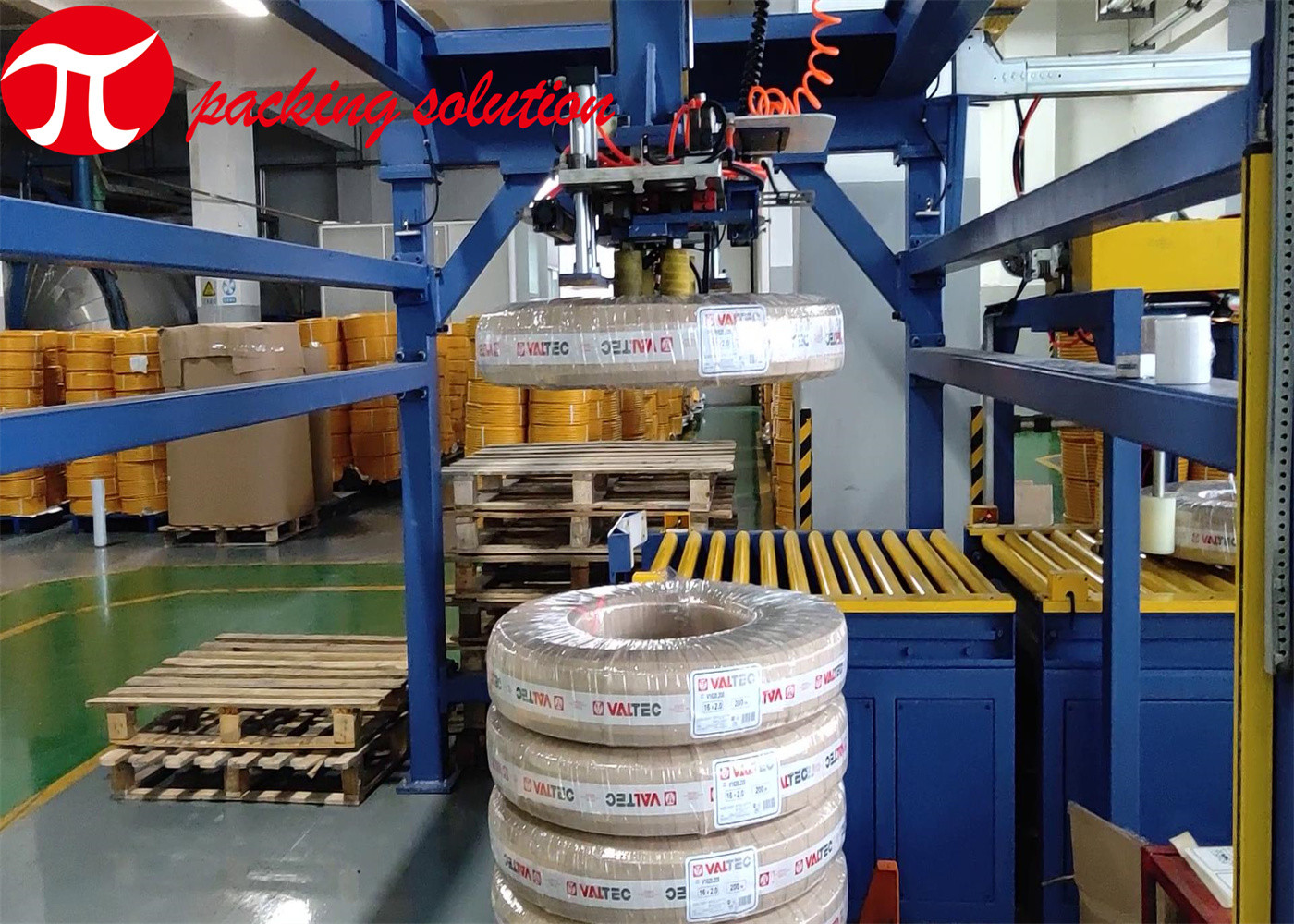

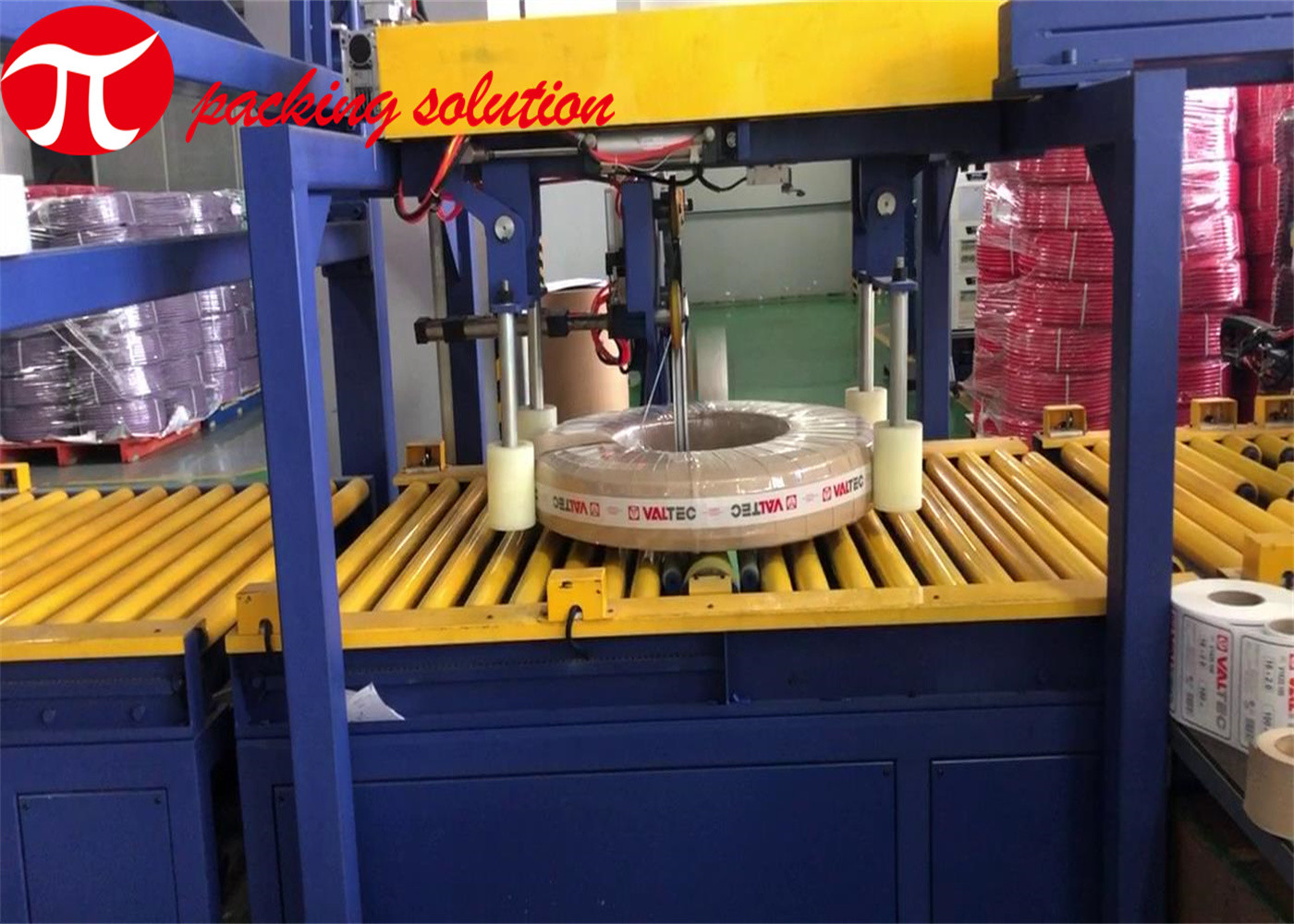

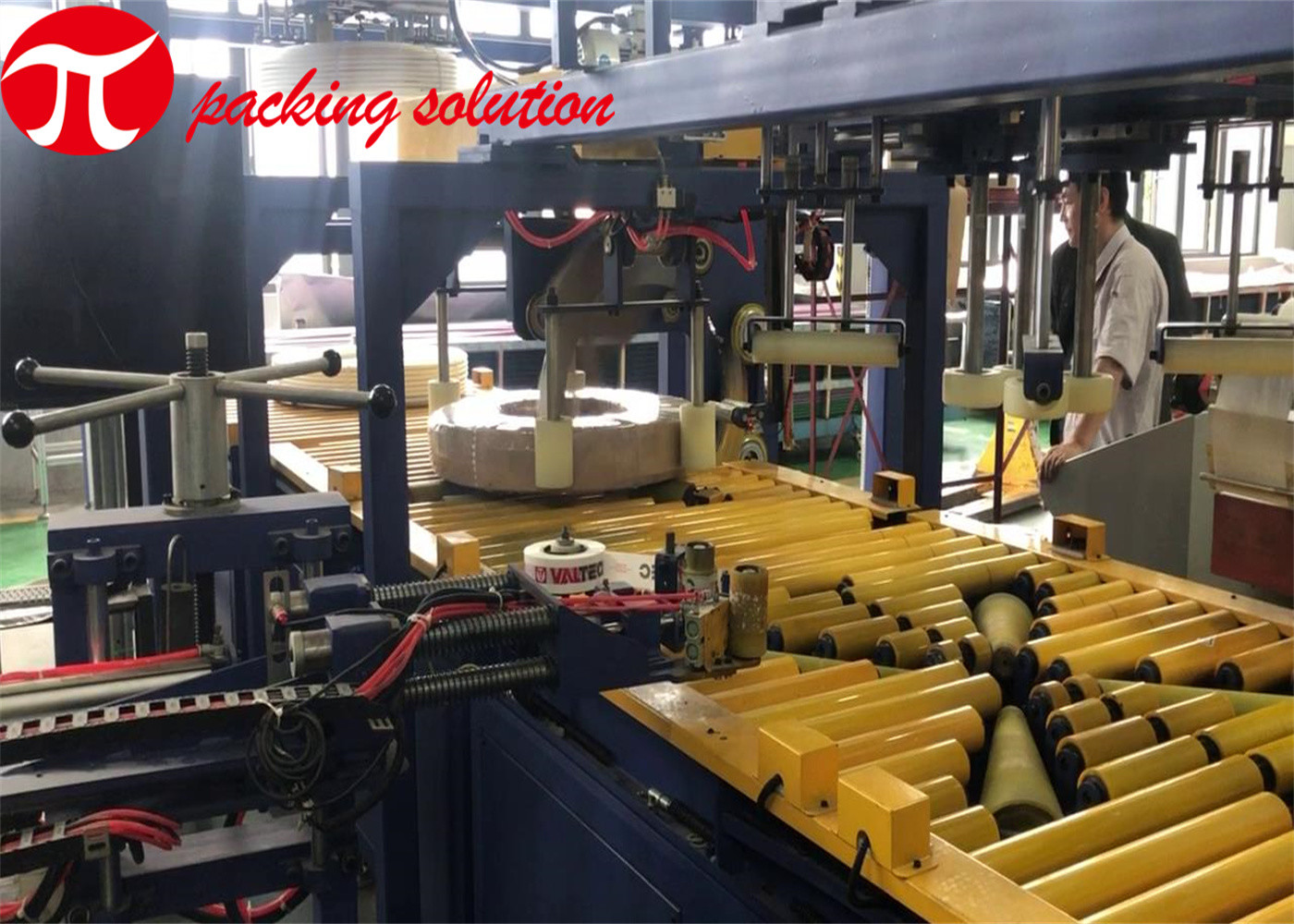

Horizontal Plastic Coil Packing Machine With Loading and Stacking System application and basic composition:
This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for plastic coils,makes the object well packed and stacked, convenient for storage and transportation.
The fully auto machinery is composed of coil loading system,wrapping machine, stacking system, electrical cabinet and guardrails.
Horizontal Plastic Coil Packing Machine With Loading and Stacking System main technical datas(for reference):
OD:600mm～1200mm
ID:300-800mm
Width:60mm～500mm
Weight:≤100KG
Wrapping material:LLDPE stretch film/compound paper
Wrapping overlap: 30%～70% adjustable
Wrapping material size: film roll width 90mm, roll OD 500mm,roll ID 76mm
Maufacturer Introduction:
Shanghai Jinglin Packaging Machinery Co., Ltd was established in 1998. The philosophy of company is to follow the needs of clients. We have extended our business scope from stand-alone machine to complete packaging line, from local to global market. We have developed more than 200 types of packiaging machines and professional solutions for 13 industries including steel industry, aluminum/copper processing industry, plastic pipe industry, wire&bar industry, bearing industry&etc.
